LN205L-PRMSS (2001)

Toyota Hilux/4runner (4wd)

Production Jun 2001 - Dec 2004
Engine 5L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0106- )5L

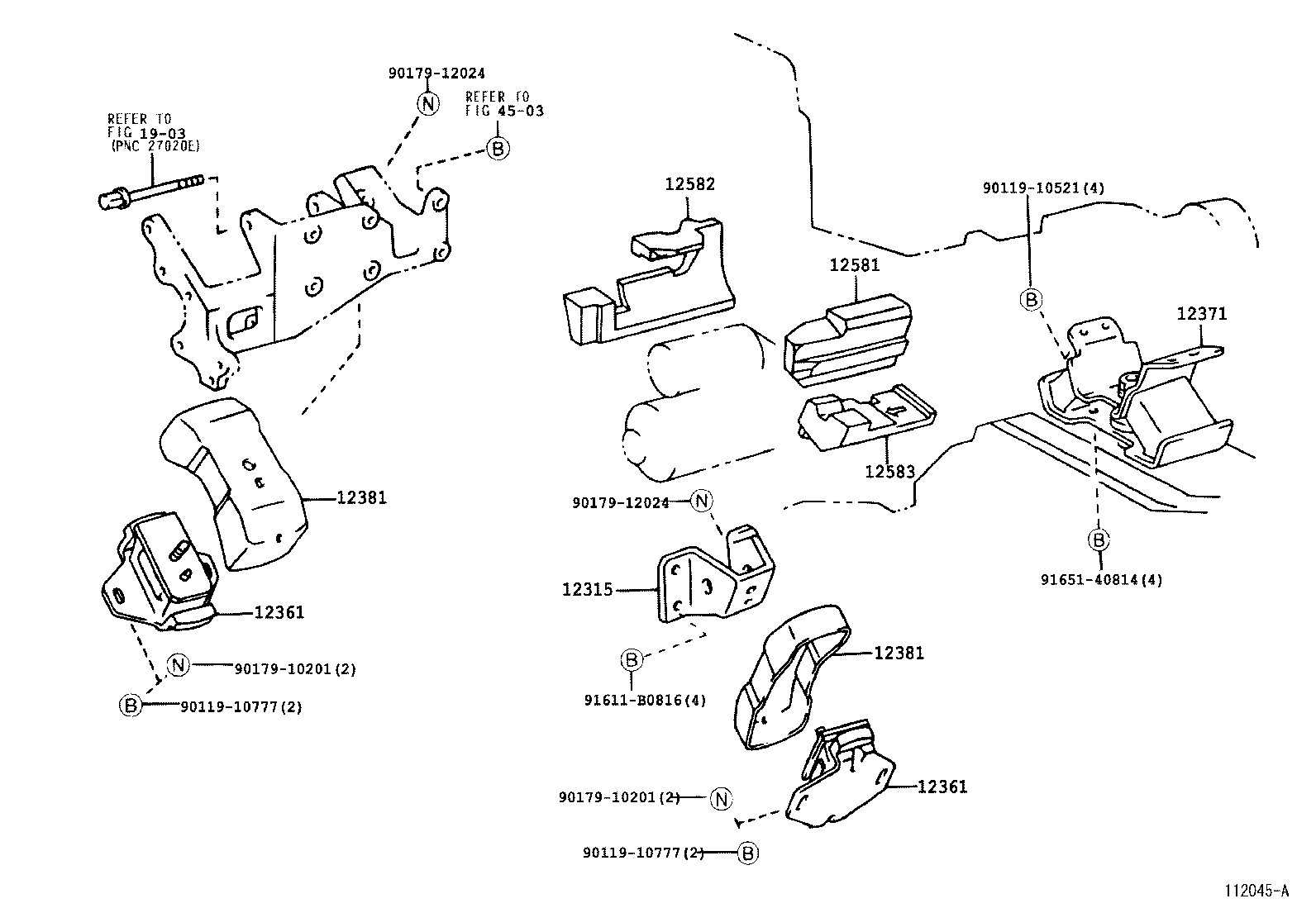

Click highlighted areas on diagram

diagram 12315 12361 12361 12371 12381 12381 12581 12582 12583 1903 4503 9011910521 9011910777 9011910777 9017910201 9017910201 9017912024 9017912024 91611B0816 9165140814
Part # Description Qty Price
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12312-54021

5L..LN205

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54121

5L..LN205

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54121

5L..LN205

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-54060

5L..LN205

 1
12371-65010

5L..LN205..SR5

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-54100

5L..LN205

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54100

5L..LN205

 2
12581 - INSULATOR, CYLINDER BLOCK, NO.1
12581-54010

5L..LN205

 1
12582 - INSULATOR, CYLINDER BLOCK, NO.2
12582-54021

5L..LN205

 1
12583 - INSULATOR, CYLINDER BLOCK, NO.3
12583-54030

5L..LN205

 1
Common parts
90119-10521
90119-10777
90179-10201
90179-12024
91611-B0816
91651-40814
Linked diagrams
1903
4503
