LN205L-PRMSS (2001)
Toyota Hilux/4runner (4wd)
Production
Jun 2001
-
Dec 2004
Engine
5L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0106- )5L

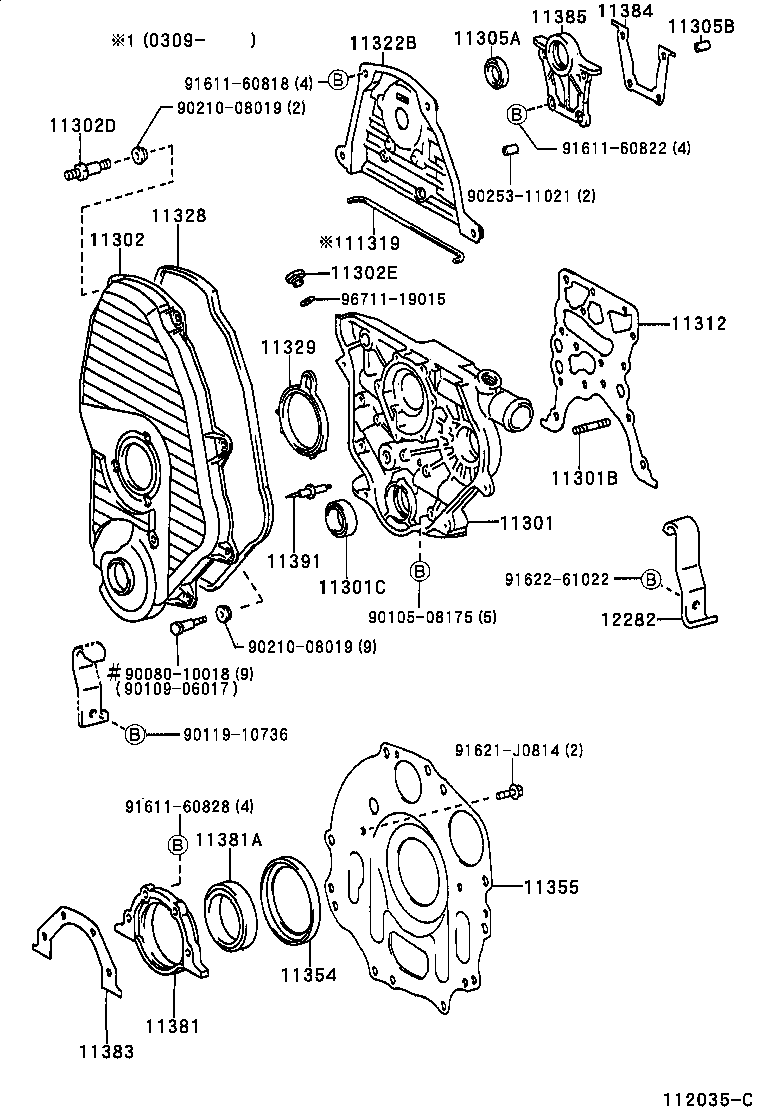

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301 - CASE SUB-ASSY, TIMING GEAR | ||||
| 11311-54052 |
5L..LN205 |
1 | ||
| 11311-54060 |
5L..LN205 |
1 | ||
| 11301B - BOLT,STUD(FOR TIMING GEAR CASE) | ||||
| 92132-60828 |
5L..LN205 |
2 | ||
| 11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) | ||||
| 90311-42031 |
5L..LN205 |
1 | ||
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11321-54020 |
5L..LN205 |
1 | ||
| 11321-54020 |
5L..LN205 (J) |
1 | ||
| 11321-05010 |
5L..LN205 (L) |
1 | ||
| 11302D - BOLT, STUD(FOR TIMING GEAR COVER) | ||||
| 90116-06100 |
5L..LN205 |
2 | ||
| 11302E - PLUG, STRAIGHT(FOR TIMING GEAR COVER) | ||||
| 90341-18004 |
5L..LN205 |
1 | ||
| 11305A - SEAL, OIL(FOR OIL SEAL RETAINER, NO.2) | ||||
| 90311-32019 |
5L..LN205 |
1 | ||
| 11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2) | ||||
| 90253-11021 |
5L..LN205 |
2 | ||
| 11312 - GASKET, FRONT END PLATE | ||||
| 11312-54040 |
5L..LN205 |
1 | ||
| 11319 - GASKET, TIMING BELT COVER, NO.3 | ||||
| 11319-54010 |
5L..LN205 |
1 | ||
| 11322B - COVER, TIMING BELT, NO.2 | ||||
| 11322-54032 |
5L..LN205 |
1 | ||
| 11322-54033 |
5L..LN205 |
1 | ||
| 11322-54031 |
5L..LN205 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-54021 |
5L..LN205 (J) |
1 | ||
| 11328-05010 |
5L..LN205 (L) |
1 | ||
| 11328-54021 |
5L..LN205 |
1 | ||
| 11329 - GASKET, TIMING GEAR REAR COVER | ||||
| 11329-54021 |
5L..LN205 |
1 | ||
| 11329-05010 |
5L..LN205 (L) |
1 | ||
| 11329-54021 |
5L..LN205 (J) |
1 | ||
| 11354 - SEAL, FLYWHEEL HOUSING DUST | ||||
| 11354-54010 |
5L..LN205 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-54030 |
5L..LN205 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-05010 |
5L..LN205 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-85008 |
5L..LN205 |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-54030 |
5L..LN205 |
1 | ||
| 11384 - GASKET, OIL SEAL RETAINER, NO.2 | ||||
| 11384-54030 |
5L..LN205 |
1 | ||
| 11385 - RETAINER, CAMSHAFT OIL SEAL | ||||
| 11382-54020 |
5L..LN205 |
1 | ||
| 11391 - POINTER, TIMING | ||||
| 11391-54020 |
5L..LN205 |
1 | ||
| 12282 - HANGER, ENGINE, NO.2 | ||||
| 12282-54060 |
5L..LN205 |
1 | ||
| Common parts | ||||
| 90080-10018 | ||||
| 90105-08175 | ||||
| 90109-06017 | ||||
| 90119-10736 | ||||
| 90210-08019 | ||||
| 90253-11021 | ||||
| 91611-60818 | ||||
| 91611-60822 | ||||
| 91611-60828 | ||||
| 91621-J0814 | ||||
| 91622-61022 | ||||
| 96711-19015 | ||||
