LN135L-GKMDS (1989)

Toyota Hilux/4runner (4wd)

Production Apr 1989 - Nov 1995
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

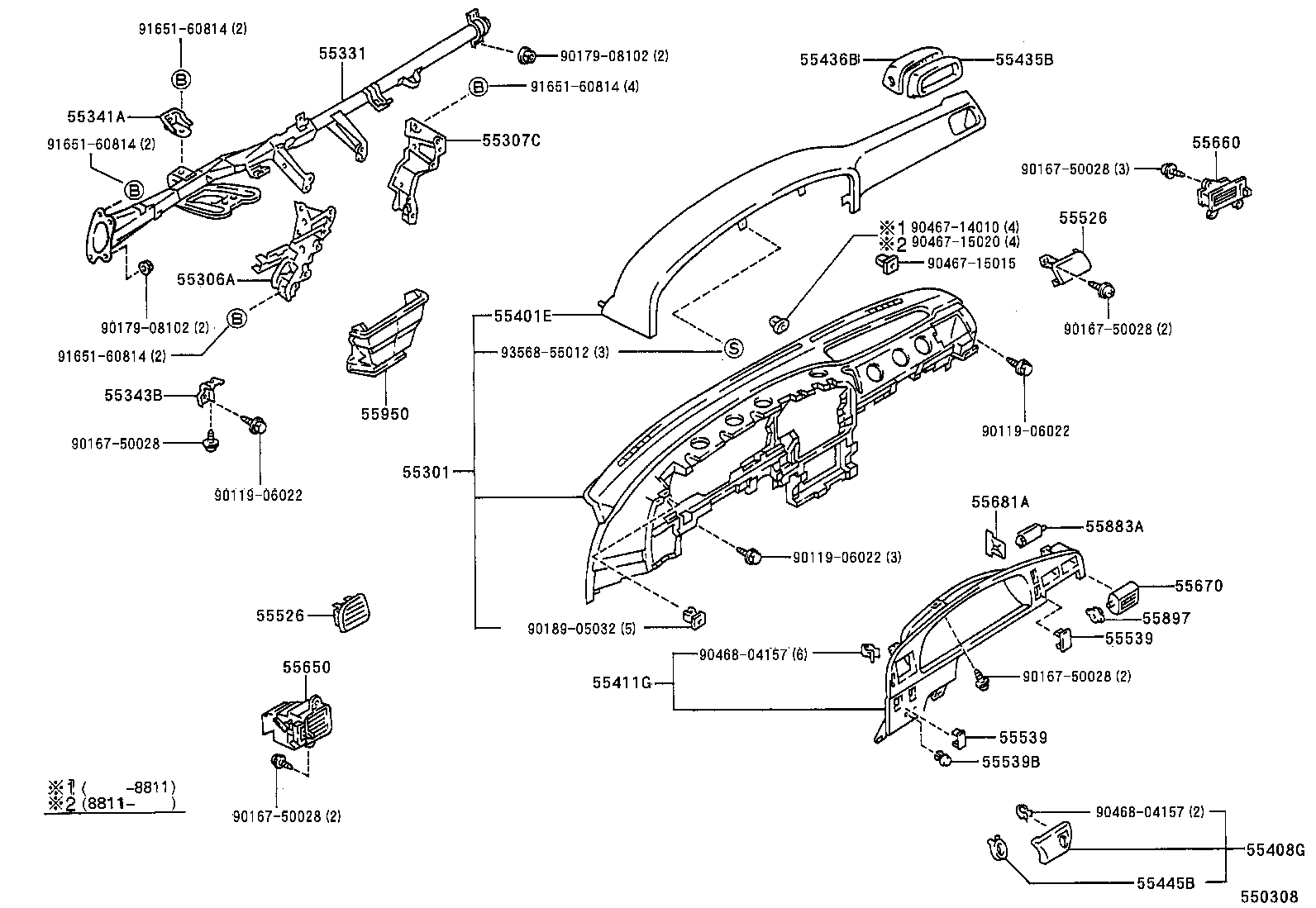

ILLUST NO. 1 OF 2(8904-9511)LN13#,RN13#,YN135..LHD

Click highlighted areas on diagram

diagram 55301 55306A 55307C 55331 55341A 55343B 55401E 55408G 55411G 55435B 55436B 55445B 55526 55526 55539 55539 55539B 55650 55660 55670 55681A 55883A 55897 55950 9011906022 9011906022 9011906022 9016750028 9016750028 9016750028 9016750028 9016750028 9017908102 9017908102 9018905032 9046714010 9046715015 9046715020 9046804157 9046804157 9165160814 9165160814 9165160814 9165160814 9356855012
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-89121E0

LN135,RN135,YN135..LHD

BROWN,TRIM4#

 1
55301-8912102

LN135,YN135..LHD

RED,TRIM3#

 1
55301-8912202

LN135,YN135..LHD

W(ACCESSORY METER),RED,TRIM3#

 1
55301-89121B0

LN13#,RN13#,YN135..LHD

MEDIUM GRAY,TRIM1#

 1
55301-8912206

LN135,RN135,YN135..LHD

W(ACCESSORY METER),BROWN,TRIM4#

 1
55301-89121J0

LN13#,RN13#,YN135..LHD

MEDIUM BLUE,TRIM8#

 1
55301-8912203

LN13#,RN13#,YN135..LHD

W(ACCESSORY METER),GRAY,TRIM1#

 1
55301-8912204

LN13#,RN13#,YN135..LHD

W(ACCESSORY METER),BLUE,TRIM8#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-89105

LN13#,RN13#,YN135..LHD

 1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-89107

LN13#,RN13#,YN135..LHD

 1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-89120

LN135,RN135,YN135..LHD

 1
55330-89117

LN135,YN135..LHD

 1
55330-35020

LN106,111,13#,RN10#,13#,YN106..LHD

 1
55330-35030

LN13#,RN13#..LHD

 1
55341A - BRACE, INSTRUMENT PANEL TO COWL, UPPER
55341-89103

LN10#,111,13#,RN10#,13#,YN106,135..LHD

 1
55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER
55343-89101

LN10#,111,13#,RN10#,13#,YN106,135..LHD

 1
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-89122B0

LN13#,RN13#,YN135..LHD

MEDIUM GRAY,TRIM1#

 1
55401-89122J0

LN13#,RN13#,YN135..LHD

MEDIUM BLUE,TRIM8#

 1
55401-89122E0

LN135,RN135,YN135..LHD

BROWN,TRIM4#

 1
55401-8912202

LN135,YN135..LHD

RED,TRIM3#

 1
55408G - BEZEL SUB-ASSY, STARTER SWITCH
55408-89101

LN106,111,13#,RN10#,13#,YN106,135..LHD

 1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-89109

LN13#,RN13#,YN135..LHD

 1
55435B - CLUSTER, METER HOOD, NO.1
55435-8910502

LN135,YN135..LHD

RED,TRIM3#

 1
55435-8910506

LN135,RN135,YN135..LHD

BROWN,TRIM4#

 1
55435-8910503

LN13#,RN13#,YN135..LHD

GRAY,TRIM1#

 1
55435-8910504

LN13#,RN13#,YN135..LHD

BLUE,TRIM8#

 1
55436B - CLUSTER, METER HOOD, NO.2
55436-8910203

LN13#,RN13#,YN135..LHD

GRAY,TRIM1#

 1
55436-8910206

LN135,RN135,YN135..LHD

BROWN,TRIM4#

 1
55436-8910202

LN135,YN135..LHD

RED,TRIM3#

 1
55436-8910204

LN13#,RN13#,YN135..LHD

BLUE,TRIM8#

 1
55445B - PLATE, INSTRUMENT PANEL FINISH
55445-89103

LN107..ARL;LN106,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
55526 - COVER, INSTRUMENT PANEL REGISTER OPENING
55526-8910903

LN106,111,135,RN105,135,YN106,135..LHD

GRAY,TRIM1#,PASSENGER SIDE

 1
55526-8910904

LN106,111,135,RN105,135,YN106,135..LHD

BLUE,TRIM8#,PASSENGER SIDE

 1
55526-89108

LN106,111,135,RN105,YN106,135..LHD

DRIVER SIDE

 1
55526-8910904

LN106,111,135,RN105,YN106,135..LHD

BLUE,TRIM8#,PASSENGER SIDE

 1
55526-8910906

LN106,111,135,RN105,135,YN106,135..LHD

BROWN,TRIM4#,PASSENGER SIDE

 1
55526-8910903

LN106,111,135,RN105,YN106,135..LHD

GRAY,TRIM1#,PASSENGER SIDE

 1
55526-89108

LN106,111,135,RN105,135,YN106,135..LHD

DRIVER SIDE

 1
55526-8910906

LN106,111,135,RN105,YN106,135..LHD

BROWN,TRIM4#,PASSENGER SIDE

 1
55526 - COVER, INSTRUMENT PANEL REGISTER OPENING
55526-8910903

LN106,111,135,RN105,135,YN106,135..LHD

GRAY,TRIM1#,PASSENGER SIDE

 1
55526-8910904

LN106,111,135,RN105,135,YN106,135..LHD

BLUE,TRIM8#,PASSENGER SIDE

 1
55526-89108

LN106,111,135,RN105,YN106,135..LHD

DRIVER SIDE

 1
55526-8910904

LN106,111,135,RN105,YN106,135..LHD

BLUE,TRIM8#,PASSENGER SIDE

 1
55526-8910906

LN106,111,135,RN105,135,YN106,135..LHD

BROWN,TRIM4#,PASSENGER SIDE

 1
55526-8910903

LN106,111,135,RN105,YN106,135..LHD

GRAY,TRIM1#,PASSENGER SIDE

 1
55526-89108

LN106,111,135,RN105,135,YN106,135..LHD

DRIVER SIDE

 1
55526-8910906

LN106,111,135,RN105,YN106,135..LHD

BROWN,TRIM4#,PASSENGER SIDE

 1
55539 - COVER, SPARE SWITCH HOLE
55539-89105

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-89105

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-89104

RN135..GEN;LN106,111,13#,RN10#,130,YN106,135..GEN,V

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-89112

LN106,111,13#,RN10#,13#,YN106,135..LHD

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-8910702

LN135,YN135..LHD

RED,TRIM3#

 1
55660-8910703

LN106,111,13#,RN10#,13#,YN106,135..LHD

GRAY,TRIM1#

 1
55660-8910706

LN106,111,135,RN105,135,YN106,135..LHD

BROWN,TRIM4#

 1
55660-8910704

LN106,111,13#,RN10#,13#,YN106,135..LHD

BLUE,TRIM8#

 1
55660-89107J0

LN106,111,13#,RN10#,13#,YN106..LHD

MEDIUM BLUE,TRIM8#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-89117

LN106,111,135,RN105,135,YN106,135..LHD

 2
55670-89117

LN106,111,135,RN105,YN106,135..LHD

 2
55670-89115

LN106,111,135,RN105,135,YN106,135..LHD

W(HEATER)

 2
55670-89115

LN106,111,135,RN105,YN106,135..LHD

W(HEATER)

 2
55670-89115

LN135,RN135,YN135..LHD

 2
55681A - SUPPORT, INSTRUMENT PANEL REGISTER
55681-89101

LN106,111,135,RN105,135,YN106,135..LHD

 1
55681-89101

LN106,111,135,RN105,YN106,135..LHD

 1
55883A - DAMPER, AIR
55883-89101

LN106,111,135,RN105,135,YN106,135..LHD

 2
55883-89101

LN106,111,135,RN105,YN106,135..LHD

 2
55897 - KNOB, AIR DAMPER CONTROL LEVER
55897-89105

LN106,111,135,RN105,135,YN106,135..LHD

 2
55897-89105

LN106,111,135,RN105,YN106,135..LHD

 2
55950 - NOZZLE ASSY, DEFROSTER
55950-89108

LN106,111,13#,RN10#,13#,YN106,135..LHD

 1
Common parts
90119-06022
90167-50028
90179-08102
90189-05032
90467-14010
90467-15015
90467-15020
90468-04157
91651-60814
93568-55012
