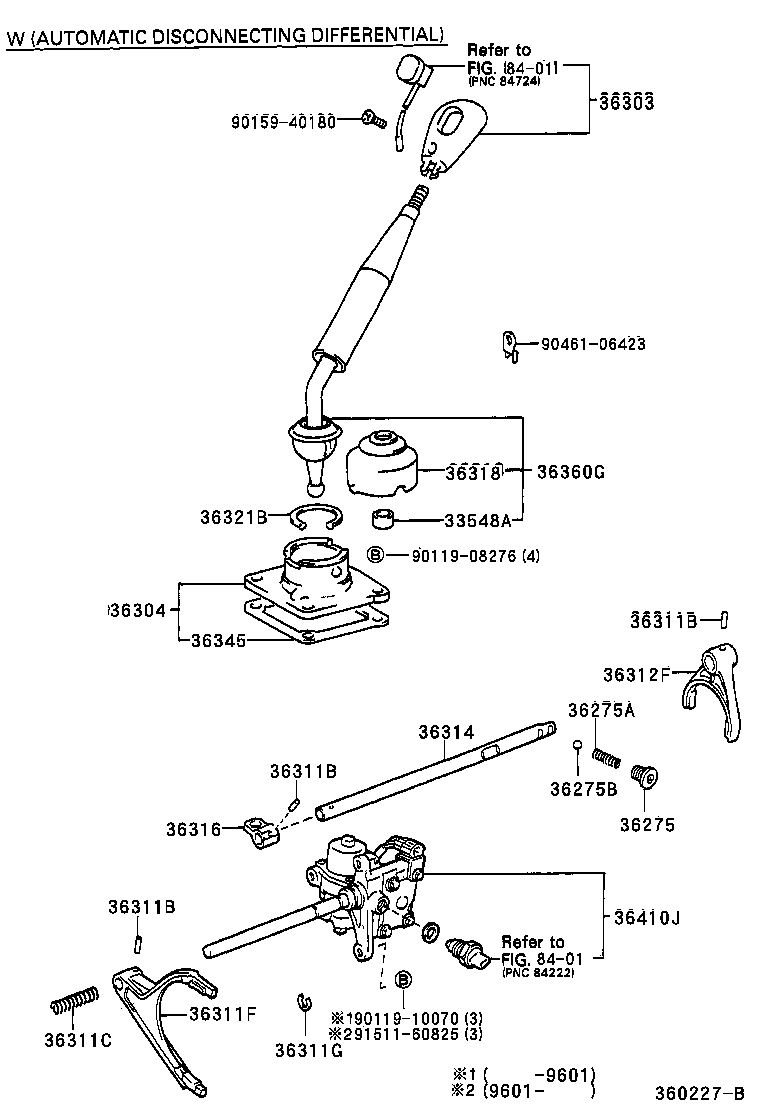

LN130R-GJMSSQ (1989)
Toyota Hilux/4runner (4wd)
(8908-9008)LN111,130,RN110,130..SR5 ; (9008-9511)VZN130..5F ; (9008-0105)LN107,111,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
LN111,130,RN110,130..SR5 |
1 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16116 |
LN111,130,RN110,130..SR5 |
1 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
LN111,130,RN110,130..SR5 OD=9.52,STEEL |
1 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-3509006 |
LN111,130,RN110,130..SR5 BROWN,TRIM4# |
1 | ||
| 36303-3509004 |
LN111,130,RN110,130..SR5 BLUE,TRIM8# |
1 | ||
| 36303-3509003 |
LN111,130,RN110,130..SR5 GRAY,TRIM1# |
1 | ||
| 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER | ||||
| 36304-35050 |
LN111,RN106..ARL..CBU;LN107,13#,RN110,13#,YN135 |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
LN111,130,RN110,130..SR5 L=22 |
3 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
LN111,130,RN110,130..SR5 L=22 |
3 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
LN111,130,RN110,130..SR5 L=22 |
3 | ||
| 36311C - SPRING, COMPRESION (FOR SHIFT FORK) | ||||
| 90501-20100 |
LN111,130,RN110,130..SR5 |
1 | ||
| 36311F - FORK, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36311-35041 |
LN111,130,RN110,130..SR5 |
1 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36312-35030 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-35090 |
LN111,130,RN110,130..SR5 |
1 | ||
| 36316 - HEAD, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36316-35030 |
LN111,130,RN110,130..SR5 |
1 | ||
| 36318 - BOOT, TRANSFER FRONT DRIVE SHIFT | ||||
| 33555-35090 |
LN111,RN106..ARL..CBU;LN107,13#,RN110,13#,VZN130,YN135..5F |
1 | ||
| 36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER) | ||||
| 90521-49003 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F |
1 | ||
| 36345 - GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER | ||||
| 36345-35040 |
LN13#,RN13#,YN135;LN107,111,RN106,110..ARL..CBU |
1 | ||
| 36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT | ||||
| 36360-35120 |
LN111,130,RN110,130..SR5 |
1 | ||
| 36410J - ACTUATOR ASSY, TRANSFER SHIFT | ||||
| 36410-35011 |
LN111,130,RN110,130..SR5 |
1 | ||
| Common parts | ||||
| 90119-08276 | ||||
| 90119-10070 | ||||
| 90159-40180 | ||||
| 90461-06423 | ||||
| 91511-60825 | ||||
| Linked diagrams | ||||
| 8401 | ||||

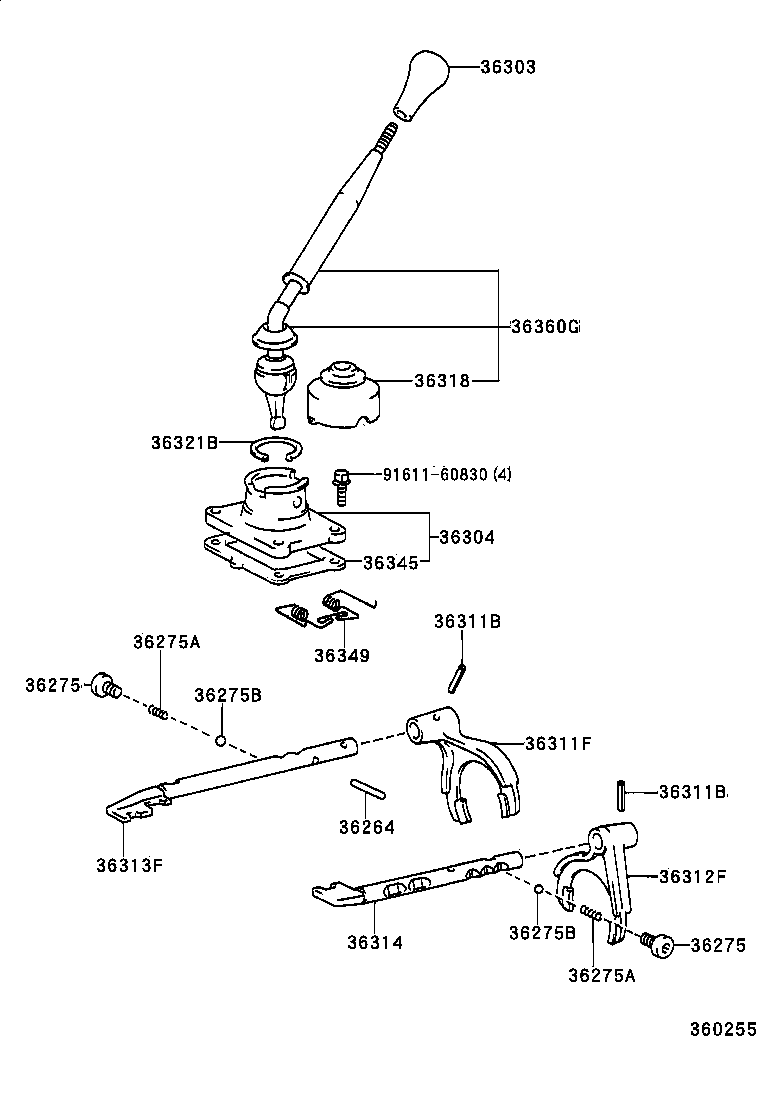

(8808-0105)LN111..GEN ; (8808-0105)LN106,RN10#,YN106 ; (9308-0105)LN111..ARL..IV3 ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
LN111,130,RN110,130..SR5 |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
LN111,130,RN110,130..SR5 |
1 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16116 |
LN111,130,RN110,130..SR5 |
1 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16116 |
LN111,130,RN110,130..SR5 |
1 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
LN111,130,RN110,130..SR5 OD=9.52,STEEL |
1 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
LN111,130,RN110,130..SR5 OD=9.52,STEEL |
1 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-3509006 |
LN111,130,RN110,130..SR5 BROWN,TRIM4# |
1 | ||
| 36303-3509004 |
LN111,130,RN110,130..SR5 BLUE,TRIM8# |
1 | ||
| 36303-3509003 |
LN111,130,RN110,130..SR5 GRAY,TRIM1# |
1 | ||
| 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER | ||||
| 36304-35050 |
LN111,RN106..ARL..CBU;LN107,13#,RN110,13#,YN135 |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
LN111,130,RN110,130..SR5 L=22 |
3 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
LN111,130,RN110,130..SR5 L=22 |
3 | ||
| 36311F - FORK, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36311-35041 |
LN111,130,RN110,130..SR5 |
1 | ||
| 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36312-35030 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-35090 |
LN111,130,RN110,130..SR5 |
1 | ||
| 36318 - BOOT, TRANSFER FRONT DRIVE SHIFT | ||||
| 33555-35090 |
LN111,RN106..ARL..CBU;LN107,13#,RN110,13#,VZN130,YN135..5F |
1 | ||
| 36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER) | ||||
| 90521-49003 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F |
1 | ||
| 36345 - GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER | ||||
| 36345-35040 |
LN13#,RN13#,YN135;LN107,111,RN106,110..ARL..CBU |
1 | ||
| 36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT | ||||
| 36360-35120 |
LN111,130,RN110,130..SR5 |
1 | ||
| Common parts | ||||
| 91611-60830 | ||||
