Toyota Hilux/4runner (4wd) LN111 POWER STEERING TUBE

LN111R-CRMSSQ (1988)

Toyota Hilux/4runner (4wd)

Production Aug 1988 - Aug 1997

Engine 3L

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

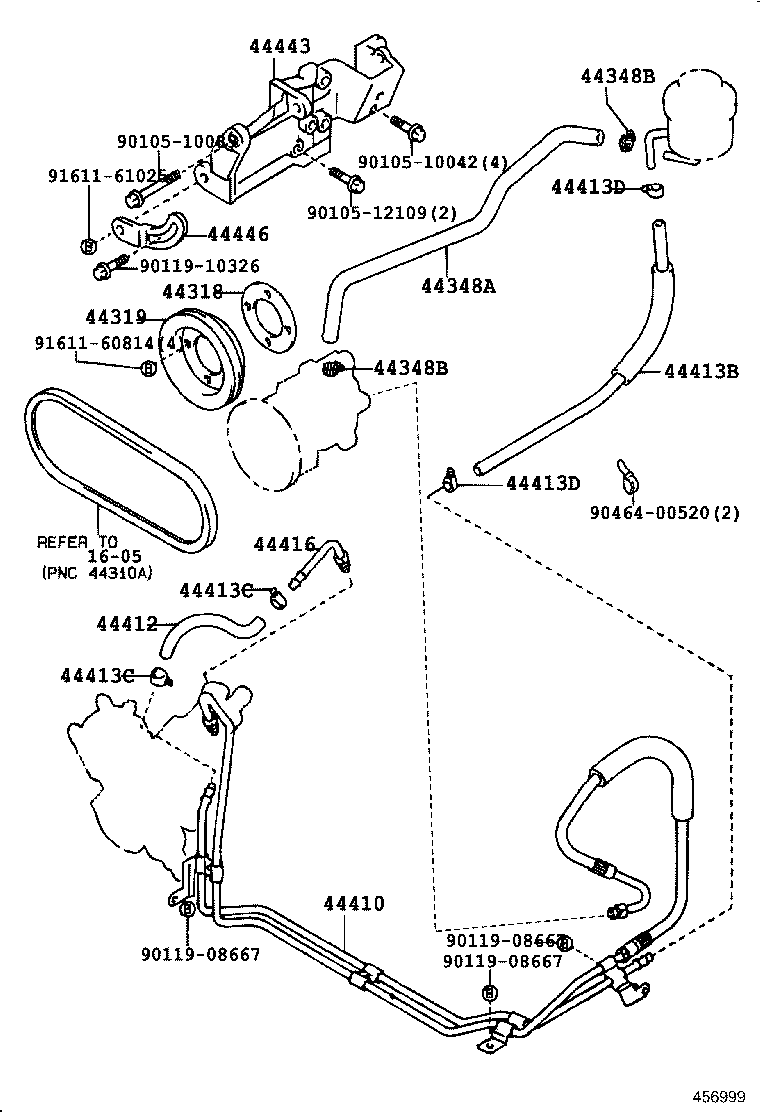

(9108- )LN10#,111,13#..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44318 - SPACER, VANE PUMP DRIVE PULLEY
44318-35010	LN106,111	08/1988 - 12/1988	1
44318-35010	LN111;LN106..GEN;LN135..LHD	12/1988 - 08/1989	1
44319 - PULLEY, VANE PUMP DRIVE
44319-22010	LN10#,111,13#..RHD	08/1988 - 09/1999	1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-35130	LN10#,111,13#..RHD	08/1988 - 09/1999	1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001	LN10#,111,13#,RN10#,110,13#	08/1988 - 04/1994	2
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001	LN10#,111,13#,RN10#,110,13#	08/1988 - 04/1994	2
44410 - TUBE ASSY, PRESSURE FEED
44410-35220	LN111,13#..RHD	08/1988 - 08/1990	1
44412 - HOSE, RETURN
44412-35110	LN107,111,13#,RN106,110,13#,YN13#..RHD	08/1988 - 12/1998	1
44413B - HOSE(FOR RESERVOIR TANK INLET)
90447-18036	LN10#,111,13#..RHD	08/1988 - 09/1999	1
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001	YN106,135..RHD;LN106,111,13#,VZN130,YN130	08/1988 - 08/1991	2
90460-01001	YN106..RHD;LN10#,111,13#	08/1991 - 04/1994	2
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001	YN106,135..RHD;LN106,111,13#,VZN130,YN130	08/1988 - 08/1991	2
90460-01001	YN106..RHD;LN10#,111,13#	08/1991 - 04/1994	2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001	YN106..RHD;LN10#,111,13#	08/1991 - 04/1994	2
90460-01001	YN106,135..RHD;LN106,111,13#,VZN130,YN130	08/1988 - 08/1991	2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001	YN106..RHD;LN10#,111,13#	08/1991 - 04/1994	2
90460-01001	YN106,135..RHD;LN106,111,13#,VZN130,YN130	08/1988 - 08/1991	2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-35100	LN107,111,13#,RN106,110,13#,VZN130,YN13#..RHD	08/1988 - 12/1998	1
44443 - BRACKET, PUMP
44443-30080	LN10#,111,13#..RHD	08/1988 - 09/1999	1
44446 - STRUT, ADJUSTING
44446-30070	LN10#,111,13#..RHD	08/1988 - 09/1999	1
Common parts
90105-10042
90105-10089
90105-12109
90119-08667
90119-10326
90464-00520
91611-60814
91611-61025
Linked diagrams
1605

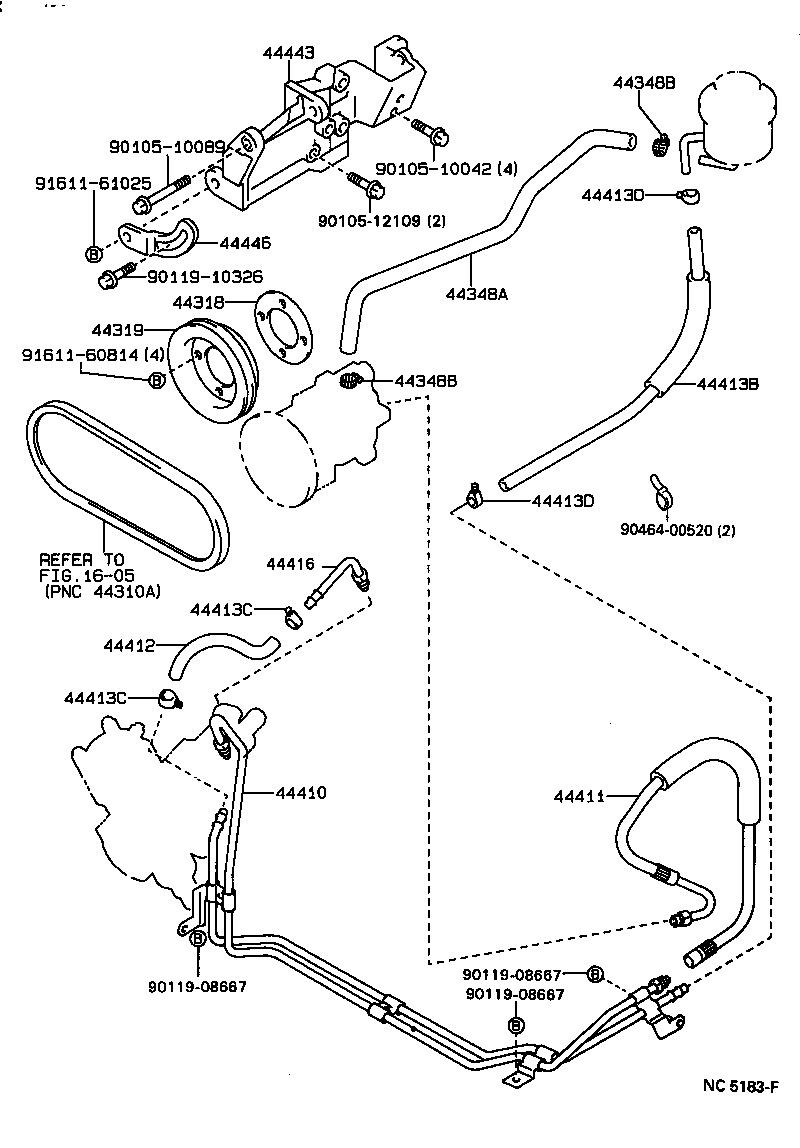

(8808-9108)LN106,111,13#..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44318 - SPACER, VANE PUMP DRIVE PULLEY
44318-35010	LN106,111	08/1988 - 12/1988	1
44318-35010	LN111;LN106..GEN;LN135..LHD	12/1988 - 08/1989	1
44319 - PULLEY, VANE PUMP DRIVE
44319-22010	LN10#,111,13#..RHD	08/1988 - 09/1999	1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-35130	LN10#,111,13#..RHD	08/1988 - 09/1999	1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001	LN10#,111,13#,RN10#,110,13#	08/1988 - 04/1994	2
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001	LN10#,111,13#,RN10#,110,13#	08/1988 - 04/1994	2
44410 - TUBE ASSY, PRESSURE FEED
44410-35220	LN111,13#..RHD	08/1988 - 08/1990	1
44411 - HOSE, PRESSURE FEED
44411-35330	LN106,111,13#..RHD	08/1988 - 08/1991	1
44412 - HOSE, RETURN
44412-35110	LN107,111,13#,RN106,110,13#,YN13#..RHD	08/1988 - 12/1998	1
44413B - HOSE(FOR RESERVOIR TANK INLET)
90447-18036	LN10#,111,13#..RHD	08/1988 - 09/1999	1
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001	YN106,135..RHD;LN106,111,13#,VZN130,YN130	08/1988 - 08/1991	2
90460-01001	YN106..RHD;LN10#,111,13#	08/1991 - 04/1994	2
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001	YN106,135..RHD;LN106,111,13#,VZN130,YN130	08/1988 - 08/1991	2
90460-01001	YN106..RHD;LN10#,111,13#	08/1991 - 04/1994	2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001	YN106..RHD;LN10#,111,13#	08/1991 - 04/1994	2
90460-01001	YN106,135..RHD;LN106,111,13#,VZN130,YN130	08/1988 - 08/1991	2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001	YN106..RHD;LN10#,111,13#	08/1991 - 04/1994	2
90460-01001	YN106,135..RHD;LN106,111,13#,VZN130,YN130	08/1988 - 08/1991	2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-35100	LN107,111,13#,RN106,110,13#,VZN130,YN13#..RHD	08/1988 - 12/1998	1
44443 - BRACKET, PUMP
44443-30080	LN10#,111,13#..RHD	08/1988 - 09/1999	1
44446 - STRUT, ADJUSTING
44446-30070	LN10#,111,13#..RHD	08/1988 - 09/1999	1
Common parts
90105-10042
90105-10089
90105-12109
90119-08667
90119-10326
90464-00520
91611-60814
91611-61025
Linked diagrams
1605

LN111R-CRMSSQ (1988)

(9108- )LN10#,111,13#..RHD

(8808-9108)LN106,111,13#..RHD
