LN111R-CRMSSQ (1988)
Toyota Hilux/4runner (4wd)

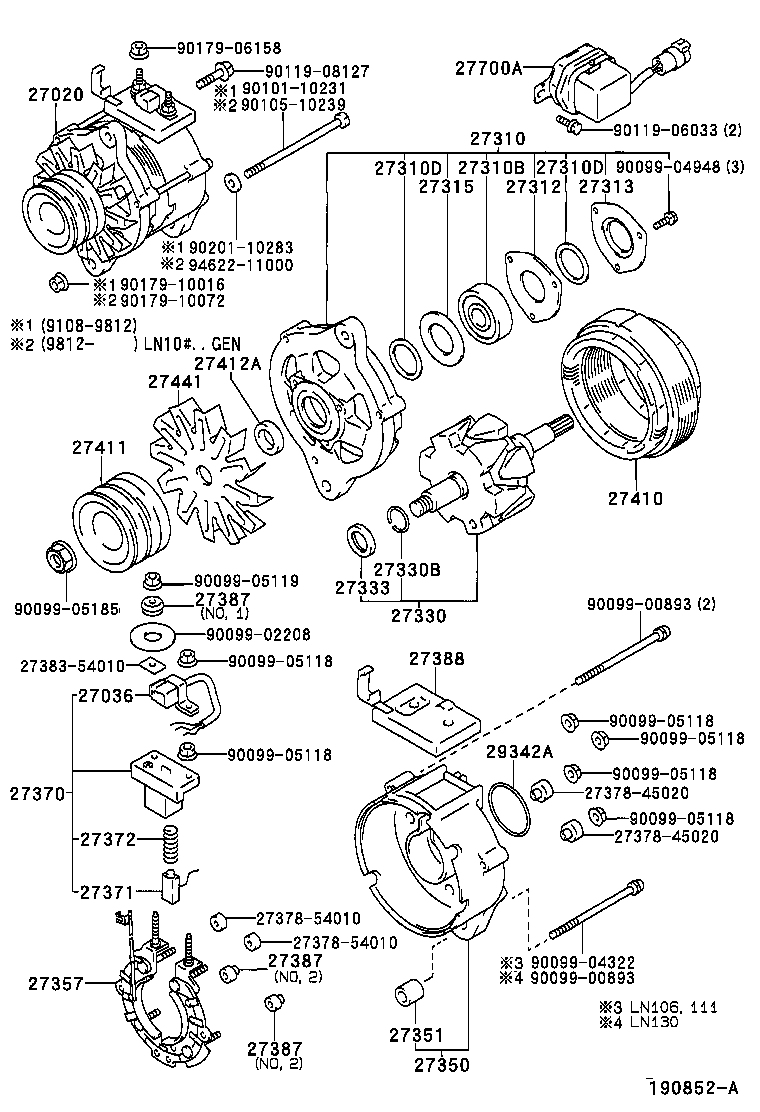

(9108- )3L..LN130..GEN ; (9108- )3L..LN10#,111,135
12V 40A,55A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-54352 |
3L..LN135;3L..LN106,111..ARL 12V 55A |
1 | ||
| 27020-54352 |
3L..LN135;3L..LN106,111,130..ARL 12V 55A |
1 | ||
| 27020-54351 |
3L..LN135;3L..LN106,111..ARL 12V 55A |
1 | ||
| 27020-54353 |
3L..LN135;3L..LN106,111..ARL 12V 55A |
1 | ||
| 27060-54110 |
3L..LN10#,111,130..ARL 12V 70A |
1 | ||
| 27060-54150 |
3L..LN10#,111,130..ARL 12V 70A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-54250 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27036-54250 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-54130 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27310-54130 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27310-54520 |
3L..LN10#,111,130..ARL |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
3L..LN106,111,135 |
1 | ||
| 90099-10137 |
3L..LN106,111,13# |
1 | ||
| 27310D - WASHER, FELT | ||||
| 90099-02209 |
3L..LN106,111,135 |
2 | ||
| 90099-02209 |
3L..LN106,111,13# |
2 | ||
| 27310D - WASHER, FELT | ||||
| 90099-02209 |
3L..LN106,111,135 |
2 | ||
| 90099-02209 |
3L..LN106,111,13# |
2 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-57060 |
3L..LN106,111,135 |
1 | ||
| 27312-57060 |
3L..LN106,111,13# |
1 | ||
| 27313 - COVER, ALTERNATOR FELT, INNER NO.2 | ||||
| 27313-57060 |
3L..LN106,111,135 |
1 | ||
| 27313-57060 |
3L..LN106,111,13# |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-57060 |
3L..LN106,111,135 |
1 | ||
| 27315-57060 |
3L..LN106,111,13# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64010 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27330-64010 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27330-64011 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27330-64190 |
3L..LN10#,111,130..ARL |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07103 |
3L..LN106,111,135 |
1 | ||
| 90099-07103 |
3L..LN106,111,13# |
1 | ||
| 27333 - COLLAR, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27333-57060 |
3L..LN106,111,135 |
1 | ||
| 27333-57060 |
3L..LN106,111,13# |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-54130 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27350-54130 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56013 |
3L..LN106,111,13# |
1 | ||
| 27351-56013 |
3L..LN106,111,135 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-62040 |
3L..LN10#,111,130..ARL |
1 | ||
| 27357-64060 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27357-55080 |
3L..LN10#,111,130..ARL |
1 | ||
| 27357-63020 |
22RE..RN106;22R..RN105..RHD;22R,3L,3VZE..LN10#,111,130,RN106,110,13#,VZN130..ARL,V |
1 | ||
| 27357-64060 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54250 |
3L..LN106,111,13# |
1 | ||
| 27370-54450 |
3L..LN10#,111,130..ARL |
1 | ||
| 27370-54250 |
3L..LN106,111,135 |
1 | ||
| 27370-75060 |
3L..LN10#,111,130..ARL |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
3L..LN106,111,13# |
2 | ||
| 27371-56070 |
3L..LN106,111,135 |
2 | ||
| 27371-54412 |
3L..LN106,111,135 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
3L..LN106,111,13# |
2 | ||
| 27372-56070 |
3L..LN106,111,135 |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-56070 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27387-54310 |
3L..LN106,111,13# NO.1 |
1 | ||
| 27387-54010 |
3L..LN106,111,135 NO.2 |
2 | ||
| 27387-42020 |
3L..LN10#,111,130..ARL |
1 | ||
| 27387-56070 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27387-54010 |
3L..LN106,111,13# NO.2 |
2 | ||
| 27387-54310 |
3L..LN106,111,135 NO.1 |
1 | ||
| 27387-70170 |
22R#..RN10#,13#;22R,3L,3VZE..LN10#,111,130,RN110,VZN130..ARL |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-56070 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27387-54310 |
3L..LN106,111,13# NO.1 |
1 | ||
| 27387-54010 |
3L..LN106,111,135 NO.2 |
2 | ||
| 27387-42020 |
3L..LN10#,111,130..ARL |
1 | ||
| 27387-56070 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27387-54010 |
3L..LN106,111,13# NO.2 |
2 | ||
| 27387-54310 |
3L..LN106,111,135 NO.1 |
1 | ||
| 27387-70170 |
22R#..RN10#,13#;22R,3L,3VZE..LN10#,111,130,RN110,VZN130..ARL |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-56070 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27387-54310 |
3L..LN106,111,13# NO.1 |
1 | ||
| 27387-54010 |
3L..LN106,111,135 NO.2 |
2 | ||
| 27387-42020 |
3L..LN10#,111,130..ARL |
1 | ||
| 27387-56070 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27387-54010 |
3L..LN106,111,13# NO.2 |
2 | ||
| 27387-54310 |
3L..LN106,111,135 NO.1 |
1 | ||
| 27387-70170 |
22R#..RN10#,13#;22R,3L,3VZE..LN10#,111,130,RN110,VZN130..ARL |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-54342 |
3L..LN106,111,135 |
1 | ||
| 27388-54341 |
3L..LN106,111,135 |
1 | ||
| 27388-54342 |
3L..LN106,111,13# |
1 | ||
| 27388-42010 |
3L..LN10#,111,130..ARL |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-43040 |
3L..LN135;22R,3L..LN106,111,RN13#..ARL,V |
1 | ||
| 27410-43040 |
3L..LN135;22R,3L..LN106,111,130,RN13#..ARL,V |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-54350 |
3L..LN106,111,135 |
1 | ||
| 27411-54350 |
3L..LN106,111,13# |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
3L..LN106,111,135 |
1 | ||
| 27412-57060 |
3L..LN106,111,13# |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-56090 |
3L..LN106,111,13# |
1 | ||
| 27441-56090 |
3L..LN106,111,135 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-72030 |
22R,3L,4Y..LN106,111,135,RN105,110,13#,YN106,135 |
1 | ||
| 27700-72030 |
22R,3L,4Y..LN106,111,13#,RN105,110,13#,YN106,135 |
1 | ||
| 27700-10061 |
3L..LN10#,111,130..ARL |
1 | ||
| 27700-65010 |
3L..LN10#,111,130..ARL |
1 | ||
| 27700-65010 |
3L,3VZE..LN10#,111,130,VZN130..ARL |
1 | ||
| 29342A - PACKING, VACUUM PUMP | ||||
| 90099-14055 |
3L..LN106,111,13# |
1 | ||
| 90099-14055 |
3L..LN106,111,135 |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 90099-00893 | ||||
| 90099-02208 | ||||
| 90099-04322 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05185 | ||||
| 90101-10231 | ||||
| 90105-10239 | ||||
| 90119-06033 | ||||
| 90119-08127 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 90179-10072 | ||||
| 90201-10283 | ||||
| 94622-11000 | ||||

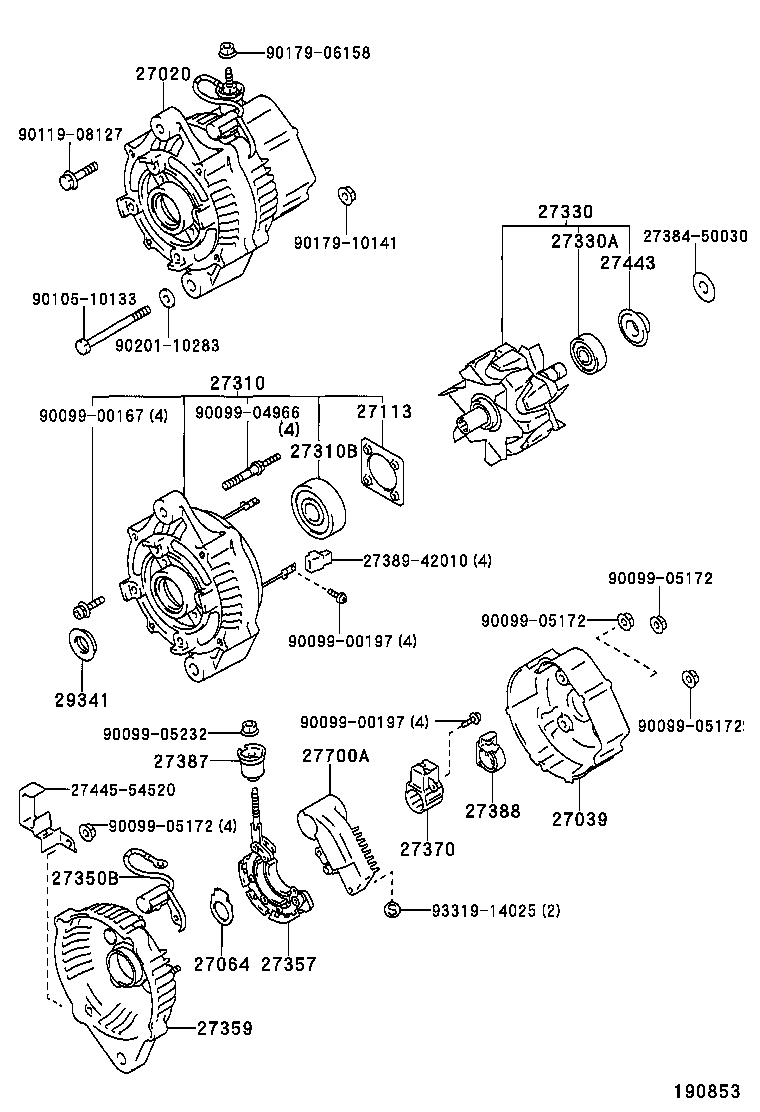

(9008-9108)3L..LN13#..RHD ; (9108-9408)3L..LN13#; (9108-9408)3L..LN10#,111..ARL
12V 60A,70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-54352 |
3L..LN135;3L..LN106,111..ARL 12V 55A |
1 | ||
| 27020-54352 |
3L..LN135;3L..LN106,111,130..ARL 12V 55A |
1 | ||
| 27020-54351 |
3L..LN135;3L..LN106,111..ARL 12V 55A |
1 | ||
| 27020-54353 |
3L..LN135;3L..LN106,111..ARL 12V 55A |
1 | ||
| 27060-54110 |
3L..LN10#,111,130..ARL 12V 70A |
1 | ||
| 27060-54150 |
3L..LN10#,111,130..ARL 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-73020 |
22R#..RN10#,13#;22R,3L,3VZE..LN10#,111,130,RN110,VZN130..ARL |
1 | ||
| 27039-55080 |
3L..LN10#,111,130..ARL |
1 | ||
| 27039-42010 |
3L..LN10#,111,130..ARL |
1 | ||
| 27039-16310 |
3L..LN10#,111,130..ARL |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
3L..LN10#,111,130..ARL |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-54130 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27310-54130 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27310-54520 |
3L..LN10#,111,130..ARL |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
3L..LN106,111,135 |
1 | ||
| 90099-10137 |
3L..LN106,111,13# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64010 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27330-64010 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27330-64011 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27330-64190 |
3L..LN10#,111,130..ARL |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
22R#..RN10#..(DLX,STD)..(ARL,GEN);22R,3L,3VZE..LN10#,111,130,RN106,110,130,VZN130..ARL |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52116 |
3L..LN10#,111,130..ARL |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-62040 |
3L..LN10#,111,130..ARL |
1 | ||
| 27357-64060 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27357-55080 |
3L..LN10#,111,130..ARL |
1 | ||
| 27357-63020 |
22RE..RN106;22R..RN105..RHD;22R,3L,3VZE..LN10#,111,130,RN106,110,13#,VZN130..ARL,V |
1 | ||
| 27357-64060 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16180 |
3L..LN10#,111,130..ARL |
1 | ||
| 27359-54420 |
3L..LN10#,111,130..ARL |
1 | ||
| 27359-16181 |
3L..LN10#,111..ARL |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54250 |
3L..LN106,111,13# |
1 | ||
| 27370-54450 |
3L..LN10#,111,130..ARL |
1 | ||
| 27370-54250 |
3L..LN106,111,135 |
1 | ||
| 27370-75060 |
3L..LN10#,111,130..ARL |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-56070 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27387-54310 |
3L..LN106,111,13# NO.1 |
1 | ||
| 27387-54010 |
3L..LN106,111,135 NO.2 |
2 | ||
| 27387-42020 |
3L..LN10#,111,130..ARL |
1 | ||
| 27387-56070 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27387-54010 |
3L..LN106,111,13# NO.2 |
2 | ||
| 27387-54310 |
3L..LN106,111,135 NO.1 |
1 | ||
| 27387-70170 |
22R#..RN10#,13#;22R,3L,3VZE..LN10#,111,130,RN110,VZN130..ARL |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-54342 |
3L..LN106,111,135 |
1 | ||
| 27388-54341 |
3L..LN106,111,135 |
1 | ||
| 27388-54342 |
3L..LN106,111,13# |
1 | ||
| 27388-42010 |
3L..LN10#,111,130..ARL |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
22R#..RN10#..(DLX,STD)..(ARL,GEN);22R,3L,3VZE..LN10#,111,130,RN106,110,130,VZN130..ARL |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-72030 |
22R,3L,4Y..LN106,111,135,RN105,110,13#,YN106,135 |
1 | ||
| 27700-72030 |
22R,3L,4Y..LN106,111,13#,RN105,110,13#,YN106,135 |
1 | ||
| 27700-10061 |
3L..LN10#,111,130..ARL |
1 | ||
| 27700-65010 |
3L..LN10#,111,130..ARL |
1 | ||
| 27700-65010 |
3L,3VZE..LN10#,111,130,VZN130..ARL |
1 | ||
| Common parts | ||||
| 27384-50030 | ||||
| 27389-42010 | ||||
| 27445-54520 | ||||
| 90099-00167 | ||||
| 90099-00197 | ||||
| 90099-04966 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90105-10133 | ||||
| 90119-08127 | ||||
| 90179-06158 | ||||
| 90179-10141 | ||||
| 90201-10283 | ||||
| 93319-14025 | ||||
(9408- )3L..LN13# ; (9408- )3L..LN10#,111..ARL
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-54352 |
3L..LN135;3L..LN106,111..ARL 12V 55A |
1 | ||
| 27020-54352 |
3L..LN135;3L..LN106,111,130..ARL 12V 55A |
1 | ||
| 27020-54351 |
3L..LN135;3L..LN106,111..ARL 12V 55A |
1 | ||
| 27020-54353 |
3L..LN135;3L..LN106,111..ARL 12V 55A |
1 | ||
| 27060-54110 |
3L..LN10#,111,130..ARL 12V 70A |
1 | ||
| 27060-54150 |
3L..LN10#,111,130..ARL 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-73020 |
22R#..RN10#,13#;22R,3L,3VZE..LN10#,111,130,RN110,VZN130..ARL |
1 | ||
| 27039-55080 |
3L..LN10#,111,130..ARL |
1 | ||
| 27039-42010 |
3L..LN10#,111,130..ARL |
1 | ||
| 27039-16310 |
3L..LN10#,111,130..ARL |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-54130 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27310-54130 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27310-54520 |
3L..LN10#,111,130..ARL |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
3L..LN106,111,135 |
1 | ||
| 90099-10137 |
3L..LN106,111,13# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64010 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27330-64010 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27330-64011 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27330-64190 |
3L..LN10#,111,130..ARL |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
22R#..RN10#..(DLX,STD)..(ARL,GEN);22R,3L,3VZE..LN10#,111,130,RN106,110,130,VZN130..ARL |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-62040 |
3L..LN10#,111,130..ARL |
1 | ||
| 27357-64060 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27357-55080 |
3L..LN10#,111,130..ARL |
1 | ||
| 27357-63020 |
22RE..RN106;22R..RN105..RHD;22R,3L,3VZE..LN10#,111,130,RN106,110,13#,VZN130..ARL,V |
1 | ||
| 27357-64060 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16180 |
3L..LN10#,111,130..ARL |
1 | ||
| 27359-54420 |
3L..LN10#,111,130..ARL |
1 | ||
| 27359-16181 |
3L..LN10#,111..ARL |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54250 |
3L..LN106,111,13# |
1 | ||
| 27370-54450 |
3L..LN10#,111,130..ARL |
1 | ||
| 27370-54250 |
3L..LN106,111,135 |
1 | ||
| 27370-75060 |
3L..LN10#,111,130..ARL |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
3L..LN106,111,13# |
2 | ||
| 27371-56070 |
3L..LN106,111,135 |
2 | ||
| 27371-54412 |
3L..LN106,111,135 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
3L..LN106,111,13# |
2 | ||
| 27372-56070 |
3L..LN106,111,135 |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-56070 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27387-54310 |
3L..LN106,111,13# NO.1 |
1 | ||
| 27387-54010 |
3L..LN106,111,135 NO.2 |
2 | ||
| 27387-42020 |
3L..LN10#,111,130..ARL |
1 | ||
| 27387-56070 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27387-54010 |
3L..LN106,111,13# NO.2 |
2 | ||
| 27387-54310 |
3L..LN106,111,135 NO.1 |
1 | ||
| 27387-70170 |
22R#..RN10#,13#;22R,3L,3VZE..LN10#,111,130,RN110,VZN130..ARL |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
22R#..RN10#..(DLX,STD)..(ARL,GEN);22R,3L,3VZE..LN10#,111,130,RN106,110,130,VZN130..ARL |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-72030 |
22R,3L,4Y..LN106,111,135,RN105,110,13#,YN106,135 |
1 | ||
| 27700-72030 |
22R,3L,4Y..LN106,111,13#,RN105,110,13#,YN106,135 |
1 | ||
| 27700-10061 |
3L..LN10#,111,130..ARL |
1 | ||
| 27700-65010 |
3L..LN10#,111,130..ARL |
1 | ||
| 27700-65010 |
3L,3VZE..LN10#,111,130,VZN130..ARL |
1 | ||
| Common parts | ||||
| 27389-63020 | ||||
| 27445-54520 | ||||
| 90099-00167 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05172 | ||||
| 90105-10287 | ||||
| 90119-08127 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
(9108- )22R..RN130..ARL ; (9108- )22R..RN10#,110..ARL,GEN ; (9401- )22RE ;
12V 60A,70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-54352 |
3L..LN135;3L..LN106,111..ARL 12V 55A |
1 | ||
| 27020-54352 |
3L..LN135;3L..LN106,111,130..ARL 12V 55A |
1 | ||
| 27020-54351 |
3L..LN135;3L..LN106,111..ARL 12V 55A |
1 | ||
| 27020-54353 |
3L..LN135;3L..LN106,111..ARL 12V 55A |
1 | ||
| 27060-54110 |
3L..LN10#,111,130..ARL 12V 70A |
1 | ||
| 27060-54150 |
3L..LN10#,111,130..ARL 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-73020 |
22R#..RN10#,13#;22R,3L,3VZE..LN10#,111,130,RN110,VZN130..ARL |
1 | ||
| 27039-55080 |
3L..LN10#,111,130..ARL |
1 | ||
| 27039-42010 |
3L..LN10#,111,130..ARL |
1 | ||
| 27039-16310 |
3L..LN10#,111,130..ARL |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-54130 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27310-54130 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27310-54520 |
3L..LN10#,111,130..ARL |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
3L..LN106,111,135 |
1 | ||
| 90099-10137 |
3L..LN106,111,13# |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-57060 |
3L..LN106,111,135 |
1 | ||
| 27312-57060 |
3L..LN106,111,13# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64010 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27330-64010 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27330-64011 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27330-64190 |
3L..LN10#,111,130..ARL |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
22R#..RN10#..(DLX,STD)..(ARL,GEN);22R,3L,3VZE..LN10#,111,130,RN106,110,130,VZN130..ARL |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-62040 |
3L..LN10#,111,130..ARL |
1 | ||
| 27357-64060 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27357-55080 |
3L..LN10#,111,130..ARL |
1 | ||
| 27357-63020 |
22RE..RN106;22R..RN105..RHD;22R,3L,3VZE..LN10#,111,130,RN106,110,13#,VZN130..ARL,V |
1 | ||
| 27357-64060 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16180 |
3L..LN10#,111,130..ARL |
1 | ||
| 27359-54420 |
3L..LN10#,111,130..ARL |
1 | ||
| 27359-16181 |
3L..LN10#,111..ARL |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54250 |
3L..LN106,111,13# |
1 | ||
| 27370-54450 |
3L..LN10#,111,130..ARL |
1 | ||
| 27370-54250 |
3L..LN106,111,135 |
1 | ||
| 27370-75060 |
3L..LN10#,111,130..ARL |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
3L..LN106,111,13# |
2 | ||
| 27371-56070 |
3L..LN106,111,135 |
2 | ||
| 27371-54412 |
3L..LN106,111,135 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
3L..LN106,111,13# |
2 | ||
| 27372-56070 |
3L..LN106,111,135 |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-56070 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27387-54310 |
3L..LN106,111,13# NO.1 |
1 | ||
| 27387-54010 |
3L..LN106,111,135 NO.2 |
2 | ||
| 27387-42020 |
3L..LN10#,111,130..ARL |
1 | ||
| 27387-56070 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27387-54010 |
3L..LN106,111,13# NO.2 |
2 | ||
| 27387-54310 |
3L..LN106,111,135 NO.1 |
1 | ||
| 27387-70170 |
22R#..RN10#,13#;22R,3L,3VZE..LN10#,111,130,RN110,VZN130..ARL |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-54350 |
3L..LN106,111,135 |
1 | ||
| 27411-54350 |
3L..LN106,111,13# |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
3L..LN106,111,135 |
1 | ||
| 27412-57060 |
3L..LN106,111,13# |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
22R#..RN10#..(DLX,STD)..(ARL,GEN);22R,3L,3VZE..LN10#,111,130,RN106,110,130,VZN130..ARL |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-72030 |
22R,3L,4Y..LN106,111,135,RN105,110,13#,YN106,135 |
1 | ||
| 27700-72030 |
22R,3L,4Y..LN106,111,13#,RN105,110,13#,YN106,135 |
1 | ||
| 27700-10061 |
3L..LN10#,111,130..ARL |
1 | ||
| 27700-65010 |
3L..LN10#,111,130..ARL |
1 | ||
| 27700-65010 |
3L,3VZE..LN10#,111,130,VZN130..ARL |
1 | ||
| Common parts | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05172 | ||||
| 90099-05229 | ||||
| 90101-10083 | ||||
| 90119-08654 | ||||
| 90170-10015 | ||||
| 90179-06158 | ||||
| 90201-10005 | ||||
| 93319-14025 | ||||
| 94512-01000 | ||||

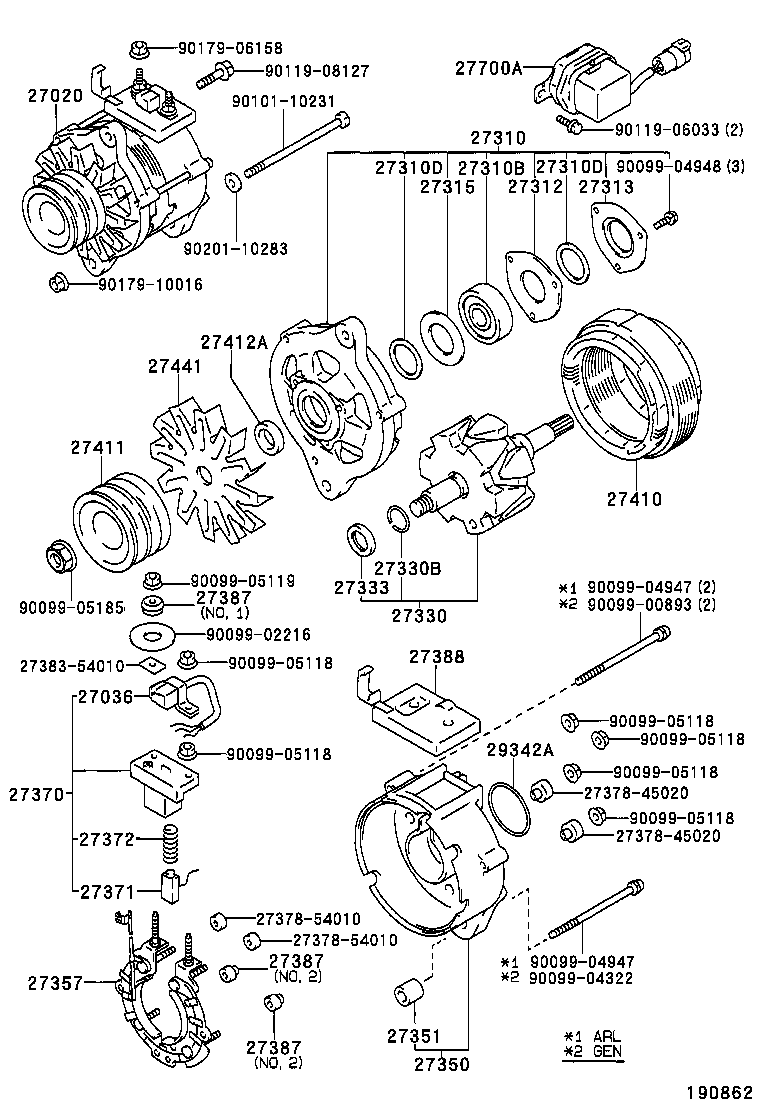

(8808-9108)3L
12V 40A,55A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-54352 |
3L..LN135;3L..LN106,111..ARL 12V 55A |
1 | ||
| 27020-54352 |
3L..LN135;3L..LN106,111,130..ARL 12V 55A |
1 | ||
| 27020-54351 |
3L..LN135;3L..LN106,111..ARL 12V 55A |
1 | ||
| 27020-54353 |
3L..LN135;3L..LN106,111..ARL 12V 55A |
1 | ||
| 27060-54110 |
3L..LN10#,111,130..ARL 12V 70A |
1 | ||
| 27060-54150 |
3L..LN10#,111,130..ARL 12V 70A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-54250 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27036-54250 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-54130 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27310-54130 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27310-54520 |
3L..LN10#,111,130..ARL |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
3L..LN106,111,135 |
1 | ||
| 90099-10137 |
3L..LN106,111,13# |
1 | ||
| 27310D - WASHER, FELT | ||||
| 90099-02209 |
3L..LN106,111,135 |
2 | ||
| 90099-02209 |
3L..LN106,111,13# |
2 | ||
| 27310D - WASHER, FELT | ||||
| 90099-02209 |
3L..LN106,111,135 |
2 | ||
| 90099-02209 |
3L..LN106,111,13# |
2 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-57060 |
3L..LN106,111,135 |
1 | ||
| 27312-57060 |
3L..LN106,111,13# |
1 | ||
| 27313 - COVER, ALTERNATOR FELT, INNER NO.2 | ||||
| 27313-57060 |
3L..LN106,111,135 |
1 | ||
| 27313-57060 |
3L..LN106,111,13# |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-57060 |
3L..LN106,111,135 |
1 | ||
| 27315-57060 |
3L..LN106,111,13# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64010 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27330-64010 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27330-64011 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27330-64190 |
3L..LN10#,111,130..ARL |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07103 |
3L..LN106,111,135 |
1 | ||
| 90099-07103 |
3L..LN106,111,13# |
1 | ||
| 27333 - COLLAR, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27333-57060 |
3L..LN106,111,135 |
1 | ||
| 27333-57060 |
3L..LN106,111,13# |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-54130 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27350-54130 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56013 |
3L..LN106,111,13# |
1 | ||
| 27351-56013 |
3L..LN106,111,135 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-62040 |
3L..LN10#,111,130..ARL |
1 | ||
| 27357-64060 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27357-55080 |
3L..LN10#,111,130..ARL |
1 | ||
| 27357-63020 |
22RE..RN106;22R..RN105..RHD;22R,3L,3VZE..LN10#,111,130,RN106,110,13#,VZN130..ARL,V |
1 | ||
| 27357-64060 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54250 |
3L..LN106,111,13# |
1 | ||
| 27370-54450 |
3L..LN10#,111,130..ARL |
1 | ||
| 27370-54250 |
3L..LN106,111,135 |
1 | ||
| 27370-75060 |
3L..LN10#,111,130..ARL |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
3L..LN106,111,13# |
2 | ||
| 27371-56070 |
3L..LN106,111,135 |
2 | ||
| 27371-54412 |
3L..LN106,111,135 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
3L..LN106,111,13# |
2 | ||
| 27372-56070 |
3L..LN106,111,135 |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-56070 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27387-54310 |
3L..LN106,111,13# NO.1 |
1 | ||
| 27387-54010 |
3L..LN106,111,135 NO.2 |
2 | ||
| 27387-42020 |
3L..LN10#,111,130..ARL |
1 | ||
| 27387-56070 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27387-54010 |
3L..LN106,111,13# NO.2 |
2 | ||
| 27387-54310 |
3L..LN106,111,135 NO.1 |
1 | ||
| 27387-70170 |
22R#..RN10#,13#;22R,3L,3VZE..LN10#,111,130,RN110,VZN130..ARL |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-56070 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27387-54310 |
3L..LN106,111,13# NO.1 |
1 | ||
| 27387-54010 |
3L..LN106,111,135 NO.2 |
2 | ||
| 27387-42020 |
3L..LN10#,111,130..ARL |
1 | ||
| 27387-56070 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27387-54010 |
3L..LN106,111,13# NO.2 |
2 | ||
| 27387-54310 |
3L..LN106,111,135 NO.1 |
1 | ||
| 27387-70170 |
22R#..RN10#,13#;22R,3L,3VZE..LN10#,111,130,RN110,VZN130..ARL |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-56070 |
3L..LN135;3L..LN106,111,130..ARL |
1 | ||
| 27387-54310 |
3L..LN106,111,13# NO.1 |
1 | ||
| 27387-54010 |
3L..LN106,111,135 NO.2 |
2 | ||
| 27387-42020 |
3L..LN10#,111,130..ARL |
1 | ||
| 27387-56070 |
3L..LN135;3L..LN106,111..ARL |
1 | ||
| 27387-54010 |
3L..LN106,111,13# NO.2 |
2 | ||
| 27387-54310 |
3L..LN106,111,135 NO.1 |
1 | ||
| 27387-70170 |
22R#..RN10#,13#;22R,3L,3VZE..LN10#,111,130,RN110,VZN130..ARL |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-54342 |
3L..LN106,111,135 |
1 | ||
| 27388-54341 |
3L..LN106,111,135 |
1 | ||
| 27388-54342 |
3L..LN106,111,13# |
1 | ||
| 27388-42010 |
3L..LN10#,111,130..ARL |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-43040 |
3L..LN135;22R,3L..LN106,111,RN13#..ARL,V |
1 | ||
| 27410-43040 |
3L..LN135;22R,3L..LN106,111,130,RN13#..ARL,V |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-54350 |
3L..LN106,111,135 |
1 | ||
| 27411-54350 |
3L..LN106,111,13# |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
3L..LN106,111,135 |
1 | ||
| 27412-57060 |
3L..LN106,111,13# |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-56090 |
3L..LN106,111,13# |
1 | ||
| 27441-56090 |
3L..LN106,111,135 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-72030 |
22R,3L,4Y..LN106,111,135,RN105,110,13#,YN106,135 |
1 | ||
| 27700-72030 |
22R,3L,4Y..LN106,111,13#,RN105,110,13#,YN106,135 |
1 | ||
| 27700-10061 |
3L..LN10#,111,130..ARL |
1 | ||
| 27700-65010 |
3L..LN10#,111,130..ARL |
1 | ||
| 27700-65010 |
3L,3VZE..LN10#,111,130,VZN130..ARL |
1 | ||
| 29342A - PACKING, VACUUM PUMP | ||||
| 90099-14055 |
3L..LN106,111,13# |
1 | ||
| 90099-14055 |
3L..LN106,111,135 |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 90099-00893 | ||||
| 90099-02216 | ||||
| 90099-04322 | ||||
| 90099-04947 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05185 | ||||
| 90101-10231 | ||||
| 90119-06033 | ||||
| 90119-08127 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 90201-10283 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
