LN111L-CRMDS3 (1988)
Toyota Hilux/4runner (4wd)

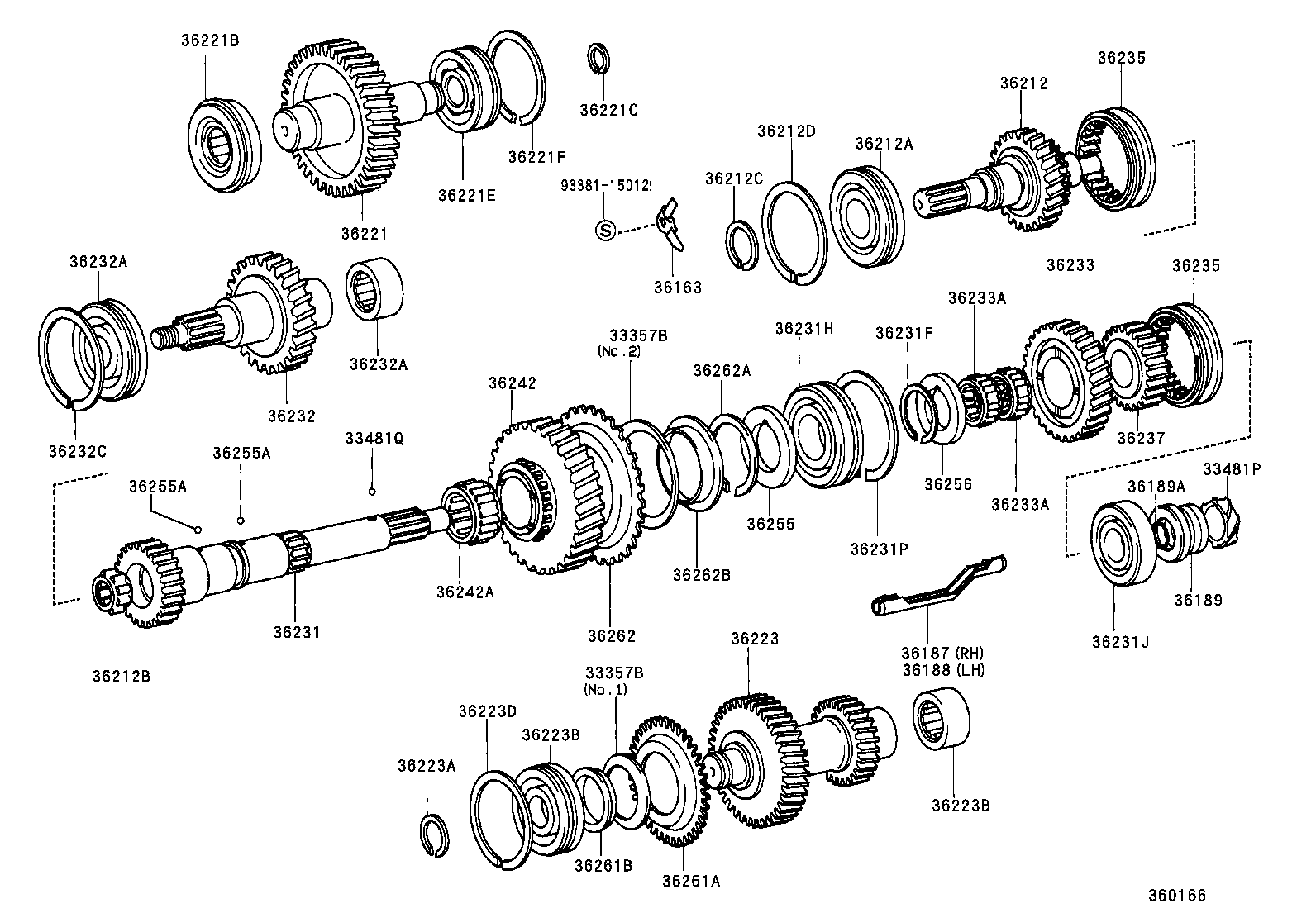

(8808-0105)LN111,RN106..GEN ; (8808-0106)LN10#,RN105,YN106 ; (9308-0105)LN111..ARL.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33357B - SPRING, SUB GEAR THRUST | ||||
| 33357-35010 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU NO.1 |
1 | ||
| 33357-35021 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU NO.2 |
1 | ||
| 33357B - SPRING, SUB GEAR THRUST | ||||
| 33357-35010 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU NO.1 |
1 | ||
| 33357-35021 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU NO.2 |
1 | ||
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-22010 |
LN106,YN106;LN111,RN105..DLX,STD N=6,MARK 6X18-20 |
1 | ||
| 33481Q - KEY OR BALL, SPEEDOMETER DRIVE GEAR (FOR TRANSFER) | ||||
| 90360-05012 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 90360-06004 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36163 - STOPPER, TRANSFER FRONT BEARING | ||||
| 36163-35010 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36187 - PIPE, TRANSFER OIL SUPPLY, RH | ||||
| 36187-35010 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36188 - PIPE, TRANSFER OIL SUPPLY, LH | ||||
| 36188-35010 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36189 - SCREW, TRANSFER OIL PUMP | ||||
| 36189-35010 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36189A - RING, O (FOR TRANSFER OIL PUMP SCREW) | ||||
| 96711-24028 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36212 - GEAR, TRANSFER INPUT | ||||
| 36212-35012 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36212A - BEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR) | ||||
| 90363-35009 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36212B - BEARING, NEEDLE ROLLER (FOR TRANSFER INPUT GEAR) | ||||
| 90364-19043 |
LN111,RN106..GEN;LN106,RN105,YN106 |
1 | ||
| 36212C - RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR) | ||||
| 90520-33172 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU T=2.25,MARK 5 |
1 | ||
| 90520-33170 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU T=2.15,MARK 3 |
1 | ||
| 90520-33168 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU T=2.05,MARK 1 |
1 | ||
| 36212D - RING, SHAFT SNAP (FOR TRANSFER INPUT BEARING) | ||||
| 90520-72001 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=1.45,MARK 1 |
1 | ||
| 90520-72004 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=1.60,MARK 4 |
1 | ||
| 90520-72003 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=1.55,MARK 3 |
1 | ||
| 90520-72002 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=1.50,MARK 2 |
1 | ||
| 90520-72005 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=1.65,MARK 5 |
1 | ||
| 90520-76001 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU T=1.65 |
1 | ||
| 36221 - GEAR, TRANSFER IDLER | ||||
| 36221-35010 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36221B - BEARING (FOR TRANSFER IDLER GEAR) | ||||
| 90365-38001 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36221C - RING, SHAFT SNAP (FOR TRANSFER IDLER GEAR) | ||||
| 90520-28242 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU T=1.50-1.55,MARK A |
1 | ||
| 90520-28243 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU T=1.60-1.65,MARK B |
1 | ||
| 36221E - BEARING, RADIAL BALL (FOR TRANSFER IDLER GEAR) | ||||
| 90363-30012 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36221F - RING, SHAFT SNAP (FOR TRANSFER IDLER GEAR BEARING) | ||||
| 90520-68193 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36223 - GEAR, TRANSFER COUNTER | ||||
| 36223-35011 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36223A - RING, SHAFT SNAP (FOR TRANSFER COUNTER GEAR) | ||||
| 90520-30215 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU T=2.10,MARK 1 |
1 | ||
| 90520-30217 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU T=2.20,MARK 3 |
1 | ||
| 36223B - BEARING (FOR TRANSFER COUNTER GEAR) | ||||
| 90363-32006 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU FR |
1 | ||
| 90369-45001 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU RR |
1 | ||
| 36223B - BEARING (FOR TRANSFER COUNTER GEAR) | ||||
| 90363-32006 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU FR |
1 | ||
| 90369-45001 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU RR |
1 | ||
| 36223D - RING, SHAFT SNAP (FOR TRANSFER COUNTER GEAR BEARING) | ||||
| 90520-71221 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36231 - SHAFT, TRANSFER OUTPUT, REAR | ||||
| 36231-35011 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-71221 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=1.65,ID=71.1 |
1 | ||
| 90520-36251 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU T=2.45-2.50 |
1 | ||
| 90520-36255 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU T=2.65-2.70 |
1 | ||
| 90520-36253 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU T=2.55-2.60 |
1 | ||
| 90520-36250 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU T=2.40-2.45 |
1 | ||
| 90520-36254 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU T=2.60-2.65 |
1 | ||
| 90520-36252 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU T=2.50-2.55 |
1 | ||
| 36231H - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT) | ||||
| 90363-40007 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36231J - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90363-28004 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 90363-32006 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36231P - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT FRONT BEARI | ||||
| 90520-86001 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36232 - GEAR, TRANSFER FRONT DRIVE | ||||
| 36232-35011 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36232A - BEARING (FOR TRANSFER FRONT DRIVE GEAR) | ||||
| 90363-30014 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU FR |
1 | ||
| 90369-45001 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU RR |
1 | ||
| 36232A - BEARING (FOR TRANSFER FRONT DRIVE GEAR) | ||||
| 90363-30014 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU FR |
1 | ||
| 90369-45001 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU RR |
1 | ||
| 36232C - RING, SHAFT SNAP (FOR TRANSFER FRONT DRIVE GEAR BEARING | ||||
| 90520-76001 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36233 - GEAR, TRANSFER DRIVE | ||||
| 36233-35010 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36233A - BEARING, NEEDLE ROLLER (FOR TRANSFER DRIVE GEAR) | ||||
| 90364-35001 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
2 | ||
| 36233A - BEARING, NEEDLE ROLLER (FOR TRANSFER DRIVE GEAR) | ||||
| 90364-35001 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
2 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 36235-35021 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36235-35010 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
2 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 36235-35021 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36235-35010 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
2 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36237-35020 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36237-35010 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36242 - GEAR, TRANSFER LOW | ||||
| 36242-35011 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36242A - BEARING, NEEDLE ROLLER (FOR TRANSFER LOW GEAR) | ||||
| 90364-45002 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36255 - SPACER, TRANSFER OUTPUT SHAFT, NO.1 | ||||
| 36255-35010 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36255-35020 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36255A - BALL (FOR TRANSFER OUTPUT SHAFT SPACER) | ||||
| 90360-06004 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
2 | ||
| 90360-05012 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
2 | ||
| 36255A - BALL (FOR TRANSFER OUTPUT SHAFT SPACER) | ||||
| 90360-06004 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
2 | ||
| 90360-05012 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
2 | ||
| 36256 - SPACER, TRANSFER OUTPUT SHAFT, NO.2 | ||||
| 36256-35010 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36261A - SUB-GEAR, TRANSFER, NO.1 | ||||
| 36261-35011 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36261B - SPACER (FOR TRANSFER SUB-GEAR NO.1 | ||||
| 90560-38002 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36262 - SUB-GEAR, TRANSFER, NO.2 | ||||
| 36262-35011 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36262A - RING, SNAP (FOR TRANSFER SUB-GEAR NO.2 | ||||
| 90520-59003 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36262B - SPACER (FOR TRANSFER SUB-GEAR NO.2) | ||||
| 90561-63002 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| Common parts | ||||
| 93381-15012 | ||||

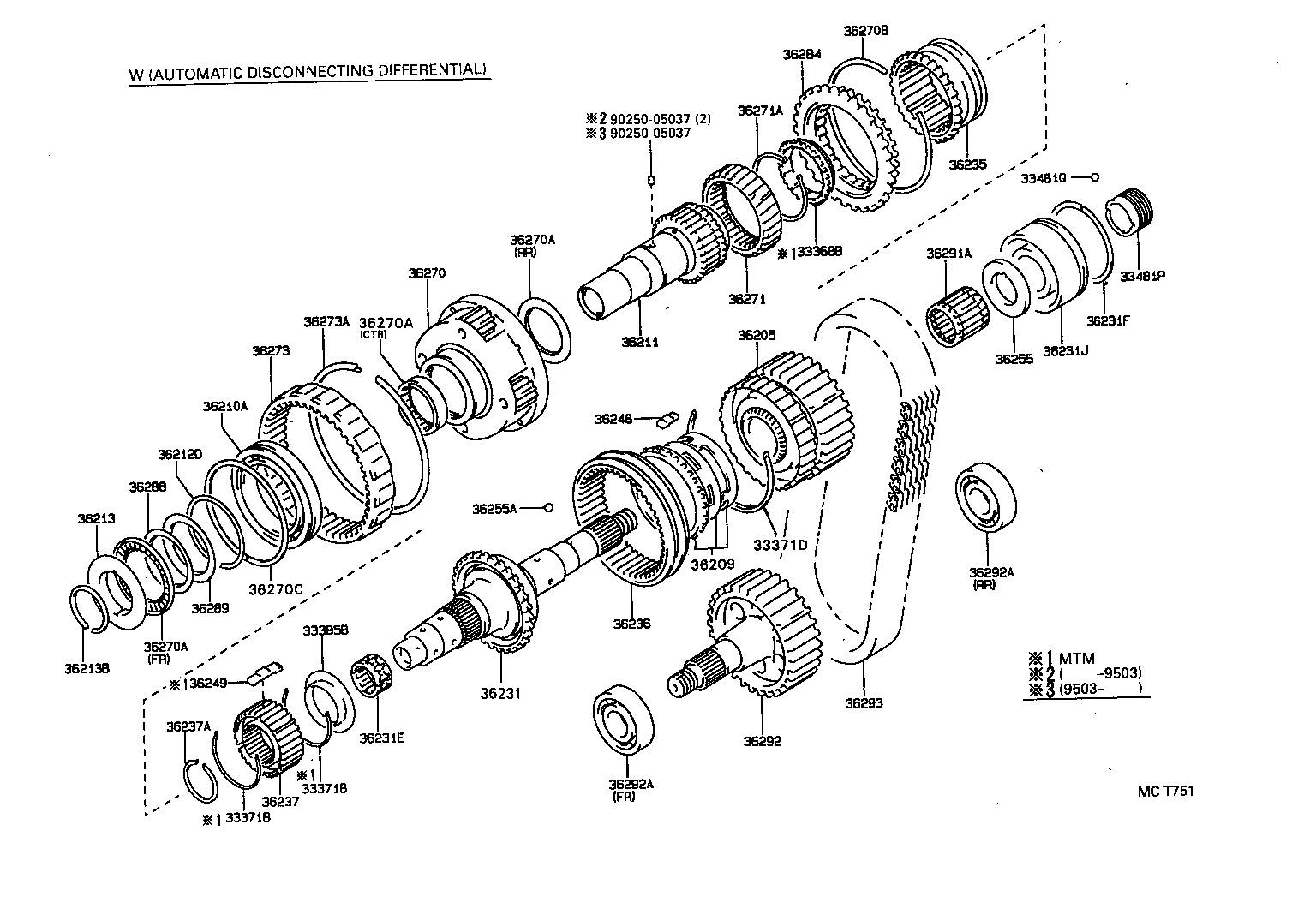

(8908-9008)LN111,130,RN110,130..SR5 ; (9008-9511)VZN130..5F ; (9008-9601)LN107,111,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33368B - RING, SYNCHRONIZER (FOR TRANSFER FRONT DRIVE CLUTCH) | ||||
| 33367-14010 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 33371B - SPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER) | ||||
| 33371-14010 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
2 | ||
| 33371B - SPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER) | ||||
| 33371-14010 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
2 | ||
| 33385B - RETAINER, SHIFTING KEY (FOR TRANSFER FRONT DRIVE CLUTCH | ||||
| 33385-35010 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-22010 |
LN106,YN106;LN111,RN105..DLX,STD N=6,MARK 6X18-20 |
1 | ||
| 33481Q - KEY OR BALL, SPEEDOMETER DRIVE GEAR (FOR TRANSFER) | ||||
| 90360-05012 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 90360-06004 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36210A - BEARING (FOR TRANSFER INPUT SHAFT) | ||||
| 90363-75001 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36211 - SHAFT, TRANSFER INPUT | ||||
| 36201-35020 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36212D - RING, SHAFT SNAP (FOR TRANSFER INPUT BEARING) | ||||
| 90520-72001 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=1.45,MARK 1 |
1 | ||
| 90520-72004 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=1.60,MARK 4 |
1 | ||
| 90520-72003 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=1.55,MARK 3 |
1 | ||
| 90520-72002 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=1.50,MARK 2 |
1 | ||
| 90520-72005 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=1.65,MARK 5 |
1 | ||
| 90520-76001 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU T=1.65 |
1 | ||
| 36213 - STOPPER, TRANSFER INPUT GEAR | ||||
| 36213-35011 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36213B - RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER) | ||||
| 90520-44007 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.30-2.35 |
1 | ||
| 90520-44004 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.15-2.20 |
1 | ||
| 90520-44005 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.20-2.25 |
1 | ||
| 90520-44011 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.50-2.55 |
1 | ||
| 90520-44014 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.65-2.70 |
1 | ||
| 90520-44013 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.60-2.65 |
1 | ||
| 90520-44015 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.70-2.75 |
1 | ||
| 90520-44009 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.40-2.45 |
1 | ||
| 90520-44006 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.25-2.30 |
1 | ||
| 90520-44020 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.95-3.00 |
1 | ||
| 90520-44012 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.55-2.60 |
1 | ||
| 90520-44010 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.45-2.50 |
1 | ||
| 90520-44016 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.75-2.80 |
1 | ||
| 90520-44008 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.35-2.40 |
1 | ||
| 90520-44018 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.85-2.90 |
1 | ||
| 90520-44003 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.10-2.15 |
1 | ||
| 90520-44017 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.80-2.85 |
1 | ||
| 90520-44019 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.90-2.95 |
1 | ||
| 90520-44021 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=3.00-3.05 |
1 | ||
| 36231 - SHAFT, TRANSFER OUTPUT, REAR | ||||
| 36231-35011 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-28004 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-71221 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=1.65,ID=71.1 |
1 | ||
| 90520-36251 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU T=2.45-2.50 |
1 | ||
| 90520-36255 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU T=2.65-2.70 |
1 | ||
| 90520-36253 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU T=2.55-2.60 |
1 | ||
| 90520-36250 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU T=2.40-2.45 |
1 | ||
| 90520-36254 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU T=2.60-2.65 |
1 | ||
| 90520-36252 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU T=2.50-2.55 |
1 | ||
| 36231J - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90363-28004 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 90363-32006 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 36235-35021 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36235-35010 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
2 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36237-35020 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36237-35010 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36237A - RING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB) | ||||
| 90520-39006 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.20-2.25,MARK C |
1 | ||
| 90520-39008 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.30-2.35,MARK E |
1 | ||
| 90520-39007 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.25-2.30,MARK D |
1 | ||
| 90520-39011 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.45-2.50,MARK H |
1 | ||
| 90520-39013 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.00-2.05,MARK K |
1 | ||
| 90520-39005 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.15-2.20,MARK B |
1 | ||
| 90520-39004 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.10-2.15,MARK A |
1 | ||
| 90520-39012 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.50-2.55,MARK J |
1 | ||
| 90520-39009 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.35-2.40,MARK F |
1 | ||
| 90520-39010 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.40-2.45,MARK G |
1 | ||
| 90520-39014 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=2.05-2.10,MARK L |
1 | ||
| 36249 - KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2 | ||||
| 36249-35010 |
LN135,VZN130,YN135..5F;LN111,130,RN110,13#..(4D,T1)..(ARL,V) |
3 | ||
| 36249-35010 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
3 | ||
| 36255 - SPACER, TRANSFER OUTPUT SHAFT, NO.1 | ||||
| 36255-35010 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 36255-35020 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36255A - BALL (FOR TRANSFER OUTPUT SHAFT SPACER) | ||||
| 90360-06004 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
2 | ||
| 90360-05012 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
2 | ||
| 36270 - GEAR ASSY, TRANSFER LOW PLANETARY | ||||
| 36270-35011 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36270A - BEARING (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90374-49001 |
LN135,YN135;LN111,130,RN110,13#..ARL,V RR |
1 | ||
| 90374-57002 |
LN135,YN135;LN111,130,RN110,13#..ARL,V FR |
1 | ||
| 90364-47001 |
LN135,YN135;LN111,130,RN110,13#..ARL,V CTR |
1 | ||
| 36270A - BEARING (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90374-49001 |
LN135,YN135;LN111,130,RN110,13#..ARL,V RR |
1 | ||
| 90374-57002 |
LN135,YN135;LN111,130,RN110,13#..ARL,V FR |
1 | ||
| 90364-47001 |
LN135,YN135;LN111,130,RN110,13#..ARL,V CTR |
1 | ||
| 36270A - BEARING (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90374-49001 |
LN135,YN135;LN111,130,RN110,13#..ARL,V RR |
1 | ||
| 90374-57002 |
LN135,YN135;LN111,130,RN110,13#..ARL,V FR |
1 | ||
| 90364-47001 |
LN135,YN135;LN111,130,RN110,13#..ARL,V CTR |
1 | ||
| 36270B - RING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90521-99056 |
LN135,YN135;LN111,130,RN110,13#..ARL,V T=1.8 |
1 | ||
| 36270C - RING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARIN | ||||
| 90520-99001 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36271 - GEAR, TRANSFER LOW PLANETARY SUN | ||||
| 36271-28010 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36271A - RING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY SUN GEAR) | ||||
| 90520-68001 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36273 - GEAR, TRANSFER LOW PLANETARY RING | ||||
| 36273-35020 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36273A - RING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR) | ||||
| 90521-99052 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36284 - PIECE, TRANSFER LOW PLANETARY GEAR SPLINE | ||||
| 36284-35010 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36288 - RACE, TRANSFER THRUST BEARING, NO.1 | ||||
| 36288-28010 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36289 - RACE, TRANSFER THRUST BEARING, NO.2 | ||||
| 36289-35020 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36291A - BEARING (FOR TRANSFER DRIVE SPROCKET) | ||||
| 90364-37009 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36292 - SPROCKET, TRANSFER DRIVEN | ||||
| 36292-35010 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 90363-28004 |
LN135,YN135;LN111,130,RN110,13#..ARL,V RR |
1 | ||
| 90363-32030 |
LN135,YN135;LN111,130,RN110,13#..ARL,V FR |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 90363-28004 |
LN135,YN135;LN111,130,RN110,13#..ARL,V RR |
1 | ||
| 90363-32030 |
LN135,YN135;LN111,130,RN110,13#..ARL,V FR |
1 | ||
| 36293 - CHAIN, TRANSFER FRONT DRIVE | ||||
| 36293-35021 |
LN135,YN135;LN111,130,RN110,13#..ARL,V |
1 | ||
| Common parts | ||||
| 90250-05037 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
