LN107R-PRMSSQ (1991)

Toyota Hilux/4runner (4wd)

Production Aug 1991 - Dec 1998
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9408)LN10#,111,13#..RHD ; (8908-9008)YN130

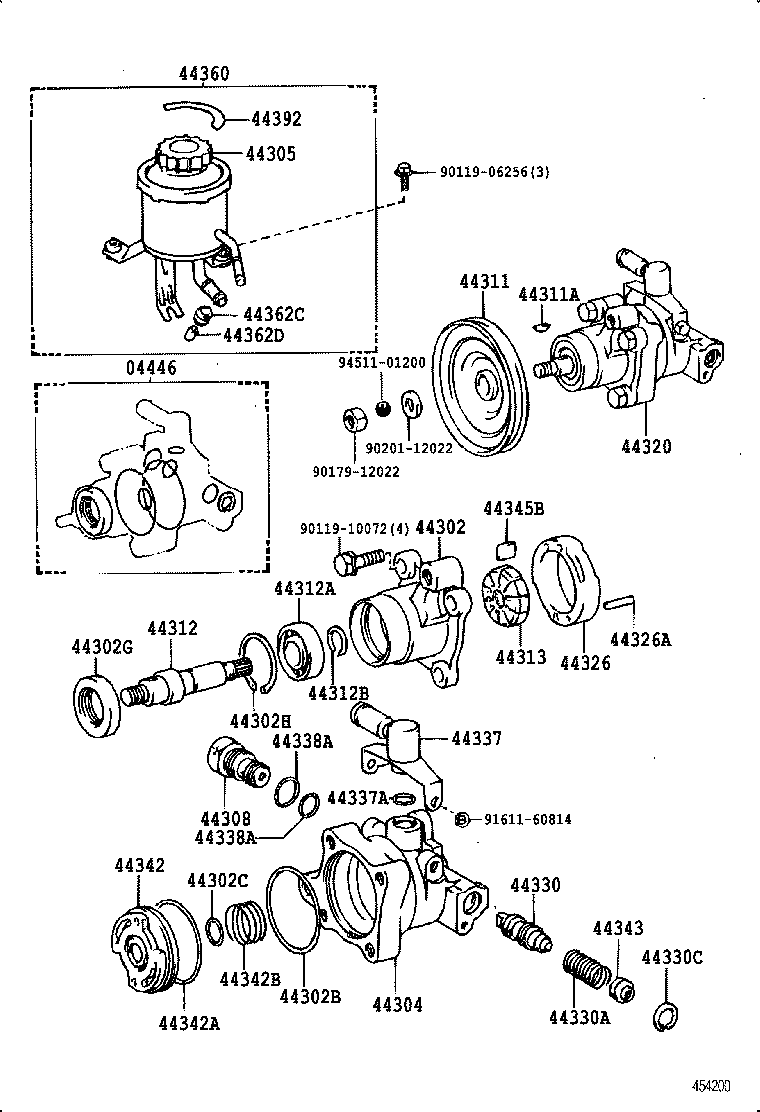

Click highlighted areas on diagram

diagram 04446 44302 44302B 44302C 44302G 44302H 44304 44305 44308 44311 44311A 44312 44312A 44312B 44313 44320 44326 44326A 44330 44330A 44330C 44337 44337A 44338A 44338A 44342 44342A 44342B 44343 44345B 44360 44362C 44362D 44392 9011906256 9011910072 9017912022 9020112022 9161160814 9451101200
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-30030

LN10#,111,13#,RN10#,110,13#,YN106,13#

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-22020

LN10#,111,13#..RHD

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-24001

LN10#,111,13#,RN10#,110,13#,YN106

 1
44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING)
90521-44002

LN10#,111,13#,RN10#,110,13#,YN106

 1
44304 - HOUSING SUB-ASSY, VANE PUMP, REAR
44304-30051

LN10#,111,13#..RHD

 1
44311 - PULLEY, VANE PUMP
44311-22070

LN10#,111,13#..RHD

 1
44311A - KEY, VANE PUMP PULLEY
90280-05008

LN10#,111,13#,RN10#,110,13#,VZN130,YN106

 1
44312 - SHAFT, VANE PUMP
44312-12010

LN10#,111,13#,RN10#,110,13#,YN106

 1
44312A - BEARING(FOR VANE PUMP SHAFT)
90363-17004

LN10#,111,13#,RN10#,110,13#,YN106

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-15001

LN10#,111,13#,RN10#,110,13#,YN106

 1
44313 - ROTOR, VANE PUMP
44313-22040

LN10#,111,13#,RN10#,110,13#,VZN130,YN106

NO MARK

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-30010

LN10#,111,13#..RHD

 1
44345B - PLATE, VANE PUMP
44345-12010

LN10#,111,13#,RN10#,110,13#,VZN130,YN106

L=14.997

 10
44362C - CUSHION(FOR VANE PUMP OIL RESERVOIR)
90480-16005

LN10#,111,13#..RHD

 3
44362D - SPACER(FOR VANE PUMP OIL RESERVOIR)
90387-10040

LN10#,111,13#..RHD

 3
44392 - LABEL, OIL RESERVOIR CAUTION
44392-35010

LN10#,111,13#,RN10#,110,13#

 1
Common parts
90119-06256
90119-10072
90179-12022
90201-12022
91611-60814
94511-01200
