LN107L-PRMDS (1997)

Toyota Hilux/4runner (4wd)

Production Mar 1997 - Jun 2001
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 9009904349 9009907114 9009907125
Part # Description Qty Price
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-2A030

LN10#,RN106

 1
88320 - COMPRESSOR ASSY, COOLER
88320-35250

RN10#..ARL;LN10#,111,RN110

 1
Common parts
90099-04349
90099-07114
90099-07125

ILLUST NO. 3 OF 3(8808- )

Click highlighted areas on diagram

diagram 88321 88321 88321A 88321A 88335 88336 88343B 88343B 88344C 88344C 88360A 88360C 88371A 88374A 88374A 88375 88375 88376 88376 9009904370 9009904924 9009908058 9009908058
Part # Description Qty Price
Common parts
90099-04370
90099-04924
90099-08058

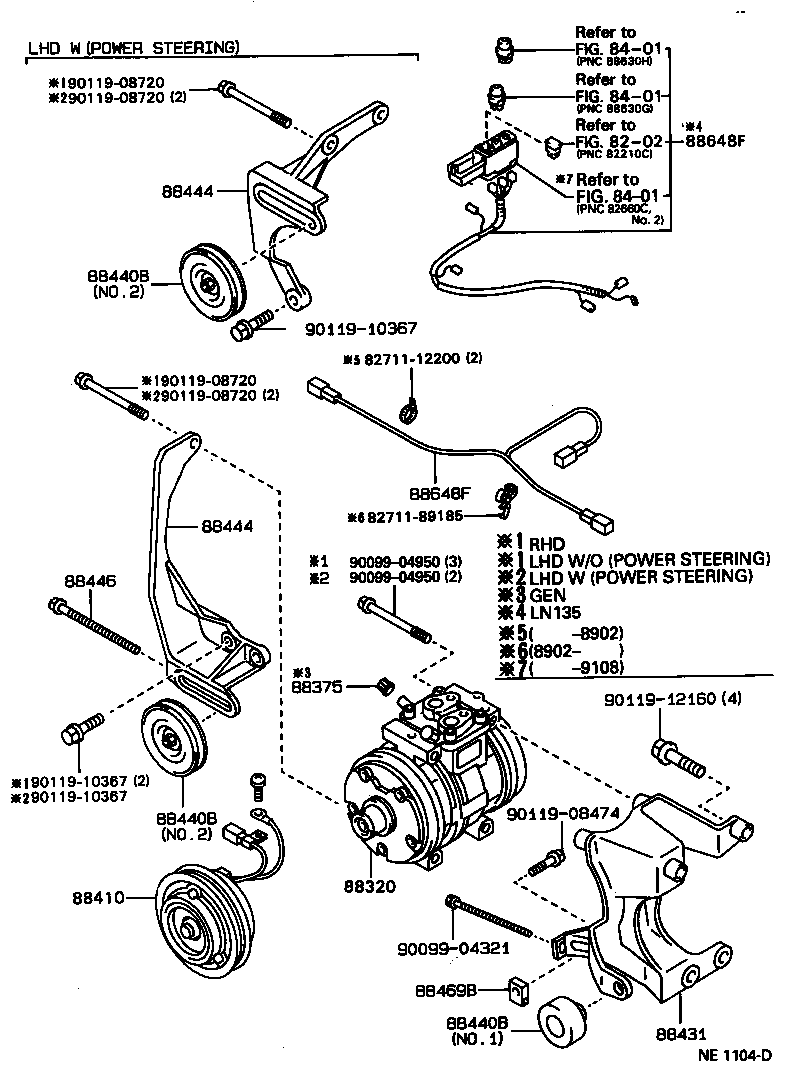

ILLUST NO. 1 OF 3(8808- )LN10#,111,13#,205

Click highlighted areas on diagram

diagram 8202 8271112200 8271189185 8401 8401 8401 88320 88375 88410 88431 88440B 88440B 88440B 88444 88444 88446 88469B 88648F 88648F 9009904321 9009904950 9009904950 9011908474 9011908720 9011908720 9011908720 9011908720 9011910367 9011910367 9011910367 9011912160
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-35250

RN10#..ARL;LN10#,111,RN110

 1
88444 - BRACKET, IDLE PULLEY
88444-35060

LN10#,111,13#..LHD

W(POWER STEERING)

 1
88444 - BRACKET, IDLE PULLEY
88444-35060

LN10#,111,13#..LHD

W(POWER STEERING)

 1
88469B - COLLAR
88469-30280

LN10#,111,13#

 1
Common parts
82711-12200
82711-89185
90099-04321
90099-04950
90119-08474
90119-08720
90119-10367
90119-12160
Linked diagrams
8202
8401
