LN107L-PRMDS (1997)

Toyota Hilux/4runner (4wd)

Production Mar 1997 - Jun 2001
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

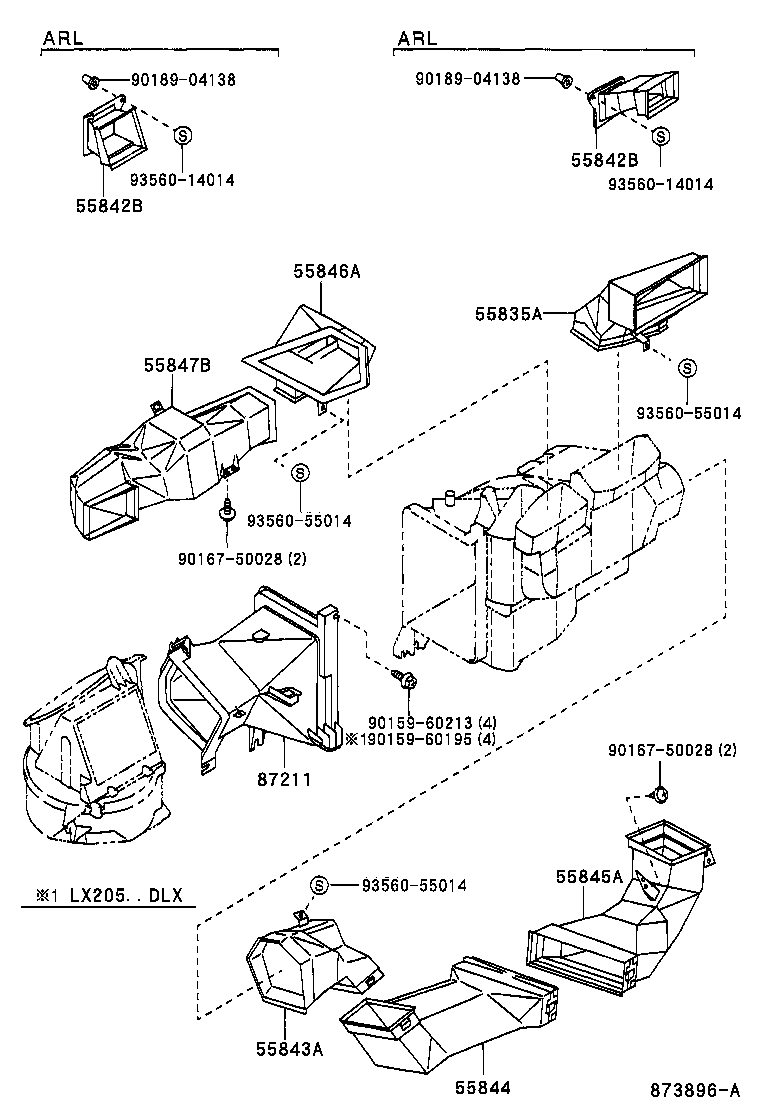

AIR DUCTS

diagram 55835A 55842B 55842B 55843A 55844 55845A 55846A 55847B 87211 9015960195 9015960213 9016750028 9016750028 9018904138 9018904138 9356014014 9356014014 9356055014 9356055014 9356055014
Part # Description Qty Price
55835A - DUCT, HEATER TO REGISTER, CENTER
55835-89109

LN10#,111,13#,RN10#,13#,YN106,135..LHD

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-89115

LN10#,111,13#,RN10#,13#,YN106,135..LHD

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-89112

LN10#,111,13#,RN10#,13#,YN106,135..LHD

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-89107

LN10#,111,13#,RN10#,13#,YN106,135..LHD

 1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-89108

LN10#,111,13#,RN10#,13#,YN106,135..LHD

 1
55847B - DUCT, HEATER TO REGISTER, NO.5
55847-89114

LN10#,111,13#,RN10#,13#,YN106,135..LHD

 1
87211 - DUCT, AIR, NO.1
87211-89113

RN106..STD;LN10#,111,RN105,YN106..LHD

 1
Common parts
90159-60195
90159-60213
90167-50028
90189-04138
93560-14014
93560-55014

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

CONTROL PANEL & CABLE

diagram 55519 55905A 55905A 55905A 55905A 55906A 55907A 55908A 55909A 55910 55910C 8401 87284 9016750028 9356614512
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-89115

LN107..GEN

W(HEATER & BOOST VENTILATOR)

 4
55905-89115

LN107

 3
55905A - KNOB, HEATER CONTROL
55905-89115

LN107..GEN

W(HEATER & BOOST VENTILATOR)

 4
55905-89115

LN107

 3
55905A - KNOB, HEATER CONTROL
55905-89115

LN107..GEN

W(HEATER & BOOST VENTILATOR)

 4
55905-89115

LN107

 3
55905A - KNOB, HEATER CONTROL
55905-89115

LN107..GEN

W(HEATER & BOOST VENTILATOR)

 4
55905-89115

LN107

 3
87284 - RESISTOR SUB-ASSY, VARIABLE
88622-89104

RN10#..LHD..(DLX,STD);LN10#,111,13#,RN13#,YN106,135..GEN,V

 1
Common parts
90167-50028
93566-14512
Linked diagrams
8401

ILLUST NO. 2 OF 2(8808- )LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

Click highlighted areas on diagram

AIR DUCTS,W/O(*HEA) OR W/O(*BV)

diagram 55841B 55841B 55841B 9011906090 9017906026 9017906026 9356014012 9356055014
Part # Description Qty Price
Common parts
90119-06090
90179-06026
93560-14012
93560-55014
