LN107L-PRMDS (1997)

Toyota Hilux/4runner (4wd)

Production Mar 1997 - Jun 2001
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

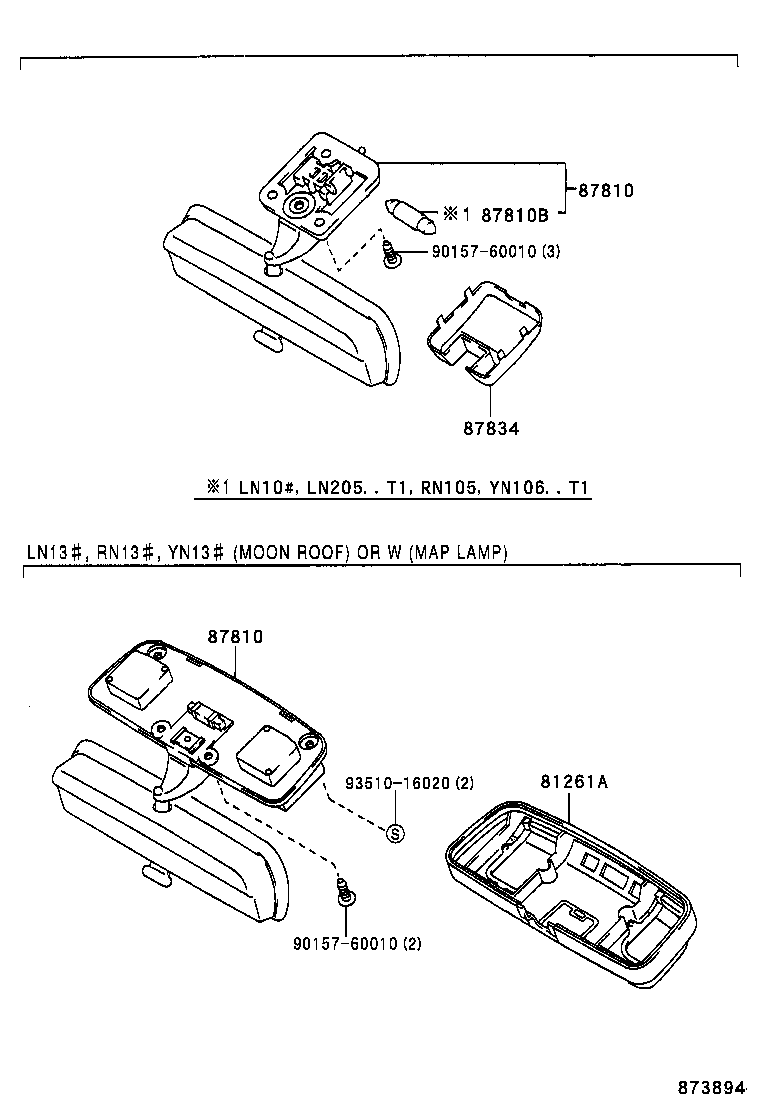

INNER MIRROR

diagram 81261A 87810 87810 87810B 87834 9015760010 9015760010 9351016020
Part # Description Qty Price
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-8910503

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#..DCB,WG,XTR

GRAY,TRIM1#

 1
Common parts
90157-60010
93510-16020

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

OUTER MIRROR

diagram 87910 87910 87911 87915 87917B 87917B 87940 87940 87941 87945 87947B 87947B 9015950236 9331315012 9331515014
Part # Description Qty Price
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-35170

LN107..DLX,STD

NO PAINT REQ.

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-35170

LN107..DLX,STD

NO PAINT REQ.

 1
Common parts
90159-50236
93313-15012
93315-15014
