LN107L-PRMDS (1997)

Toyota Hilux/4runner (4wd)

Production Mar 1997 - Jun 2001
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

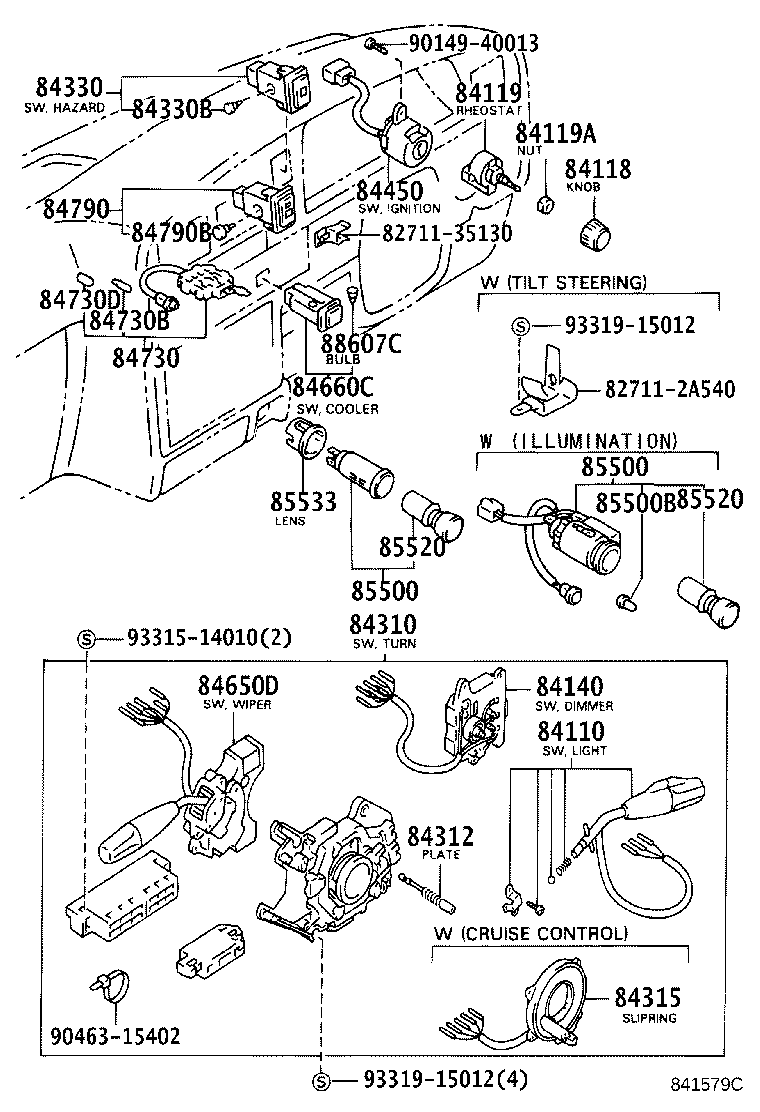

ILLUST NO. 2 OF 4(8808- )

Click highlighted areas on diagram

INSTRUMENT PANEL & COMBINATION SW.

diagram 827112A540 8271135130 84110 84118 84119 84119A 84140 84310 84312 84315 84330 84330B 84450 84650D 84660C 84730 84730B 84730D 84790 84790B 85500 85500 85500B 85520 85520 85533 88607C 9014940013 9046315402 9331514010 9331915012 9331915012
Part # Description Qty Price
84118 - KNOB, LIGHT CONTROL RHEOSTAT
84118-20011

LN107

 1
84660C - SWITCH, COOLER
84660-89105

RN105..ARL,V;LN10#,111,13#,RN106,110,13#,VZN130,YN106,13#

 1
84730B - BULB, HEATER BLOWER SWITCH
90981-11014

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

14V 1.4W

 1
84730D - CAP, HEATER BLOWER SWITCH BULB
84998-10050

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
Common parts
82711-2A540
82711-35130
90149-40013
90463-15402
93315-14010
93319-15012

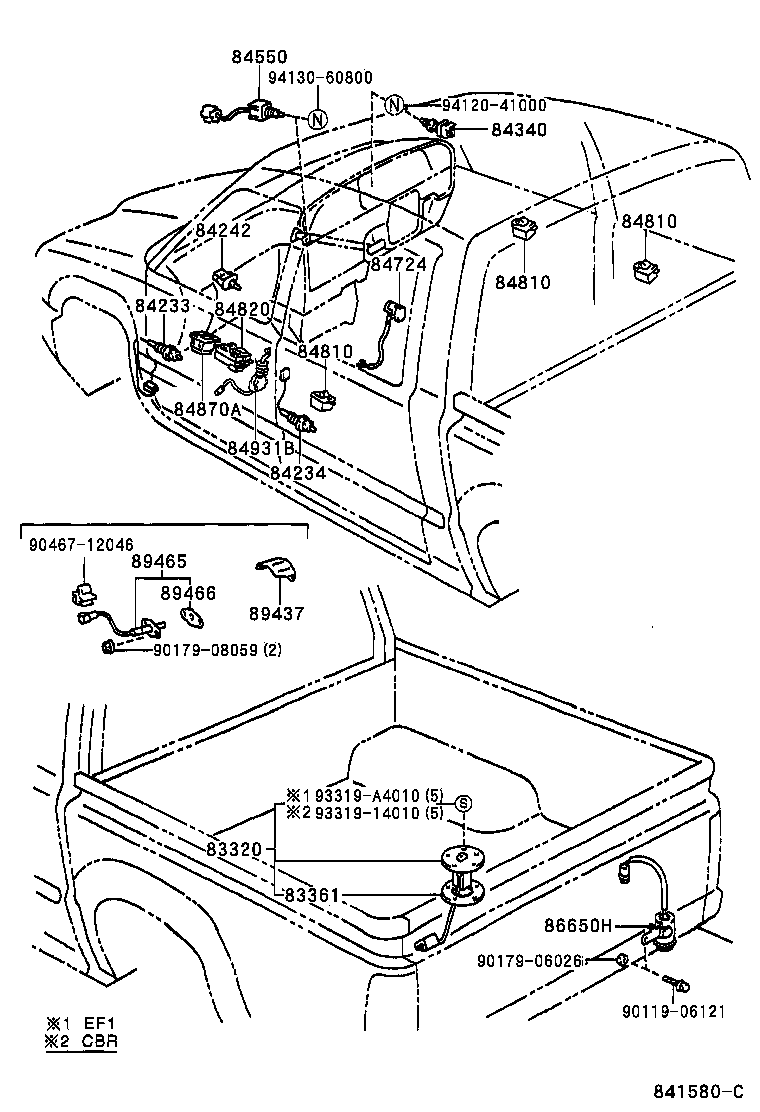

ILLUST NO. 4 OF 4(8808- )LN10#,111,205,RN10#,110,YN106

Click highlighted areas on diagram

DOOR,FLOOR & REAR BUMPER

diagram 83320 83361 84233 84234 84242 84340 84550 84724 84810 84810 84810 84820 84870A 84931B 86650H 89437 89465 89466 9011906121 9017906026 9017908059 9046712046 9331914010 93319A4010 9412041000 9413060800
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-80119

LN10#,RN10#,YN106..TW1..(CBR,DSL)

 1
83361 - GASKET, FUEL SENDER GAGE
83361-20030

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84230-12120

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84230-12120

LN10#,13#,RN10#,13#,VZN130,YN106,13#..4D,TW1

 2
84550 - SWITCH ASSY, PARKING BRAKE
84550-35010

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
Common parts
90119-06121
90179-06026
90179-08059
90467-12046
93319-14010
93319-A4010
94120-41000
94130-60800

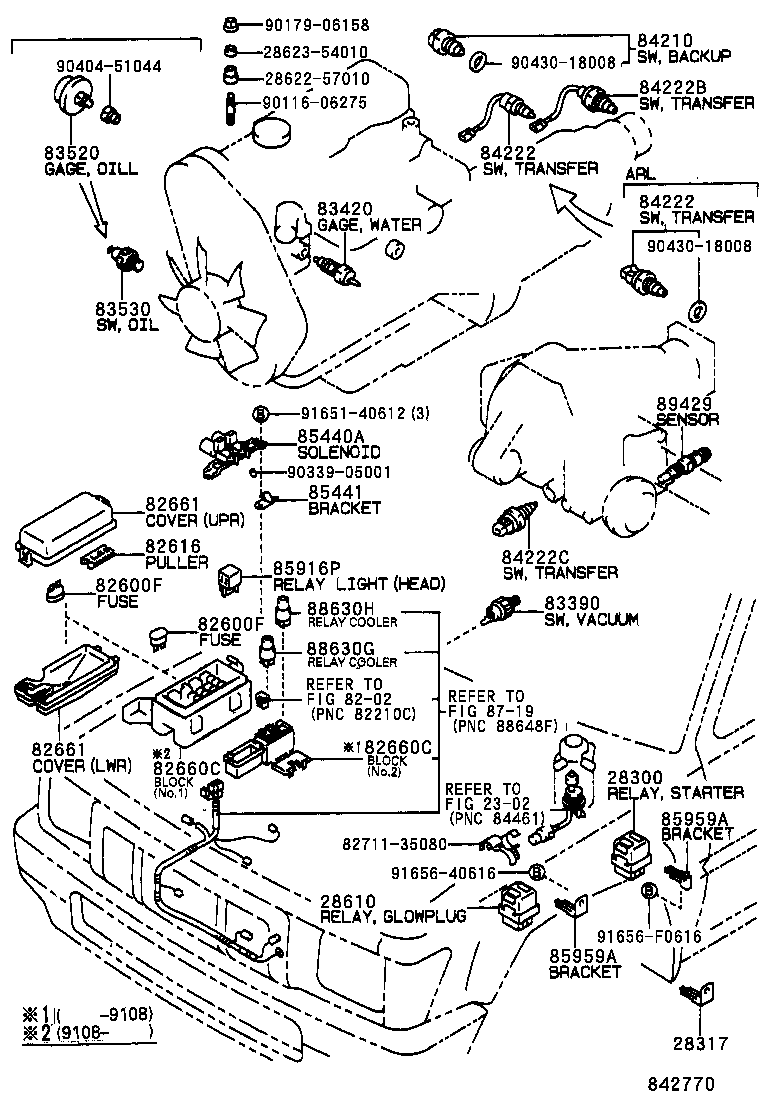

ILLUST NO. 1 OF 4(8808- )LN10#,111,13#

Click highlighted areas on diagram

ENGINE,TRANSFER & ENGINE ROOM

diagram 2302 28300 28317 28610 2862257010 2862354010 8202 82600F 82600F 82616 82660C 82660C 82661 82661 8271135080 83390 83420 83520 83530 84210 84222 84222 84222B 84222C 85440A 85441 85916P 85959A 85959A 8719 88630G 88630H 89429 9011606275 9017906158 9033905001 9040451044 9043018008 9043018008 9165140612 9165640616 91656F0616
Part # Description Qty Price
82600F - FUSE, FUSE BLOCK
90982-09003

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

15A

 1
90982-09002

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

10A

 1
90982-09005

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

7.5A

 1
90982-09004

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

20A,YELLOW

 1
82600F - FUSE, FUSE BLOCK
90982-09003

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

15A

 1
90982-09002

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

10A

 1
90982-09005

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

7.5A

 1
90982-09004

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

20A,YELLOW

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-60030

LN10#

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F

 1
85916P - RELAY, HEADLAMP
90987-02006

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
89429 - SENSOR, OIL TEMPERATURE
89422-20010

LN107

 1
Common parts
28622-57010
28623-54010
82711-35080
90116-06275
90179-06158
90339-05001
90404-51044
90430-18008
91651-40612
91656-40616
91656-F0616
Linked diagrams
2302
8202
8719

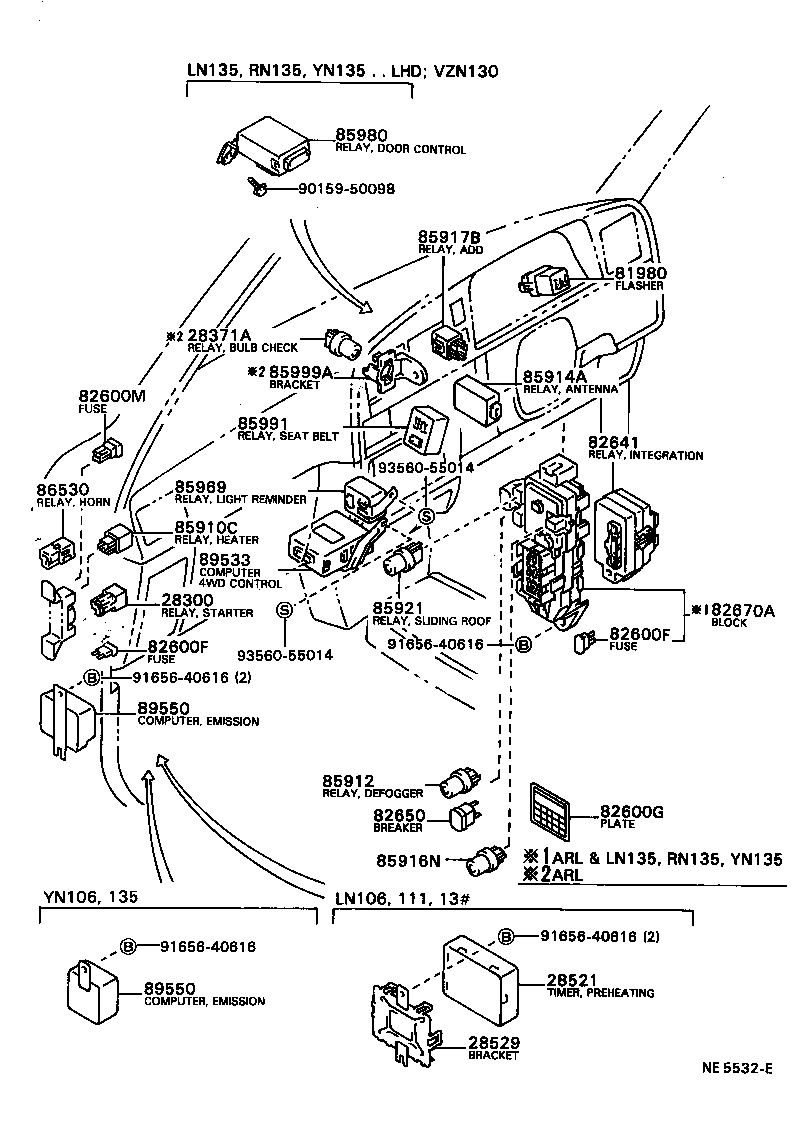

ILLUST NO. 3 OF 4(8808- )LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

Click highlighted areas on diagram

INSTRUMENT PANEL & COWL RELAY

diagram 28300 28371A 28521 28529 81980 82600F 82600F 82600G 82600M 82641 82650 82670A 85910C 85912 85914A 85916N 85917B 85921 85969 85980 85991 85999A 86530 89533 89550 89550 9015950098 9165640616 9165640616 9165640616 9165640616 9356055014 9356055014
Part # Description Qty Price
28521 - TIMER, PREHEATING
28521-54591

3L..LN107

 1
28529 - BRACKET, PREHEATING TIMER, NO.1
28529-54380

3L..LN10#,111

 1
28529-54170

3L..LN10#,111,13#

 1
81980 - FLASHER ASSY, TURN SIGNAL
81980-12070

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
82600F - FUSE, FUSE BLOCK
90982-09003

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

15A

 1
90982-09002

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

10A

 1
90982-09005

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

7.5A

 1
90982-09004

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

20A,YELLOW

 1
82600F - FUSE, FUSE BLOCK
90982-09003

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

15A

 1
90982-09002

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

10A

 1
90982-09005

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

7.5A

 1
90982-09004

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

20A,YELLOW

 1
82600G - PLATE, CAUTION(FOR FUSE)
82683-89105

LN10#,111,RN10#,YN106..(CBR,DSL)..(GEN,V)

 1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04002

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
85916N - RELAY, TAIL LAMP
90987-01003

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
Common parts
90159-50098
91656-40616
93560-55014
