LN107L-PRMDS (1997)

Toyota Hilux/4runner (4wd)

Production Mar 1997 - Jun 2001
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 4(8808- )LN10#,111,RN10#,110,YN106

Click highlighted areas on diagram

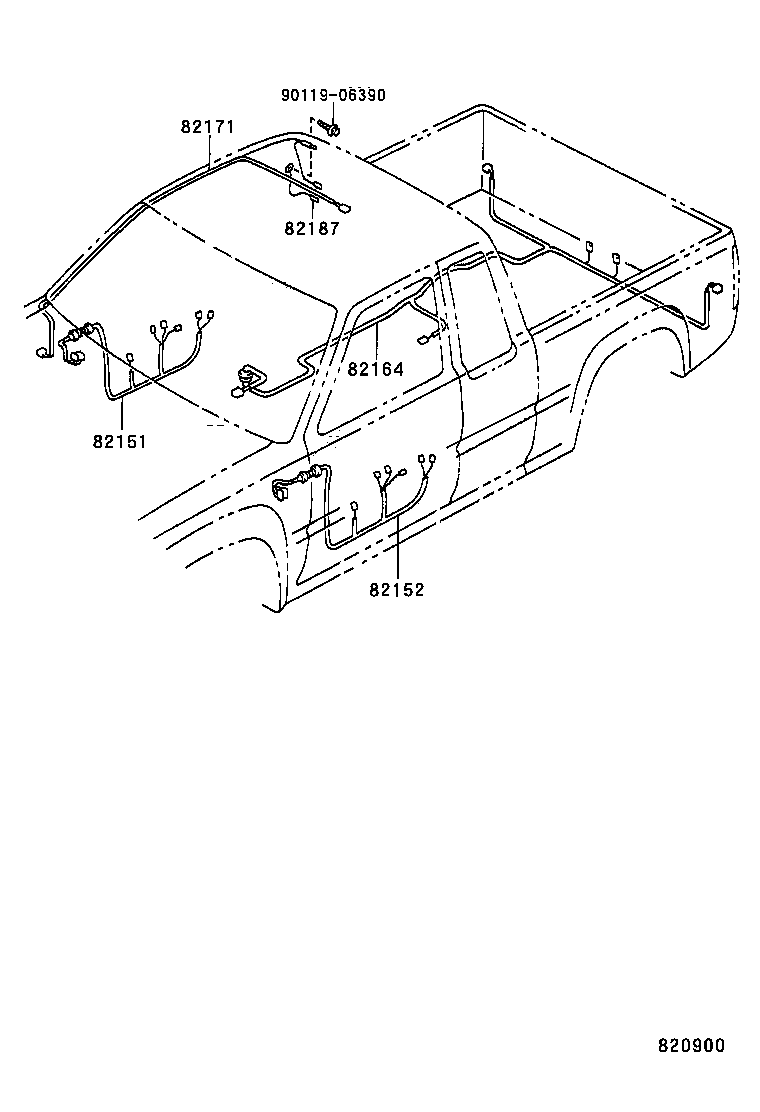

ROOF,FRAME & REAR WINDOW WIRE

diagram 82151 82152 82164 82171 82187 9011906390
Part # Description Qty Price
Common parts
90119-06390

ILLUST NO. 4 OF 4(8808- )

Click highlighted areas on diagram

ENGINE WIRE CLAMPS & BRACKETS

diagram 8271112120 8271112200 8271112290 8271114110 827112A190 8271130800 8271189123 8271189123 8271189157 8271195024 8271522180 8271589102 8271589107 8271589108 8271589109 8271589110 9011908A96 9011908A96 9016860010 9016860010 9162140812 9162140812
Part # Description Qty Price
Common parts
82711-12120
82711-12200
82711-12290
82711-14110
82711-2A190
82711-30800
82711-89123
82711-89157
82711-95024
82715-22180
82715-89102
82715-89107
82715-89108
82715-89109
82715-89110
90119-08A96
90168-60010
91621-40812

ILLUST NO. 1 OF 4(8808- )KZN205,LN10#,111,13#,205

Click highlighted areas on diagram

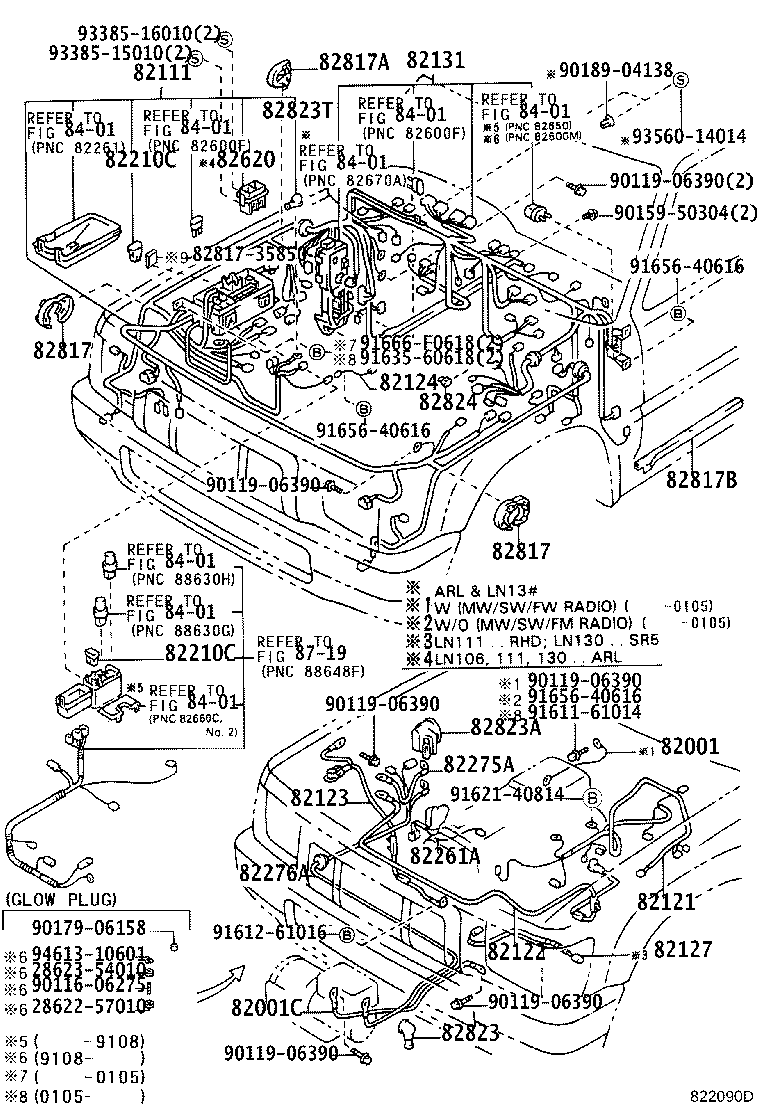

ENGINE ROOM & INSTRUMENT PANEL WIRE

diagram 2862257010 2862354010 82001 82001C 82111 82121 82122 82123 82124 82127 82131 82210C 82210C 82261A 82275A 82276A 82620 82817 82817 8281735850 82817A 82817B 82823 82823A 82823T 82824 8401 8401 8401 8401 8401 8401 8401 8401 8719 9011606275 9011906390 9011906390 9011906390 9011906390 9011906390 9011906390 9015950304 9017906158 9018904138 9161161014 9161261016 9162140814 9163560618 9165640616 9165640616 9165640616 91666F0618 9338515010 9338516010 9356014014 9461310601
Part # Description Qty Price
82131 - WIRE, COWL
82131-3M021

LN107..GEN

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-89123

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-89123

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
Common parts
28622-57010
28623-54010
82817-35850
90116-06275
90119-06390
90159-50304
90179-06158
90189-04138
91611-61014
91612-61016
91621-40814
91635-60618
91656-40616
91666-F0618
93385-15010
93385-16010
93560-14014
94613-10601
Linked diagrams
8401
8719

ILLUST NO. 4 OF 4(8808- )

Click highlighted areas on diagram

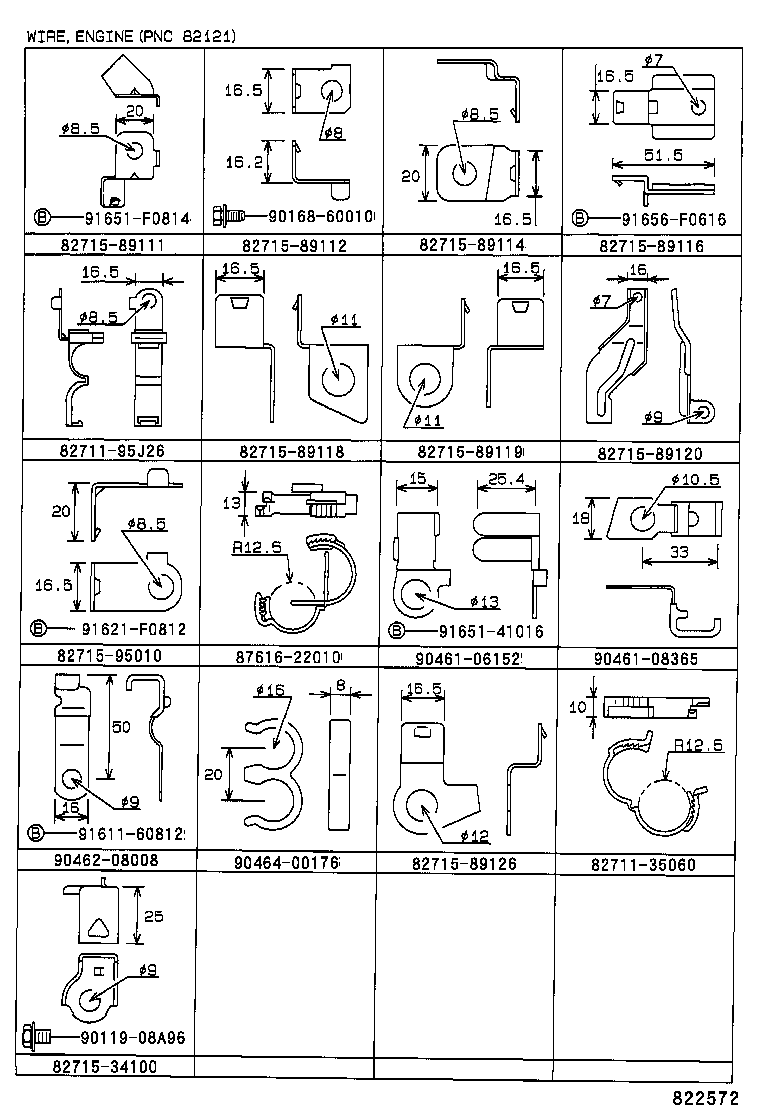

ENGINE WIRE CLAMPS & BRACKETS

diagram 8271135060 8271195J26 8271534100 8271589111 8271589112 8271589114 8271589116 8271589118 8271589119 8271589120 8271589126 8271595010 8761622010 9011908A96 9016860010 9046106152 9046108365 9046208008 9046400176 9161160812 91621F0812 9165141016 91651F0814 91656F0616
Part # Description Qty Price
Common parts
82711-35060
82711-95J26
82715-34100
82715-89111
82715-89112
82715-89114
82715-89116
82715-89118
82715-89119
82715-89120
82715-89126
82715-95010
87616-22010
90119-08A96
90168-60010
90461-06152
90461-08365
90462-08008
90464-00176
91611-60812
91621-F0812
91651-41016
91651-F0814
91656-F0616

ILLUST NO. 4 OF 4(8808- )KZN205,LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

Click highlighted areas on diagram

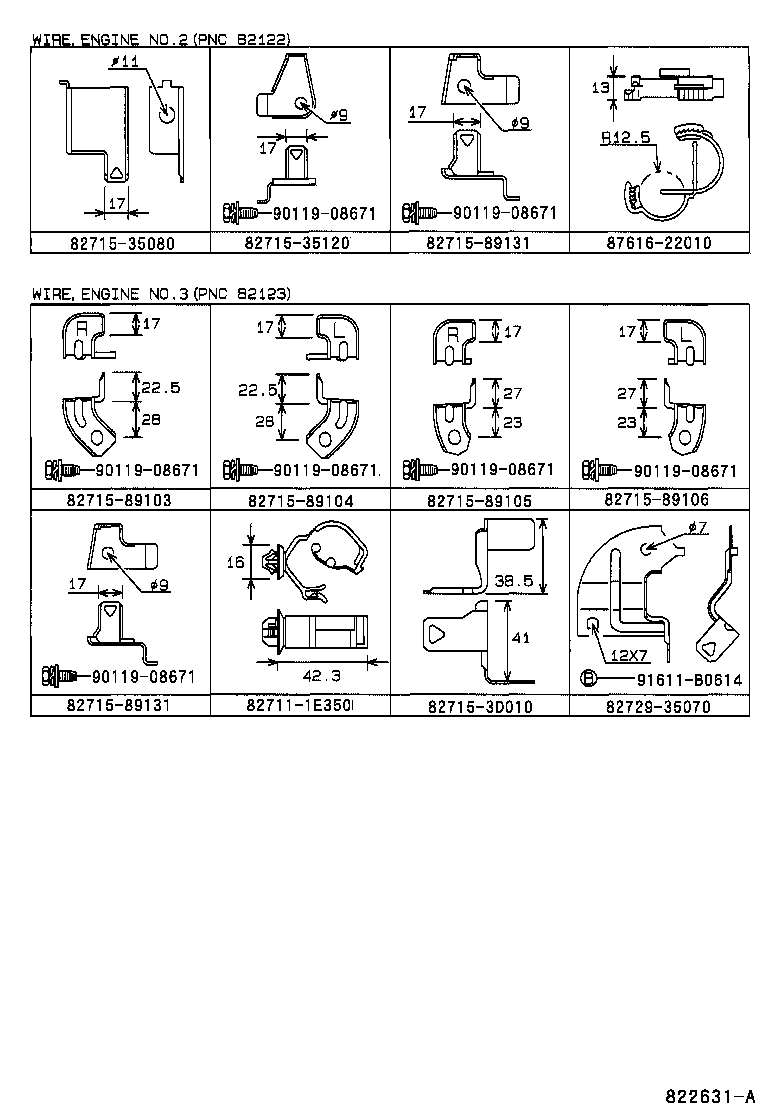

ENGINE WIRE NO.2,NO.3 CLAMPS & BKTS

diagram 827111E350 8271535080 8271535120 827153D010 8271589103 8271589104 8271589105 8271589106 8271589131 8271589131 8272935070 8761622010 9011908671 9011908671 9011908671 9011908671 9011908671 9011908671 9011908671 91611B0614
Part # Description Qty Price
Common parts
82711-1E350
82715-35080
82715-35120
82715-3D010
82715-89103
82715-89104
82715-89105
82715-89106
82715-89131
82729-35070
87616-22010
90119-08671
91611-B0614

ILLUST NO. 4 OF 4(8808- )LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

Click highlighted areas on diagram

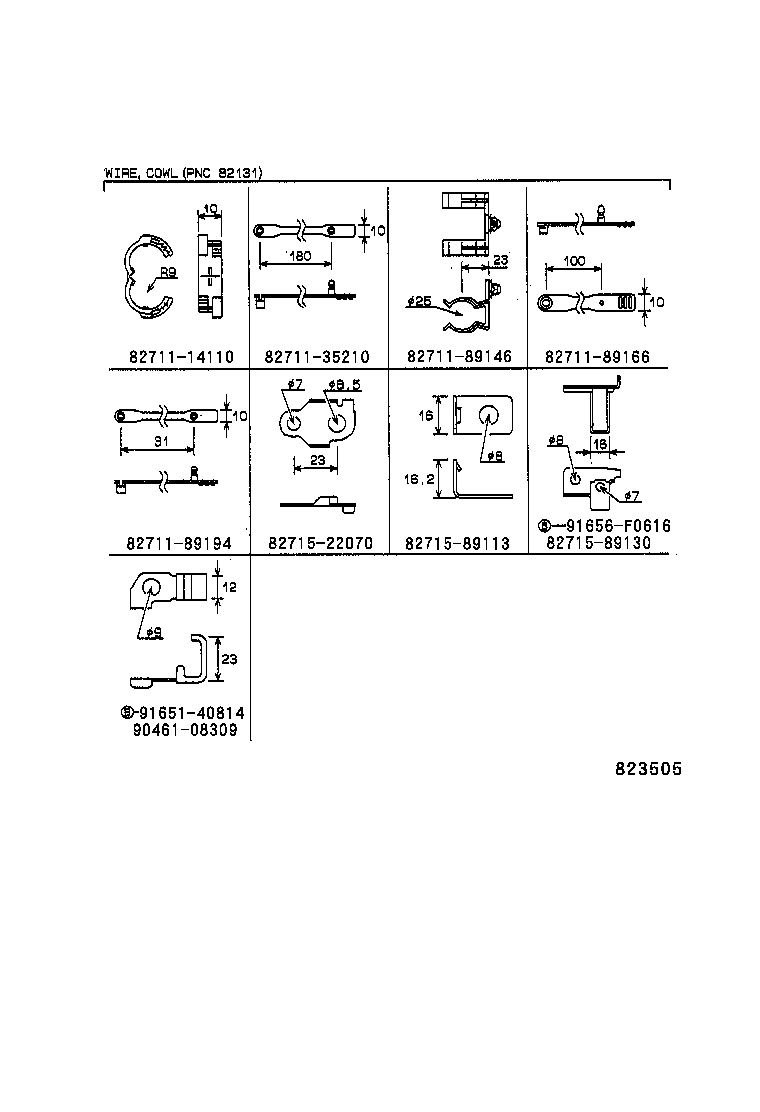

COWL WIRE CLAMPS & BRACKETS

diagram 8271114110 8271135210 8271189146 8271189166 8271189194 8271522070 8271589113 8271589130 9046108309 9165140814 91656F0616
Part # Description Qty Price
Common parts
82711-14110
82711-35210
82711-89146
82711-89166
82711-89194
82715-22070
82715-89113
82715-89130
90461-08309
91651-40814
91656-F0616

ILLUST NO. 4 OF 4(8808- )LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

Click highlighted areas on diagram

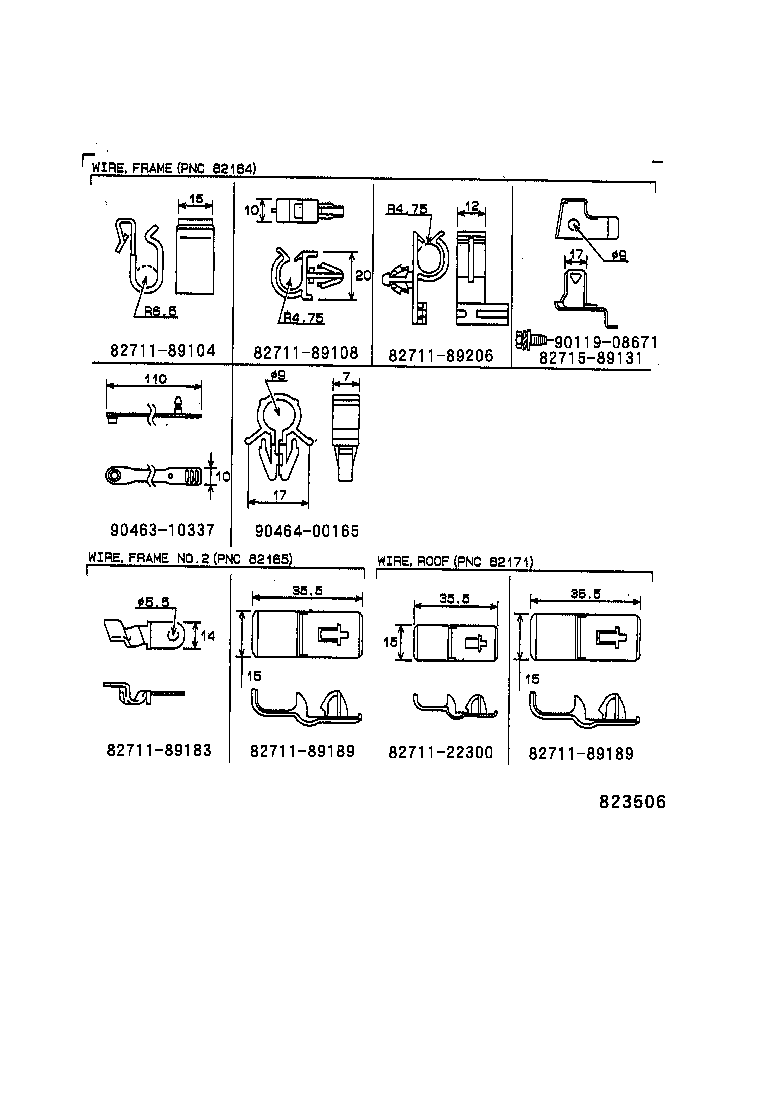

FRAME,ROOF WIRE CLAMPS & BRACKETS

diagram 8271122300 8271189104 8271189108 8271189183 8271189189 8271189189 8271189206 8271589131 9011908671 9046310337 9046400165
Part # Description Qty Price
Common parts
82711-22300
82711-89104
82711-89108
82711-89183
82711-89189
82711-89206
82715-89131
90119-08671
90463-10337
90464-00165

ILLUST NO. 3 OF 4(8808- )KZN205,LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

Click highlighted areas on diagram

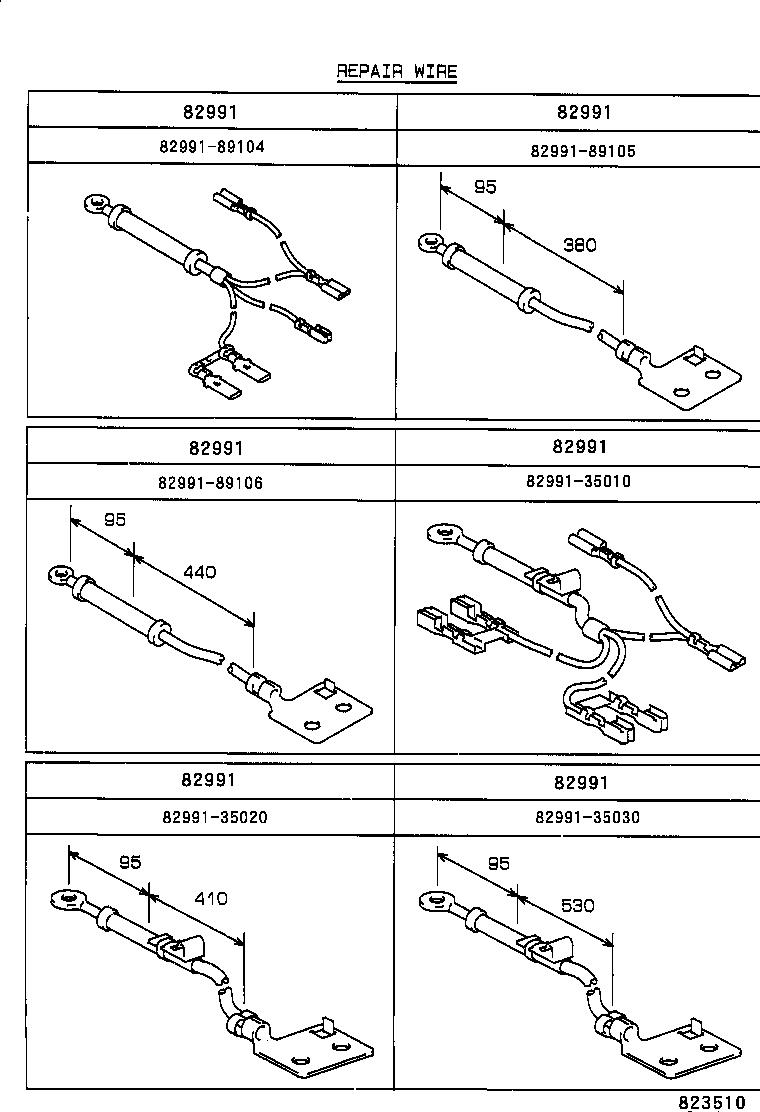

FUSIBLE LINK REPAIR WIRE

diagram 82991 82991 82991 82991 82991 82991 8299135010 8299135020 8299135030 8299189104 8299189105 8299189106
Part # Description Qty Price
Common parts
82991-35010
82991-35020
82991-35030
82991-89104
82991-89105
82991-89106

ILLUST NO. 4 OF 4(8808- )LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

Click highlighted areas on diagram

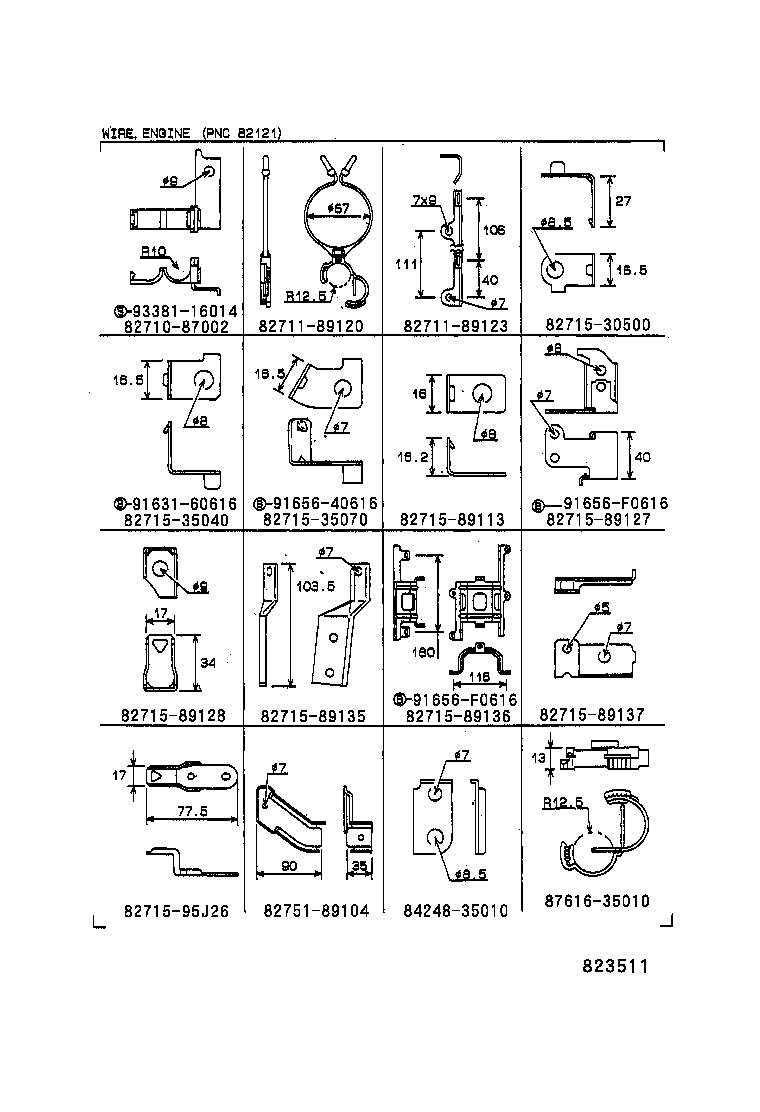

ENGINE WIRE CLAMPS & BRACKETS

diagram 8271087002 8271189120 8271189123 8271530500 8271535040 8271535070 8271589113 8271589127 8271589128 8271589135 8271589136 8271589137 8271595J26 8275189104 8424835010 8761635010 9163160616 9165640616 91656F0616 91656F0616 9338116014
Part # Description Qty Price
Common parts
82710-87002
82711-89120
82711-89123
82715-30500
82715-35040
82715-35070
82715-89113
82715-89127
82715-89128
82715-89135
82715-89136
82715-89137
82715-95J26
82751-89104
84248-35010
87616-35010
91631-60616
91656-40616
91656-F0616
93381-16014

ILLUST NO. 4 OF 4(8808- )LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

Click highlighted areas on diagram

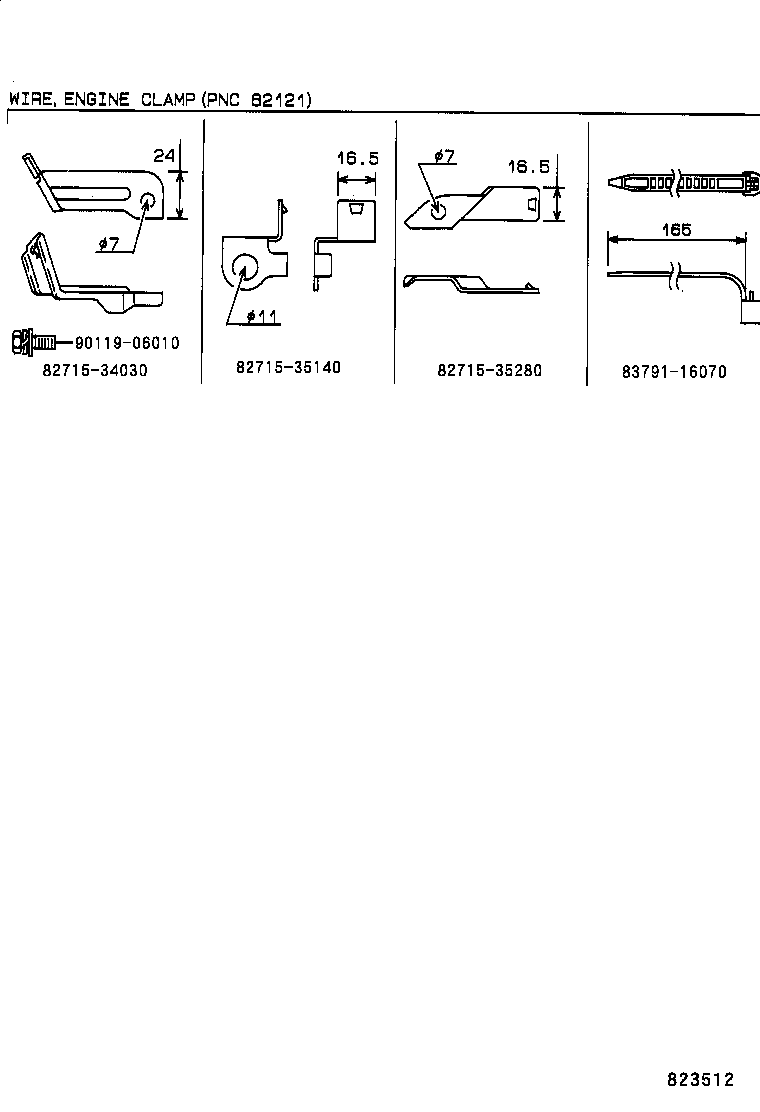

ENGINE WIRE CLAMPS & BRACKETS

diagram 8271534030 8271535140 8271535280 8379116070 9011906010
Part # Description Qty Price
Common parts
82715-34030
82715-35140
82715-35280
83791-16070
90119-06010

ILLUST NO. 4 OF 4(8808- )LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

Click highlighted areas on diagram

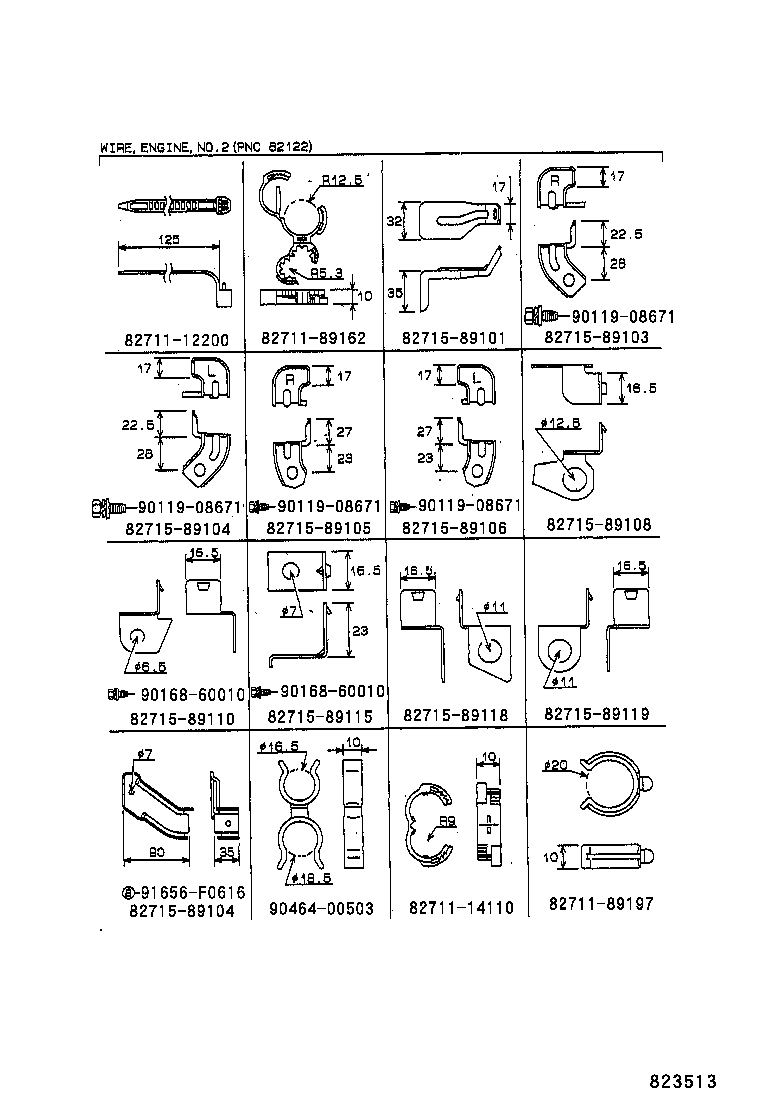

ENGINE WIRE NO.2 CLAMPS & BRACKETS

diagram 8271112200 8271114110 8271189162 8271189197 8271589101 8271589103 8271589104 8271589104 8271589105 8271589106 8271589108 8271589110 8271589115 8271589118 8271589119 9011908671 9011908671 9011908671 9011908671 9016860010 9016860010 9046400503 91656F0616
Part # Description Qty Price
Common parts
82711-12200
82711-14110
82711-89162
82711-89197
82715-89101
82715-89103
82715-89104
82715-89105
82715-89106
82715-89108
82715-89110
82715-89115
82715-89118
82715-89119
90119-08671
90168-60010
90464-00503
91656-F0616

ILLUST NO. 4 OF 4(8808- )LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

Click highlighted areas on diagram

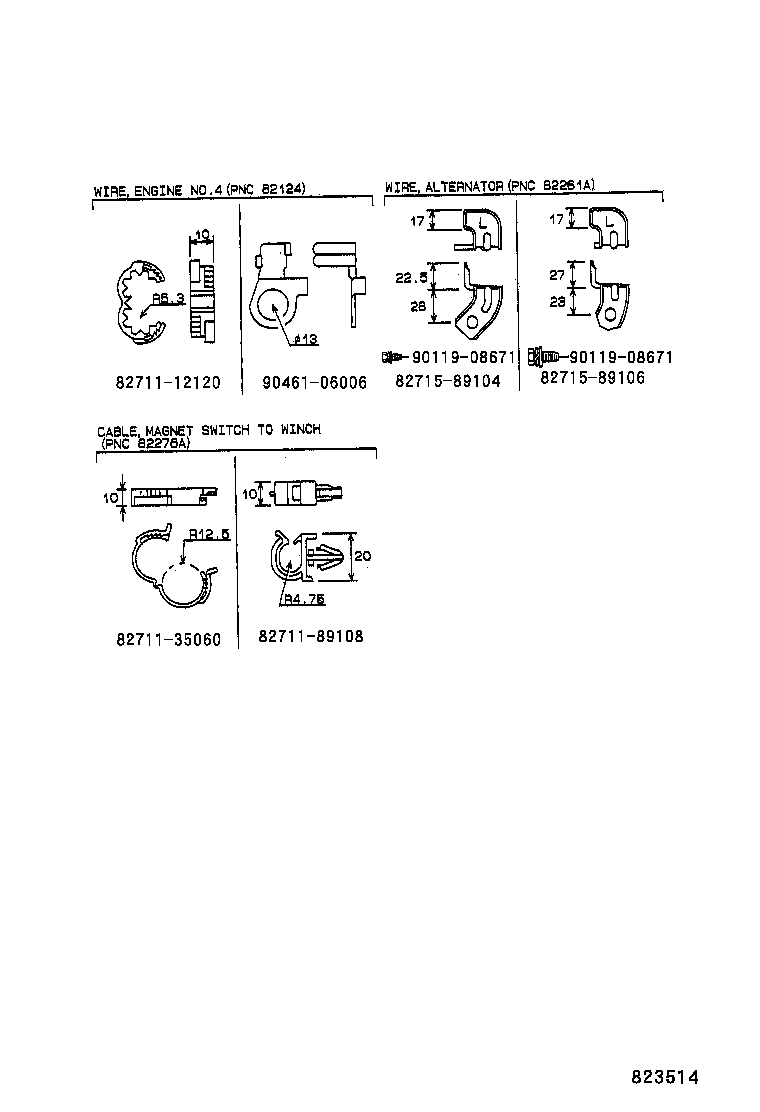

E/G WIRE NO.4,ALT,WINCH WIRE CLAMPS

diagram 8271112120 8271135060 8271189108 8271589104 8271589106 9011908671 9011908671 9046106006
Part # Description Qty Price
Common parts
82711-12120
82711-35060
82711-89108
82715-89104
82715-89106
90119-08671
90461-06006

ILLUST NO. 4 OF 4(8808- )

Click highlighted areas on diagram

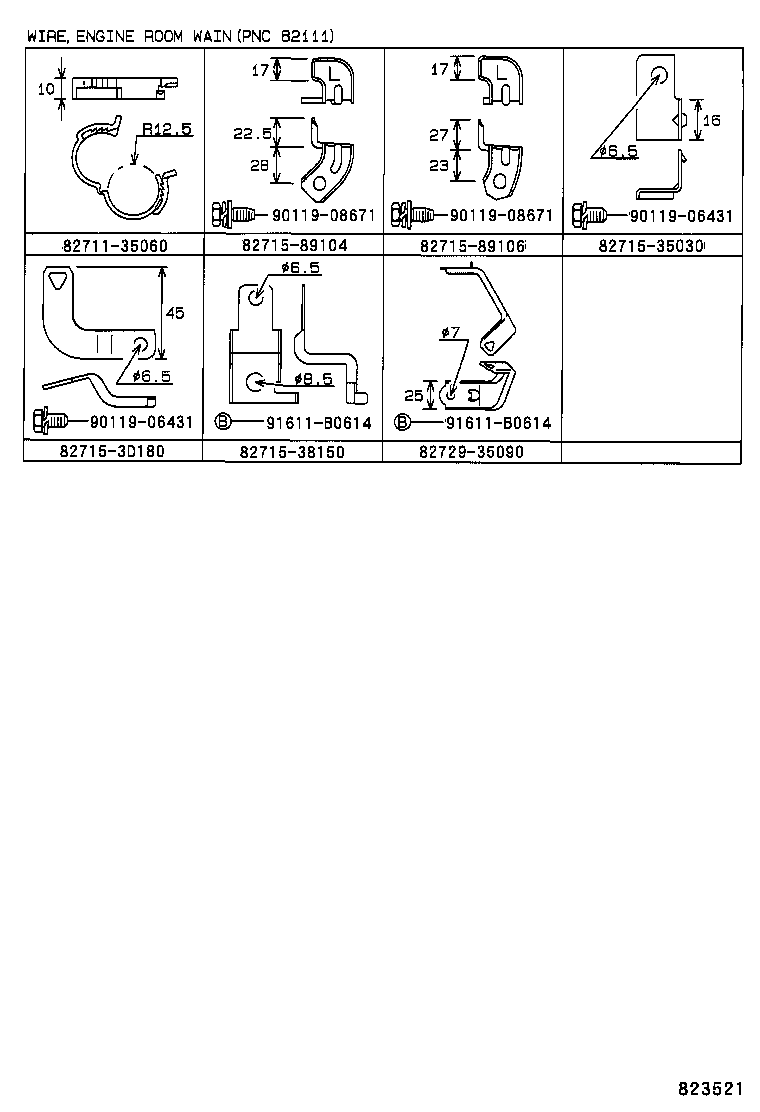

ENGINE ROOM WIRE CLAMPS & BRACKETS

diagram 8271135060 8271535030 8271538150 827153D180 8271589104 8271589106 8272935090 9011906431 9011906431 9011908671 9011908671 91611B0614 91611B0614
Part # Description Qty Price
Common parts
82711-35060
82715-35030
82715-38150
82715-3D180
82715-89104
82715-89106
82729-35090
90119-06431
90119-08671
91611-B0614
