LN107L-PRMDS (1997)

Toyota Hilux/4runner (4wd)

Production Mar 1997 - Jun 2001
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 67491A 67492A 67499 67601 67601 67601 67601A 67601A 67601A 67601A 67601A 67601B 67601B 67602 67602 67602 67772E 67772E 67772E 67777 67778 68170 68170 68170 68170A 69751E 69751E 9016840025 9016840025 9016840025 9351074020
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-89101

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-89101

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67499-89101

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
Common parts
90168-40025
93510-74020

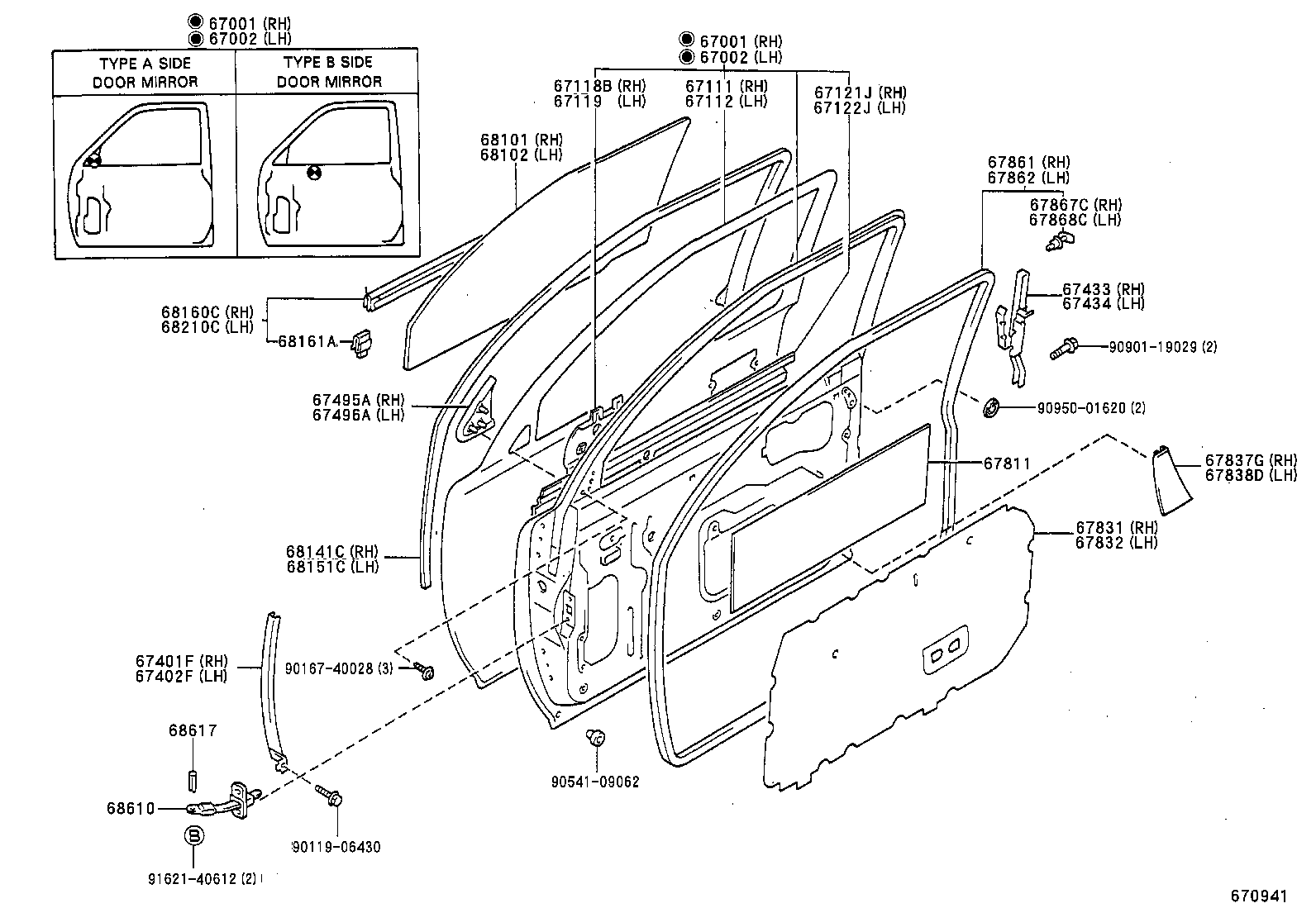

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 67001 67001 67002 67002 67111 67112 67118B 67119 67121J 67122J 67401F 67402F 67433 67434 67495A 67496A 67811 67831 67832 67837G 67838D 67861 67862 67867C 67868C 68101 68102 68141C 68151C 68160C 68161A 68210C 68610 68617 9011906430 9016740028 9054109062 9090119029 9095001620 9162140612
Part # Description Qty Price
67121J - REINFORCEMENT, FRONT DOOR OUTSIDE PANEL, RH
67121-89102

LN10#,13#,RN10#,13#,VZN130,YN106,13#..4D,TW1

 1
67122J - REINFORCEMENT, FRONT DOOR OUTSIDE PANEL, LH
67122-89102

LN10#,13#,RN10#,13#,VZN130,YN106,13#..4D,TW1

 1
67433 - FRAME, FRONT DOOR WINDOW, REAR LOWER RH
67403-35030

RN105..DLX..ARL;LN10#,RN106,YN106..TW1

 1
67434 - FRAME, FRONT DOOR WINDOW, REAR LOWER LH
67404-35030

RN105..DLX..ARL;LN10#,RN106,YN106..TW1

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-89109

LN10#,RN10#,YN106..TW1

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-89108

LN10#,RN10#,YN106..TW1

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-89108

LN10#,13#,RN10#,13#,VZN130,YN106,13#..4D,TW1

 17
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67868-89106

LN10#,13#,RN10#,13#,VZN130,YN106,13#..4D,TW1

 17
68617 - PIN, FRONT DOOR CHECK
68617-20011

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
Common parts
90119-06430
90167-40028
90541-09062
90901-19029
90950-01620
91621-40612
