LN107L-PRMDS (1997)

Toyota Hilux/4runner (4wd)

Production Mar 1997 - Jun 2001
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

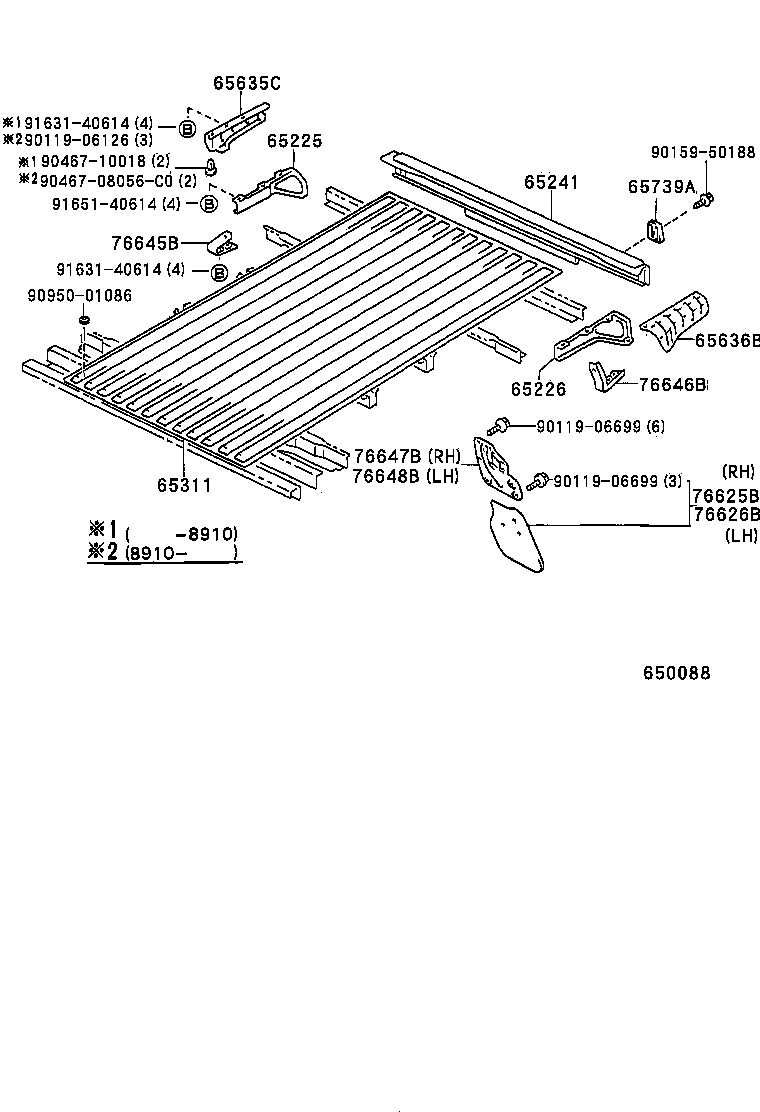

Click highlighted areas on diagram

diagram 65225 65226 65241 65311 65635C 65636B 65739A 76625B 76626B 76645B 76646B 76647B 76648B 9011906126 9011906699 9011906699 9015950188 9046708056C0 9046710018 9095001086 9163140614 9163140614 9165140614
Part # Description Qty Price
65225 - REINFORCEMENT, FLOOR PANEL, REAR RH
65225-89102

LN10#,RN10#,YN106..CBU

 1
65226 - REINFORCEMENT, FLOOR PANEL, REAR LH
65226-89101

LN10#,RN10#,YN106..CBU

 1
65241 - SILL, REAR CROSS
65240-89130

LN10#,111,RN10#,110,YN106..CBU

 1
65311 - PANEL, FLOOR, CENTER
65311-89127

LN10#,RN10#,YN106..TW1..CBU

 1
65635C - PLATE, REAR WHEEL HOUSE, REAR RH
65635-89111

LN10#,RN10#,YN106..CBU

 1
65636B - PLATE, REAR WHEEL HOUSE, REAR LH
65636-89110

LN10#,RN10#,YN106..CBU

 1
65739A - BUMPER, TAIL GATE
65739-89101

LN10#,111,RN10#,110,YN106..CBU

W(REAR BUMPER)

 2
65739-89103

RN10#..ARL..CBU;LN10#,YN106..CBU;LN111,RN106..(DLX,STD)..CBU

 2
76645B - BRACKET, REAR BODY MUDGUARD, RH
76645-89101

LN10#,111,RN10#,110,YN106..CBU

 1
76646B - BRACKET, REAR BODY MUDGUARD, LH
76646-89101

LN10#,111,RN10#,110,YN106..CBU

 1
76647B - SUPPORT, REAR BODY MUDGUARD, RH
76647-89106

LN10#,111,RN10#,110,YN106..CBU

 1
76648B - SUPPORT, REAR BODY MUDGUARD, LH
76648-89106

LN10#,111,RN10#,110,YN106..CBU

 1
Common parts
90119-06126
90119-06699
90159-50188
90467-08056C0
90467-10018
90950-01086
91631-40614
91651-40614
