LN107L-PRMDS (1997)

Toyota Hilux/4runner (4wd)

Production Mar 1997 - Jun 2001
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

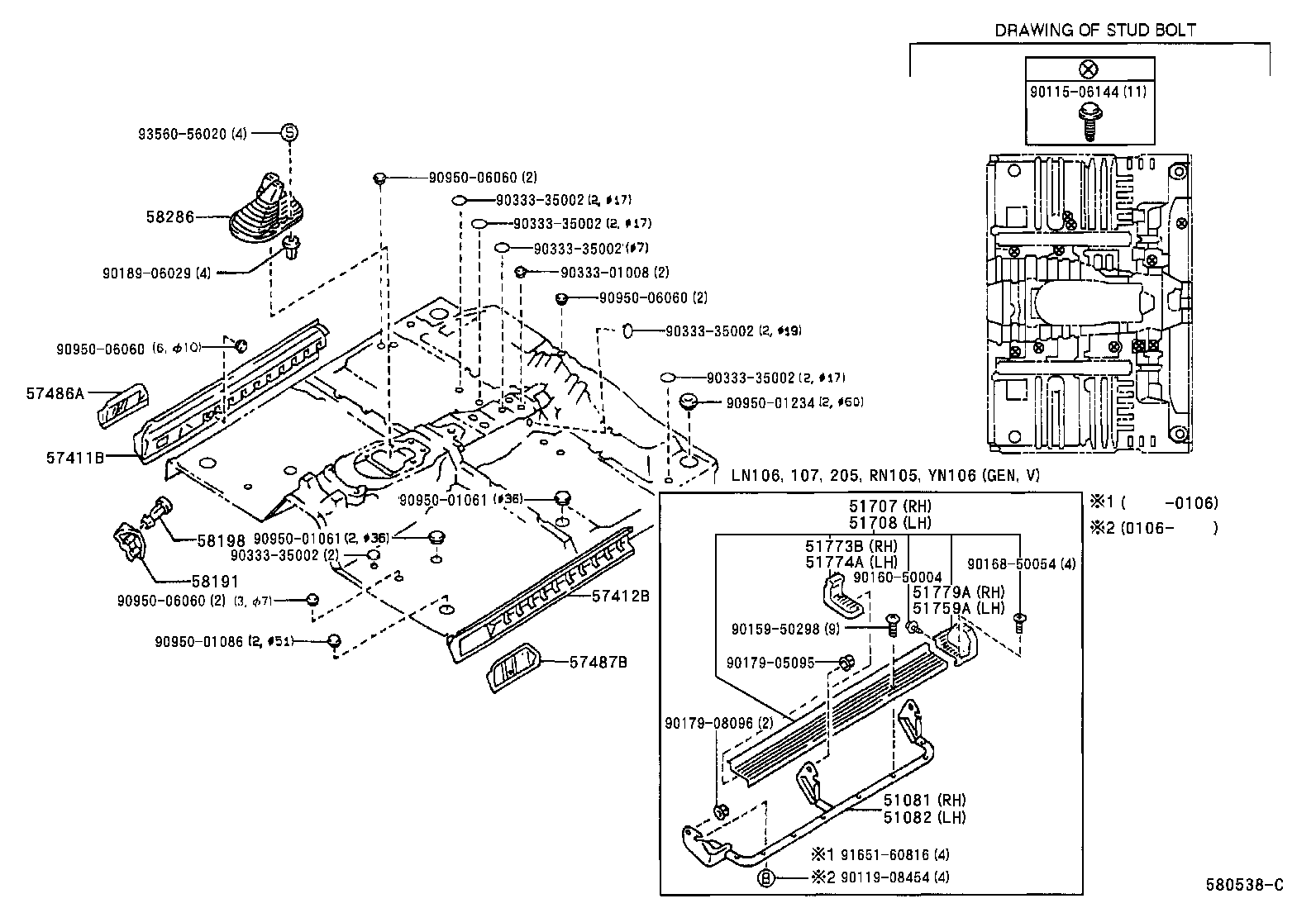

ILLUST NO. 1 OF 2(8808- )TW1

Click highlighted areas on diagram

diagram 51081 51082 51707 51708 51759A 51773B 51774A 51779A 57411B 57412B 57486A 57487B 58191 58198 58286 9011506144 9011908454 9015950298 9016050004 9016850054 9017905095 9017908096 9018906029 9033301008 9033335002 9033335002 9033335002 9033335002 9033335002 9033335002 9095001061 9095001061 9095001086 9095001234 9095006060 9095006060 9095006060 9095006060 9165160816 9356056020
Part # Description Qty Price
57486A - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57486-89104

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
57487B - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
57487-89102

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
Common parts
90115-06144
90119-08454
90159-50298
90160-50004
90168-50054
90179-05095
90179-08096
90189-06029
90333-01008
90333-35002
90950-01061
90950-01086
90950-01234
90950-06060
91651-60816
93560-56020
