LN107L-PRMDS (1997)

Toyota Hilux/4runner (4wd)

Production Mar 1997 - Jun 2001
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

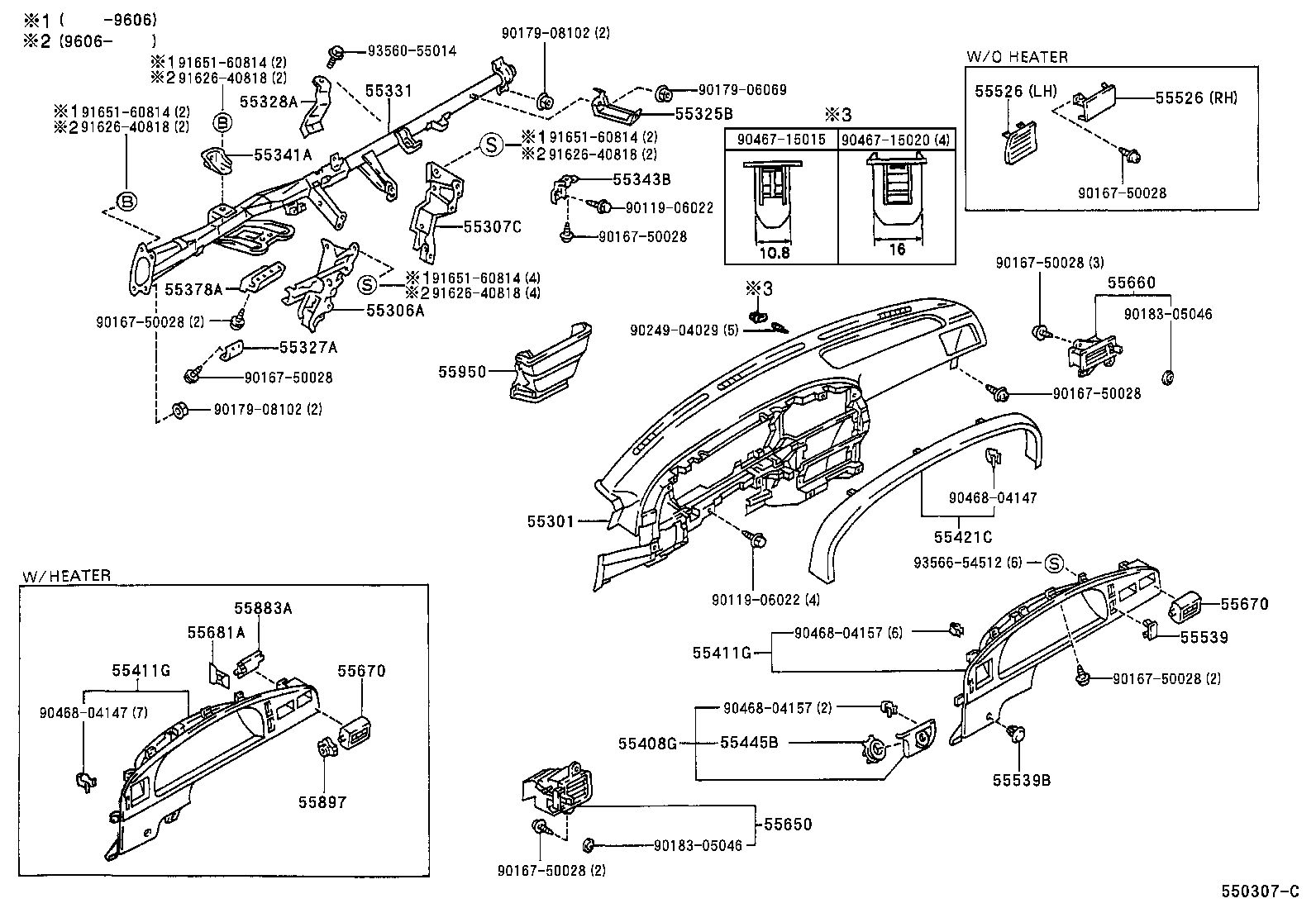

ILLUST NO. 1 OF 2(8808- )KZN205,LN10#,111,205,RN10#,YN106..LHD

Click highlighted areas on diagram

diagram 55301 55306A 55307C 55325B 55327A 55328A 55331 55341A 55343B 55378A 55408G 55411G 55411G 55421C 55445B 55526 55526 55539 55539B 55650 55660 55670 55670 55681A 55883A 55897 55950 9011906022 9011906022 9016750028 9016750028 9016750028 9016750028 9016750028 9016750028 9016750028 9016750028 9017906069 9017908102 9017908102 9018305046 9018305046 9024904029 9046715015 9046715020 9046804147 9046804147 9046804157 9046804157 9162640818 9162640818 9162640818 9162640818 9165160814 9165160814 9165160814 9165160814 9356055014 9356654512
Part # Description Qty Price
55327A - STAY, INSTRUMENT PANEL, NO.2
55327-89104

LN10#,111,RN10#,YN106..LHD

 1
55341A - BRACE, INSTRUMENT PANEL TO COWL, UPPER
55341-89103

LN10#,111,13#,RN10#,13#,YN106,135..LHD

 1
55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER
55343-89101

LN10#,111,13#,RN10#,13#,YN106,135..LHD

 1
55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
55378-89102

LN10#,111,RN10#,YN106..LHD

 1
55539 - COVER, SPARE SWITCH HOLE
55539-89105

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
Common parts
90119-06022
90167-50028
90179-06069
90179-08102
90183-05046
90249-04029
90467-15015
90467-15020
90468-04147
90468-04157
91626-40818
91651-60814
93560-55014
93566-54512

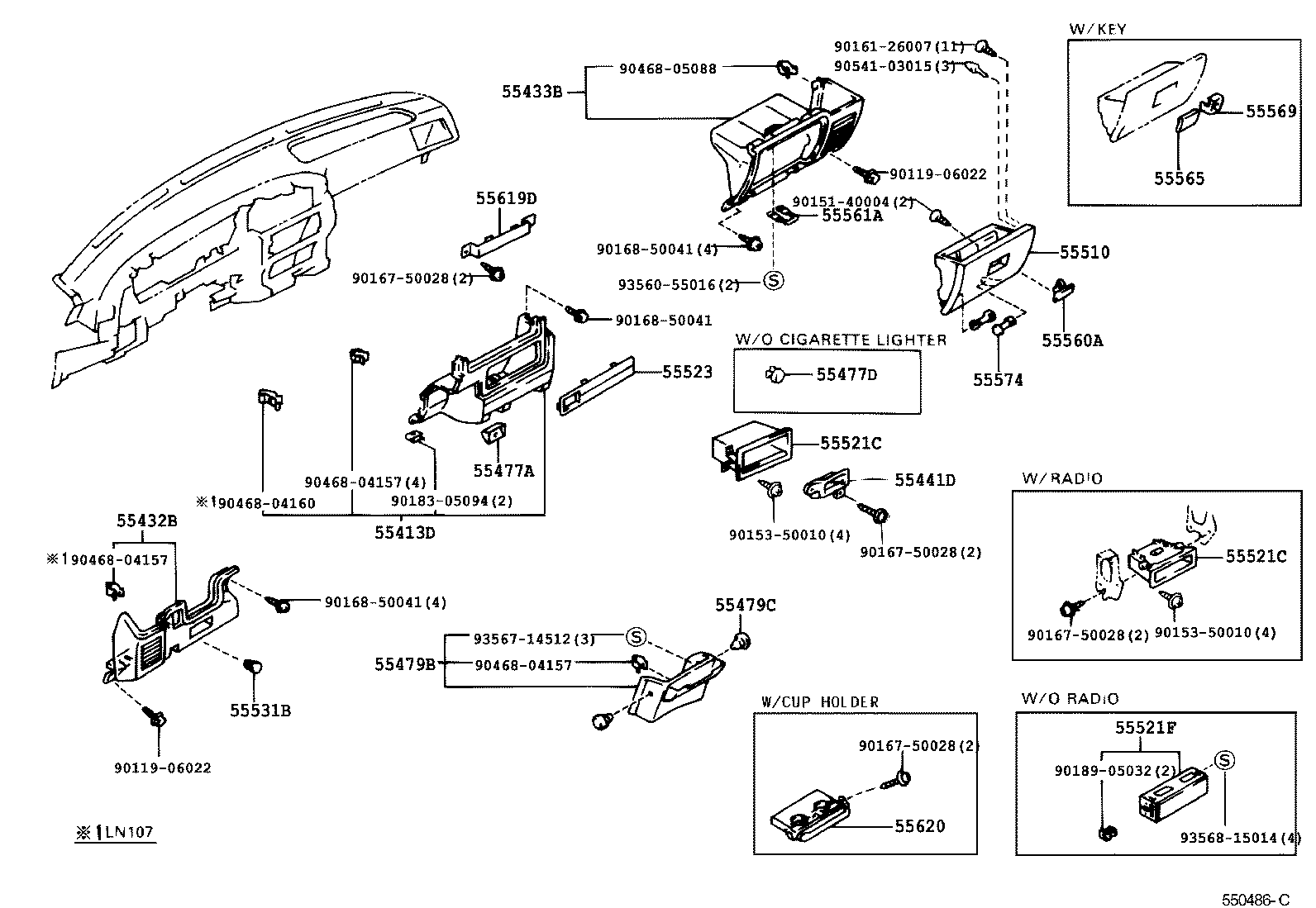

ILLUST NO. 2 OF 2(8808- )LHD

Click highlighted areas on diagram

diagram 55413D 55432B 55433B 55441D 55477A 55477D 55479B 55479C 55510 55521C 55521C 55521F 55523 55531B 55560A 55561A 55565 55569 55574 55619D 55620 9011906022 9011906022 9015140004 9015350010 9015350010 9016126007 9016750028 9016750028 9016750028 9016750028 9016850041 9016850041 9016850041 9018305094 9018905032 9046804157 9046804157 9046804157 9046804160 9046805088 9054103015 9356055016 9356714512 9356815014
Part # Description Qty Price
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-89105

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-89104

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-10010

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
Common parts
90119-06022
90151-40004
90153-50010
90161-26007
90167-50028
90168-50041
90183-05094
90189-05032
90468-04157
90468-04160
90468-05088
90541-03015
93560-55016
93567-14512
93568-15014
