LN107L-PRMDS (1997)

Toyota Hilux/4runner (4wd)

Production Mar 1997 - Jun 2001
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-0106)LN10#,111,135,RN10#,110,135,YN106,135

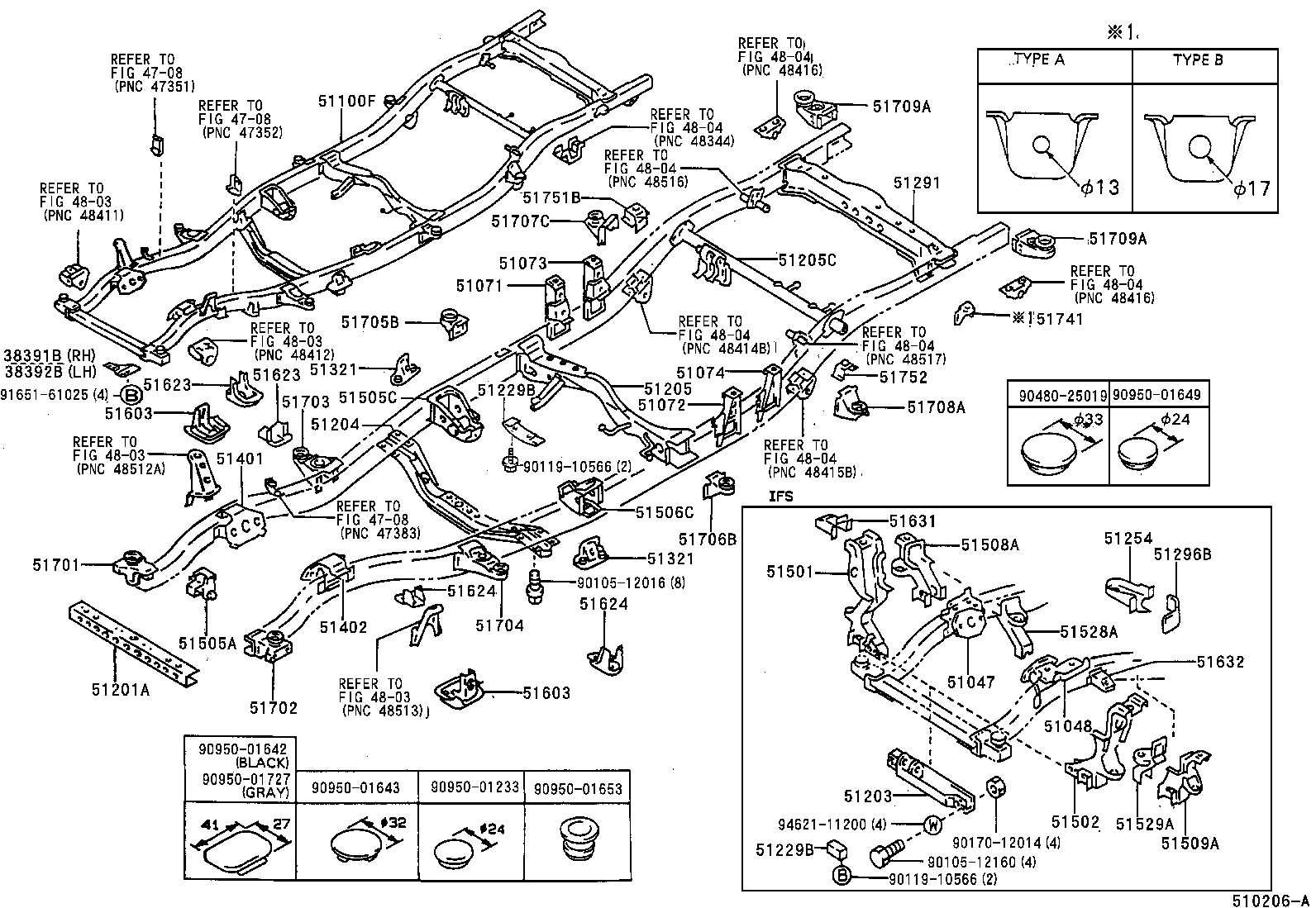

Click highlighted areas on diagram

diagram 38391B 38392B 4708 4708 4708 4803 4803 4803 4803 4804 4804 4804 4804 4804 4804 4804 51047 51048 51071 51072 51073 51074 51100F 51201A 51203 51204 51205 51205C 51229B 51229B 51254 51291 51296B 51321 51321 51401 51402 51501 51502 51505A 51505C 51506C 51508A 51509A 51528A 51529A 51603 51603 51623 51623 51624 51624 51631 51632 51701 51702 51703 51704 51705B 51706B 51707C 51708A 51709A 51709A 51741 51751B 51752 9010512016 9010512160 9011910566 9011910566 9017012014 9048025019 9095001233 9095001642 9095001643 9095001649 9095001653 9095001727 9165161025 9462111200
Part # Description Qty Price
51047 - BRACKET SUB-ASSY, ENGINE MOUNTING & UPPER ARM, RH
51047-35070

LN107,111,13#,RN106,110,13#

 1
51048 - BRACKET SUB-ASSY, ENGINE MOUNTING & UPPER ARM, LH
51048-35070

LN107,111,13#,RN106,110,13#

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51203-35270

LN107,111,13#,RN106,110,13#,VZN130,YN13#

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51202-35270

LN107,13#;LN111..ARL

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-35131

LN10#,111,RN10#,110,YN106

 1
51291 - CROSSMEMBER, FRAME, REAR
51209-35120

LN10#,111,RN10#,110,YN106

 1
51321 - GUSSET, CROSSMEMBER, NO.2 RH
51321-35050

LN10#,RN106

 2
51321 - GUSSET, CROSSMEMBER, NO.2 RH
51321-35050

LN10#,RN106

 2
51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51501-35071

LN107,RN106

 1
51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51502-35071

LN107,RN106

 1
51505C - SUPPORT SUB-ASSY, ANCHOR ARM, RH
51505-35090

LN107,111,RN106,110

 1
51506C - SUPPORT SUB-ASSY, ANCHOR ARM, LH
51506-35020

LN107,111,13#,RN106,110,13#,VZN130,YN13#

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-35130

LN107,111,13#,RN106,110,13#,VZN130,YN13#

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51702-35110

LN107,111,13#,RN106,110,13#,VZN130,YN13#

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-35090

LN107,111,RN106,110

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51704-35110

LN107,111,RN106,110

 1
51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH
51705-35090

LN10#,111,RN10#,110,YN106

 1
51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
51705-35090

LN10#,111,RN10#,110,YN106

 1
51707C - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH
51707-35030

LN10#,RN10#,YN106..TW1

 1
51708A - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH
51708-35030

LN10#,RN10#,YN106..TW1

 1
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-35050

LN10#,111,RN10#,110,YN106

TYPE B

 2
51751B - BRACKET, BODY SUPPORT, NO.1 RH
51751-35070

LN10#,RN10#,YN106..TW1

 1
51752 - BRACKET, BODY SUPPORT, NO.1 LH
51752-35040

LN10#,RN10#,YN106..TW1

 1
Common parts
90105-12016
90105-12160
90119-10566
90170-12014
90480-25019
90950-01233
90950-01642
90950-01643
90950-01649
90950-01653
90950-01727
91651-61025
94621-11200
Linked diagrams
4708
4803
4804
