LN107L-PRMDS (1997)

Toyota Hilux/4runner (4wd)

Production Mar 1997 - Jun 2001
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

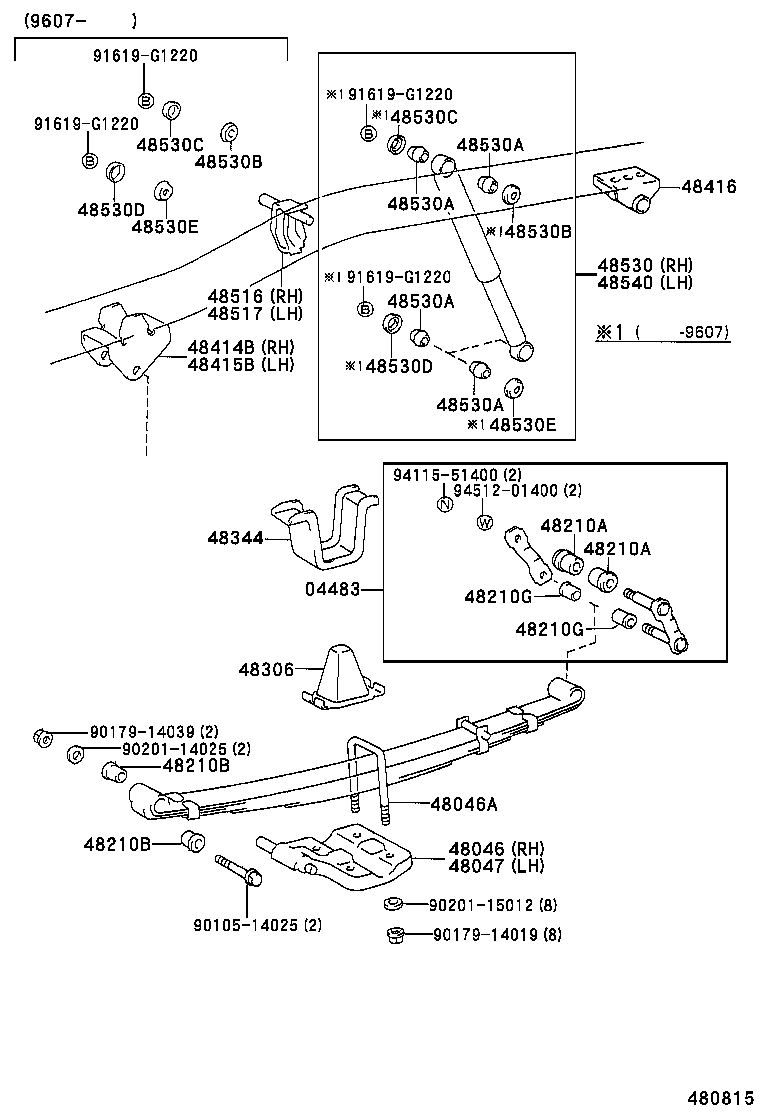

ILLUST NO. 1 OF 2(8808- )LN107,111,135,RN106,110,135,YN135

Click highlighted areas on diagram

diagram 04483 48046 48046A 48047 48210A 48210A 48210B 48210B 48210G 48210G 48306 48344 48414B 48415B 48416 48516 48517 48530 48530A 48530A 48530A 48530A 48530B 48530B 48530C 48530C 48530D 48530D 48530E 48530E 48540 9010514025 9017914019 9017914039 9020114025 9020115012 91619G1220 91619G1220 91619G1220 91619G1220 9411551400 9451201400
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-35070

LN107,111,135,RN106,110,135,YN135

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-35170

LN10#,111,135,RN10#,110,135,YN106,135

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-14008

LN107..TW1..GEN;LN111,135,RN110,135,YN135

L=155

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-35170

LN10#,111,135,RN10#,110,135,YN106,135

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18012

LN107,111,135,RN106,110,135,YN135

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18012

LN107,111,135,RN106,110,135,YN135

 4
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-35110

LN10#,111,RN10#,110,YN106

 2
48344 - STOPPER, BUMPER, REAR
48344-35020

LN10#,111,135,RN10#,110,135,YN106,135

 2
48414B - BRACKET, SPRING, NO.3 RH
48414-35130

LN107,111,RN106,110

 1
48415B - BRACKET, SPRING, NO.3 LH
48415-35060

LN107,111,RN106,110

 1
48416 - BRACKET, SPRING, NO.4
48416-35080

LN107,111,135,RN106,110,135,YN135

 2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-35040

LN10#,111,135,RN10#,110,135,YN106,135

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48506-35010

LN10#,111,135,RN10#,110,135,YN106,135

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80666

LN107..TW1..GEN

MARK 48531-35542

 1
48531-80521

LN107..TW1..GEN

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19002

RN105..GEN,V;LN107..TW1..GEN

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19002

RN105..GEN,V;LN107..TW1..GEN

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19002

RN105..GEN,V;LN107..TW1..GEN

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19002

RN105..GEN,V;LN107..TW1..GEN

 8
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03011

LN10#,111,135,RN10#,110,135,YN106,135

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03011

LN10#,111,135,RN10#,110,135,YN106,135

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03011

LN10#,111,135,RN10#,110,135,YN106,135

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03011

LN10#,111,135,RN10#,110,135,YN106,135

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48541-39246

LN107..TW1..GEN

 1
48541-39247

LN107..TW1..GEN

MARK 48541-35112

 1
Common parts
90105-14025
90179-14019
90179-14039
90201-14025
90201-15012
91619-G1220
94115-51400
94512-01400

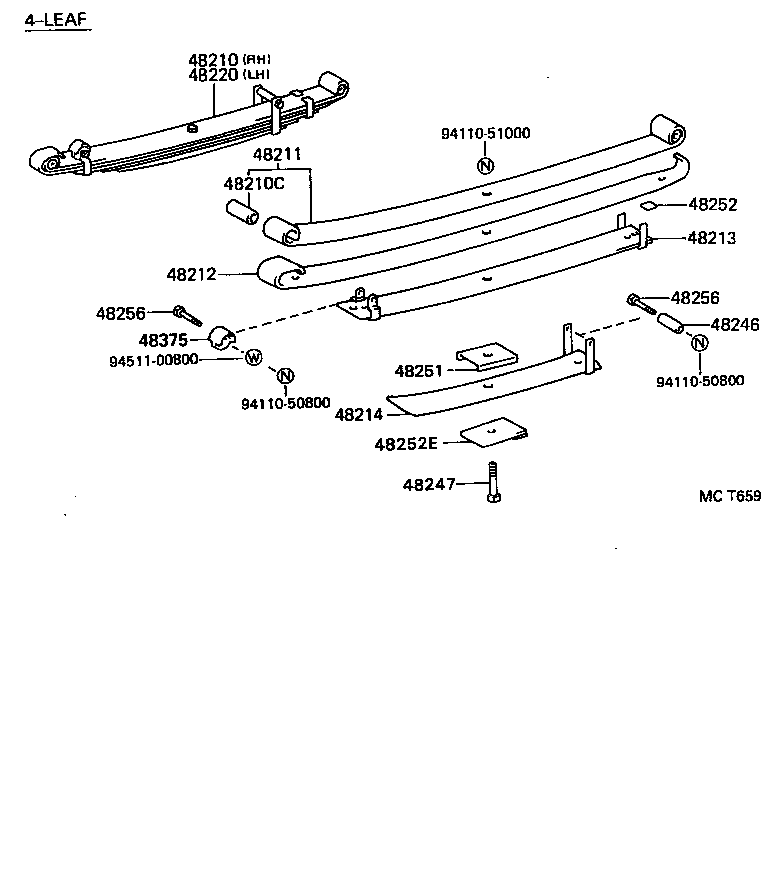

ILLUST NO. 2 OF 2(8808- )LN107,111,RN110

Click highlighted areas on diagram

diagram 48210 48210C 48211 48212 48213 48214 48220 48246 48247 48251 48252 48252E 48256 48256 48375 9411050800 9411050800 9411051000 9451100800
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-35840

LN107..TW1..GEN

4-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-14004

LN107,111,135,RN106,110,135,YN135

 2
48211 - LEAF, REAR SPRING, NO.1
48201-35840

LN107..TW1..GEN

 2
48212 - LEAF, REAR SPRING, NO.2
48212-35840

LN107..TW1..GEN

 2
48213 - LEAF, REAR SPRING, NO.3
48202-35840

LN107..TW1..GEN

 2
48214 - LEAF, REAR SPRING, NO.4
48203-35840

LN107..TW1..GEN

 2
48220 - SPRING ASSY, REAR LH
48210-35840

LN107..TW1..GEN

4-LEAF

 1
48246 - CASE, REAR SPRING CLIP BOLT
48146-60070

LN107..TW1..GEN

 2
48247 - BOLT, REAR SPRING, CENTER
48247-25170

LN107..TW1..GEN

 2
48251 - SPACER, REAR SPRING LEAF
48251-35350

LN107..TW1..GEN;LN111,135,RN110,135,YN135

 2
48252 - SILENCER, REAR SPRING
48252-26070

LN10#,111,135,RN10#,110,135,YN106,135

 8
48252E - WEDGE, REAR SPRING CASTER
48252-35470

LN107..TW1..GEN;LN111,135,RN110,135,YN135

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-36570

LN107..TW1..GEN

NO.2

 2
48256-35360

LN107..TW1..GEN

NO.1

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-36570

LN107..TW1..GEN

NO.2

 2
48256-35360

LN107..TW1..GEN

NO.1

 2
48375 - DAMPER, LEAF SPRING DYNAMIC
48375-35011

LN107..TW1..GEN;LN111,135,RN110,135,YN135

 2
Common parts
94110-50800
94110-51000
94511-00800

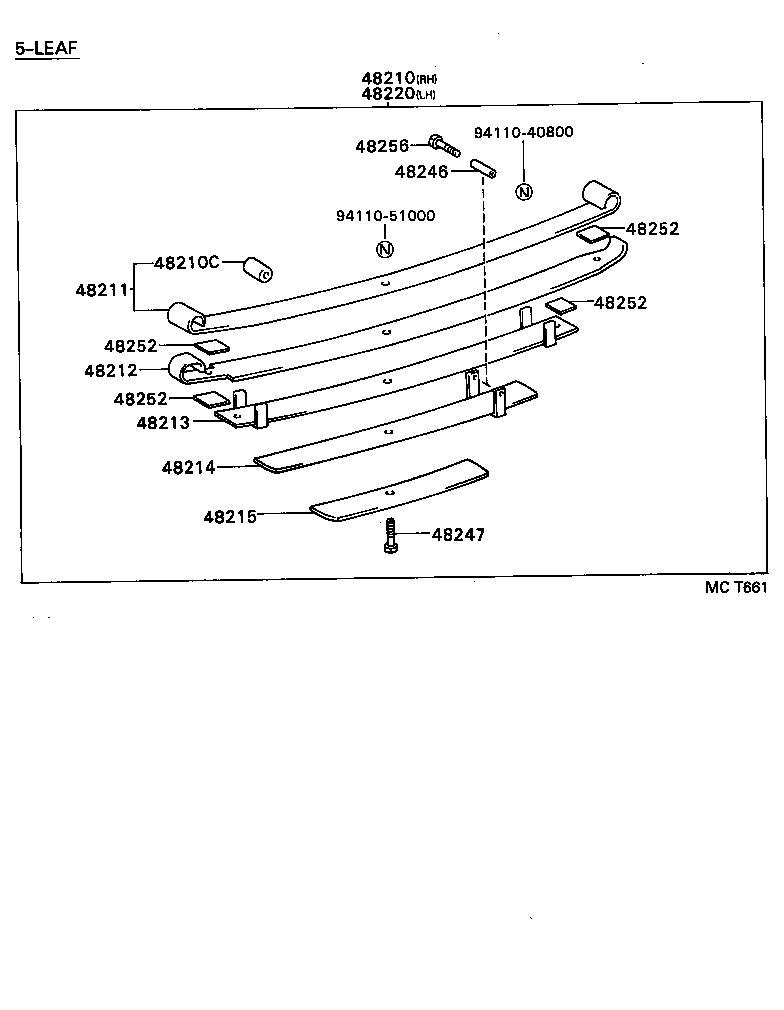

ILLUST NO. 2 OF 2(8808- )LN107,RN106

Click highlighted areas on diagram

diagram 48210 48210C 48211 48212 48213 48214 48215 48220 48246 48247 48252 48252 48252 48252 48256 9411040800 9411051000
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-35840

LN107..TW1..GEN

4-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-14004

LN107,111,135,RN106,110,135,YN135

 2
48211 - LEAF, REAR SPRING, NO.1
48201-35840

LN107..TW1..GEN

 2
48212 - LEAF, REAR SPRING, NO.2
48212-35840

LN107..TW1..GEN

 2
48213 - LEAF, REAR SPRING, NO.3
48202-35840

LN107..TW1..GEN

 2
48214 - LEAF, REAR SPRING, NO.4
48203-35840

LN107..TW1..GEN

 2
48220 - SPRING ASSY, REAR LH
48210-35840

LN107..TW1..GEN

4-LEAF

 1
48246 - CASE, REAR SPRING CLIP BOLT
48146-60070

LN107..TW1..GEN

 2
48247 - BOLT, REAR SPRING, CENTER
48247-25170

LN107..TW1..GEN

 2
48252 - SILENCER, REAR SPRING
48252-26070

LN10#,111,135,RN10#,110,135,YN106,135

 8
48252 - SILENCER, REAR SPRING
48252-26070

LN10#,111,135,RN10#,110,135,YN106,135

 8
48252 - SILENCER, REAR SPRING
48252-26070

LN10#,111,135,RN10#,110,135,YN106,135

 8
48252 - SILENCER, REAR SPRING
48252-26070

LN10#,111,135,RN10#,110,135,YN106,135

 8
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-36570

LN107..TW1..GEN

NO.2

 2
48256-35360

LN107..TW1..GEN

NO.1

 2
Common parts
94110-40800
94110-51000
