LN107L-PRMDS (1997)

Toyota Hilux/4runner (4wd)

Production Mar 1997 - Jun 2001
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(8808- )

Click highlighted areas on diagram

diagram 04477 31478D 47910 47910B 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9011908744 9017910132 9017910132 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 91611G0820 9413000802 9413000802 9413000802 9413000802 9451200800 9451200800 9451200800 9451200800 9538102020
Part # Description Qty Price
31478D - CAP, BLEEDER PLUG(FOR LSPV)
31478-30010

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-35140

LN107;LN106,RN10#..ARL

 1
47910B - PLUG, BLEEDER
47547-27020

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
47547-27030

LN107

 1
47920 - SPRING ASSY, LOAD SENSING
47920-35080

LN10#,111,RN10#,110,YN106

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-35080

LN10#,111,135,RN10#,110,135,YN106,135

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-35070

LN10#,RN10#,YN106

 1
47933-35071

LN10#,RN106

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35020

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90201-08062

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35030

LN10#,111,135,RN10#,110,135,YN106,135

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010

LN10#,111,135,RN10#,110,135,YN106,135

 1
Common parts
90119-08744
90179-10132
90201-23360
91131-50840
91611-G0820
94130-00802
94512-00800
95381-02020

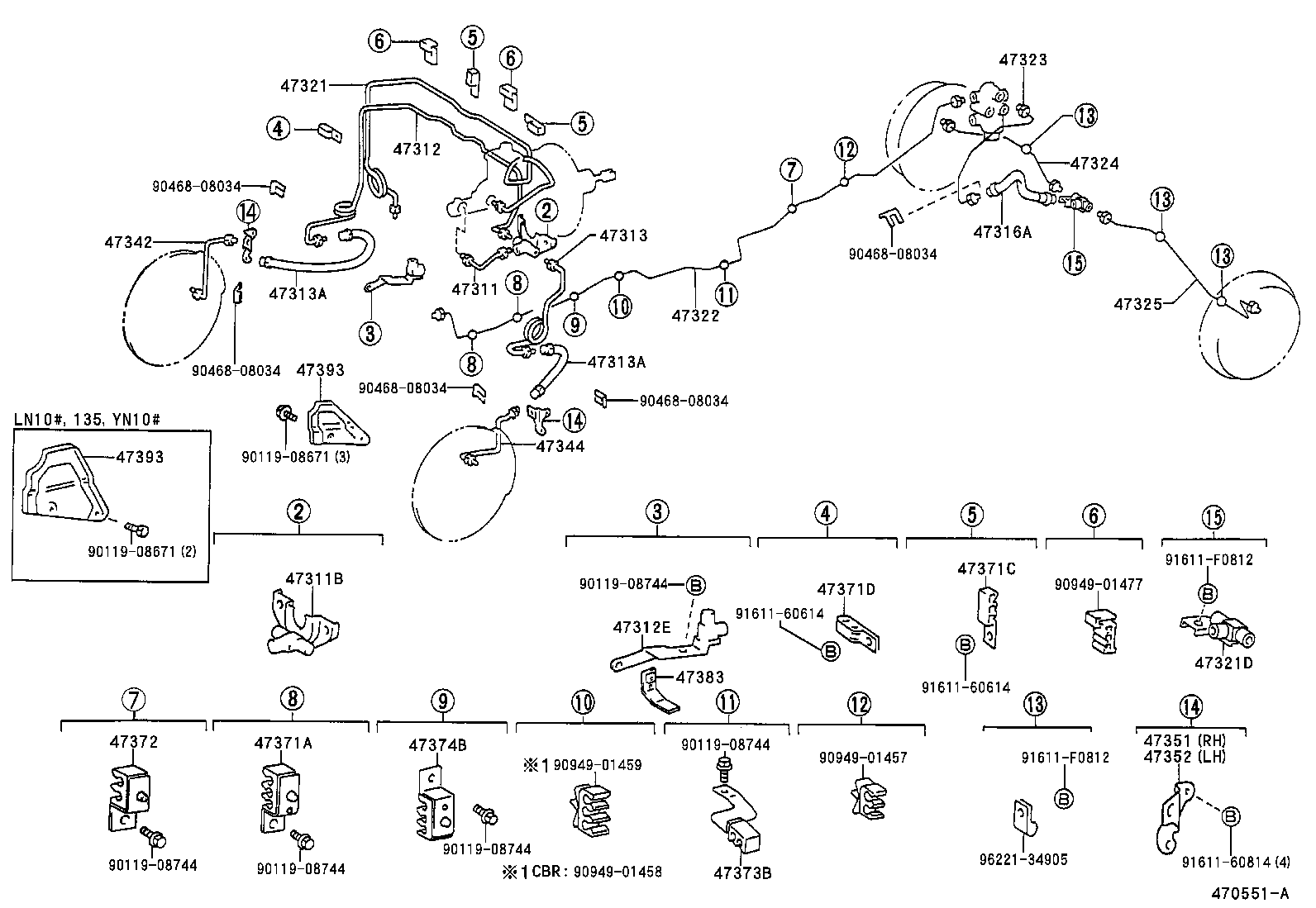

ILLUST NO. 1 OF 3(8808-0106)LN10#,111,135,RN10#,135,YN106,135..LHD

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47316A 47321 47321D 47322 47323 47324 47325 47342 47344 47351 47352 47371A 47371C 47371D 47372 47373B 47374B 47383 47393 47393 9011908671 9011908671 9011908744 9011908744 9011908744 9011908744 9011908744 9046808034 9046808034 9046808034 9046808034 9046808034 9094901457 9094901458 9094901477 9161160614 9161160614 9161160814 91611F0812 91611F0812 9622134905
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-35440

LN10#,111,13#,RN10#,13#,YN106,135..LHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-35800

LN107

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10233

LN111,RN106..ARL;LN107,130,RN110,130,VZN130,YN130

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-35750

LN107

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96950-33656

LN107,111,13#,RN106,110,13#,VZN130,YN13#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96950-33656

LN107,111,13#,RN106,110,13#,VZN130,YN13#

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-34406

LN10#,111,135,RN10#,110,135,YN106,135

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-35470

LN107,111,13#..LHD

 1
47321-35470

LN107

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90413-10162

LN10#,111,135,RN10#,110,135,YN106,135

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-35120

LN10#,111,135,RN10#,110,135,YN106,135

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-35160

LN107,111,135,RN106,110,135,YN135

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-35170

LN107,111,135,RN106,110,135,YN135

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47341-35100

LN107,111,13#,RN106,110,13#,VZN130,YN13#

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47343-35100

LN107,111,13#,RN106,110,13#,VZN130,YN13#

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47352-35170

LN107,111,13#,RN106,110,13#,VZN130,YN13#

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47354-35080

LN107,111,13#,RN106,110,13#,VZN130,YN13#

 1
47371C - CLAMP, BRAKE TUBE, NO.7
47371-35130

LN10#,111,13#,RN10#,13#,YN106,135..LHD

 2
47372 - CLAMP, BRAKE TUBE, NO.2
47372-35030

LN107,111,13#,RN106,110,13#,VZN130,YN13#

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35080

LN107,111,13#

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35080

LN107,111,13#

 1
Common parts
90119-08671
90119-08744
90468-08034
90949-01457
90949-01458
90949-01477
91611-60614
91611-60814
91611-F0812
96221-34905
