LN107L-PRMDS (1997)

Toyota Hilux/4runner (4wd)

Production Mar 1997 - Jun 2001
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8808- )LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-35040

LN107

MARK AISIN PC513

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-35040

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
04945-35040

LN107

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-60050

LN107

 1

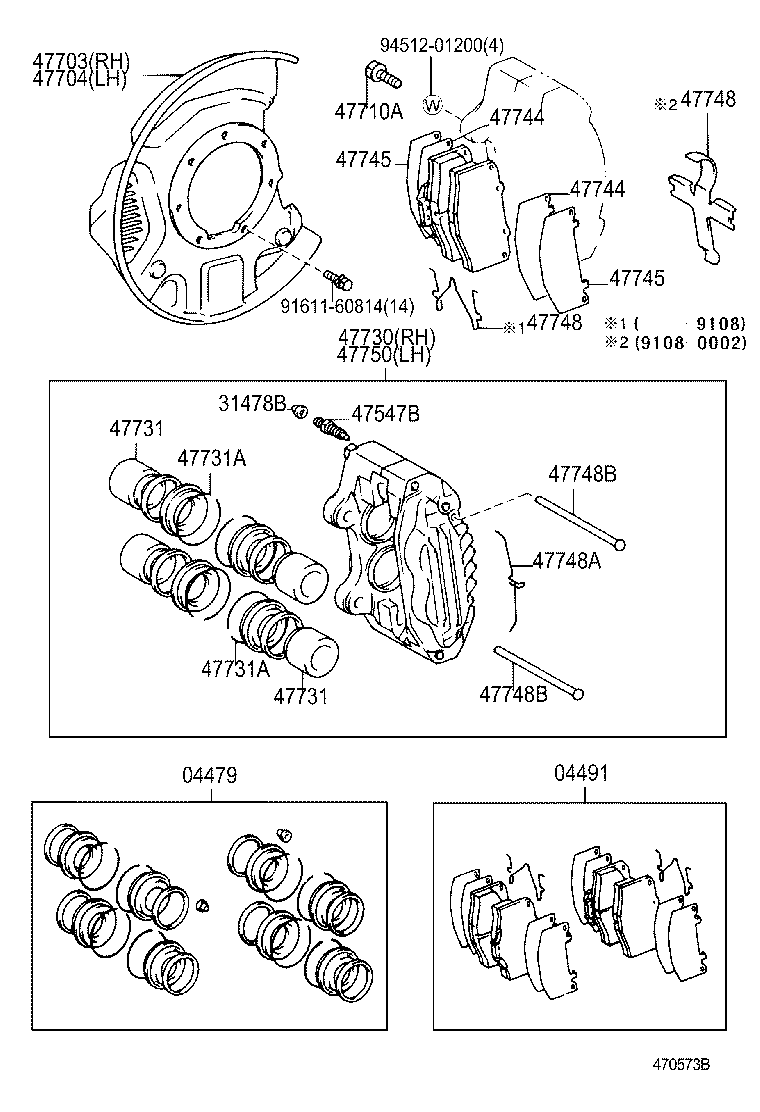

ILLUST NO. 1 OF 2(8808- )KZN205,LN107,111,13#,205,RN106,110,13#,VZN130,YN13#

Click highlighted areas on diagram

diagram 04479 04491 31478B 47547B 47703 47704 47710A 47730 47731 47731 47731A 47731A 47744 47744 47745 47745 47748 47748 47748A 47748B 47748B 47750 9161160814 9451201200
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-35010

LN107

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

LN10#,RN106

 2
31478-30010

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20030

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
47547-20030

LN10#,RN106

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12144

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

*12-1.25PX38-23

 4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-35080

LN10#,RN106

 1
47731 - PISTON, FRONT DISC BRAKE
47731-35010

LN10#,RN106

 8
47731 - PISTON, FRONT DISC BRAKE
47731-35010

LN10#,RN106

 8
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

LN10#,RN106

 8
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

LN10#,RN106

 8
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-35020

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 4
47744-35020

LN10#,RN106

 4
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-35020

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 4
47744-35020

LN10#,RN106

 4
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-35020

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 4
47745-35020

LN10#,RN106

 4
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-35020

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 4
47745-35020

LN10#,RN106

 4
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-60010

LN10#,RN106

 2
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-60010

LN10#,RN106

 2
47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)
90468-12015

LN10#,RN106

 2
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90240-06158

LN10#,RN106

 4
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90240-06158

LN10#,RN106

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-35080

LN10#,RN106

 1
Common parts
91611-60814
94512-01200
