LN107L-PRMDS (1997)

Toyota Hilux/4runner (4wd)

Production Mar 1997 - Jun 2001
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

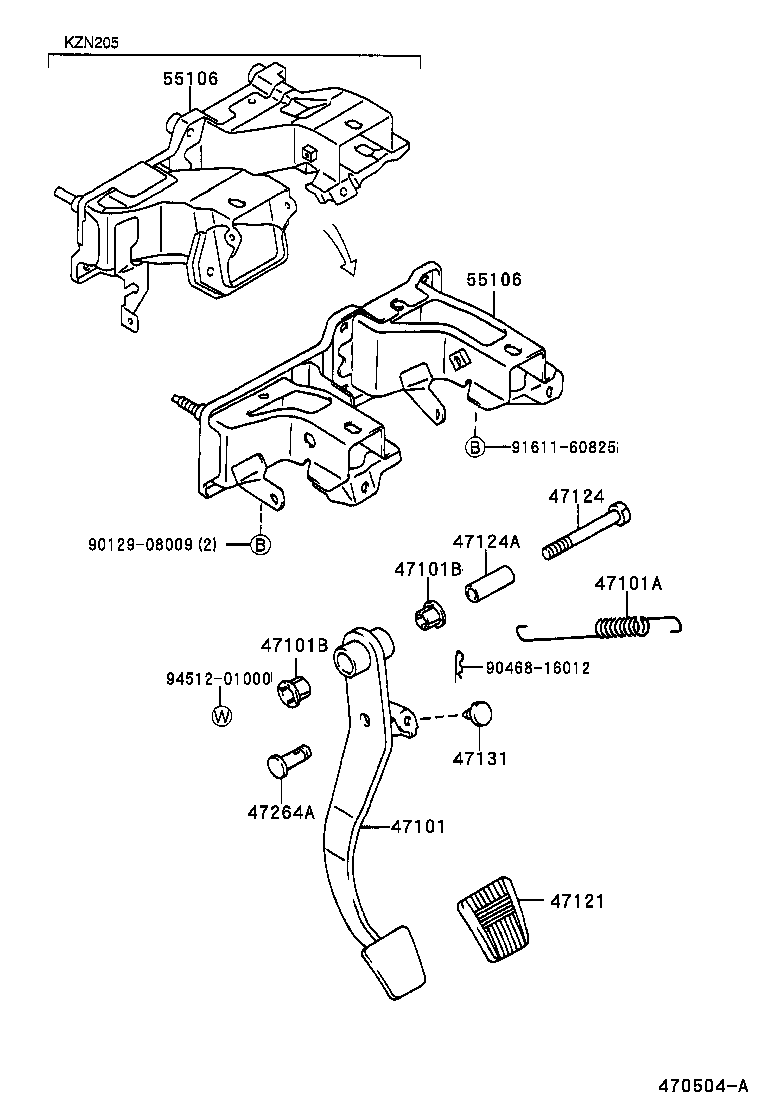

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47124A 47131 47264A 55106 55106 9012908009 9046816012 9161160825 9451201000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-35280

LN10#,111,13#,RN10#,13#,YN106,135..LHD

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-14020

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
47121 - PAD, BRAKE PEDAL
31321-14020

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F

 1
47124 - SHAFT, BRAKE PEDAL
90101-10480

LN10#,111,13#,RN10#,13#,YN106,135..LHD

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
47144-35030

LN10#,111,13#,RN10#,13#,YN106,135..LHD

 1
47264A - PIN(FOR PUSH ROD)
90249-10064

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-89128

LN10#,111,13#,RN10#,13#,YN106,135..LHD

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-89128

LN10#,111,13#,RN10#,13#,YN106,135..LHD

 1
Common parts
90129-08009
90468-16012
91611-60825
94512-01000
