LN107L-PRMDS (1997)

Toyota Hilux/4runner (4wd)

Production Mar 1997 - Jun 2001
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

Click highlighted areas on diagram

2-SPOKE

diagram 45100 45112 45125 45136 45142 45180 45201P 9015940181 9016740034 9016740034
Part # Description Qty Price
45201P - NUT, STEERING WHEEL SET
90179-12086

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
Common parts
90159-40181
90167-40034

(8808-0106)

Click highlighted areas on diagram

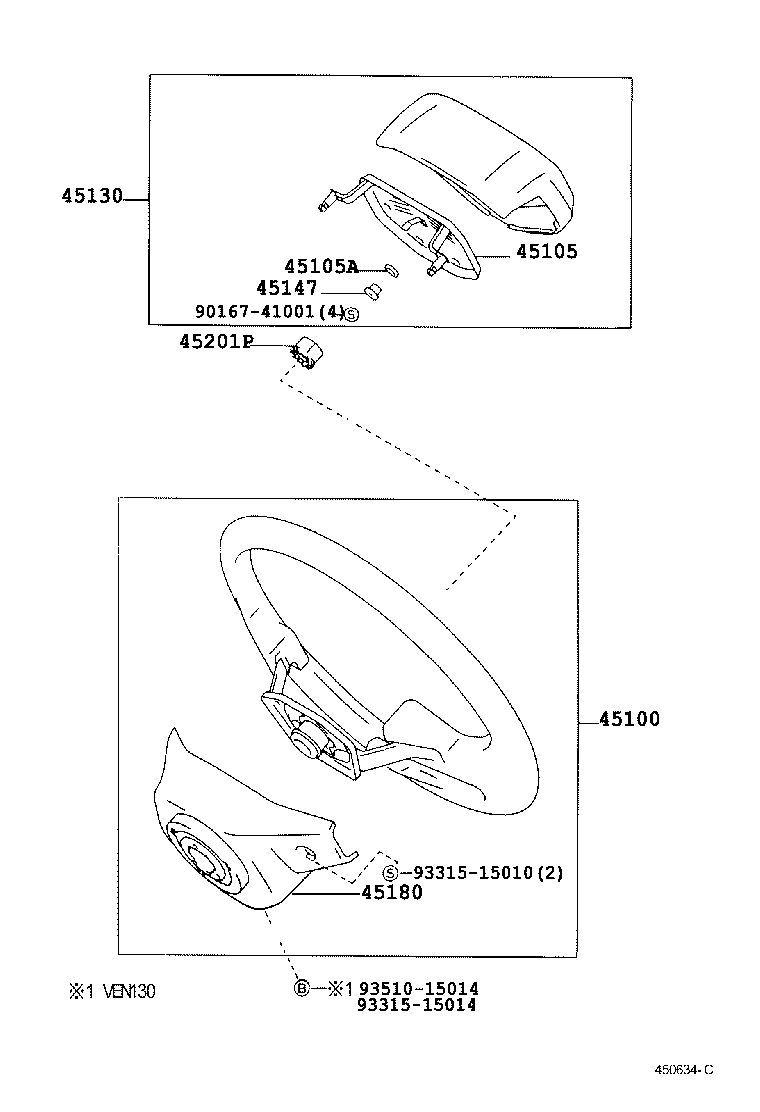

3-SPOKE

diagram 45100 45105 45105A 45130 45147 45180 45201P 9016741001 9331515010 9331515014 9351015014
Part # Description Qty Price
45105A - CUSHION(FOR HORN BUTTON CONTACT PLATE)
90540-08014

LN107..DLX,SR5;LN106,111,13#,RN10#,110,13#,VZN130,YN106,13#

 4
45201P - NUT, STEERING WHEEL SET
90179-12086

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
Common parts
90167-41001
93315-15010
93315-15014
93510-15014
