LN107L-PRMDS (1997)

Toyota Hilux/4runner (4wd)

Production Mar 1997 - Jun 2001
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-0106)

Click highlighted areas on diagram

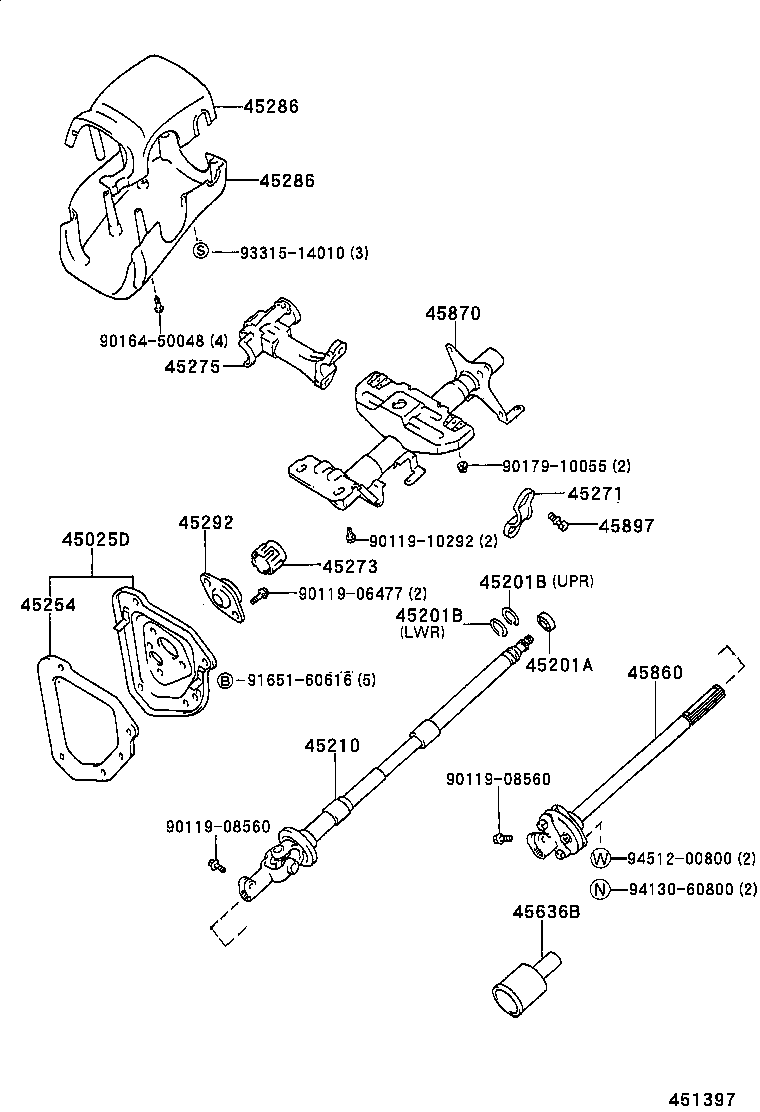

RIGID STEERING

diagram 45025D 45201A 45201B 45201B 45210 45254 45271 45273 45275 45286 45286 45292 45636B 45860 45870 45897 9011906477 9011908560 9011908560 9011910292 9016450048 9017910055 9165160616 9331514010 9413060800 9451200800
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-35200

LN107,111,13#,RN106,13#,YN135..LHD

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-35140

LN130,RN130..GEN;LN10#,111,135,RN10#,110,135,YN106,135..ARL,GEN

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-35110

LN10#,111,13#,RN10#,13#,YN106,135..LHD

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-12050

LN130,RN130..GEN;LN10#,111,135,RN10#,110,135,YN106,135

 1
45273 - BUSH, STEERING MAIN SHAFT
45273-16010

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45280-35190

LN130,RN130..GEN;LN10#,111,135,RN10#,110,135,YN106,135

 1
45286 - COVER, STEERING COLUMN
45286-04010B0

LN107..GEN

MEDIUM GRAY,TRIM1#,(L),UPPER

 1
45287-04010B0

LN107..GEN

MEDIUM GRAY,TRIM1#,(L),LOWER

 1
45286-04020B0

LN107..(DLX,SR5)..GEN

W(COLLAPSIBLE TILT STEERING),MEDIUM GRAY,TRIM1#,LOWER

 1
45287-04020B0

LN107..(DLX,SR5)..GEN

W(COLLAPSIBLE TILT STEERING),MEDIUM GRAY,TRIM1#,UPPER

 1
45286 - COVER, STEERING COLUMN
45286-04010B0

LN107..GEN

MEDIUM GRAY,TRIM1#,(L),UPPER

 1
45287-04010B0

LN107..GEN

MEDIUM GRAY,TRIM1#,(L),LOWER

 1
45286-04020B0

LN107..(DLX,SR5)..GEN

W(COLLAPSIBLE TILT STEERING),MEDIUM GRAY,TRIM1#,LOWER

 1
45287-04020B0

LN107..(DLX,SR5)..GEN

W(COLLAPSIBLE TILT STEERING),MEDIUM GRAY,TRIM1#,UPPER

 1
45292 - SEAL, MAIN SHAFT LOWER DUST
45292-35050

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
45636B - PROTECTOR, INTERMEDIATE LINK JOINT
45636-35040

RN106..STD..EFI;LN107,RN105..LHD;RN135,VZN130..SR5

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
Common parts
90119-06477
90119-08560
90119-10292
90164-50048
90179-10055
91651-60616
93315-14010
94130-60800
94512-00800

(8808-0106)

Click highlighted areas on diagram

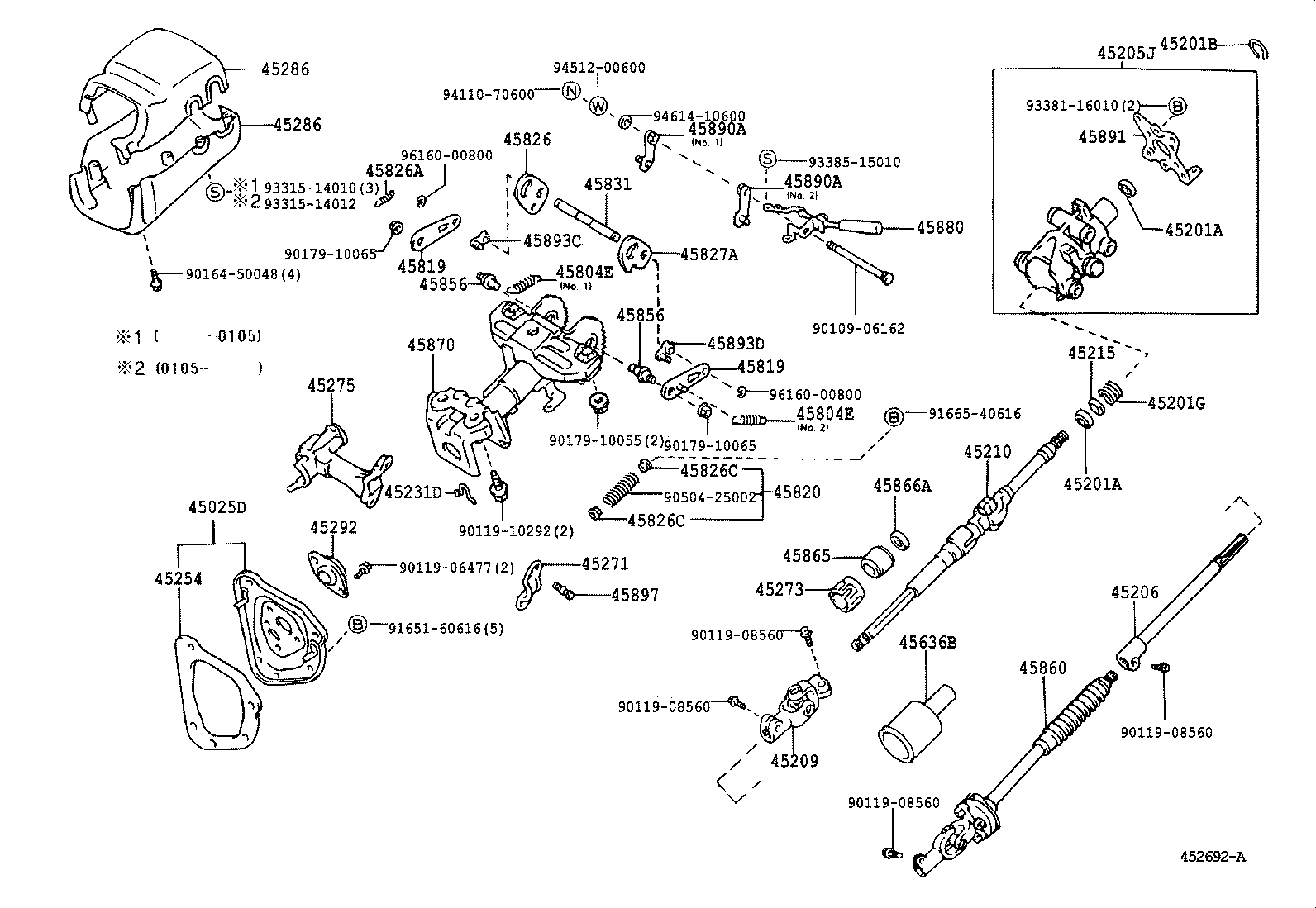

TILT STEERING

diagram 45025D 45201A 45201A 45201B 45201G 45205J 45206 45209 45210 45215 45231D 45254 45271 45273 45275 45286 45286 45292 45636B 45804E 45804E 45819 45819 45820 45826 45826A 45826C 45826C 45827A 45831 45856 45856 45860 45865 45866A 45870 45880 45890A 45890A 45891 45893C 45893D 45897 9010906162 9011906477 9011908560 9011908560 9011908560 9011908560 9011910292 9016450048 9017910055 9017910065 9017910065 9050425002 9165160616 9166540616 9331514010 9331514012 9338116010 9338515010 9411070600 9451200600 9461410600 9616000800 9616000800
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-35200

LN107,111,13#,RN106,13#,YN135..LHD

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-35140

LN130,RN130..GEN;LN10#,111,135,RN10#,110,135,YN106,135..ARL,GEN

 1
45231D - RING, HOLE SNAP(FOR STEERING MAIN SHAFT)
90521-01005

RN105,135..V;RN106..STD..EFI;LN107..(DLX,SR5)..GEN

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-35110

LN10#,111,13#,RN10#,13#,YN106,135..LHD

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-12050

LN130,RN130..GEN;LN10#,111,135,RN10#,110,135,YN106,135

 1
45273 - BUSH, STEERING MAIN SHAFT
45273-16010

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45280-35190

LN130,RN130..GEN;LN10#,111,135,RN10#,110,135,YN106,135

 1
45286 - COVER, STEERING COLUMN
45286-04010B0

LN107..GEN

MEDIUM GRAY,TRIM1#,(L),UPPER

 1
45287-04010B0

LN107..GEN

MEDIUM GRAY,TRIM1#,(L),LOWER

 1
45286-04020B0

LN107..(DLX,SR5)..GEN

W(COLLAPSIBLE TILT STEERING),MEDIUM GRAY,TRIM1#,LOWER

 1
45287-04020B0

LN107..(DLX,SR5)..GEN

W(COLLAPSIBLE TILT STEERING),MEDIUM GRAY,TRIM1#,UPPER

 1
45286 - COVER, STEERING COLUMN
45286-04010B0

LN107..GEN

MEDIUM GRAY,TRIM1#,(L),UPPER

 1
45287-04010B0

LN107..GEN

MEDIUM GRAY,TRIM1#,(L),LOWER

 1
45286-04020B0

LN107..(DLX,SR5)..GEN

W(COLLAPSIBLE TILT STEERING),MEDIUM GRAY,TRIM1#,LOWER

 1
45287-04020B0

LN107..(DLX,SR5)..GEN

W(COLLAPSIBLE TILT STEERING),MEDIUM GRAY,TRIM1#,UPPER

 1
45292 - SEAL, MAIN SHAFT LOWER DUST
45292-35050

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
45636B - PROTECTOR, INTERMEDIATE LINK JOINT
45636-35040

RN106..STD..EFI;LN107,RN105..LHD;RN135,VZN130..SR5

 1
45891 - BRACKET, TURN SIGNAL
45891-35040

LN107,RN135..LHD..(DLX,SR5);LN106,111,13#,RN10#,130,YN106,135..LHD..(DLX,STD)

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
Common parts
90109-06162
90119-06477
90119-08560
90119-10292
90164-50048
90179-10055
90179-10065
90504-25002
91651-60616
91665-40616
93315-14010
93315-14012
93381-16010
93385-15010
94110-70600
94512-00600
94614-10600
96160-00800
