LN107L-PRMDS (1997)

Toyota Hilux/4runner (4wd)

Production Mar 1997 - Jun 2001
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-0412)

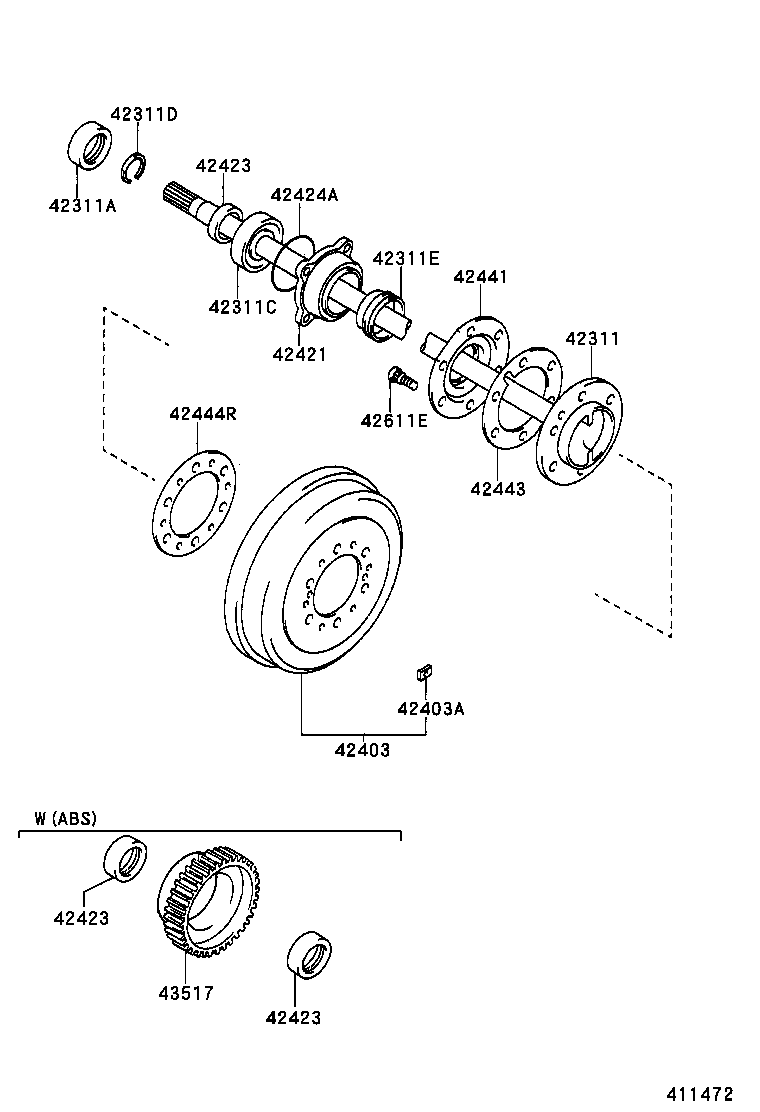

Click highlighted areas on diagram

diagram 42311 42311A 42311C 42311D 42311E 42403 42403A 42421 42423 42423 42423 42424A 42441 42443 42444R 42611E 43517
Part # Description Qty Price
42311 - SHAFT, REAR AXLE
42311-35190

LN107..GEN

 2
42311C - BEARING (FOR REAR AXLE SHAFT)
90363-40020

LN107..GEN

 2
42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER)
90313-48001

LN107..GEN

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-35180

LN107,111,13#,RN106,110,13#,VZN130,YN13#

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01119

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

30G

 1
90937-01118

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

20G

 1
90937-01117

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

10G

 1
42421 - CASE, REAR AXLE BEARING
42421-35030

LN107..GEN

 2
42444R - GASKET, BRAKE DRUM (FOR REAR AXLE)
42444-35050

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
