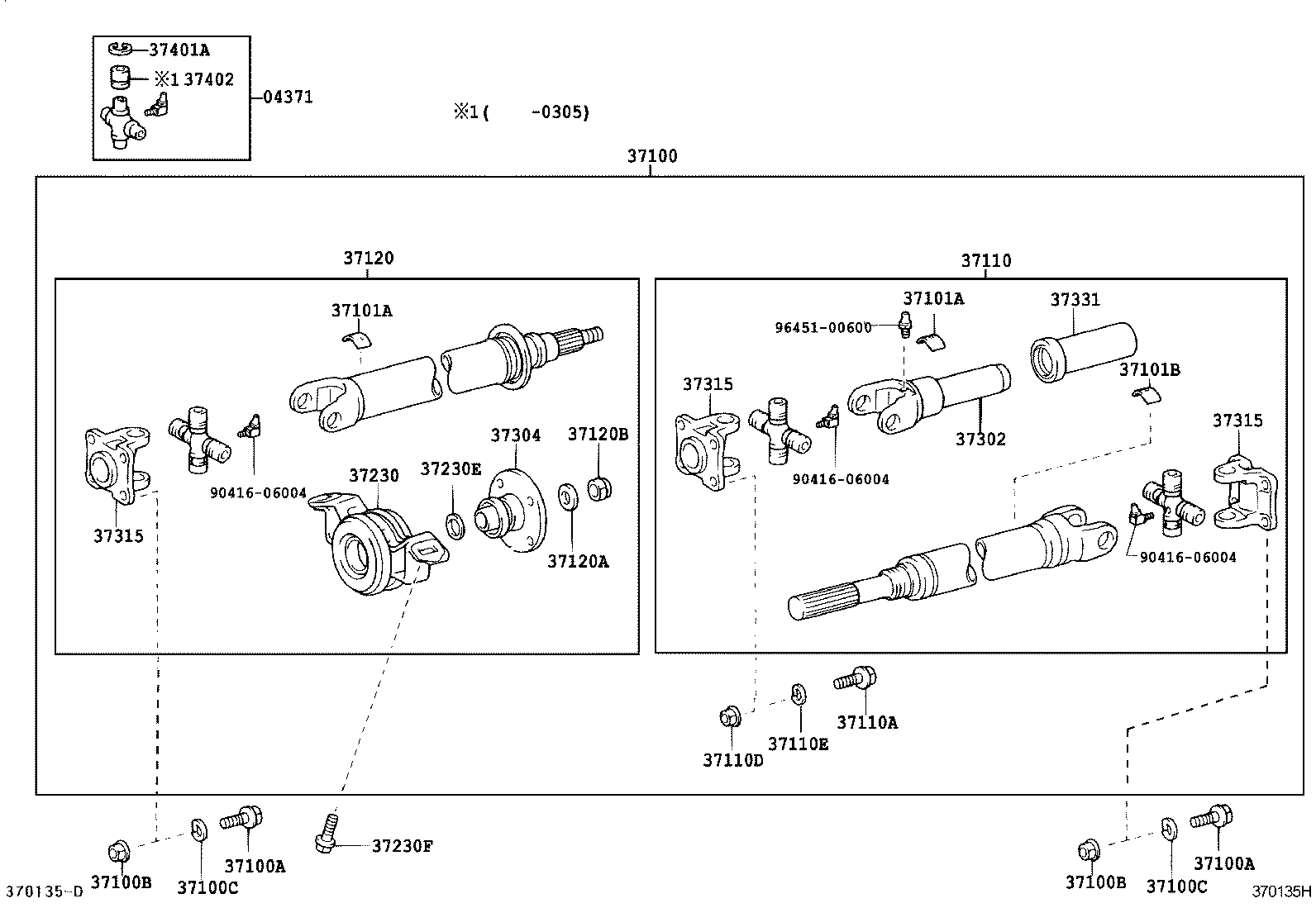

LN107L-PRMDS (1997)
Toyota Hilux/4runner (4wd)
(8808- )LN10#,111,205,RN10#,110,YN106
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-35051 |
LN107 FR PROPELLER SHAFT |
1 | ||
| 04371-35050 |
LN10#,RN106 RR PROPELLER SHAFT |
3 | ||
| 04371-35051 |
LN107 RR PROPELLER SHAFT |
3 | ||
| 04371-35050 |
LN10#,RN106 FR PROPELLER SHAFT |
1 | ||
| 04371-35031 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# FR PROPELLER SHAFT |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-10085 |
LN111..IV3;VZN130..4FC;LN106,RN105,YN106,130;LN107,111,RN106..GEN..CBU |
8 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-10085 |
LN111..IV3;VZN130..4FC;LN106,RN105,YN106,130;LN107,111,RN106..GEN..CBU |
8 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-10059 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
8 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-10059 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
8 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90204-10002 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
8 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90204-10002 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
8 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01150 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 8G,L=16.6 |
1 | ||
| 90937-01204 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 36G,T=4.5,L=32.9 |
1 | ||
| 90937-01208 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 44G,T=4.5,L=40.2 |
1 | ||
| 90937-01147 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 2G,T=2.0 |
1 | ||
| 90937-01149 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 6G,L=12.4 |
1 | ||
| 90937-01203 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 34G,T=4.5,L=31.0 |
1 | ||
| 90937-01148 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 4G,T=2.0 |
1 | ||
| 90937-01206 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 40G,T=4.5,L=36.5 |
1 | ||
| 90937-01152 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 14G,L=29.0 |
1 | ||
| 90937-01151 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 12G,L=24.9 |
1 | ||
| 90937-01132 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 10G,L=20.7 |
1 | ||
| 90937-01201 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 30G,T=4.5,L=27.4 |
1 | ||
| 90937-01210 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 48G,T=4.5,L=43.8 |
1 | ||
| 90937-01207 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 42G,T=4.5,L=38.4 |
1 | ||
| 90937-01205 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 38G,T=4.5,L=34.7 |
1 | ||
| 90937-01209 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 46G,T=4.5,L=42.0 |
1 | ||
| 90937-01202 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 32G,T=4.5,L=29.2 |
1 | ||
| 90937-01211 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 50G,T=4.5,L=45.7 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01150 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 8G,L=16.6 |
1 | ||
| 90937-01204 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 36G,T=4.5,L=32.9 |
1 | ||
| 90937-01208 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 44G,T=4.5,L=40.2 |
1 | ||
| 90937-01147 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 2G,T=2.0 |
1 | ||
| 90937-01149 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 6G,L=12.4 |
1 | ||
| 90937-01203 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 34G,T=4.5,L=31.0 |
1 | ||
| 90937-01148 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 4G,T=2.0 |
1 | ||
| 90937-01206 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 40G,T=4.5,L=36.5 |
1 | ||
| 90937-01152 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 14G,L=29.0 |
1 | ||
| 90937-01151 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 12G,L=24.9 |
1 | ||
| 90937-01132 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 10G,L=20.7 |
1 | ||
| 90937-01201 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 30G,T=4.5,L=27.4 |
1 | ||
| 90937-01210 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 48G,T=4.5,L=43.8 |
1 | ||
| 90937-01207 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 42G,T=4.5,L=38.4 |
1 | ||
| 90937-01205 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 38G,T=4.5,L=34.7 |
1 | ||
| 90937-01209 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 46G,T=4.5,L=42.0 |
1 | ||
| 90937-01202 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 32G,T=4.5,L=29.2 |
1 | ||
| 90937-01211 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 50G,T=4.5,L=45.7 |
1 | ||
| 37101B - PIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT) | ||||
| 90937-01193 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 16G,T=4.5 |
1 | ||
| 90937-01194 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 20G,T=4.5 |
1 | ||
| 90937-01270 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 44G,L=22.6 |
1 | ||
| 90937-01269 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 40G,L=25.6 |
1 | ||
| 90937-01191 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 8G,T=1.6 |
1 | ||
| 90937-01184 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 4G,T=1.6 |
1 | ||
| 90937-01273 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 56G,L=28.7 |
1 | ||
| 90937-01272 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 52G,L=26.7 |
1 | ||
| 90937-01268 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 36G,L=23.1,T=8.0 |
1 | ||
| 90937-01192 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 12G,T=4.5 |
1 | ||
| 90937-01271 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 48G,L=24.6 |
1 | ||
| 90937-01274 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 60G,L=28.7 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-35250 |
LN107,RN10#,YN106 |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-10085 |
LN10#,111,RN10#,110,YN106 *10-1.00PX27-13 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-10059 |
LN10#,111,RN10#,110,YN106 |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90204-10002 |
LN10#,111,RN10#,110,YN106 |
4 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
LN107,RN106..GEN;LN106,111,RN105,110,YN106 OD=33.5,T=4.0 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18009 |
LN107,RN106..GEN;LN106,111,RN105,110,YN106 |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-35080 |
LN10#,111,RN10#,110,YN106 |
1 | ||
| 37230-35100 |
LN107 |
1 | ||
| 37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-26005 |
LN107,RN106..GEN;LN106,111,RN105,110,YN106 |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10316 |
LN10#,111,RN10#,110,YN106 L=50 |
2 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-35041 |
LN10#,111,RN10#,110,YN106 |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-35070 |
LN107 RR PROPELLER SHAFT |
2 | ||
| 37315-35070 |
LN107 FR PROPELLER SHAFT |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-35070 |
LN107 RR PROPELLER SHAFT |
2 | ||
| 37315-35070 |
LN107 FR PROPELLER SHAFT |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-35070 |
LN107 RR PROPELLER SHAFT |
2 | ||
| 37315-35070 |
LN107 FR PROPELLER SHAFT |
1 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37305-35020 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# FR PROPELLER SHAFT |
1 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-26051 |
LN10#,RN106 T=2.46-2.48,FR PROPELLER SHAFT |
4 | ||
| 90520-26054 |
LN10#,RN106 T=2.32-2.34,RR PROPELLER SHAFT |
12 | ||
| 90520-26054 |
LN10#,RN106 T=2.32-2.34,FR PROPELLER SHAFT |
4 | ||
| 90520-26050 |
LN10#,RN106 T=2.44-2.46,RR PROPELLER SHAFT |
12 | ||
| 90520-26052 |
LN10#,RN106 T=2.28-2.30,RR PROPELLER SHAFT |
12 | ||
| 90520-26053 |
LN10#,RN106 T=2.30-2.32,RR PROPELLER SHAFT |
12 | ||
| 90520-26050 |
LN10#,RN106 T=2.44-2.46,FR PROPELLER SHAFT |
4 | ||
| 90520-26055 |
LN10#,RN106 T=2.34-2.36,RR PROPELLER SHAFT |
12 | ||
| 90520-26056 |
LN10#,RN106 T=2.36-2.38,FR PROPELLER SHAFT |
4 | ||
| 90520-26057 |
LN10#,RN106 T=2.38-2.40,RR PROPELLER SHAFT |
12 | ||
| 90520-26051 |
LN10#,RN106 T=2.46-2.48,RR PROPELLER SHAFT |
12 | ||
| 90520-26057 |
LN10#,RN106 T=2.38-2.40,FR PROPELLER SHAFT |
4 | ||
| 90520-26053 |
LN10#,RN106 T=2.30-2.32,FR PROPELLER SHAFT |
4 | ||
| 90520-26052 |
LN10#,RN106 T=2.28-2.30,FR PROPELLER SHAFT |
4 | ||
| 90520-26056 |
LN10#,RN106 T=2.36-2.38,RR PROPELLER SHAFT |
12 | ||
| 90520-26059 |
LN10#,RN106 T=2.42-2.44,FR PROPELLER SHAFT |
4 | ||
| 90520-26058 |
LN10#,RN106 T=2.40-2.42,FR PROPELLER SHAFT |
4 | ||
| 90520-26055 |
LN10#,RN106 T=2.34-2.36,FR PROPELLER SHAFT |
4 | ||
| 90520-26062 |
LN10#,RN106 T=2.18-2.20,RR PROPELLER SHAFT |
12 | ||
| 90520-26062 |
LN10#,RN106 T=2.18-2.20,FR PROPELLER SHAFT |
4 | ||
| 90520-26066 |
LN10#,RN106 T=2.26-2.28,FR PROPELLER SHAFT |
4 | ||
| 90520-26063 |
LN10#,RN106 T=2.20-2.22,FR PROPELLER SHAFT |
4 | ||
| 90520-26059 |
LN10#,RN106 T=2.42-2.44,RR PROPELLER SHAFT |
12 | ||
| 90520-26058 |
LN10#,RN106 T=2.40-2.42,RR PROPELLER SHAFT |
12 | ||
| 90520-26064 |
LN10#,RN106 T=2.22-2.24,FR PROPELLER SHAFT |
4 | ||
| 90520-26064 |
LN10#,RN106 T=2.22-2.24,RR PROPELLER SHAFT |
12 | ||
| 90520-26066 |
LN10#,RN106 T=2.26-2.28,RR PROPELLER SHAFT |
12 | ||
| 90520-26067 |
LN10#,RN106 T=2.48-2.50,RR PROPELLER SHAFT |
12 | ||
| 90520-25039 |
LN107 T=2.29,MARK 1,RR PROPELLER SHAFT |
12 | ||
| 90520-26065 |
LN10#,RN106 T=2.24-2.26,RR PROPELLER SHAFT |
12 | ||
| 90520-26068 |
LN10#,RN106 T=2.50-2.52,FR PROPELLER SHAFT |
4 | ||
| 90520-25040 |
LN107 T=2.31,MARK 2,RR PROPELLER SHAFT |
12 | ||
| 90520-26069 |
LN10#,RN106 T=2.52-2.54,RR PROPELLER SHAFT |
12 | ||
| 90520-26067 |
LN10#,RN106 T=2.48-2.50,FR PROPELLER SHAFT |
4 | ||
| 90520-25039 |
LN107 T=2.29,MARK 1,FR PROPELLER SHAFT |
4 | ||
| 90520-25041 |
LN107 T=2.33,NO MARK,RR PROPELLER SHAFT |
12 | ||
| 90520-26068 |
LN10#,RN106 T=2.50-2.52,RR PROPELLER SHAFT |
12 | ||
| 90520-26063 |
LN10#,RN106 T=2.20-2.22,RR PROPELLER SHAFT |
12 | ||
| 90520-25042 |
LN107 T=2.35,BROWN,RR PROPELLER SHAFT |
12 | ||
| 90520-25042 |
LN107 T=2.35,BROWN,FR PROPELLER SHAFT |
4 | ||
| 90520-25044 |
LN107 T=2.39,MARK 6,FR PROPELLER SHAFT |
4 | ||
| 90520-25041 |
LN107 T=2.33,NO MARK,FR PROPELLER SHAFT |
4 | ||
| 90520-26065 |
LN10#,RN106 T=2.24-2.26,FR PROPELLER SHAFT |
4 | ||
| 90520-25046 |
LN107 T=2.43,MARK 8,FR PROPELLER SHAFT |
4 | ||
| 90520-25040 |
LN107 T=2.31,MARK 2,FR PROPELLER SHAFT |
4 | ||
| 90520-26069 |
LN10#,RN106 T=2.52-2.54,FR PROPELLER SHAFT |
4 | ||
| 90520-25044 |
LN107 T=2.39,MARK 6,RR PROPELLER SHAFT |
12 | ||
| 90520-25045 |
LN107 T=2.41,MARK 7,RR PROPELLER SHAFT |
12 | ||
| 90520-25043 |
LN107 T=2.37,BLUE,FR PROPELLER SHAFT |
4 | ||
| 90520-25047 |
LN107 T=2.45,MARK 9,FR PROPELLER SHAFT |
4 | ||
| 90520-25050 |
LN107 T=2.51,MARK B,FR PROPELLER SHAFT |
4 | ||
| 90520-25043 |
LN107 T=2.37,BLUE,RR PROPELLER SHAFT |
12 | ||
| 90520-25050 |
LN107 T=2.51,MARK B,RR PROPELLER SHAFT |
12 | ||
| 90520-25047 |
LN107 T=2.45,MARK 9,RR PROPELLER SHAFT |
12 | ||
| 90520-25046 |
LN107 T=2.43,MARK 8,RR PROPELLER SHAFT |
12 | ||
| 90520-25049 |
LN107 T=2.49,MARK A,RR PROPELLER SHAFT |
12 | ||
| 90520-25048 |
LN107 T=2.47,MARK 10,RR PROPELLER SHAFT |
12 | ||
| 90520-25051 |
LN107 T=2.53,MARK C,RR PROPELLER SHAFT |
12 | ||
| 90520-25048 |
LN107 T=2.47,MARK 10,FR PROPELLER SHAFT |
4 | ||
| 90520-25053 |
LN107 T=2.57,MARK E,RR PROPELLER SHAFT |
12 | ||
| 90520-25054 |
LN107 T=2.19,MARK D,RR PROPELLER SHAFT |
12 | ||
| 90520-25052 |
LN107 T=2.55,MARK D,FR PROPELLER SHAFT |
4 | ||
| 90520-25051 |
LN107 T=2.53,MARK C,FR PROPELLER SHAFT |
4 | ||
| 90520-25045 |
LN107 T=2.41,MARK 7,FR PROPELLER SHAFT |
4 | ||
| 90520-25054 |
LN107 T=2.19,MARK D,FR PROPELLER SHAFT |
4 | ||
| 90520-25056 |
LN107 T=2.23,MARK F,FR PROPELLER SHAFT |
4 | ||
| 90520-25049 |
LN107 T=2.49,MARK A,FR PROPELLER SHAFT |
4 | ||
| 90520-25053 |
LN107 T=2.57,MARK E,FR PROPELLER SHAFT |
4 | ||
| 90520-25052 |
LN107 T=2.55,MARK D,RR PROPELLER SHAFT |
12 | ||
| 90520-25055 |
LN107 T=2.21,MARK E,FR PROPELLER SHAFT |
4 | ||
| 90520-25058 |
LN107 T=2.27,MARK H,RR PROPELLER SHAFT |
12 | ||
| 90520-25056 |
LN107 T=2.23,MARK F,RR PROPELLER SHAFT |
12 | ||
| 90520-25058 |
LN107 T=2.27,MARK H,FR PROPELLER SHAFT |
4 | ||
| 90520-25057 |
LN107 T=2.25,MARK G,FR PROPELLER SHAFT |
4 | ||
| 90520-25055 |
LN107 T=2.21,MARK E,RR PROPELLER SHAFT |
12 | ||
| 90520-25057 |
LN107 T=2.25,MARK G,RR PROPELLER SHAFT |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-30021 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# RED PAINTED,FR PROPELLER SHAFT |
4 | ||
| Common parts | ||||
| 90416-06004 | ||||
| 96451-00600 | ||||
(8808- )KZN205,LN10#,111,205,RN10#,110,YN106
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-35051 |
LN107 FR PROPELLER SHAFT |
1 | ||
| 04371-35050 |
LN10#,RN106 RR PROPELLER SHAFT |
3 | ||
| 04371-35051 |
LN107 RR PROPELLER SHAFT |
3 | ||
| 04371-35050 |
LN10#,RN106 FR PROPELLER SHAFT |
1 | ||
| 04371-35031 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# FR PROPELLER SHAFT |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01150 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 8G,L=16.6 |
1 | ||
| 90937-01204 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 36G,T=4.5,L=32.9 |
1 | ||
| 90937-01208 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 44G,T=4.5,L=40.2 |
1 | ||
| 90937-01147 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 2G,T=2.0 |
1 | ||
| 90937-01149 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 6G,L=12.4 |
1 | ||
| 90937-01203 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 34G,T=4.5,L=31.0 |
1 | ||
| 90937-01148 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 4G,T=2.0 |
1 | ||
| 90937-01206 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 40G,T=4.5,L=36.5 |
1 | ||
| 90937-01152 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 14G,L=29.0 |
1 | ||
| 90937-01151 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 12G,L=24.9 |
1 | ||
| 90937-01132 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 10G,L=20.7 |
1 | ||
| 90937-01201 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 30G,T=4.5,L=27.4 |
1 | ||
| 90937-01210 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 48G,T=4.5,L=43.8 |
1 | ||
| 90937-01207 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 42G,T=4.5,L=38.4 |
1 | ||
| 90937-01205 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 38G,T=4.5,L=34.7 |
1 | ||
| 90937-01209 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 46G,T=4.5,L=42.0 |
1 | ||
| 90937-01202 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 32G,T=4.5,L=29.2 |
1 | ||
| 90937-01211 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 50G,T=4.5,L=45.7 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01150 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 8G,L=16.6 |
1 | ||
| 90937-01204 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 36G,T=4.5,L=32.9 |
1 | ||
| 90937-01208 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 44G,T=4.5,L=40.2 |
1 | ||
| 90937-01147 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 2G,T=2.0 |
1 | ||
| 90937-01149 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 6G,L=12.4 |
1 | ||
| 90937-01203 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 34G,T=4.5,L=31.0 |
1 | ||
| 90937-01148 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 4G,T=2.0 |
1 | ||
| 90937-01206 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 40G,T=4.5,L=36.5 |
1 | ||
| 90937-01152 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 14G,L=29.0 |
1 | ||
| 90937-01151 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 12G,L=24.9 |
1 | ||
| 90937-01132 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 10G,L=20.7 |
1 | ||
| 90937-01201 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 30G,T=4.5,L=27.4 |
1 | ||
| 90937-01210 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 48G,T=4.5,L=43.8 |
1 | ||
| 90937-01207 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 42G,T=4.5,L=38.4 |
1 | ||
| 90937-01205 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 38G,T=4.5,L=34.7 |
1 | ||
| 90937-01209 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 46G,T=4.5,L=42.0 |
1 | ||
| 90937-01202 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 32G,T=4.5,L=29.2 |
1 | ||
| 90937-01211 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# 50G,T=4.5,L=45.7 |
1 | ||

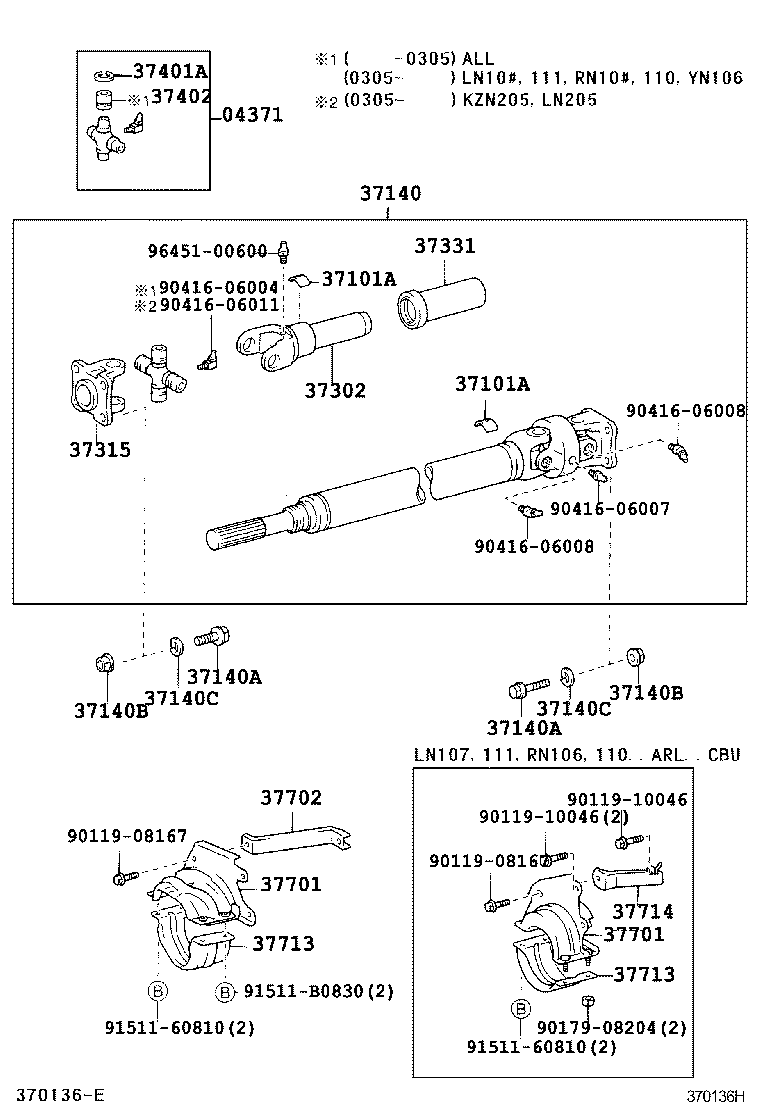

| 37140 - SHAFT ASSY, PROPELLER, FRONT | ||||
| 37140-35060 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90179-10059 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
8 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90179-10059 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90204-10002 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90204-10002 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
8 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-35070 |
LN107 RR PROPELLER SHAFT |
2 | ||
| 37315-35070 |
LN107 FR PROPELLER SHAFT |
1 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37305-35020 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# FR PROPELLER SHAFT |
1 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-26051 |
LN10#,RN106 T=2.46-2.48,FR PROPELLER SHAFT |
4 | ||
| 90520-26054 |
LN10#,RN106 T=2.32-2.34,RR PROPELLER SHAFT |
12 | ||
| 90520-26054 |
LN10#,RN106 T=2.32-2.34,FR PROPELLER SHAFT |
4 | ||
| 90520-26050 |
LN10#,RN106 T=2.44-2.46,RR PROPELLER SHAFT |
12 | ||
| 90520-26052 |
LN10#,RN106 T=2.28-2.30,RR PROPELLER SHAFT |
12 | ||
| 90520-26053 |
LN10#,RN106 T=2.30-2.32,RR PROPELLER SHAFT |
12 | ||
| 90520-26050 |
LN10#,RN106 T=2.44-2.46,FR PROPELLER SHAFT |
4 | ||
| 90520-26055 |
LN10#,RN106 T=2.34-2.36,RR PROPELLER SHAFT |
12 | ||
| 90520-26056 |
LN10#,RN106 T=2.36-2.38,FR PROPELLER SHAFT |
4 | ||
| 90520-26057 |
LN10#,RN106 T=2.38-2.40,RR PROPELLER SHAFT |
12 | ||
| 90520-26051 |
LN10#,RN106 T=2.46-2.48,RR PROPELLER SHAFT |
12 | ||
| 90520-26057 |
LN10#,RN106 T=2.38-2.40,FR PROPELLER SHAFT |
4 | ||
| 90520-26053 |
LN10#,RN106 T=2.30-2.32,FR PROPELLER SHAFT |
4 | ||
| 90520-26052 |
LN10#,RN106 T=2.28-2.30,FR PROPELLER SHAFT |
4 | ||
| 90520-26056 |
LN10#,RN106 T=2.36-2.38,RR PROPELLER SHAFT |
12 | ||
| 90520-26059 |
LN10#,RN106 T=2.42-2.44,FR PROPELLER SHAFT |
4 | ||
| 90520-26058 |
LN10#,RN106 T=2.40-2.42,FR PROPELLER SHAFT |
4 | ||
| 90520-26055 |
LN10#,RN106 T=2.34-2.36,FR PROPELLER SHAFT |
4 | ||
| 90520-26062 |
LN10#,RN106 T=2.18-2.20,RR PROPELLER SHAFT |
12 | ||
| 90520-26062 |
LN10#,RN106 T=2.18-2.20,FR PROPELLER SHAFT |
4 | ||
| 90520-26066 |
LN10#,RN106 T=2.26-2.28,FR PROPELLER SHAFT |
4 | ||
| 90520-26063 |
LN10#,RN106 T=2.20-2.22,FR PROPELLER SHAFT |
4 | ||
| 90520-26059 |
LN10#,RN106 T=2.42-2.44,RR PROPELLER SHAFT |
12 | ||
| 90520-26058 |
LN10#,RN106 T=2.40-2.42,RR PROPELLER SHAFT |
12 | ||
| 90520-26064 |
LN10#,RN106 T=2.22-2.24,FR PROPELLER SHAFT |
4 | ||
| 90520-26064 |
LN10#,RN106 T=2.22-2.24,RR PROPELLER SHAFT |
12 | ||
| 90520-26066 |
LN10#,RN106 T=2.26-2.28,RR PROPELLER SHAFT |
12 | ||
| 90520-26067 |
LN10#,RN106 T=2.48-2.50,RR PROPELLER SHAFT |
12 | ||
| 90520-25039 |
LN107 T=2.29,MARK 1,RR PROPELLER SHAFT |
12 | ||
| 90520-26065 |
LN10#,RN106 T=2.24-2.26,RR PROPELLER SHAFT |
12 | ||
| 90520-26068 |
LN10#,RN106 T=2.50-2.52,FR PROPELLER SHAFT |
4 | ||
| 90520-25040 |
LN107 T=2.31,MARK 2,RR PROPELLER SHAFT |
12 | ||
| 90520-26069 |
LN10#,RN106 T=2.52-2.54,RR PROPELLER SHAFT |
12 | ||
| 90520-26067 |
LN10#,RN106 T=2.48-2.50,FR PROPELLER SHAFT |
4 | ||
| 90520-25039 |
LN107 T=2.29,MARK 1,FR PROPELLER SHAFT |
4 | ||
| 90520-25041 |
LN107 T=2.33,NO MARK,RR PROPELLER SHAFT |
12 | ||
| 90520-26068 |
LN10#,RN106 T=2.50-2.52,RR PROPELLER SHAFT |
12 | ||
| 90520-26063 |
LN10#,RN106 T=2.20-2.22,RR PROPELLER SHAFT |
12 | ||
| 90520-25042 |
LN107 T=2.35,BROWN,RR PROPELLER SHAFT |
12 | ||
| 90520-25042 |
LN107 T=2.35,BROWN,FR PROPELLER SHAFT |
4 | ||
| 90520-25044 |
LN107 T=2.39,MARK 6,FR PROPELLER SHAFT |
4 | ||
| 90520-25041 |
LN107 T=2.33,NO MARK,FR PROPELLER SHAFT |
4 | ||
| 90520-26065 |
LN10#,RN106 T=2.24-2.26,FR PROPELLER SHAFT |
4 | ||
| 90520-25046 |
LN107 T=2.43,MARK 8,FR PROPELLER SHAFT |
4 | ||
| 90520-25040 |
LN107 T=2.31,MARK 2,FR PROPELLER SHAFT |
4 | ||
| 90520-26069 |
LN10#,RN106 T=2.52-2.54,FR PROPELLER SHAFT |
4 | ||
| 90520-25044 |
LN107 T=2.39,MARK 6,RR PROPELLER SHAFT |
12 | ||
| 90520-25045 |
LN107 T=2.41,MARK 7,RR PROPELLER SHAFT |
12 | ||
| 90520-25043 |
LN107 T=2.37,BLUE,FR PROPELLER SHAFT |
4 | ||
| 90520-25047 |
LN107 T=2.45,MARK 9,FR PROPELLER SHAFT |
4 | ||
| 90520-25050 |
LN107 T=2.51,MARK B,FR PROPELLER SHAFT |
4 | ||
| 90520-25043 |
LN107 T=2.37,BLUE,RR PROPELLER SHAFT |
12 | ||
| 90520-25050 |
LN107 T=2.51,MARK B,RR PROPELLER SHAFT |
12 | ||
| 90520-25047 |
LN107 T=2.45,MARK 9,RR PROPELLER SHAFT |
12 | ||
| 90520-25046 |
LN107 T=2.43,MARK 8,RR PROPELLER SHAFT |
12 | ||
| 90520-25049 |
LN107 T=2.49,MARK A,RR PROPELLER SHAFT |
12 | ||
| 90520-25048 |
LN107 T=2.47,MARK 10,RR PROPELLER SHAFT |
12 | ||
| 90520-25051 |
LN107 T=2.53,MARK C,RR PROPELLER SHAFT |
12 | ||
| 90520-25048 |
LN107 T=2.47,MARK 10,FR PROPELLER SHAFT |
4 | ||
| 90520-25053 |
LN107 T=2.57,MARK E,RR PROPELLER SHAFT |
12 | ||
| 90520-25054 |
LN107 T=2.19,MARK D,RR PROPELLER SHAFT |
12 | ||
| 90520-25052 |
LN107 T=2.55,MARK D,FR PROPELLER SHAFT |
4 | ||
| 90520-25051 |
LN107 T=2.53,MARK C,FR PROPELLER SHAFT |
4 | ||
| 90520-25045 |
LN107 T=2.41,MARK 7,FR PROPELLER SHAFT |
4 | ||
| 90520-25054 |
LN107 T=2.19,MARK D,FR PROPELLER SHAFT |
4 | ||
| 90520-25056 |
LN107 T=2.23,MARK F,FR PROPELLER SHAFT |
4 | ||
| 90520-25049 |
LN107 T=2.49,MARK A,FR PROPELLER SHAFT |
4 | ||
| 90520-25053 |
LN107 T=2.57,MARK E,FR PROPELLER SHAFT |
4 | ||
| 90520-25052 |
LN107 T=2.55,MARK D,RR PROPELLER SHAFT |
12 | ||
| 90520-25055 |
LN107 T=2.21,MARK E,FR PROPELLER SHAFT |
4 | ||
| 90520-25058 |
LN107 T=2.27,MARK H,RR PROPELLER SHAFT |
12 | ||
| 90520-25056 |
LN107 T=2.23,MARK F,RR PROPELLER SHAFT |
12 | ||
| 90520-25058 |
LN107 T=2.27,MARK H,FR PROPELLER SHAFT |
4 | ||
| 90520-25057 |
LN107 T=2.25,MARK G,FR PROPELLER SHAFT |
4 | ||
| 90520-25055 |
LN107 T=2.21,MARK E,RR PROPELLER SHAFT |
12 | ||
| 90520-25057 |
LN107 T=2.25,MARK G,RR PROPELLER SHAFT |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-30021 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# RED PAINTED,FR PROPELLER SHAFT |
4 | ||
| 37702 - STAY SUB-ASSY, PROPELLER SHAFT DUST COVER | ||||
| 37702-35030 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| Common parts | ||||
| 90119-08167 | ||||
| 90119-10046 | ||||
| 90179-08204 | ||||
| 90416-06004 | ||||
| 90416-06007 | ||||
| 90416-06008 | ||||
| 90416-06011 | ||||
| 91511-60810 | ||||
| 91511-B0830 | ||||
| 96451-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
