LN107L-PRMDS (1997)

Toyota Hilux/4runner (4wd)

Production Mar 1997 - Jun 2001
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-0106)LN10#,111,13#,RN10#,110,13#,YN106,135

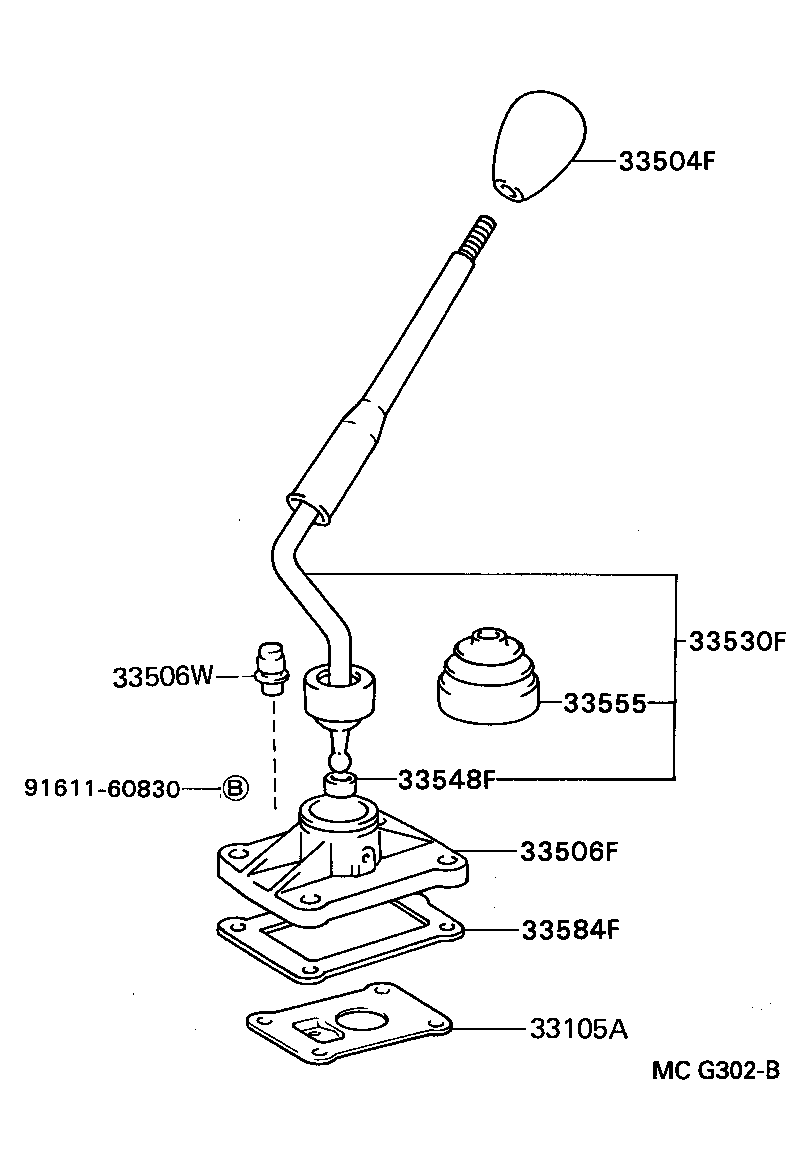

Click highlighted areas on diagram

diagram 33105A 33504F 33506F 33506W 33530F 33548F 33555 33584F 9161160830
Part # Description Qty Price
33105A - DEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM)
33105-60010

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F

 1
33105-35040

LN107

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-60030

LN10#,RN106

 1
33506-60020

LN10#,111,13#,RN10#,110,13#,YN106,135

 1
33506-60030

LN107

 1
33506W - PLUG, BREATHER (FOR SHIFT LEVER RETAINER)
90930-03075

LN10#,111,13#,RN10#,110,13#,YN106,135

 1
90930-03075

LN107

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-31010

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F

 1
33555 - BOOT, SHIFT LEVER
33555-60030

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F

 1
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-60010

LN107

 1
33584-60010

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F

 1
Common parts
91611-60830
