LN107L-PRMDS (1997)
Toyota Hilux/4runner (4wd)
(8808-0106)LN10#,111,13#,RN10#,110,13#,YN106,135
G5#

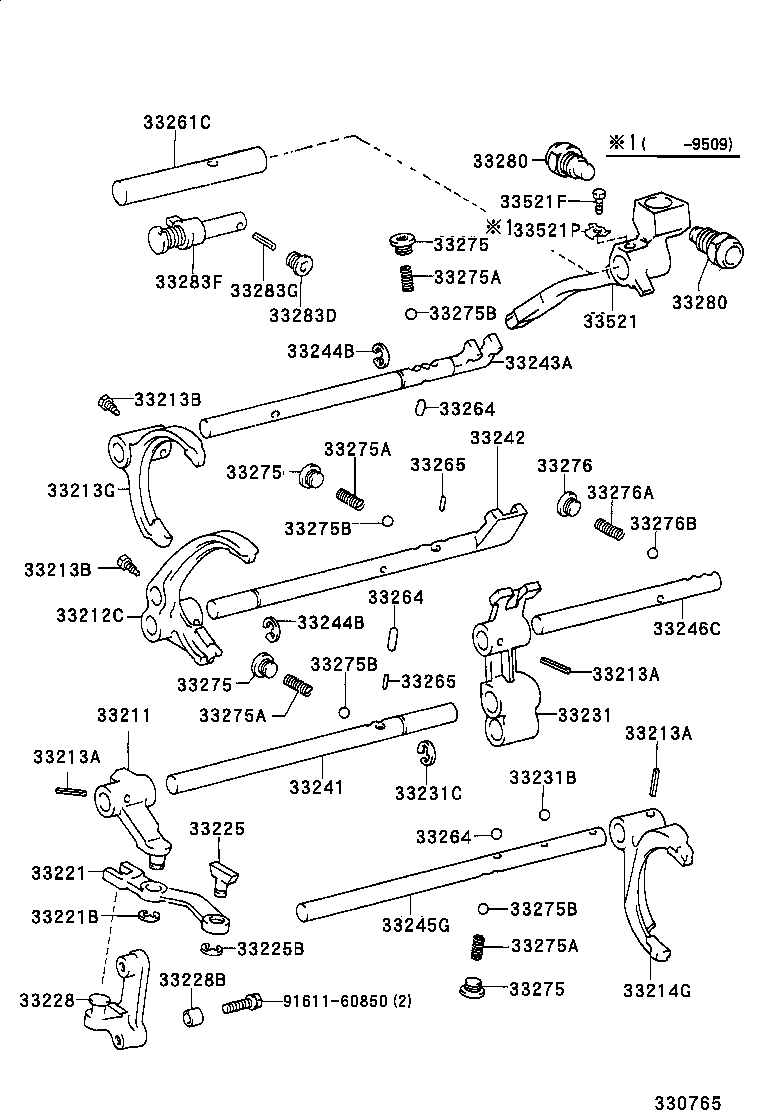

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-28010 |
LN107 |
1 | ||
| 33211-28010 |
LN10#,111,13#,RN10#,110,13#,YN106,135 |
1 | ||
| 33212C - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-35023 |
LN10#,111,13#,RN10#,110,13#,YN106,135 |
1 | ||
| 33212-35023 |
LN107 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LN10#,111,13#,RN10#,110,13#,YN106,135 |
3 | ||
| 90254-05001 |
LN107 |
2 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LN10#,111,13#,RN10#,110,13#,YN106,135 |
3 | ||
| 90254-05001 |
LN107 |
2 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LN10#,111,13#,RN10#,110,13#,YN106,135 |
3 | ||
| 90254-05001 |
LN107 |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
LN107 |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
LN107 |
3 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-35033 |
LN107 |
1 | ||
| 33213-35032 |
LN10#,111,13#,RN10#,110,13#,YN106,135 |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-35020 |
LN10#,111,13#,RN10#,110,13#,YN106,135 |
1 | ||
| 33214-35040 |
LN107 |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-28010 |
LN10#,111,13#,RN10#,110,13#,YN106,135 |
1 | ||
| 33221-28010 |
LN107 |
1 | ||
| 33221B - RING, E(FOR REVERSE SHIFT ARM) | ||||
| 96160-01000 |
LN10#,111,13#,RN10#,110,13#,YN106,135 |
1 | ||
| 96160-01000 |
LN107 |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-35030 |
LN107 |
1 | ||
| 33225-35030 |
LN10#,111,13#,RN10#,110,13#,YN106,135 |
1 | ||
| 33225B - RING, E(FOR SHIFT ARM SHOE) | ||||
| 96160-00800 |
LN107 |
1 | ||
| 96160-00800 |
LN10#,111,13#,RN10#,110,13#,YN106,135 |
1 | ||
| 33228 - BRACKET, REVERSE SHIFT ARM | ||||
| 33228-28010 |
LN10#,111,13#,RN10#,110,13#,YN106,135 |
1 | ||
| 33228-28010 |
LN107 |
1 | ||
| 33228B - PIN, RING(FOR REVERSE SHIFT ARM BRACKET) | ||||
| 90253-11001 |
LN107 |
2 | ||
| 90253-11001 |
LN10#,111,13#,RN10#,110,13#,YN106,135 |
2 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-35070 |
LN107 |
1 | ||
| 33231-35040 |
LN10#,111,13#,RN10#,110,13#,YN106,135 |
1 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-10003 |
LN10#,111,13#,RN10#,110,13#,YN106,135 |
1 | ||
| 90360-10003 |
LN107 |
1 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 90520-12006 |
LN107 |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-35021 |
LN10#,111,13#,RN10#,110,13#,YN106,135 |
1 | ||
| 33244-35050 |
LN107 |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-35022 |
LN10#,111,13#,RN10#,110,13#,YN106,135 |
1 | ||
| 33242-35022 |
LN107 |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-35042 |
LN10#,111,13#,RN10#,110,13#,YN106,135 |
1 | ||
| 33243-35042 |
LN107 |
1 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12006 |
LN107 |
2 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12006 |
LN107 |
2 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-35040 |
LN10#,111,13#,RN10#,110,13#,YN106,135 |
1 | ||
| 33245-35080 |
LN107 |
1 | ||
| 33246C - SHAFT, GEAR SHIFT FORK, NO.5 | ||||
| 33246-35020 |
LN107 |
1 | ||
| 33246-35020 |
LN10#,111,13#,RN10#,110,13#,YN106,135 |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-35080 |
LN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU |
1 | ||
| 33261-35080 |
LN107 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10003 |
LN10#,111,13#,RN10#,110,13#,YN106,135 L=13.6,OD=9.5 |
1 | ||
| 90360-10003 |
RN106..STD..EFI;LN10#,111,13#,RN10#,110,13#,YN106,135..CBR,DSL OD=9.52,STEEL,BALL |
1 | ||
| 90361-10003 |
LN107 L=13.6,OD=9.5 |
1 | ||
| 90360-10003 |
LN107 OD=9.52,STEEL,BALL |
1 | ||
| 90361-10002 |
LN107 L=21.6,PIN |
1 | ||
| 90361-10002 |
LN10#,111,13#,RN10#,110,13#,YN106,135 L=21.6,PIN |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10003 |
LN10#,111,13#,RN10#,110,13#,YN106,135 L=13.6,OD=9.5 |
1 | ||
| 90360-10003 |
RN106..STD..EFI;LN10#,111,13#,RN10#,110,13#,YN106,135..CBR,DSL OD=9.52,STEEL,BALL |
1 | ||
| 90361-10003 |
LN107 L=13.6,OD=9.5 |
1 | ||
| 90360-10003 |
LN107 OD=9.52,STEEL,BALL |
1 | ||
| 90361-10002 |
LN107 L=21.6,PIN |
1 | ||
| 90361-10002 |
LN10#,111,13#,RN10#,110,13#,YN106,135 L=21.6,PIN |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10003 |
LN10#,111,13#,RN10#,110,13#,YN106,135 L=13.6,OD=9.5 |
1 | ||
| 90360-10003 |
RN106..STD..EFI;LN10#,111,13#,RN10#,110,13#,YN106,135..CBR,DSL OD=9.52,STEEL,BALL |
1 | ||
| 90361-10003 |
LN107 L=13.6,OD=9.5 |
1 | ||
| 90360-10003 |
LN107 OD=9.52,STEEL,BALL |
1 | ||
| 90361-10002 |
LN107 L=21.6,PIN |
1 | ||
| 90361-10002 |
LN10#,111,13#,RN10#,110,13#,YN106,135 L=21.6,PIN |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05020 |
LN107 L=11.1,OD=4.8 |
2 | ||
| 90250-05020 |
LN10#,111,13#,RN10#,110,13#,YN106,135 L=11.1,OD=4.8 |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05020 |
LN107 L=11.1,OD=4.8 |
2 | ||
| 90250-05020 |
LN10#,111,13#,RN10#,110,13#,YN106,135 L=11.1,OD=4.8 |
2 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
LN107 OD=18 |
4 | ||
| 90341-12008 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F OD=18 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
LN107 OD=18 |
4 | ||
| 90341-12008 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F OD=18 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
LN107 OD=18 |
4 | ||
| 90341-12008 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F OD=18 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
LN107 OD=18 |
4 | ||
| 90341-12008 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F OD=18 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14132 |
LN107 L=31,SHIFTFORK SHAFT SIDE |
3 | ||
| 90501-14123 |
LN107 L=20.2,SHIFT HEAD SIDE |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14132 |
LN107 L=31,SHIFTFORK SHAFT SIDE |
3 | ||
| 90501-14123 |
LN107 L=20.2,SHIFT HEAD SIDE |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14132 |
LN107 L=31,SHIFTFORK SHAFT SIDE |
3 | ||
| 90501-14123 |
LN107 L=20.2,SHIFT HEAD SIDE |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14132 |
LN107 L=31,SHIFTFORK SHAFT SIDE |
3 | ||
| 90501-14123 |
LN107 L=20.2,SHIFT HEAD SIDE |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN107 |
4 | ||
| 90360-10003 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN107 |
4 | ||
| 90360-10003 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN107 |
4 | ||
| 90360-10003 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN107 |
4 | ||
| 90360-10003 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F |
4 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 90341-12008 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F |
1 | ||
| 90341-12008 |
LN107 |
1 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-10061 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F |
1 | ||
| 90501-10061 |
LN107 |
1 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-10003 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F |
1 | ||
| 90360-10003 |
LN107 |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-35020 |
LN10#,111,13#,RN10#,110,13#,YN106,135 RH |
1 | ||
| 33280-35031 |
LN107 LH |
1 | ||
| 33280-35030 |
LN10#,111,13#,RN10#,110,13#,YN106,135 LH |
1 | ||
| 33280-35021 |
LN107 RH |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-35020 |
LN10#,111,13#,RN10#,110,13#,YN106,135 RH |
1 | ||
| 33280-35031 |
LN107 LH |
1 | ||
| 33280-35030 |
LN10#,111,13#,RN10#,110,13#,YN106,135 LH |
1 | ||
| 33280-35021 |
LN107 RH |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-12008 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F |
1 | ||
| 90341-12008 |
LN107 |
1 | ||
| 33283F - PIN, REVERSE RESTRICT | ||||
| 33280-35040 |
LN107 |
1 | ||
| 33280-35040 |
LN10#,111,13#,RN10#,110,13#,YN106,135 |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05001 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F |
1 | ||
| 90254-05001 |
LN107 |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-35090 |
LN10#,111,13#,RN10#,110,13#,YN106,135 |
1 | ||
| 33521-35090 |
LN107 |
1 | ||
| 33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING) | ||||
| 90105-08079 |
LN107 |
1 | ||
| Common parts | ||||
| 91611-60850 | ||||
