LN107L-PRMDS (1997)

Toyota Hilux/4runner (4wd)

Production Mar 1997 - Jun 2001
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-0106)3L

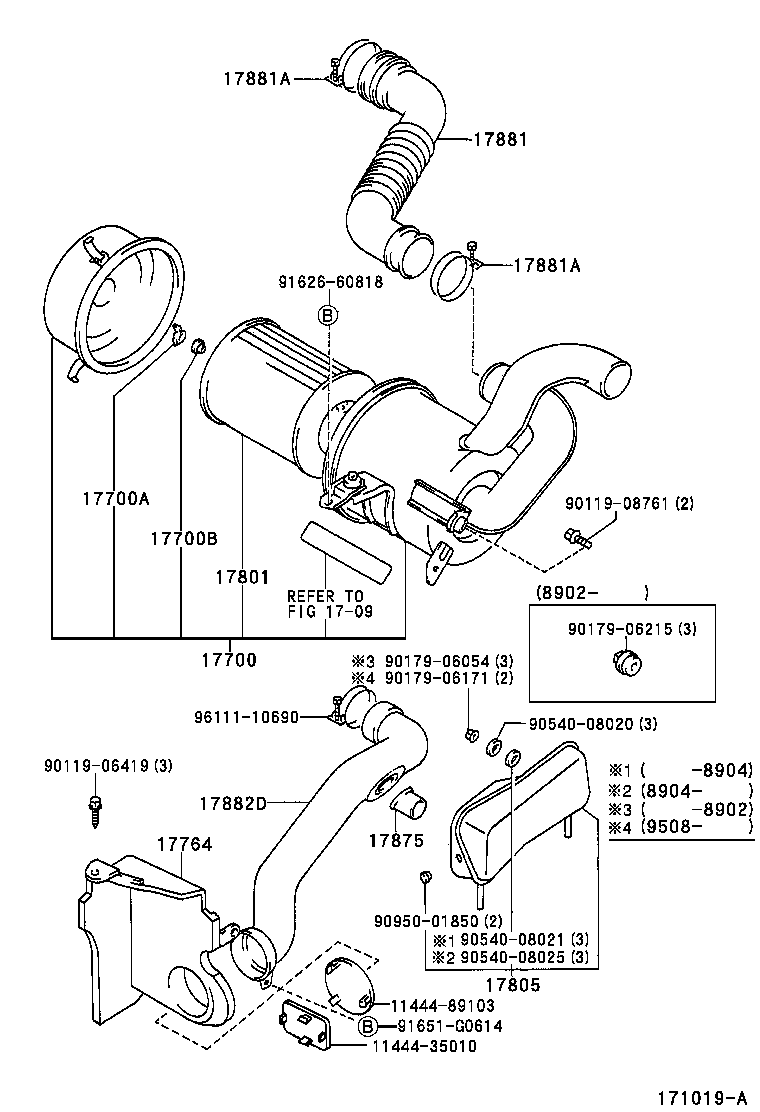

Click highlighted areas on diagram

diagram 1144435010 1144489103 1709 17700 17700A 17700B 17764 17801 17805 17875 17881 17881A 17881A 17882D 9011906419 9011908761 9017906054 9017906171 9017906215 9054008020 9054008021 9054008025 9095001850 9162660818 91651G0614 9611110690
Part # Description Qty Price
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-54080

3L..LN10#,111,13#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-35160

3L..LN107..GEN

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-54410

3L..LN10#,111,13#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10850

3L..LN10#,111,13#

MANIFOLD SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10850

3L..LN10#,111,13#

MANIFOLD SIDE

 1
17882D - HOSE, COOL AIR INTAKE
17880-35120

3L..LN107..GEN

 1
Common parts
11444-35010
11444-89103
90119-06419
90119-08761
90179-06054
90179-06171
90179-06215
90540-08020
90540-08021
90540-08025
90950-01850
91626-60818
91651-G0614
96111-10690
Linked diagrams
1709
