LN107L-PRMDS (1997)

Toyota Hilux/4runner (4wd)

Production Mar 1997 - Jun 2001
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-0106)3L..LN10#,111

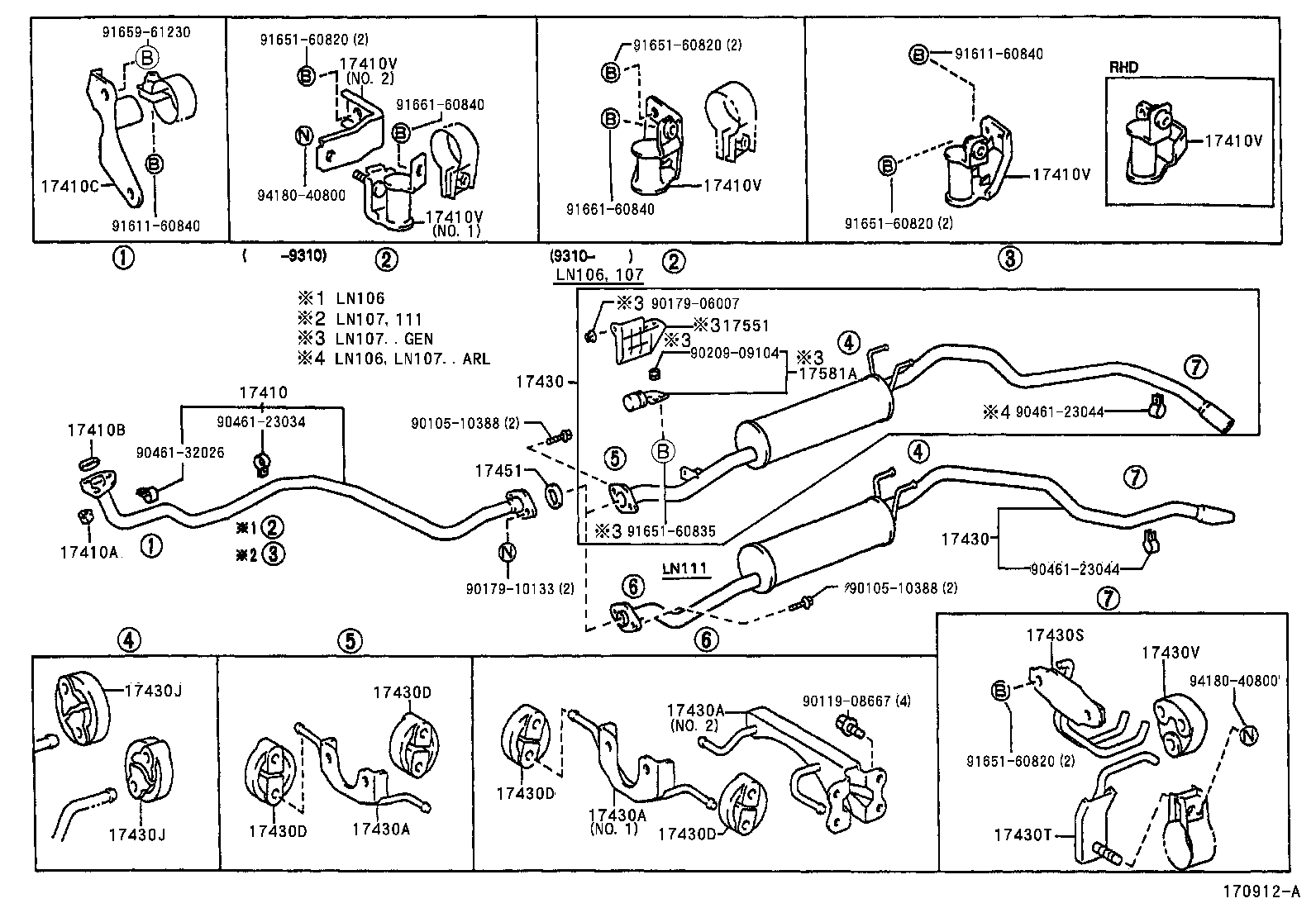

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410V 17410V 17410V 17410V 17410V 17430 17430 17430A 17430A 17430A 17430D 17430D 17430D 17430D 17430J 17430J 17430S 17430T 17430V 17451 17551 17581A 9010510388 9010510388 9011908667 9017906007 9017910133 9020909104 9046123034 9046123044 9046123044 9046132026 9161160840 9161160840 9165160820 9165160820 9165160820 9165160820 9165160835 9165961230 9166160840 9166160840 9418040800 9418040800
Part # Description Qty Price
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

3L..LN111..ARL;22R#,3L,3VZE,4Y#..LN10#,13#,RN10#,110,13#,VZN130,YN106,13#

 3
17410B - GASKET, EXHAUST PIPE
90917-06041

3L,3VZE..LN10#,111,13#,VZN130

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-54360

3L..LN10#,111,13#

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17503-35120

22R,3L,4Y..LN10#,RN10#,YN106

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17503-35120

22R,3L,4Y..LN10#,RN10#,YN106

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17503-35120

22R,3L,4Y..LN10#,RN10#,YN106

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

22R#,3L,3VZE,4Y#..LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

22R#,3L,3VZE,4Y#..LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

22R#,3L,3VZE,4Y#..LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

22R#,3L,3VZE,4Y#..LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17565-35010

22R#,3L,3VZE,4Y#..LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17565-35010

22R#,3L,3VZE,4Y#..LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17575-54020

22R,3L,4Y..LN10#,111,RN10#,110,YN106

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17585-71010

22R,3L,4Y#..LN10#,111,13#,RN10#,110,13#,YN106,13#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17566-35030

22R#,3L,3VZE,4Y#..LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 1
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-62010

3L..LN107..GEN

 1
17581A - DAMPER, EXHAUST PIPE
17581-46070

3L..LN107..GEN

 1
Common parts
90105-10388
90119-08667
90179-06007
90179-10133
90209-09104
90461-23034
90461-23044
90461-32026
91611-60840
91651-60820
91651-60835
91659-61230
91661-60840
94180-40800
