LN107L-PRMDS (1997)

Toyota Hilux/4runner (4wd)

Production Mar 1997 - Jun 2001
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3L,5L

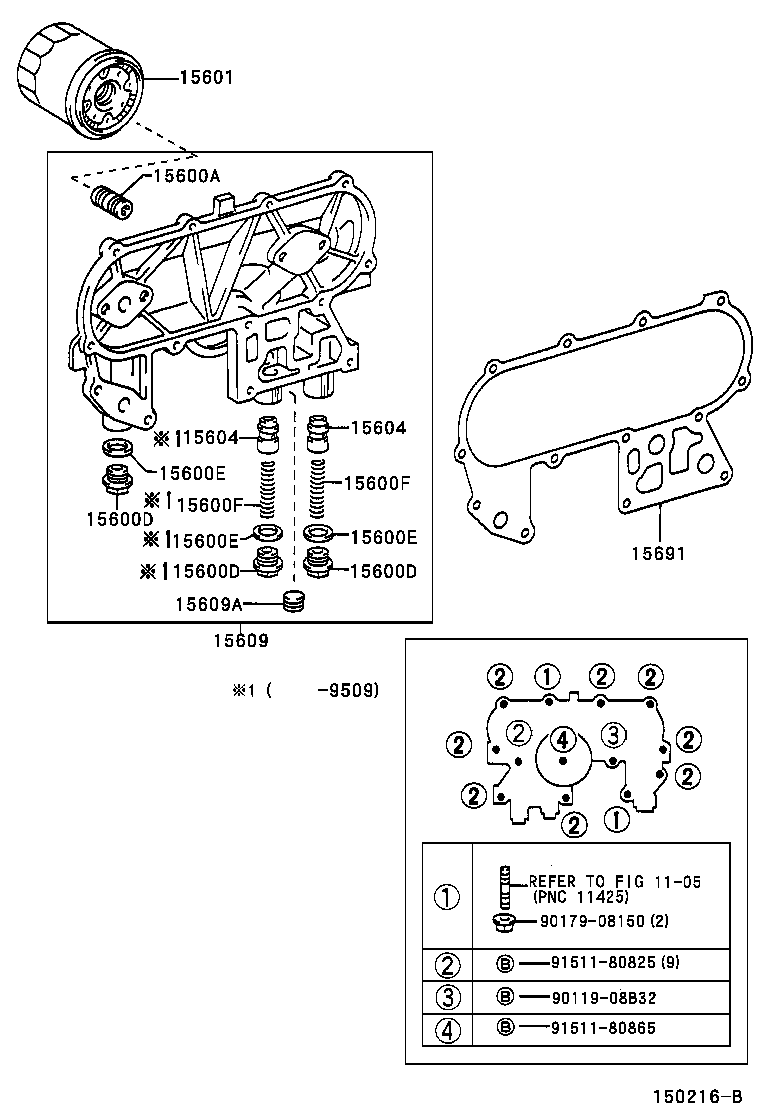

Click highlighted areas on diagram

diagram 1105 15600A 15600D 15600D 15600D 15600E 15600E 15600E 15600F 15600F 15601 15604 15604 15609 15609A 15691 9011908B32 9017908150 9151180825 9151180865
Part # Description Qty Price
15600D - PLUG(FOR OIL FILTER)
90341-18015

3L..LN10#,111,13#

 3
15600D - PLUG(FOR OIL FILTER)
90341-18015

3L..LN10#,111,13#

 3
15600D - PLUG(FOR OIL FILTER)
90341-18015

3L..LN10#,111,13#

 3
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

3L..LN10#,111,13#

 2
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

3L..LN10#,111,13#

 2
15601 - FILTER SUB-ASSY, OIL
15600-41010

3L..LN10#,111,13#

 1
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

3L..LN10#,111,13#

 2
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

3L..LN10#,111,13#

 2
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-54042

3L..LN10#,111,13#

 1
15691 - GASKET, OIL FILTER
15692-54030

3L..LN10#,111,13#

 1
15692-54050

3L..LN10#,111

 1
Common parts
90119-08B32
90179-08150
91511-80825
91511-80865
Linked diagrams
1105
