LN107L-PRMDS (1997)

Toyota Hilux/4runner (4wd)

Production Mar 1997 - Jun 2001
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-0106)3L

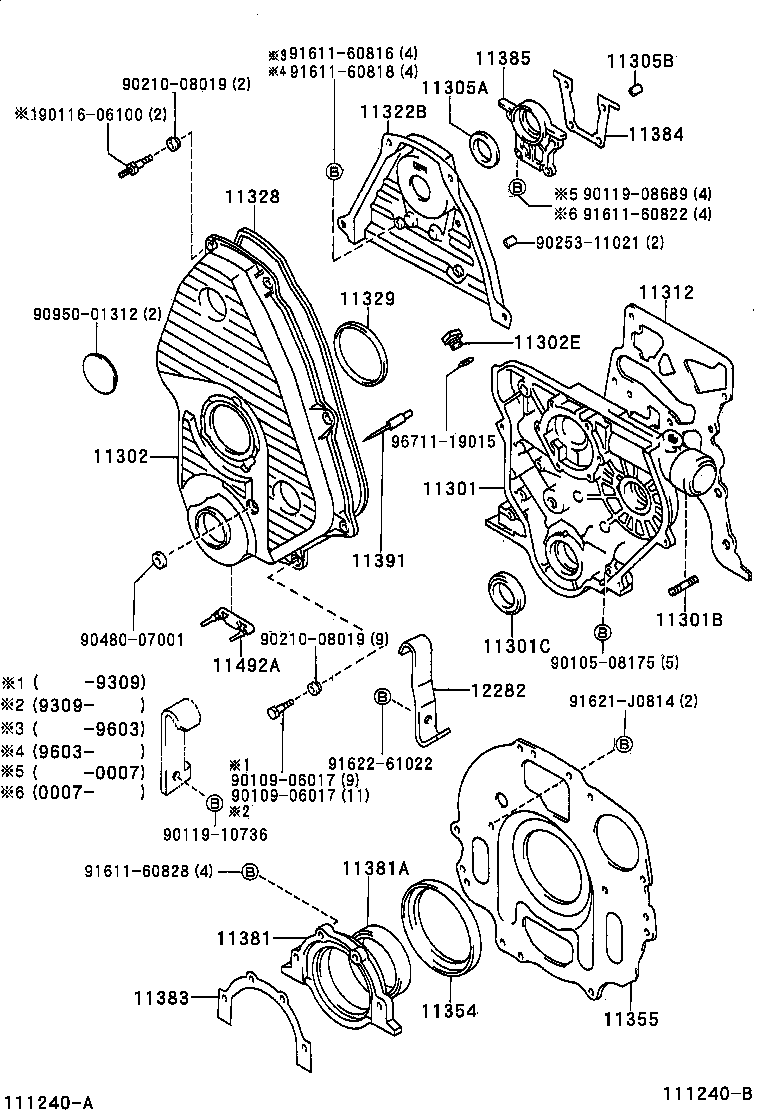

Click highlighted areas on diagram

diagram 11301 11301B 11301C 11302 11302E 11305A 11305B 11312 11322B 11328 11329 11354 11355 11381 11381A 11383 11384 11385 11391 11492A 12282 9010508175 9010906017 9010906017 9011606100 9011908689 9011910736 9021008019 9021008019 9025311021 9048007001 9095001312 9161160816 9161160818 9161160822 9161160828 91621J0814 9162261022 9671119015
Part # Description Qty Price
11301B - BOLT,STUD(FOR TIMING GEAR CASE)
92132-60828

3L..LN10#,111,13#

 2
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-54020

3L..LN10#,111,13#

 1
11302E - PLUG, STRAIGHT(FOR TIMING GEAR COVER)
90341-18004

3L..LN10#,111,13#

 1
11305A - SEAL, OIL(FOR OIL SEAL RETAINER, NO.2)
90311-32019

3L..LN10#,111

 1
11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2)
90253-11021

3L..LN10#,111,13#

 2
11312 - GASKET, FRONT END PLATE
11312-54021

3L..LN10#,111,13#

 1
11312-54040

3L..LN107

 1
11322B - COVER, TIMING BELT, NO.2
11322-54021

3L..LN10#

 1
11322-54020

3L..LN10#,111,13#

 1
11329 - GASKET, TIMING GEAR REAR COVER
11329-05010

3L..LN107

(L)

 1
11329-54021

3L..LN107

(J)

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-54010

3L..LN10#,111,13#

 1
11355 - PLATE, REAR END
11355-54030

3L..LN107..GEN

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-54020

3L..LN10#,111,13#

 1
11381A - SEAL, ENGINE REAR OIL
90311-85008

3L..LN10#,111

 1
11385 - RETAINER, CAMSHAFT OIL SEAL
11382-54020

3L..LN10#,111,13#

 1
11391 - POINTER, TIMING
11391-54020

3L..LN10#,111,13#

 1
Common parts
90105-08175
90109-06017
90116-06100
90119-08689
90119-10736
90210-08019
90253-11021
90480-07001
90950-01312
91611-60816
91611-60818
91611-60822
91611-60828
91621-J0814
91622-61022
96711-19015
