LN107L-PRMDS (1997)
Toyota Hilux/4runner (4wd)

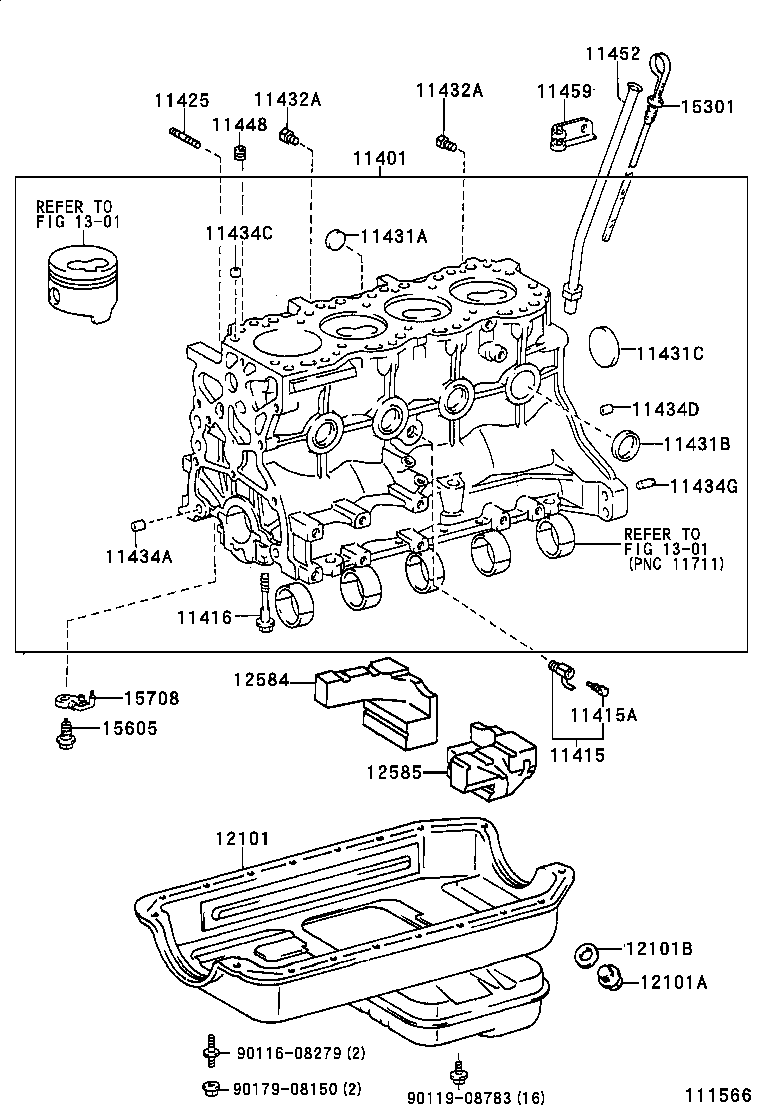

(9803-9911)3L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09110 |
3L..LN10# |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
3L..LN10# |
1 | ||
| 11425 - BOLT, STUD(FOR OIL FILTER) | ||||
| 90116-08157 |
3L..LN10#,111,13# |
2 | ||
| 92112-80825 |
3L..LN10#,111 |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
3L..LN10#,111,13# |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
3L..LN10#,111,13# |
4 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
3L..LN10#,111,13# |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51006 |
3L..LN10#,111,13# |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51006 |
3L..LN10#,111,13# |
1 | ||
| 11432K - GASKET, W/HEAD STRAIGHT SCREW PLUG | ||||
| 90430-12221 |
3L..LN10#,111,13# |
1 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-15005 |
3L..LN10#,111,13# L=7,OD=14.5 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10192 |
3L..LN10#,111,13# |
2 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-54020 |
3L..LN10#,111,13# |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-54090 |
3L..LN10#,111,13# |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 90929-01203 |
3L..LN10#,111,13# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-54310 |
3L..LN107..GEN |
1 | ||
| 12101-54202 |
3L..LN107..GEN |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-54080 |
3L..LN10#,111,13# |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-54010 |
3L..LN10#,111,13# |
4 | ||
| Common parts | ||||
| 90116-08279 | ||||
| 90119-08783 | ||||
| 90179-08150 | ||||
| Linked diagrams | ||||
| 1301 | ||||

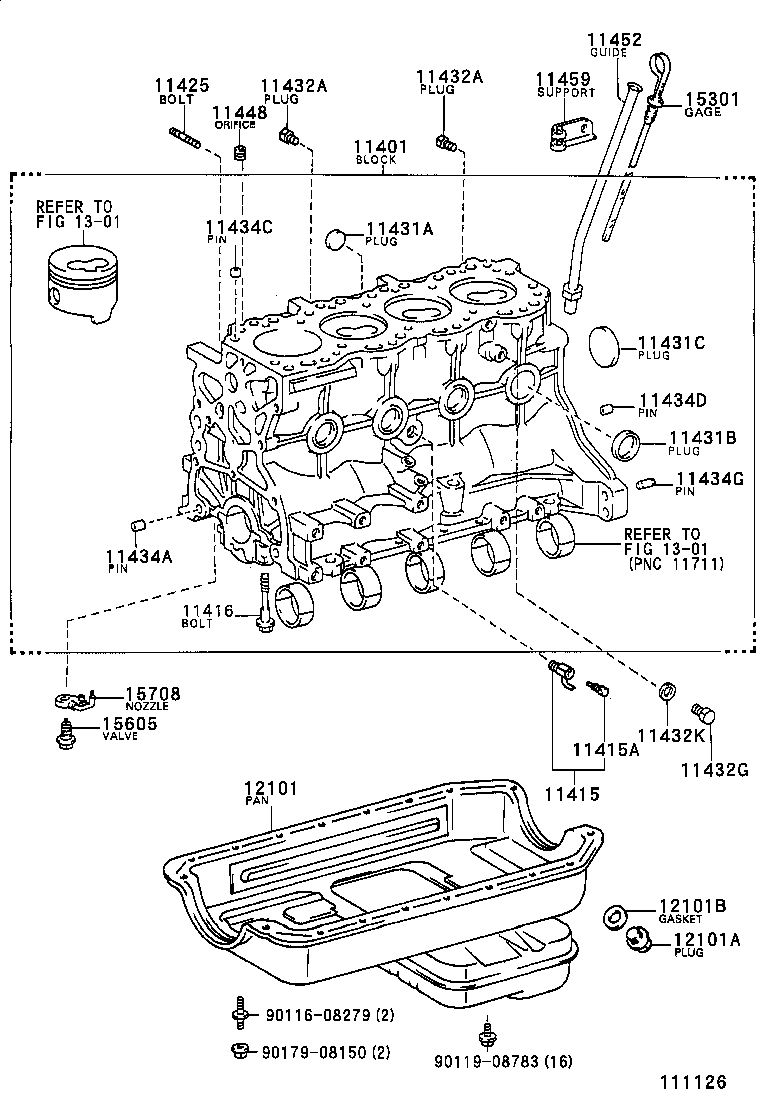

(9911-0106)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09110 |
3L..LN10# |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
3L..LN10# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02061 |
3L..LN10#,111,13# |
10 | ||
| 11425 - BOLT, STUD(FOR OIL FILTER) | ||||
| 90116-08157 |
3L..LN10#,111,13# |
2 | ||
| 92112-80825 |
3L..LN10#,111 |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
3L..LN10#,111,13# |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
3L..LN10#,111,13# |
4 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
3L..LN10#,111,13# |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51006 |
3L..LN10#,111,13# |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51006 |
3L..LN10#,111,13# |
1 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-15005 |
3L..LN10#,111,13# L=7,OD=14.5 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10192 |
3L..LN10#,111,13# |
2 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-54020 |
3L..LN10#,111,13# |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-54090 |
3L..LN10#,111,13# |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 90929-01203 |
3L..LN10#,111,13# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-54310 |
3L..LN107..GEN |
1 | ||
| 12101-54202 |
3L..LN107..GEN |
1 | ||
| 12584 - INSULATOR, CYLINDER BROCK, NO.4 | ||||
| 12584-54070 |
3L..LN107 |
1 | ||
| 12585 - INSULATOR, CYLINDER BROCK, NO.5 | ||||
| 12585-54070 |
3L..LN107 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-54080 |
3L..LN10#,111,13# |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-54010 |
3L..LN10#,111,13# |
4 | ||
| Common parts | ||||
| 90116-08279 | ||||
| 90119-08783 | ||||
| 90179-08150 | ||||
| Linked diagrams | ||||
| 1301 | ||||

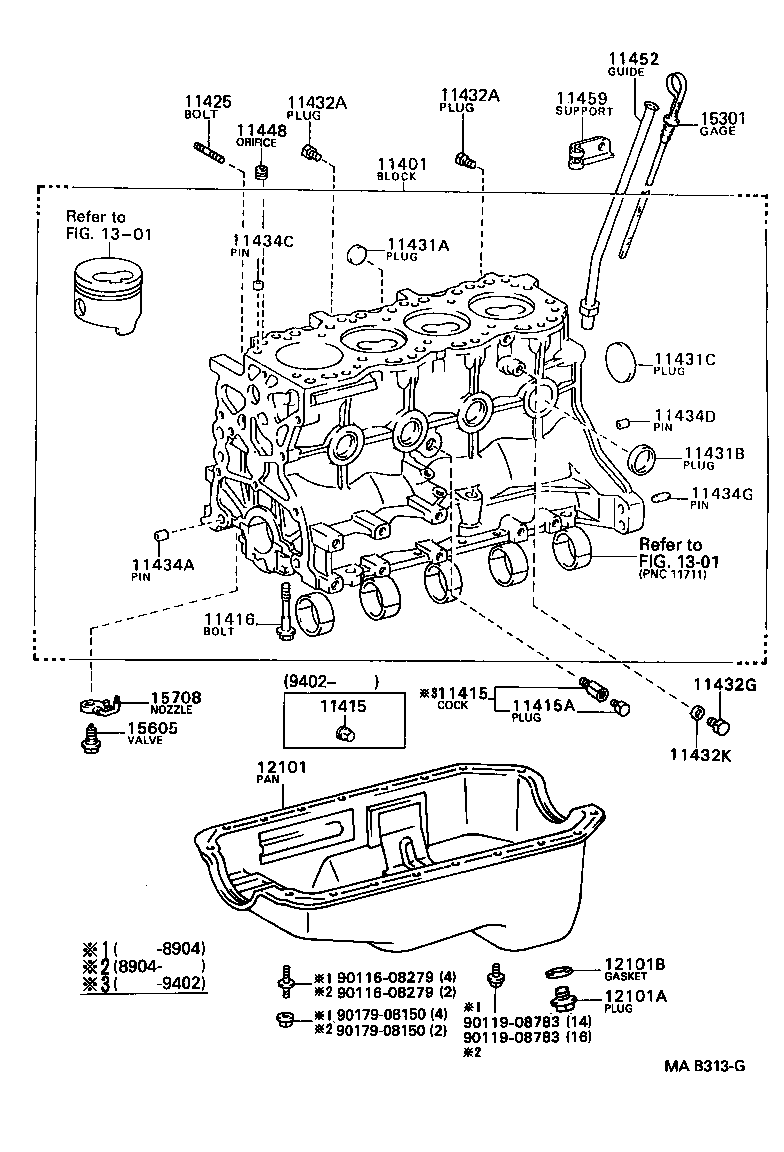

(8808-9803)3L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09110 |
3L..LN10# |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09110 |
3L..LN10# |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
3L..LN10# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02061 |
3L..LN10#,111,13# |
10 | ||
| 11425 - BOLT, STUD(FOR OIL FILTER) | ||||
| 90116-08157 |
3L..LN10#,111,13# |
2 | ||
| 92112-80825 |
3L..LN10#,111 |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
3L..LN10#,111,13# |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
3L..LN10#,111,13# |
4 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
3L..LN10#,111,13# |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51006 |
3L..LN10#,111,13# |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51006 |
3L..LN10#,111,13# |
1 | ||
| 11432K - GASKET, W/HEAD STRAIGHT SCREW PLUG | ||||
| 90430-12221 |
3L..LN10#,111,13# |
1 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-15005 |
3L..LN10#,111,13# L=7,OD=14.5 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10192 |
3L..LN10#,111,13# |
2 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-54020 |
3L..LN10#,111,13# |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-54090 |
3L..LN10#,111,13# |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 90929-01203 |
3L..LN10#,111,13# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-54310 |
3L..LN107..GEN |
1 | ||
| 12101-54202 |
3L..LN107..GEN |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-54080 |
3L..LN10#,111,13# |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-54010 |
3L..LN10#,111,13# |
4 | ||
| Common parts | ||||
| 90116-08279 | ||||
| 90119-08783 | ||||
| 90179-08150 | ||||
| Linked diagrams | ||||
| 1301 | ||||
