LN106R-TRMRSQ (1988)
Toyota Hilux/4runner (4wd)

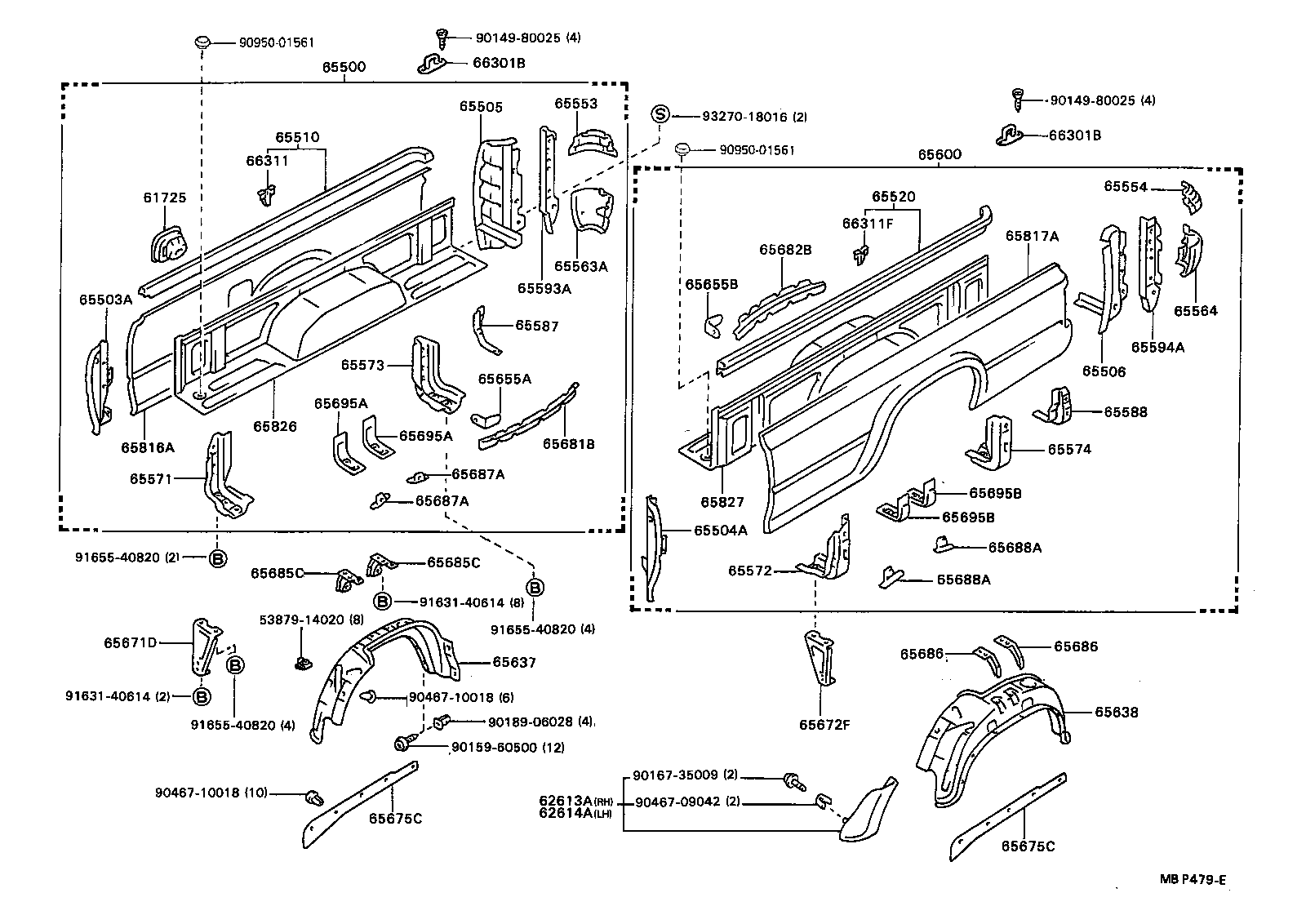

(8808-0106)LN10#,RN105,YN106..T1..GEN,V..CBU ; (0106- )T1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61725 - BOX, FUEL INLET | ||||
| 61709-89109 |
LN106,RN105,YN106..T1..CBU |
1 | ||
| 61709-89109 |
RN105..T1..CBU;LN106,111,RN110,YN106..T1..(SR5,STD)..CBU |
1 | ||
| 62613A - COVER, QUARTER WHEEL HOUSE, RH | ||||
| 62613-8910606 |
LN106,111,RN105,110,YN106..T1..(ARL,GEN)..CBU BROWN,4J9 |
1 | ||
| 62613-8910601 |
LN106,111,RN105,110..T1..ARL..CBU BLACK,033 ,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,8D8 ,8E2 |
1 | ||
| 62613-8910601 |
LN106,111,RN105,110..T1..ARL..CBU BLACK,033 ,138 ,147 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,8D8 ,8E2 |
1 | ||
| 62613-8910618 |
LN106,111,RN105,110,YN106..T1..CBU WHITE,045 |
1 | ||
| 62613-8910608 |
LN106,111,RN105,110,YN106..T1..CBU WHITE,033 |
1 | ||
| 62613-8910812 |
LN106,111,RN105,110,YN106..T1..CBU RED MICA,3H4 |
1 | ||
| 62613-8910601 |
LN106,111,RN105..T1..ARL..CBU BLACK,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,8D8 ,8E2 ,8H9 |
1 | ||
| 62613-89106C0 |
LN106,111,RN105,110..T1..ARL..CBU BLACK,045 ,147 ,179 ,3H7 ,3K3 ,4J9 ,8E2 ,8H8 |
1 | ||
| 62613-8910802 |
LN106,111,RN105,110,YN106..T1..CBU RED,3H7 |
1 | ||
| 62613-89106C0 |
LN106,111,RN105,110..T1..ARL..CBU BLACK,045 ,179 ,196 ,3H7 ,3K3 ,8E2 ,8H8 |
1 | ||
| 62613-89106C0 |
LN106,111,RN105,110..T1..ARL..CBU BLACK,045 ,179 ,196 ,3H7 ,3K3 ,4J9 ,8E2 ,8H8 |
1 | ||
| 62613-89106C0 |
LN106,111,RN105,110,YN106..T1..CBU BLACK,045 ,179 ,196 ,3H7 ,3K3 ,4L5 ,751 |
1 | ||
| 62614A - COVER, QUARTER WHEEL HOUSE, LH | ||||
| 62614-8910606 |
LN106,111,RN105,110,YN106..T1..(ARL,GEN)..CBU BROWN,4J9 |
1 | ||
| 62614-8910601 |
LN106,111,RN105,110..T1..ARL..CBU BLACK,033 ,138 ,147 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,8D8 ,8E2 |
1 | ||
| 62614-8910802 |
LN106,111,RN105,110,YN106..T1..CBU RED,3H7 |
1 | ||
| 62614-8910608 |
LN106,111,RN105,110,YN106..T1..CBU WHITE,033 |
1 | ||
| 62614-8910601 |
LN106,111,RN105..T1..ARL..CBU BLACK,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,8D8 ,8E2 ,8H9 |
1 | ||
| 62614-8910601 |
LN106,111,RN105,110..T1..ARL..CBU BLACK,033 ,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,8D8 ,8E2 |
1 | ||
| 62614-8910812 |
LN106,111,RN105,110,YN106..T1..CBU RED MICA,3H4 |
1 | ||
| 62614-8910618 |
LN106,111,RN105,110,YN106..T1..CBU WHITE,045 |
1 | ||
| 62614-89106C0 |
LN106,111,RN105,110..T1..ARL..CBU BLACK,045 ,147 ,179 ,3H7 ,3K3 ,4J9 ,8E2 ,8H8 |
1 | ||
| 62614-89106C0 |
LN106,111,RN105,110..T1..ARL..CBU BLACK,045 ,179 ,196 ,3H7 ,3K3 ,4J9 ,8E2 ,8H8 |
1 | ||
| 62614-89106C0 |
LN106,111,RN105,110,YN106..T1..CBU BLACK,045 ,179 ,196 ,3H7 ,3K3 ,4L5 ,751 |
1 | ||
| 62614-89106C0 |
LN106,111,RN105,110..T1..ARL..CBU BLACK,045 ,179 ,196 ,3H7 ,3K3 ,8E2 ,8H8 |
1 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-35020 |
LN106,RN105..STD..ARL..CBU |
1 | ||
| 65500-89351 |
LN106,RN105..STD..ARL..CBU |
1 | ||
| 65500-35410 |
LN106,RN105..STD..ARL..CBU |
1 | ||
| 65503A - POST SUB-ASSY, SIDE PANEL FRONT END, RH | ||||
| 65503-89102 |
LN106..STD..ARL..CBU;LN107,RN105..T1..(ARL,GEN)..CBU |
1 | ||
| 65504A - POST SUB-ASSY, SIDE PANEL FRONT END, LH | ||||
| 65504-89102 |
LN106..STD..ARL..CBU;LN107,RN105..T1..(ARL,GEN)..CBU |
1 | ||
| 65505 - POST SUB-ASSY, SIDE PANEL REAR END, RH | ||||
| 65505-89111 |
LN107..GEN;LN106,RN105..ARL..CBU |
1 | ||
| 65506 - POST SUB-ASSY, SIDE PANEL REAR END, LH | ||||
| 65506-89111 |
LN107..GEN;LN106,RN105..ARL..CBU |
1 | ||
| 65510 - RAIL ASSY, SIDE PANEL TOP, RH | ||||
| 65510-89145 |
LN10#,RN105,YN106..T1..CBU |
1 | ||
| 65520 - RAIL ASSY, SIDE PANEL TOP, LH | ||||
| 65520-89145 |
LN10#,RN105,YN106..T1..CBU |
1 | ||
| 65553 - PLATE, SIDE PANEL REAR END POST, UPPER RH | ||||
| 65553-89110 |
LN107..GEN;LN106,RN105..ARL..CBU |
1 | ||
| 65554 - PLATE, SIDE PANEL REAR END POST, UPPER LH | ||||
| 65554-89110 |
LN107..GEN;LN106,RN105..ARL..CBU |
1 | ||
| 65563A - PLATE, SIDE PANEL REAR END POST, LOWER RH | ||||
| 65563-89103 |
LN106,RN105..ARL..CBU |
1 | ||
| 65563-89103 |
LN106,RN105..STD..ARL..CBU |
1 | ||
| 65563-89105 |
LN106,RN105,YN106..CBU |
1 | ||
| 65564 - PLATE, SIDE PANEL REAR END POST, LOWER LH | ||||
| 65564-89104 |
LN106,RN105,YN106..CBU |
1 | ||
| 65564-89102 |
LN106,RN105..STD..ARL..CBU |
1 | ||
| 65564-89102 |
LN106,RN105..ARL..CBU |
1 | ||
| 65571 - FRAME, SIDE PANEL, FRONT RH | ||||
| 65571-89101 |
LN10#,111,RN105,110,YN106..T1..CBU |
1 | ||
| 65572 - FRAME, SIDE PANEL, FRONT LH | ||||
| 65572-89101 |
LN10#,111,RN105,110,YN106..T1..CBU |
1 | ||
| 65573 - FRAME, SIDE PANEL, REAR RH | ||||
| 65573-89101 |
LN107..GEN;RN106..STD;LN106,111,RN105,110,YN106..CBU |
1 | ||
| 65574 - FRAME, SIDE PANEL, REAR LH | ||||
| 65574-89101 |
LN107..GEN;RN106..STD;LN106,111,RN105,110,YN106..CBU |
1 | ||
| 65587 - FRAME, SIDE PANEL, B RR RH | ||||
| 65587-89101 |
LN10#,111,RN10#,110,YN106..CBU |
1 | ||
| 65588 - FRAME, SIDE PANEL, B RR LH | ||||
| 65588-89101 |
LN10#,111,RN10#,110,YN106..CBU |
1 | ||
| 65593A - PLATE, SIDE PANEL REAR END POST INSIDE, RH | ||||
| 65593-89102 |
LN107..GEN;LN106,RN105..ARL..CBU |
1 | ||
| 65594A - PLATE, SIDE PANEL REAR END POST INSIDE, LH | ||||
| 65594-89102 |
LN107..GEN;LN106,RN105..ARL..CBU |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-89296 |
LN106,RN105..STD..ARL..CBU |
1 | ||
| 65600-35020 |
LN106,RN105..STD..ARL..CBU |
1 | ||
| 65600-35330 |
LN106,RN105..STD..ARL..CBU |
1 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-89102 |
LN10#,111,RN105,110,YN106..T1..CBU |
1 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-89102 |
LN10#,111,RN105,110,YN106..T1..CBU |
1 | ||
| 65655A - BRACKET, WHEEL HOUSE SEAL, FRONT | ||||
| 65655-89103 |
LN106,111,RN105,110,YN106..CBU |
1 | ||
| 65655B - BRACKET, WHEEL HOUSE SEAL, FRONT | ||||
| 65655-89103 |
LN106,111,RN105,110,YN106..CBU |
1 | ||
| 65671D - BRACE, SIDE PANEL SKIRT, FRONT RH | ||||
| 65671-89106 |
LN106,111,RN105,110,YN106..T1..CBU |
1 | ||
| 65672F - BRACE, SIDE PANEL SKIRT, FRONT LH | ||||
| 65672-89101 |
LN106,111,RN105,110,YN106..T1..CBU |
1 | ||
| 65675C - SEAL, WHEEL HOUSE | ||||
| 65675-89111 |
LN10#,111,RN10#,110,YN106..CBU |
2 | ||
| 65675C - SEAL, WHEEL HOUSE | ||||
| 65675-89111 |
LN10#,111,RN10#,110,YN106..CBU |
2 | ||
| 65681B - BRACKET, WHEEL HOUSE SEAL, SIDE, RH | ||||
| 65681-89104 |
LN10#,111,RN10#,110,YN106..CBU |
1 | ||
| 65682B - BRACKET, WHEEL HOUSE SEAL, SIDE, LH | ||||
| 65682-89104 |
LN10#,111,RN10#,110,YN106..CBU |
1 | ||
| 65685C - BRACE, WHEEL HOUSE, RH | ||||
| 65685-89101 |
LN10#,111,RN10#,110,YN106..CBU |
2 | ||
| 65685C - BRACE, WHEEL HOUSE, RH | ||||
| 65685-89101 |
LN10#,111,RN10#,110,YN106..CBU |
2 | ||
| 65686 - BRACE, WHEEL HOUSE, LH | ||||
| 65686-89101 |
LN10#,111,RN10#,110,YN106..CBU |
2 | ||
| 65686 - BRACE, WHEEL HOUSE, LH | ||||
| 65686-89101 |
LN10#,111,RN10#,110,YN106..CBU |
2 | ||
| 65687A - BRACKET, WHEEL HOUSE BRACE, RH | ||||
| 65687-89101 |
LN10#,111,RN10#,110,YN106..CBU |
2 | ||
| 65687A - BRACKET, WHEEL HOUSE BRACE, RH | ||||
| 65687-89101 |
LN10#,111,RN10#,110,YN106..CBU |
2 | ||
| 65688A - BRACKET, WHEEL HOUSE BRACE, LH | ||||
| 65688-89101 |
LN10#,111,RN10#,110,YN106..CBU |
2 | ||
| 65688A - BRACKET, WHEEL HOUSE BRACE, LH | ||||
| 65688-89101 |
LN10#,111,RN10#,110,YN106..CBU |
2 | ||
| 65695A - BRACKET, WHEEL HOUSE BRACE, NO.2 | ||||
| 65695-89102 |
LN10#,111,RN10#,110,YN106..CBU |
2 | ||
| 65695A - BRACKET, WHEEL HOUSE BRACE, NO.2 | ||||
| 65695-89102 |
LN10#,111,RN10#,110,YN106..CBU |
2 | ||
| 65816A - PANEL, REAR BODY SIDE, RH | ||||
| 65816-89138 |
LN10#,RN105,YN106..T1..CBU |
1 | ||
| 65817A - PANEL, REAR BODY SIDE, LH | ||||
| 65817-89136 |
LN10#,RN105,YN106..T1..CBU |
1 | ||
| 65826 - PANEL, REAR BODY SIDE, INNER RH | ||||
| 65826-89111 |
LN10#,RN105,YN106..T1..CBU |
1 | ||
| 65827 - PANEL, REAR BODY SIDE, INNER LH | ||||
| 65827-89111 |
LN10#,RN105,YN106..T1..CBU |
1 | ||
| 66301B - HOOK SUB-ASSY, ROPE | ||||
| 66312-35010 |
LN106,RN105..ARL..CBU |
4 | ||
| 66301-89102 |
LN106,RN105..ARL..CBU |
4 | ||
| 66301B - HOOK SUB-ASSY, ROPE | ||||
| 66312-35010 |
LN106,RN105..ARL..CBU |
4 | ||
| 66301-89102 |
LN106,RN105..ARL..CBU |
4 | ||
| 66311F - HOOK, ROPE, NO.2 | ||||
| 66311-89109 |
LN10#,RN105,YN106..T1..CBU |
5 | ||
| Common parts | ||||
| 53879-14020 | ||||
| 90149-80025 | ||||
| 90159-60500 | ||||
| 90159-80060 | ||||
| 90167-35009 | ||||
| 90189-06028 | ||||
| 90467-09042 | ||||
| 90467-10018 | ||||
| 90950-01561 | ||||
| 91631-40614 | ||||
| 91655-40820 | ||||
| 93270-18016 | ||||

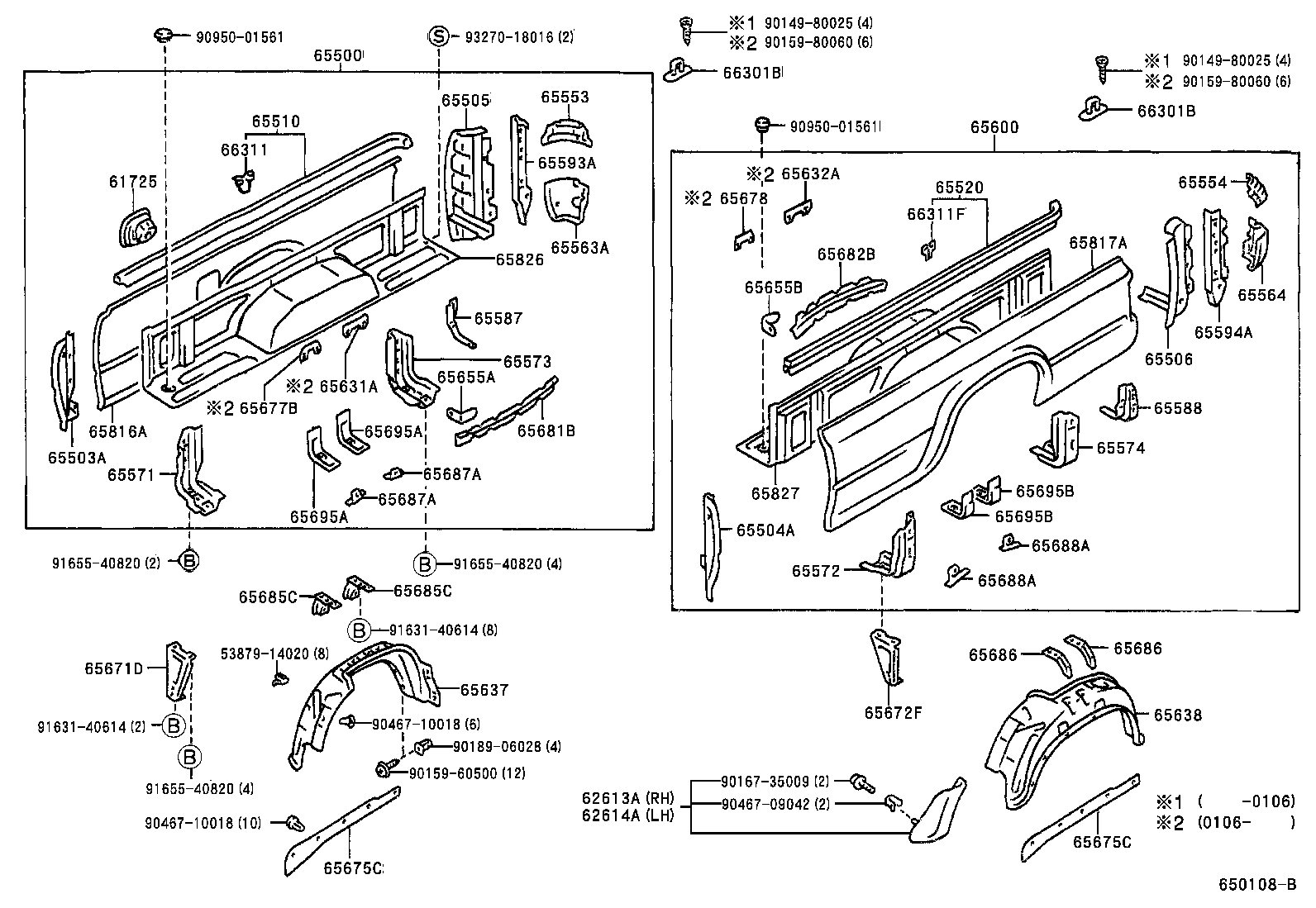

(8808- )STD..ARL..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61725 - BOX, FUEL INLET | ||||
| 61709-89109 |
LN106,RN105,YN106..T1..CBU |
1 | ||
| 61709-89109 |
RN105..T1..CBU;LN106,111,RN110,YN106..T1..(SR5,STD)..CBU |
1 | ||
| 62613A - COVER, QUARTER WHEEL HOUSE, RH | ||||
| 62613-8910606 |
LN106,111,RN105,110,YN106..T1..(ARL,GEN)..CBU BROWN,4J9 |
1 | ||
| 62613-8910601 |
LN106,111,RN105,110..T1..ARL..CBU BLACK,033 ,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,8D8 ,8E2 |
1 | ||
| 62613-8910601 |
LN106,111,RN105,110..T1..ARL..CBU BLACK,033 ,138 ,147 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,8D8 ,8E2 |
1 | ||
| 62613-8910618 |
LN106,111,RN105,110,YN106..T1..CBU WHITE,045 |
1 | ||
| 62613-8910608 |
LN106,111,RN105,110,YN106..T1..CBU WHITE,033 |
1 | ||
| 62613-8910812 |
LN106,111,RN105,110,YN106..T1..CBU RED MICA,3H4 |
1 | ||
| 62613-8910601 |
LN106,111,RN105..T1..ARL..CBU BLACK,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,8D8 ,8E2 ,8H9 |
1 | ||
| 62613-89106C0 |
LN106,111,RN105,110..T1..ARL..CBU BLACK,045 ,147 ,179 ,3H7 ,3K3 ,4J9 ,8E2 ,8H8 |
1 | ||
| 62613-8910802 |
LN106,111,RN105,110,YN106..T1..CBU RED,3H7 |
1 | ||
| 62613-89106C0 |
LN106,111,RN105,110..T1..ARL..CBU BLACK,045 ,179 ,196 ,3H7 ,3K3 ,8E2 ,8H8 |
1 | ||
| 62613-89106C0 |
LN106,111,RN105,110..T1..ARL..CBU BLACK,045 ,179 ,196 ,3H7 ,3K3 ,4J9 ,8E2 ,8H8 |
1 | ||
| 62613-89106C0 |
LN106,111,RN105,110,YN106..T1..CBU BLACK,045 ,179 ,196 ,3H7 ,3K3 ,4L5 ,751 |
1 | ||
| 62614A - COVER, QUARTER WHEEL HOUSE, LH | ||||
| 62614-8910606 |
LN106,111,RN105,110,YN106..T1..(ARL,GEN)..CBU BROWN,4J9 |
1 | ||
| 62614-8910601 |
LN106,111,RN105,110..T1..ARL..CBU BLACK,033 ,138 ,147 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,8D8 ,8E2 |
1 | ||
| 62614-8910802 |
LN106,111,RN105,110,YN106..T1..CBU RED,3H7 |
1 | ||
| 62614-8910608 |
LN106,111,RN105,110,YN106..T1..CBU WHITE,033 |
1 | ||
| 62614-8910601 |
LN106,111,RN105..T1..ARL..CBU BLACK,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,8D8 ,8E2 ,8H9 |
1 | ||
| 62614-8910601 |
LN106,111,RN105,110..T1..ARL..CBU BLACK,033 ,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,8D8 ,8E2 |
1 | ||
| 62614-8910812 |
LN106,111,RN105,110,YN106..T1..CBU RED MICA,3H4 |
1 | ||
| 62614-8910618 |
LN106,111,RN105,110,YN106..T1..CBU WHITE,045 |
1 | ||
| 62614-89106C0 |
LN106,111,RN105,110..T1..ARL..CBU BLACK,045 ,147 ,179 ,3H7 ,3K3 ,4J9 ,8E2 ,8H8 |
1 | ||
| 62614-89106C0 |
LN106,111,RN105,110..T1..ARL..CBU BLACK,045 ,179 ,196 ,3H7 ,3K3 ,4J9 ,8E2 ,8H8 |
1 | ||
| 62614-89106C0 |
LN106,111,RN105,110,YN106..T1..CBU BLACK,045 ,179 ,196 ,3H7 ,3K3 ,4L5 ,751 |
1 | ||
| 62614-89106C0 |
LN106,111,RN105,110..T1..ARL..CBU BLACK,045 ,179 ,196 ,3H7 ,3K3 ,8E2 ,8H8 |
1 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-35020 |
LN106,RN105..STD..ARL..CBU |
1 | ||
| 65500-89351 |
LN106,RN105..STD..ARL..CBU |
1 | ||
| 65500-35410 |
LN106,RN105..STD..ARL..CBU |
1 | ||
| 65503A - POST SUB-ASSY, SIDE PANEL FRONT END, RH | ||||
| 65503-89102 |
LN106..STD..ARL..CBU;LN107,RN105..T1..(ARL,GEN)..CBU |
1 | ||
| 65504A - POST SUB-ASSY, SIDE PANEL FRONT END, LH | ||||
| 65504-89102 |
LN106..STD..ARL..CBU;LN107,RN105..T1..(ARL,GEN)..CBU |
1 | ||
| 65505 - POST SUB-ASSY, SIDE PANEL REAR END, RH | ||||
| 65505-89111 |
LN107..GEN;LN106,RN105..ARL..CBU |
1 | ||
| 65506 - POST SUB-ASSY, SIDE PANEL REAR END, LH | ||||
| 65506-89111 |
LN107..GEN;LN106,RN105..ARL..CBU |
1 | ||
| 65510 - RAIL ASSY, SIDE PANEL TOP, RH | ||||
| 65510-89145 |
LN10#,RN105,YN106..T1..CBU |
1 | ||
| 65520 - RAIL ASSY, SIDE PANEL TOP, LH | ||||
| 65520-89145 |
LN10#,RN105,YN106..T1..CBU |
1 | ||
| 65553 - PLATE, SIDE PANEL REAR END POST, UPPER RH | ||||
| 65553-89110 |
LN107..GEN;LN106,RN105..ARL..CBU |
1 | ||
| 65554 - PLATE, SIDE PANEL REAR END POST, UPPER LH | ||||
| 65554-89110 |
LN107..GEN;LN106,RN105..ARL..CBU |
1 | ||
| 65563A - PLATE, SIDE PANEL REAR END POST, LOWER RH | ||||
| 65563-89103 |
LN106,RN105..ARL..CBU |
1 | ||
| 65563-89103 |
LN106,RN105..STD..ARL..CBU |
1 | ||
| 65563-89105 |
LN106,RN105,YN106..CBU |
1 | ||
| 65564 - PLATE, SIDE PANEL REAR END POST, LOWER LH | ||||
| 65564-89104 |
LN106,RN105,YN106..CBU |
1 | ||
| 65564-89102 |
LN106,RN105..STD..ARL..CBU |
1 | ||
| 65564-89102 |
LN106,RN105..ARL..CBU |
1 | ||
| 65571 - FRAME, SIDE PANEL, FRONT RH | ||||
| 65571-89101 |
LN10#,111,RN105,110,YN106..T1..CBU |
1 | ||
| 65572 - FRAME, SIDE PANEL, FRONT LH | ||||
| 65572-89101 |
LN10#,111,RN105,110,YN106..T1..CBU |
1 | ||
| 65573 - FRAME, SIDE PANEL, REAR RH | ||||
| 65573-89101 |
LN107..GEN;RN106..STD;LN106,111,RN105,110,YN106..CBU |
1 | ||
| 65574 - FRAME, SIDE PANEL, REAR LH | ||||
| 65574-89101 |
LN107..GEN;RN106..STD;LN106,111,RN105,110,YN106..CBU |
1 | ||
| 65587 - FRAME, SIDE PANEL, B RR RH | ||||
| 65587-89101 |
LN10#,111,RN10#,110,YN106..CBU |
1 | ||
| 65588 - FRAME, SIDE PANEL, B RR LH | ||||
| 65588-89101 |
LN10#,111,RN10#,110,YN106..CBU |
1 | ||
| 65593A - PLATE, SIDE PANEL REAR END POST INSIDE, RH | ||||
| 65593-89102 |
LN107..GEN;LN106,RN105..ARL..CBU |
1 | ||
| 65594A - PLATE, SIDE PANEL REAR END POST INSIDE, LH | ||||
| 65594-89102 |
LN107..GEN;LN106,RN105..ARL..CBU |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-89296 |
LN106,RN105..STD..ARL..CBU |
1 | ||
| 65600-35020 |
LN106,RN105..STD..ARL..CBU |
1 | ||
| 65600-35330 |
LN106,RN105..STD..ARL..CBU |
1 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-89102 |
LN10#,111,RN105,110,YN106..T1..CBU |
1 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-89102 |
LN10#,111,RN105,110,YN106..T1..CBU |
1 | ||
| 65655A - BRACKET, WHEEL HOUSE SEAL, FRONT | ||||
| 65655-89103 |
LN106,111,RN105,110,YN106..CBU |
1 | ||
| 65655B - BRACKET, WHEEL HOUSE SEAL, FRONT | ||||
| 65655-89103 |
LN106,111,RN105,110,YN106..CBU |
1 | ||
| 65671D - BRACE, SIDE PANEL SKIRT, FRONT RH | ||||
| 65671-89106 |
LN106,111,RN105,110,YN106..T1..CBU |
1 | ||
| 65672F - BRACE, SIDE PANEL SKIRT, FRONT LH | ||||
| 65672-89101 |
LN106,111,RN105,110,YN106..T1..CBU |
1 | ||
| 65675C - SEAL, WHEEL HOUSE | ||||
| 65675-89111 |
LN10#,111,RN10#,110,YN106..CBU |
2 | ||
| 65675C - SEAL, WHEEL HOUSE | ||||
| 65675-89111 |
LN10#,111,RN10#,110,YN106..CBU |
2 | ||
| 65681B - BRACKET, WHEEL HOUSE SEAL, SIDE, RH | ||||
| 65681-89104 |
LN10#,111,RN10#,110,YN106..CBU |
1 | ||
| 65682B - BRACKET, WHEEL HOUSE SEAL, SIDE, LH | ||||
| 65682-89104 |
LN10#,111,RN10#,110,YN106..CBU |
1 | ||
| 65685C - BRACE, WHEEL HOUSE, RH | ||||
| 65685-89101 |
LN10#,111,RN10#,110,YN106..CBU |
2 | ||
| 65685C - BRACE, WHEEL HOUSE, RH | ||||
| 65685-89101 |
LN10#,111,RN10#,110,YN106..CBU |
2 | ||
| 65686 - BRACE, WHEEL HOUSE, LH | ||||
| 65686-89101 |
LN10#,111,RN10#,110,YN106..CBU |
2 | ||
| 65686 - BRACE, WHEEL HOUSE, LH | ||||
| 65686-89101 |
LN10#,111,RN10#,110,YN106..CBU |
2 | ||
| 65687A - BRACKET, WHEEL HOUSE BRACE, RH | ||||
| 65687-89101 |
LN10#,111,RN10#,110,YN106..CBU |
2 | ||
| 65687A - BRACKET, WHEEL HOUSE BRACE, RH | ||||
| 65687-89101 |
LN10#,111,RN10#,110,YN106..CBU |
2 | ||
| 65688A - BRACKET, WHEEL HOUSE BRACE, LH | ||||
| 65688-89101 |
LN10#,111,RN10#,110,YN106..CBU |
2 | ||
| 65688A - BRACKET, WHEEL HOUSE BRACE, LH | ||||
| 65688-89101 |
LN10#,111,RN10#,110,YN106..CBU |
2 | ||
| 65695A - BRACKET, WHEEL HOUSE BRACE, NO.2 | ||||
| 65695-89102 |
LN10#,111,RN10#,110,YN106..CBU |
2 | ||
| 65695A - BRACKET, WHEEL HOUSE BRACE, NO.2 | ||||
| 65695-89102 |
LN10#,111,RN10#,110,YN106..CBU |
2 | ||
| 65816A - PANEL, REAR BODY SIDE, RH | ||||
| 65816-89138 |
LN10#,RN105,YN106..T1..CBU |
1 | ||
| 65817A - PANEL, REAR BODY SIDE, LH | ||||
| 65817-89136 |
LN10#,RN105,YN106..T1..CBU |
1 | ||
| 65826 - PANEL, REAR BODY SIDE, INNER RH | ||||
| 65826-89111 |
LN10#,RN105,YN106..T1..CBU |
1 | ||
| 65827 - PANEL, REAR BODY SIDE, INNER LH | ||||
| 65827-89111 |
LN10#,RN105,YN106..T1..CBU |
1 | ||
| 66301B - HOOK SUB-ASSY, ROPE | ||||
| 66312-35010 |
LN106,RN105..ARL..CBU |
4 | ||
| 66301-89102 |
LN106,RN105..ARL..CBU |
4 | ||
| 66301B - HOOK SUB-ASSY, ROPE | ||||
| 66312-35010 |
LN106,RN105..ARL..CBU |
4 | ||
| 66301-89102 |
LN106,RN105..ARL..CBU |
4 | ||
| 66311F - HOOK, ROPE, NO.2 | ||||
| 66311-89109 |
LN10#,RN105,YN106..T1..CBU |
5 | ||
| Common parts | ||||
| 53879-14020 | ||||
| 90149-80025 | ||||
| 90159-60500 | ||||
| 90167-35009 | ||||
| 90189-06028 | ||||
| 90467-09042 | ||||
| 90467-10018 | ||||
| 90950-01561 | ||||
| 91631-40614 | ||||
| 91655-40820 | ||||
| 93270-18016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
