LN106R-TRMRSQ (1988)
Toyota Hilux/4runner (4wd)
ILLUST NO. 3 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-26010 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106 |
1 | ||
| 04477-26010 |
LN106,RN105,YN106 |
1 | ||
| 31478D - CAP, BLEEDER PLUG(FOR LSPV) | ||||
| 31478-30010 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-35140 |
LN107;LN106,RN10#..ARL |
1 | ||
| 47910B - PLUG, BLEEDER | ||||
| 47547-27020 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-35080 |
LN10#,111,RN10#,110,YN106 |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-35080 |
LN10#,111,135,RN10#,110,135,YN106,135 |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-35070 |
LN10#,RN10#,YN106 |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35020 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90201-08062 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35030 |
LN10#,111,135,RN10#,110,135,YN106,135 |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
LN10#,111,135,RN10#,110,135,YN106,135 |
1 | ||
| Common parts | ||||
| 90119-08744 | ||||
| 90179-10132 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-G0820 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| 95381-02020 | ||||

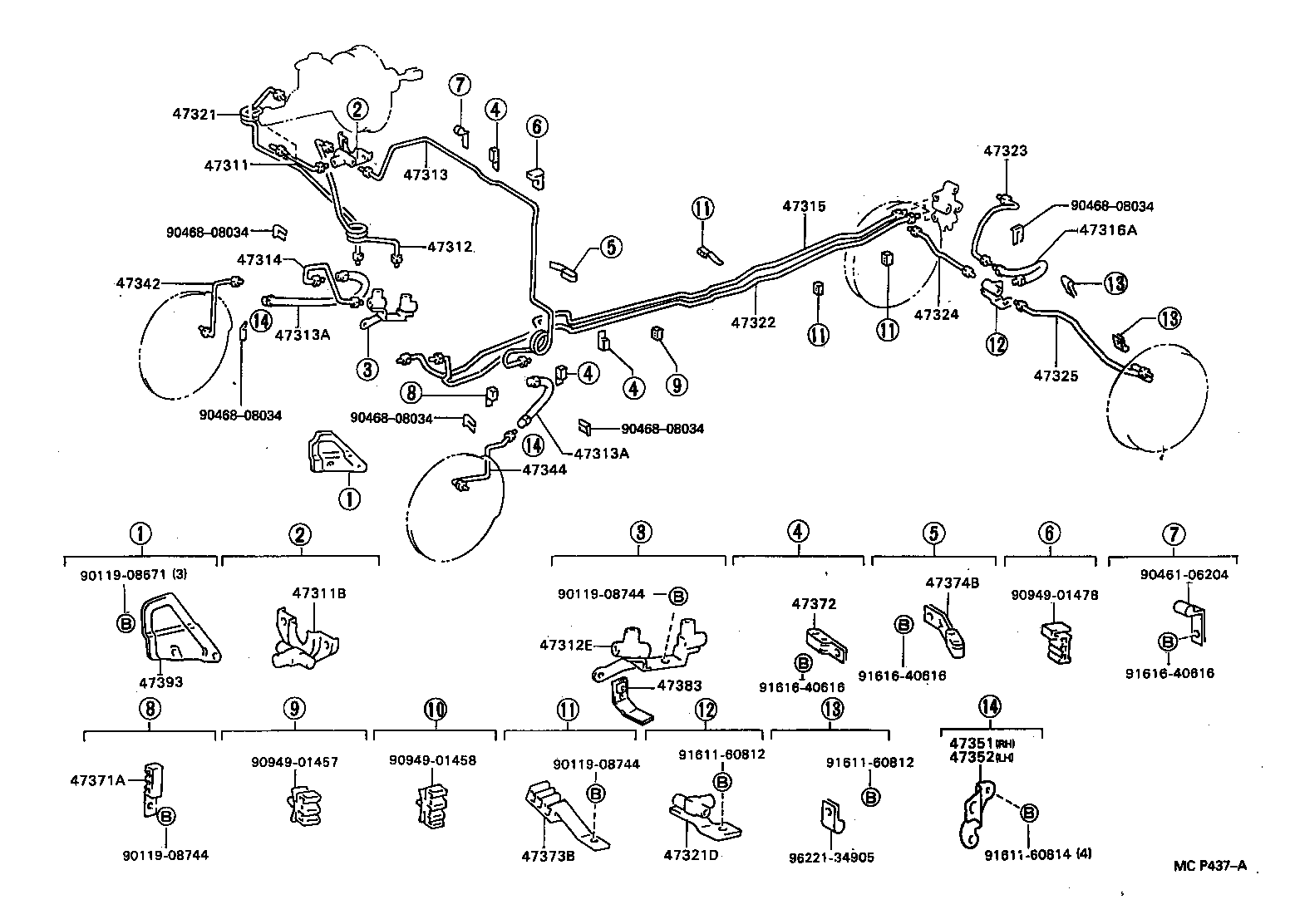

ILLUST NO. 1 OF 3(8808-9008)ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-35450 |
LN10#,111,13#,RN10#,110,13#,VZN130..RHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10194 |
LN10#,111,13#,VZN130..RHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-35820 |
LN106..ARL |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90415-10006 |
LN106,RN105..ARL |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-35550 |
LN106..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02583 |
LN106,RN105,YN106 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02583 |
LN106,RN105,YN106 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-35180 |
LN106,RN105..ARL |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-35040 |
LN106,RN105..ARL |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-34406 |
LN10#,111,135,RN10#,110,135,YN106,135 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-35480 |
LN106..RHD |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-10162 |
LN10#,111,135,RN10#,110,135,YN106,135 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-35380 |
LN106,RN105,YN106 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-35120 |
LN10#,111,135,RN10#,110,135,YN106,135 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-35170 |
LN106,RN105,YN106 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-35180 |
LN106,RN105,YN106 |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47341-35120 |
LN106,RN105,YN106 |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47343-35120 |
LN106,RN105,YN106 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-35120 |
LN106,RN105,YN106 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47353-35080 |
LN106,RN105,YN106 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-35070 |
LN106,RN105,YN106 |
1 | ||
| 47371-35070 |
LN106,RN105,13#,YN106 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-35030 |
LN106,RN105,YN106 |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47372-35090 |
LN106,111..T1 |
1 | ||
| 47372-35090 |
LN106..T1 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-35020 |
LN10#,111,13#,RN10#,110,13#,YN106,13#..RHD FRONT |
1 | ||
| 47393 - INSULATOR, BRAKE TUBE HEAT | ||||
| 47393-35060 |
LN106 |
1 | ||
| Common parts | ||||
| 90119-08671 | ||||
| 90119-08744 | ||||
| 90461-06204 | ||||
| 90468-08034 | ||||
| 90949-01457 | ||||
| 90949-01458 | ||||
| 90949-01478 | ||||
| 91611-60812 | ||||
| 91611-60814 | ||||
| 91616-40616 | ||||
| 96221-34905 | ||||
