LN106R-TRMRSQ (1988)
Toyota Hilux/4runner (4wd)

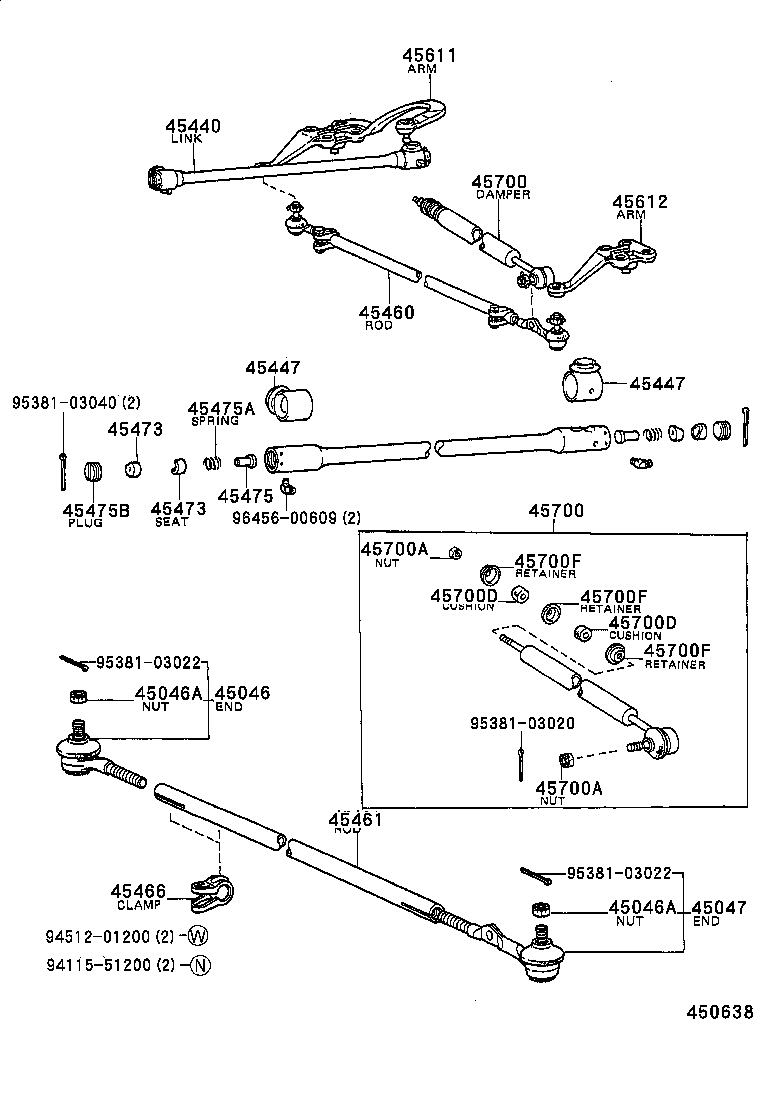

ILLUST NO. 1 OF 3(8808- )LN106,RN105,YN106..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-35080 |
LN106,RN105,YN106 |
1 | ||
| 45046-39255 |
LN106,RN105,YN106 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-39155 |
LN106,RN105,YN106 |
1 | ||
| 45047-35050 |
LN106,RN105,YN106 |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-35070 |
LN106,RN105,YN106..RHD |
1 | ||
| 45447 - SEAL, DRAG LINK DUST | ||||
| 45447-35020 |
LN106,RN105,YN106 |
2 | ||
| 45447 - SEAL, DRAG LINK DUST | ||||
| 45447-35020 |
LN106,RN105,YN106 |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39255 |
LN106,RN105,YN106 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-35120 |
LN106,RN105,YN106 |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-55020 |
LN106,RN105,YN106 |
2 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-35010 |
LN106,RN105,YN106 |
4 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-35010 |
LN106,RN105,YN106 |
4 | ||
| 45475 - SEAT, STEERING LINK JOINT SPRING | ||||
| 45475-35010 |
LN106,RN105,YN106 |
2 | ||
| 45475A - SPRING, COMPRESSION(FOR STEERING LINK JOINT) | ||||
| 90501-45114 |
LN106,RN105,YN106 |
2 | ||
| 45475B - PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT) | ||||
| 90340-25001 |
LN106,RN105,YN106 |
2 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45601-35070 |
LN106,RN105,YN106..RHD |
1 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-35130 |
LN106,RN105,YN106..RHD |
1 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-39035 |
LN106,RN105,YN106 |
1 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-39035 |
LN106,RN105,YN106 |
1 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 94182-10800 |
LN106,RN105,YN106 HOUSING X DAMPER |
1 | ||
| 90171-12028 |
RN106..CBR;RN106..STD..EFI;LN10#,111,13#,RN105,110,13#,VZN130,YN106,13# TIE ROD X DAMPER |
1 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 94182-10800 |
LN106,RN105,YN106 HOUSING X DAMPER |
1 | ||
| 90171-12028 |
RN106..CBR;RN106..STD..EFI;LN10#,111,13#,RN105,110,13#,VZN130,YN106,13# TIE ROD X DAMPER |
1 | ||
| 45700D - CUSHION, STEERING DAMPER | ||||
| 90948-01001 |
LN106,RN105,YN106 |
2 | ||
| 45700D - CUSHION, STEERING DAMPER | ||||
| 90948-01001 |
LN106,RN105,YN106 |
2 | ||
| 45700F - RETAINER, STEERING DAMPER CUSHION | ||||
| 90948-02006 |
LN106,RN105,YN106 OD=26 |
1 | ||
| 90948-02003 |
LN106,RN105,YN106 OD=28 |
2 | ||
| 45700F - RETAINER, STEERING DAMPER CUSHION | ||||
| 90948-02006 |
LN106,RN105,YN106 OD=26 |
1 | ||
| 90948-02003 |
LN106,RN105,YN106 OD=28 |
2 | ||
| 45700F - RETAINER, STEERING DAMPER CUSHION | ||||
| 90948-02006 |
LN106,RN105,YN106 OD=26 |
1 | ||
| 90948-02003 |
LN106,RN105,YN106 OD=28 |
2 | ||
| Common parts | ||||
| 94115-51200 | ||||
| 94512-01200 | ||||
| 95381-03020 | ||||
| 95381-03022 | ||||
| 95381-03040 | ||||
| 96456-00609 | ||||

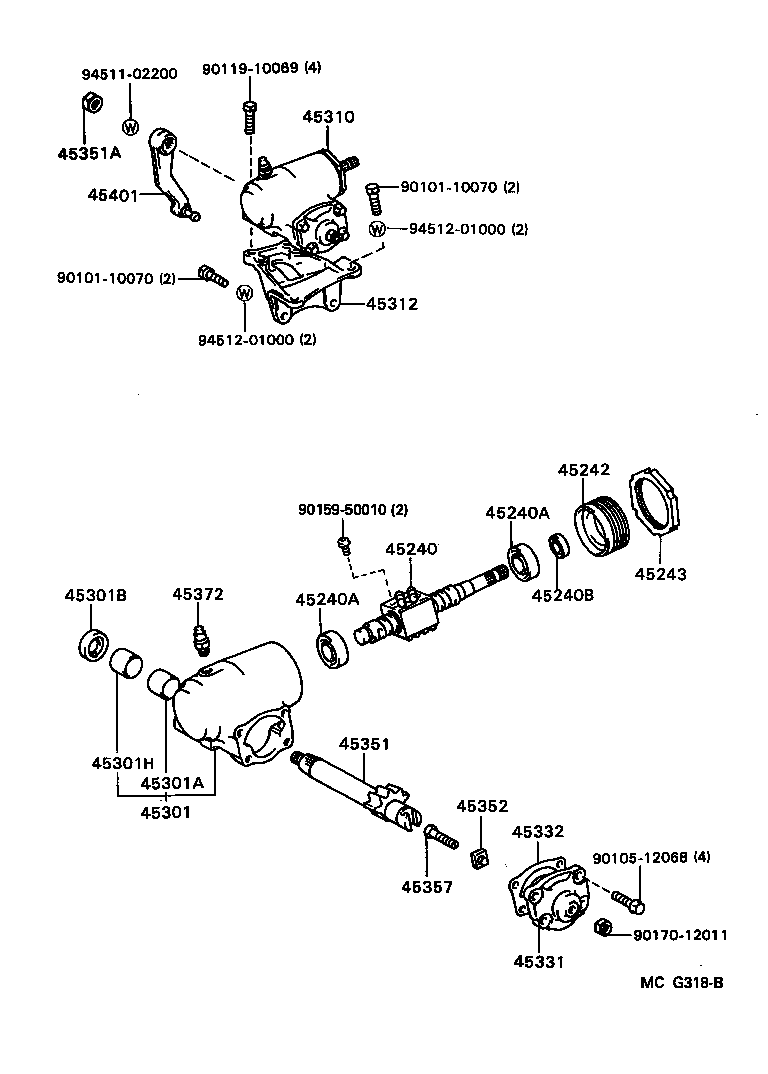

ILLUST NO. 2 OF 3(8808- )LN106,RN105,YN106
MANUAL STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-60030 |
LN106,135,RN105,YN106,135..RHD |
1 | ||
| 45240-60030 |
LN106,111,135,RN105,110,YN106,135..RHD |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20024 |
LN106,111,135,RN105,110,135,YN106,135 |
2 | ||
| 90363-20024 |
LN111..GEN;LN106,135,RN105,135,YN106,135 |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20024 |
LN106,111,135,RN105,110,135,YN106,135 |
2 | ||
| 90363-20024 |
LN111..GEN;LN106,135,RN105,135,YN106,135 |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-18010 |
LN106,111,135,RN105,110,135,YN106,135 |
1 | ||
| 90311-18010 |
LN111..GEN;LN106,135,RN105,135,YN106,135 |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-25010 |
LN106,RN105,YN106 |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-60020 |
LN111..GEN;LN106,135,RN105,135,YN106,135 |
1 | ||
| 45243-60020 |
LN106,111,135,RN105,110,135,YN106,135 |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-35200 |
LN106,RN105,YN106..RHD |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-73061 |
LN106,RN105,YN106 |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90311-32014 |
LN106,RN105,YN106 |
1 | ||
| 45301H - BUSH OR BEARING, SECTOR SHAFT, NO.2 | ||||
| 90999-73061 |
LN106,RN105,YN106 |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-35210 |
LN106,RN105,YN106..RHD |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-35120 |
LN106,RN105,YN106..RHD |
1 | ||
| 45312-35140 |
LN106,RN105,YN106..RHD |
1 | ||
| 45312-35120 |
LN106,RN105,YN106..RHD W(POWER STEERING) |
1 | ||
| 45312-35140 |
LN106,RN105,YN106..RHD W(POWER STEERING) |
1 | ||
| 45312-35120 |
LN106..ARL;RN105..GEN |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-25020 |
LN106,RN105,YN106 |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-26010 |
LN106,111,135,RN105,110,135,YN106,135 |
1 | ||
| 45332-26010 |
LN111..GEN;LN106,135,RN105,135,YN106,135 |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-25020 |
LN106,RN105,YN106 |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45353-37010 |
LN106,111,135,RN105,110,135,YN106,135 T=2.00 |
1 | ||
| 45354-37010 |
LN106,111,135,RN105,110,135,YN106,135 T=2.05 |
1 | ||
| 45353-37010 |
LN111..GEN;LN106,135,RN105,135,YN106,135 T=2.00 |
1 | ||
| 45354-37010 |
LN111..GEN;LN106,135,RN105,135,YN106,135 T=2.05 |
1 | ||
| 45352-37010 |
LN111..GEN;LN106,135,RN105,135,YN106,135 T=1.95 |
1 | ||
| 45352-37010 |
LN106,111,135,RN105,110,135,YN106,135 T=1.95 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-22010 |
LN106,111,135,RN105,110,135,YN106,135 W(POWER STEERING) |
1 | ||
| 45357-36010 |
LN106,111,135,RN105,110,135,YN106,135 |
1 | ||
| 45357-22010 |
LN111..GEN;LN106,135,RN105,135,YN106,135 W(POWER STEERING) |
1 | ||
| 45357-22010 |
LN106,111,130,RN110,130,VZN130..ARL |
1 | ||
| 45357-36010 |
LN111..GEN;LN106,135,RN105,135,YN106,135 |
1 | ||
| 45357-22010 |
LN106..ARL;RN105..GEN |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03058 |
LN106,111,135,RN105,110,135,YN106,135 |
1 | ||
| 90930-03058 |
LN111..GEN;LN106,135,RN105,135,YN106,135 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-35160 |
LN106,RN105,YN106..RHD |
1 | ||
| 45401-35140 |
LN106,RN105,YN106..RHD W(POWER STEERING) |
1 | ||
| 45401-35140 |
LN106..ARL;RN105..GEN |
1 | ||
| Common parts | ||||
| 90101-10070 | ||||
| 90105-12068 | ||||
| 90119-10069 | ||||
| 90159-50010 | ||||
| 90170-12011 | ||||
| 94511-02200 | ||||
| 94512-01000 | ||||

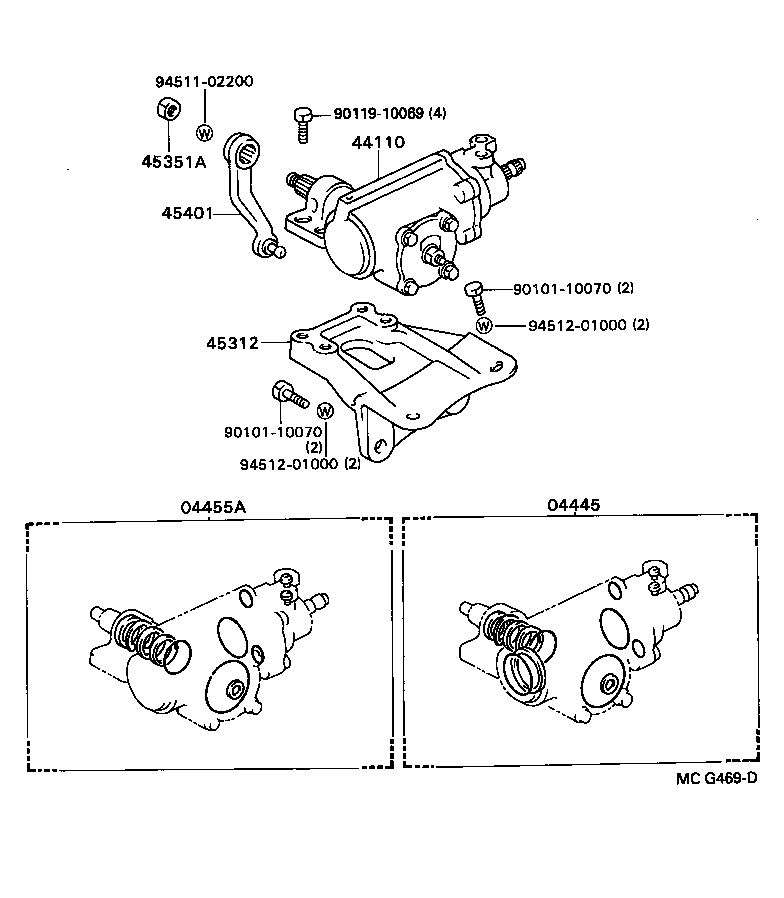

(8808- )LN106,RN105,YN106
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-35100 |
LN106,RN105,YN106 |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-35070 |
LN106,RN105,YN106 |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-35180 |
LN106,RN105,YN106..RHD |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-35120 |
LN106,RN105,YN106..RHD |
1 | ||
| 45312-35140 |
LN106,RN105,YN106..RHD |
1 | ||
| 45312-35120 |
LN106,RN105,YN106..RHD W(POWER STEERING) |
1 | ||
| 45312-35140 |
LN106,RN105,YN106..RHD W(POWER STEERING) |
1 | ||
| 45312-35120 |
LN106..ARL;RN105..GEN |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-35160 |
LN106,RN105,YN106..RHD |
1 | ||
| 45401-35140 |
LN106,RN105,YN106..RHD W(POWER STEERING) |
1 | ||
| 45401-35140 |
LN106..ARL;RN105..GEN |
1 | ||
| Common parts | ||||
| 90101-10070 | ||||
| 90119-10069 | ||||
| 94511-02200 | ||||
| 94512-01000 | ||||

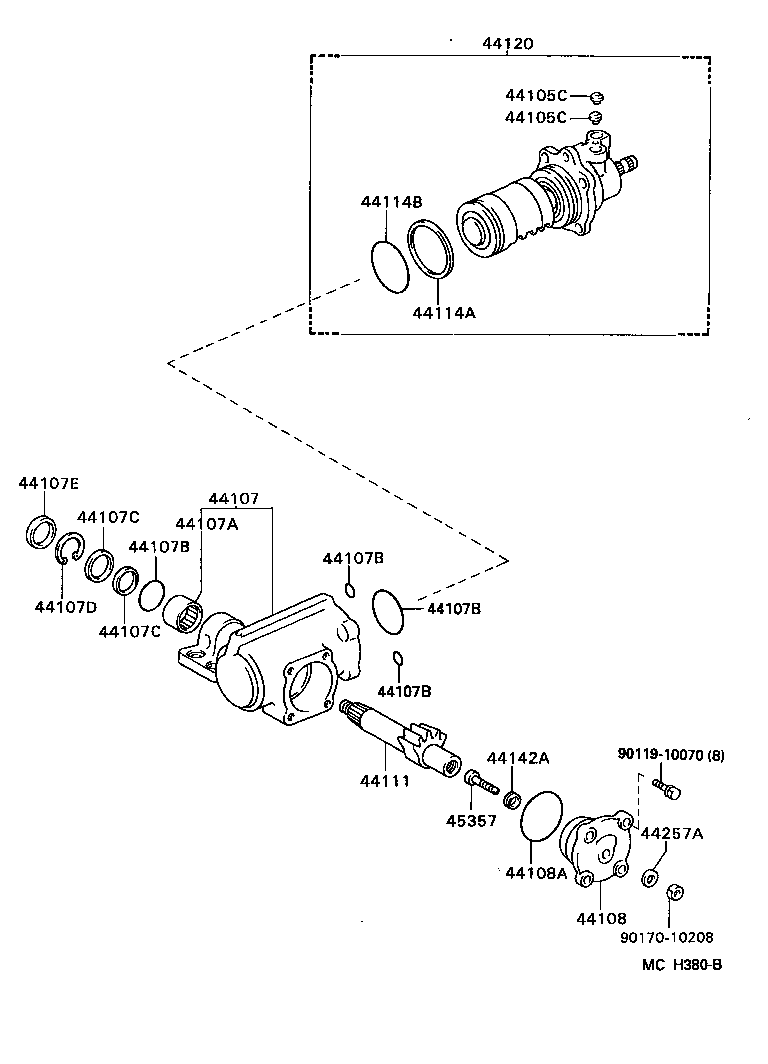

ILLUST NO. 3 OF 3(8808- )LN106,RN105,YN106
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06005 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
2 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06005 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-35130 |
LN106,RN105,YN106..RHD |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32001 |
LN106,RN105,YN106 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33007 |
LN106,RN105,YN106 ID=33.7,OD=43.1 |
1 | ||
| 90301-65145 |
LN106,111,13#,RN105,110,13#,VZN130,YN106,13# ID=65.0,OD=70.0 |
1 | ||
| 96711-19010 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# ID=9.8,OD=13.6 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33007 |
LN106,RN105,YN106 ID=33.7,OD=43.1 |
1 | ||
| 90301-65145 |
LN106,111,13#,RN105,110,13#,VZN130,YN106,13# ID=65.0,OD=70.0 |
1 | ||
| 96711-19010 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# ID=9.8,OD=13.6 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33007 |
LN106,RN105,YN106 ID=33.7,OD=43.1 |
1 | ||
| 90301-65145 |
LN106,111,13#,RN105,110,13#,VZN130,YN106,13# ID=65.0,OD=70.0 |
1 | ||
| 96711-19010 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# ID=9.8,OD=13.6 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33007 |
LN106,RN105,YN106 ID=33.7,OD=43.1 |
1 | ||
| 90301-65145 |
LN106,111,13#,RN105,110,13#,VZN130,YN106,13# ID=65.0,OD=70.0 |
1 | ||
| 96711-19010 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# ID=9.8,OD=13.6 |
2 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31003 |
LN106,RN105,YN106 ID=31.7,OD=34.1,T=5 |
1 | ||
| 90562-32001 |
LN106,RN105,YN106 ID=32,OD=42 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31003 |
LN106,RN105,YN106 ID=31.7,OD=34.1,T=5 |
1 | ||
| 90562-32001 |
LN106,RN105,YN106 ID=32,OD=42 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-46125 |
LN106,RN105,YN106 |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90311-32015 |
LN106,RN105,YN106 |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-60010 |
LN106,RN105,YN106 |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-64002 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-60010 |
LN106,RN105,YN106 |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-67002 |
LN106,111,13#,RN105,110,13#,VZN130,YN106,13# |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-64005 |
LN106,111,13#,RN105,110,13#,VZN130,YN106,13# |
1 | ||
| 44120 - VALVE ASSY, W/BALL NUT | ||||
| 44120-35170 |
LN106,RN105,YN106..RHD |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
LN106,RN105,YN106 |
1 | ||
| 44142-22020 |
LN106,111,13#,RN105,110,13#,VZN130,YN106,13# |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-22010 |
LN106,111,135,RN105,110,135,YN106,135 W(POWER STEERING) |
1 | ||
| 45357-36010 |
LN106,111,135,RN105,110,135,YN106,135 |
1 | ||
| 45357-22010 |
LN111..GEN;LN106,135,RN105,135,YN106,135 W(POWER STEERING) |
1 | ||
| 45357-22010 |
LN106,111,130,RN110,130,VZN130..ARL |
1 | ||
| 45357-36010 |
LN111..GEN;LN106,135,RN105,135,YN106,135 |
1 | ||
| 45357-22010 |
LN106..ARL;RN105..GEN |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90170-10208 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
