LN106R-TRMRSQ (1988)
Toyota Hilux/4runner (4wd)

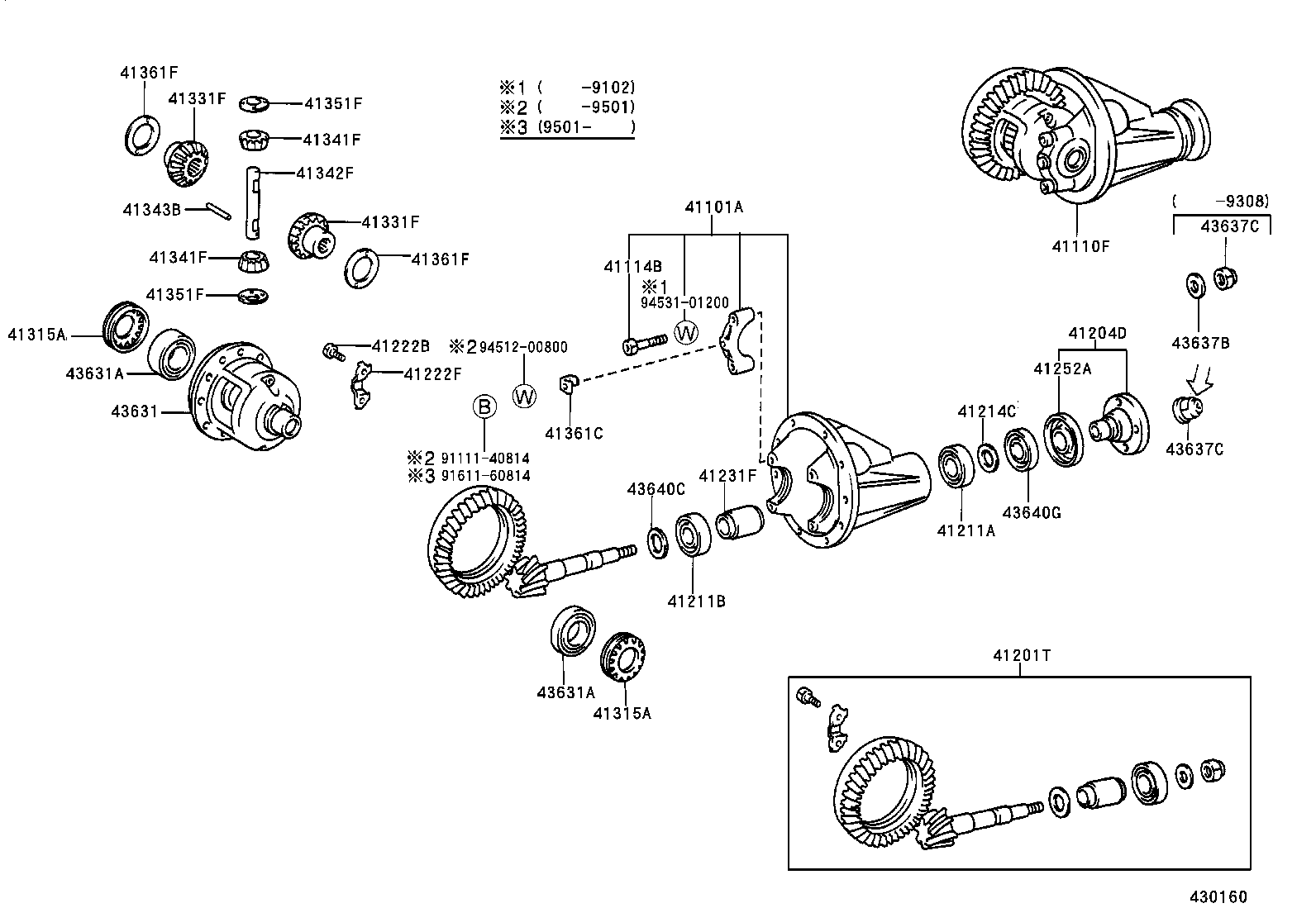

ILLUST NO. 1 OF 2(8809- )LN106,RN105,YN106
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT | ||||
| 41101-35030 |
LN106 |
1 | ||
| 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT | ||||
| 41110-35211 |
LN106..ARL *FGR=43:10=4.300 |
1 | ||
| 41110-35212 |
LN106..ARL *FGR=43:10=4.300 |
1 | ||
| 41114B - BOLT, FRONT DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
4 | ||
| 41201T - FINAL GEAR KIT, DIFFERENTIAL, FRONT | ||||
| 41201-29526 |
LN106..ARL *FGR=43:10=4.300 |
1 | ||
| 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT | ||||
| 41204-35040 |
LN106,RN105,YN106 |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-30022 |
LN111,130..ARL;LN10#,RN10#,110,13#,VZN130,YN106 |
1 | ||
| 90366-30022 |
LN106,111,13#,RN105,110,13#,VZN130,YN106,13# |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-35044 |
LN106,RN105,YN106 |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
LN106,RN105,YN106 |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13# |
10 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
LN106,RN105,YN106 |
5 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-40011 |
LN106,RN105,YN106 |
1 | ||
| 41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL) | ||||
| 41252-35010 |
LN106,RN105,YN106 |
1 | ||
| 41315A - NUT, FRONT DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
LN106,RN105,YN106 |
2 | ||
| 41315A - NUT, FRONT DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35010 |
LN106,RN105,YN106 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-35011 |
LN106,RN105,YN106 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-35011 |
LN106,RN105,YN106 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-35020 |
LN106,RN105,YN106 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-35020 |
LN106,RN105,YN106 |
2 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-39610 |
LN106,RN105,YN106 |
1 | ||
| 41343B - PIN, FRONT DIFFERENTIAL PINION SHAFT | ||||
| 90250-06085 |
LN106,RN105,YN106 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30052 |
LN106,RN105,YN106 |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30052 |
LN106,RN105,YN106 |
2 | ||
| 41361C - LOCK, FRONT DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
LN106,RN105,YN106 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-40021 |
LN106,RN105,YN106 T=1.6 |
2 | ||
| 41363-40021 |
RN106..SR5..EFI;LN106,RN105,YN106 T=1.8 |
2 | ||
| 41362-40021 |
RN106..SR5..EFI;LN106,RN105,YN106 T=1.7 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-40021 |
LN106,RN105,YN106 T=1.6 |
2 | ||
| 41363-40021 |
RN106..SR5..EFI;LN106,RN105,YN106 T=1.8 |
2 | ||
| 41362-40021 |
RN106..SR5..EFI;LN106,RN105,YN106 T=1.7 |
2 | ||
| 43631 - CASE, FRONT AXLE DIFFERENTIAL | ||||
| 41311-40020 |
LN106,RN105,YN106 |
1 | ||
| 43631A - BEARING, FRONT AXLE DIFFERENTIAL | ||||
| 90368-45066 |
LN106,RN105,YN106 |
2 | ||
| 90368-45066 |
LN111..ARL;LN106,RN105,YN106 |
2 | ||
| 43631A - BEARING, FRONT AXLE DIFFERENTIAL | ||||
| 90368-45066 |
LN106,RN105,YN106 |
2 | ||
| 90368-45066 |
LN111..ARL;LN106,RN105,YN106 |
2 | ||
| 43637B - WASHER, PLATE (FOR FRONT AXLE DRIVE PINION) | ||||
| 90201-20005 |
LN106,RN105,YN106 |
1 | ||
| 43637C - NUT, CASTLE (FOR FRONT AXLE DRIVE PINION) | ||||
| 90179-20001 |
LN106,RN105,YN106 |
1 | ||
| 43637C - NUT, CASTLE (FOR FRONT AXLE DRIVE PINION) | ||||
| 90179-20001 |
LN106,RN105,YN106 |
1 | ||
| 43640C - SPACER OR WASHER, FRONT AXLE DRIVE PINION THRUST | ||||
| 90201-35518 |
LN106,RN105,YN106 OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35503 |
RN106..SR5..EFI;LN106,RN105,YN106 OD=47,T=1.88 |
1 | ||
| 90201-35500 |
RN106..SR5..EFI;LN106,RN105,YN106 OD=47,T=1.79 |
1 | ||
| 90201-35516 |
LN106,RN105,YN106 OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35517 |
LN106,RN105,YN106 OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35504 |
RN106..SR5..EFI;LN106,RN105,YN106 OD=47,T=1.91 |
1 | ||
| 90201-35515 |
LN106,RN105,YN106 OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35497 |
RN106..SR5..EFI;LN106,RN105,YN106 OD=47,T=1.70 |
1 | ||
| 90201-35502 |
RN106..SR5..EFI;LN106,RN105,YN106 OD=47,T=1.85 |
1 | ||
| 90201-35498 |
RN106..SR5..EFI;LN106,RN105,YN106 OD=47,T=1.73 |
1 | ||
| 90201-35505 |
RN106..SR5..EFI;LN106,RN105,YN106 OD=47,T=1.94 |
1 | ||
| 90201-35507 |
RN106..SR5..EFI;LN106,RN105,YN106 OD=47,T=2.00 |
1 | ||
| 90201-35499 |
RN106..SR5..EFI;LN106,RN105,YN106 OD=47,T=1.76 |
1 | ||
| 90201-35513 |
RN106..SR5..EFI;LN106,RN105,YN106 OD=47,T=2.18 |
1 | ||
| 90201-35512 |
RN106..SR5..EFI;LN106,RN105,YN106 OD=47,T=2.15 |
1 | ||
| 90201-35508 |
RN106..SR5..EFI;LN106,RN105,YN106 OD=47,T=2.03 |
1 | ||
| 90201-35509 |
RN106..SR5..EFI;LN106,RN105,YN106 OD=47,T=2.06 |
1 | ||
| 90201-35510 |
RN106..SR5..EFI;LN106,RN105,YN106 OD=47,T=2.09 |
1 | ||
| 90201-35506 |
RN106..SR5..EFI;LN106,RN105,YN106 OD=47,T=1.97 |
1 | ||
| 90201-35511 |
RN106..SR5..EFI;LN106,RN105,YN106 OD=47,T=2.12 |
1 | ||
| 90201-35501 |
RN106..SR5..EFI;LN106,RN105,YN106 OD=47,T=1.82 |
1 | ||
| 90201-35514 |
RN106..SR5..EFI;LN106,RN105,YN106 OD=47,T=2.21 |
1 | ||
| 43640G - SEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER) | ||||
| 90311-38035 |
LN106,RN105,YN106 |
1 | ||
| Common parts | ||||
| 91111-40814 | ||||
| 91611-60814 | ||||
| 94512-00800 | ||||
| 94531-01200 | ||||

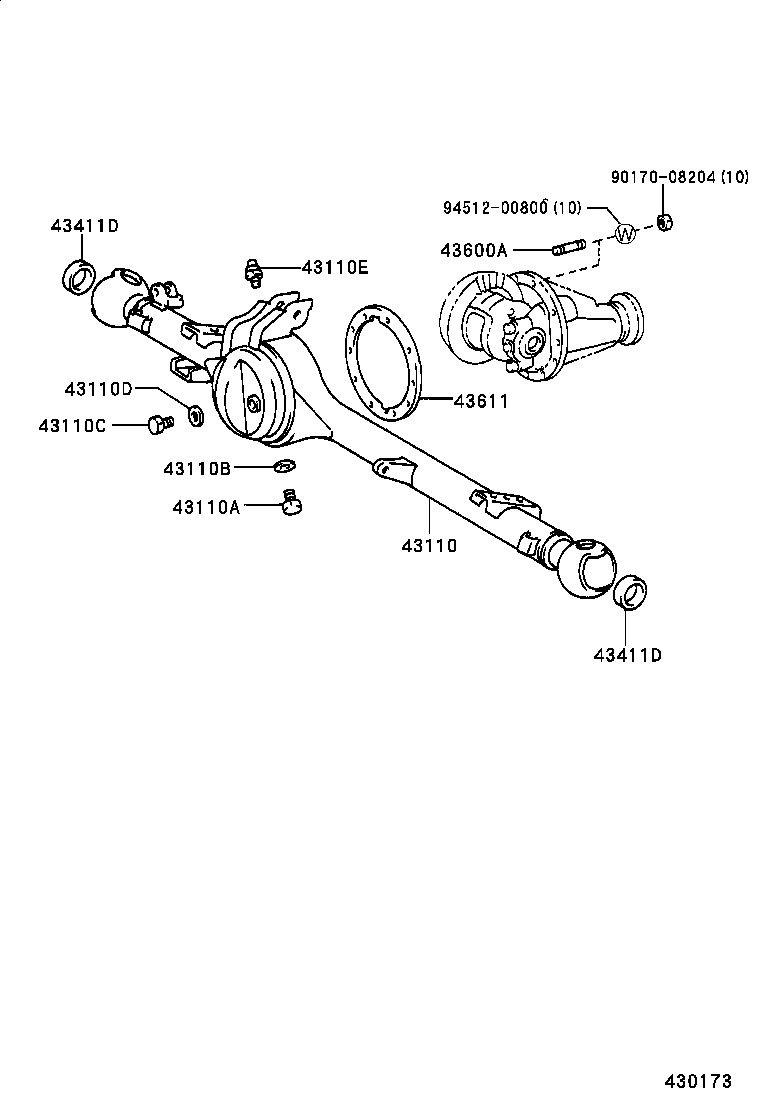

ILLUST NO. 2 OF 2(8808- )LN106,RN105,YN106
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43110 - HOUSING ASSY, FRONT AXLE | ||||
| 43110-35050 |
LN106,RN105,YN106..RHD |
1 | ||
| 43110A - PLUG SUB-ASSY, DRAIN | ||||
| 90341-18057 |
LN106,RN105,YN106 |
1 | ||
| 43110B - GASKET, DRAIN | ||||
| 12157-10010 |
LN106,RN105,YN106 |
1 | ||
| 43110C - PLUG (FOR FRONT AXLE HOUSING) | ||||
| 90341-18049 |
LN106,RN105,YN106 |
1 | ||
| 43110D - GASKET (FOR FRONT AXLE HOUSING PLUG) | ||||
| 12157-10010 |
LN106,RN105,YN106 |
1 | ||
| 43110E - PLUG, BREATHER (FOR FRONT AXLE HOUSING) | ||||
| 90930-03031 |
LN106,RN105,YN106 |
1 | ||
| 43411D - SEAL, TYPE T OIL (FOR FRONT DRIVE SHAFT) | ||||
| 90311-33085 |
LN106,RN105,YN106 |
2 | ||
| 43411D - SEAL, TYPE T OIL (FOR FRONT DRIVE SHAFT) | ||||
| 90311-33085 |
LN106,RN105,YN106 |
2 | ||
| 43600A - BOLT, STUD (FOR FRONT AXLE DIFFERENTIAL CARRIER SETTING | ||||
| 90116-08233 |
LN106,RN105,YN106 S=14 & 14,L=42 |
2 | ||
| 90116-08235 |
LN106,RN105,YN106 S=12 & 15,L=34 |
8 | ||
| 43611 - GASKET, FRONT AXLE DIFFERENTIAL CARRIER | ||||
| 42181-60020 |
LN106,RN105,YN106 |
1 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 94512-00800 | ||||
