LN106R-TRMRS (1988)
Toyota Hilux/4runner (4wd)
ILLUST NO. 1 OF 2(8808- )LN10#,111,RN10#,110,YN106
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-22040 |
LN10#,111,13# |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-35040 |
LN106,YN106..RHD..T1..GEN..CBU |
1 | ||
| 77035-89112 |
LN106,YN106..RHD..T1..GEN..CBU |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-89102 |
LN106,YN106..T1..GEN..CBU;LN111,RN105,110..T1..(DLX,SR5)..CBU |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-35969 |
LN106,111,YN106..T1 |
1 | ||
| 77001-35995 |
LN106,111,YN106..T1..GEN |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LN106,111,13#,RN105,110,13#,YN106,13# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LN106,111,RN105,110,YN106 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 77408-35020 |
LN10#,111,RN105,110,YN106..T1 L=340 |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-35070 |
RN106..EFI;LN10#,111,RN105,YN106..GEN,V |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-35070 |
RN106..EFI;LN10#,111,RN105,YN106..GEN,V |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
LN106,111,13#,RN105,110,13#,YN106,135 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35380 |
RN105..T1..V;LN106,111,YN106..T1 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35380 |
RN105..T1..V;LN106,111,YN106..T1 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-35261 |
LN106,111..T1 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-35280 |
LN10#,111,RN105,110,YN106..T1 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-89109 |
LN106,YN106..T1..GEN..CBU;LN111,RN105,110..T1..(DLX,SR5)..CBU W(FUEL LID OPENER) |
1 | ||
| 77305-89108 |
LN10#,111,RN105,110,YN106..T1..CBU |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-89109 |
LN106,YN106..T1..GEN..CBU;LN111,RN105,110..T1..(DLX,SR5)..CBU W(FUEL LID OPENER) |
1 | ||
| 77305-89108 |
LN10#,111,RN105,110,YN106..T1..CBU |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-35061 |
LN106,111,13#..(2D,4D,T1)..CBU |
1 | ||
| 77310-35110 |
LN10#,111,13#..(4D,T1)..CBU |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-12050 |
LN106,111,13#,RN105,110,135,YN106,135..(2D,4D,T1)..CBU |
1 | ||
| 77319 - KNOB, FUEL TANK CAP | ||||
| 77319-8910204 |
LN106,YN106..T1..GEN..CBU;LN111,RN105,110..T1..(DLX,SR5)..CBU BLUE,TRIM8# |
1 | ||
| 77319-8910206 |
LN106,YN106..T1..GEN..CBU;LN111,RN105,110..T1..(DLX,SR5)..CBU BROWN,TRIM4# |
1 | ||
| 77319-89102S4 |
LN106,YN106..T1..GEN..CBU;LN111,RN105,110..T1..(DLX,SR5)..CBU GRAY,TRIM1# |
1 | ||
| 77319-89103R9 |
LN106..T1..GEN..CBU;LN13#,RN13#,YN106..(4D,T1)..CBU;LN111,RN105,110,VZN130..(4D,T1)..(DLX,SR5)..(ARL,V) BLUE,TRIM8# |
1 | ||
| 77319-89102R9 |
LN106,YN106..T1..GEN..CBU;LN111,RN105,110..T1..(DLX,SR5)..CBU BLUE,TRIM8# |
1 | ||
| 77319-89103R9 |
LN106,YN106..T1..GEN..CBU;LN111,13#,RN105,110,13#,VZN130..(4D,T1)..(DLX,SR5)..CBU BLUE,TRIM8# |
1 | ||
| 77319-8910203 |
LN106,YN106..T1..GEN..CBU;LN111,RN105,110..T1..(DLX,SR5)..CBU GRAY,TRIM1# |
1 | ||
| 77319-89103S4 |
LN106,YN106..T1..GEN..CBU;LN111,13#,RN105,110,13#,VZN130..(4D,T1)..(DLX,SR5)..CBU GRAY,TRIM1# |
1 | ||
| 77338A - BRACKET, FUEL TANK CAP LOCK CONTROL ROD | ||||
| 77338-89105 |
LN106,YN106..T1..GEN..CBU;LN111,13#,RN105,110,13#,VZN130,YN13#..(2D,4D,T1)..(DLX,SR5)..CBU |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77360-89102 |
LN106,YN106..T1..GEN..CBU;LN111,RN105,110..T1..(DLX,SR5)..CBU W(FUEL LID OPENER) |
1 | ||
| 77358-24010 |
LN106,111,RN105,110,YN106..T1..CBU |
1 | ||
| 77360-24010 |
LN106,YN106..T1..GEN..CBU;LN111,RN105,110..T1..(DLX,SR5)..CBU W(FUEL LID OPENER) |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
LN106,YN106..T1..GEN..CBU;LN111,RN105,110..T1..(DLX,SR5)..CBU |
1 | ||
| Common parts | ||||
| 90119-08667 | ||||
| 90119-08668 | ||||
| 90159-40155 | ||||
| 90159-60032 | ||||
| 90167-50028 | ||||
| 90170-08204 | ||||
| 90170-11006 | ||||
| 90179-05020 | ||||
| 90460-22001 | ||||
| 90460-55003 | ||||
| 90460-65002 | ||||
| 90461-08323 | ||||
| 90463-12002 | ||||
| 90463-15003 | ||||
| 90480-01137 | ||||
| 90480-01226 | ||||
| 90541-06058 | ||||
| 90541-08014 | ||||
| 90949-01299 | ||||
| 91626-40618 | ||||
| 91626-60816 | ||||
| 91651-60816 | ||||
| 93382-15010 | ||||
| 93385-15010 | ||||
| Linked diagrams | ||||
| 8401 | ||||

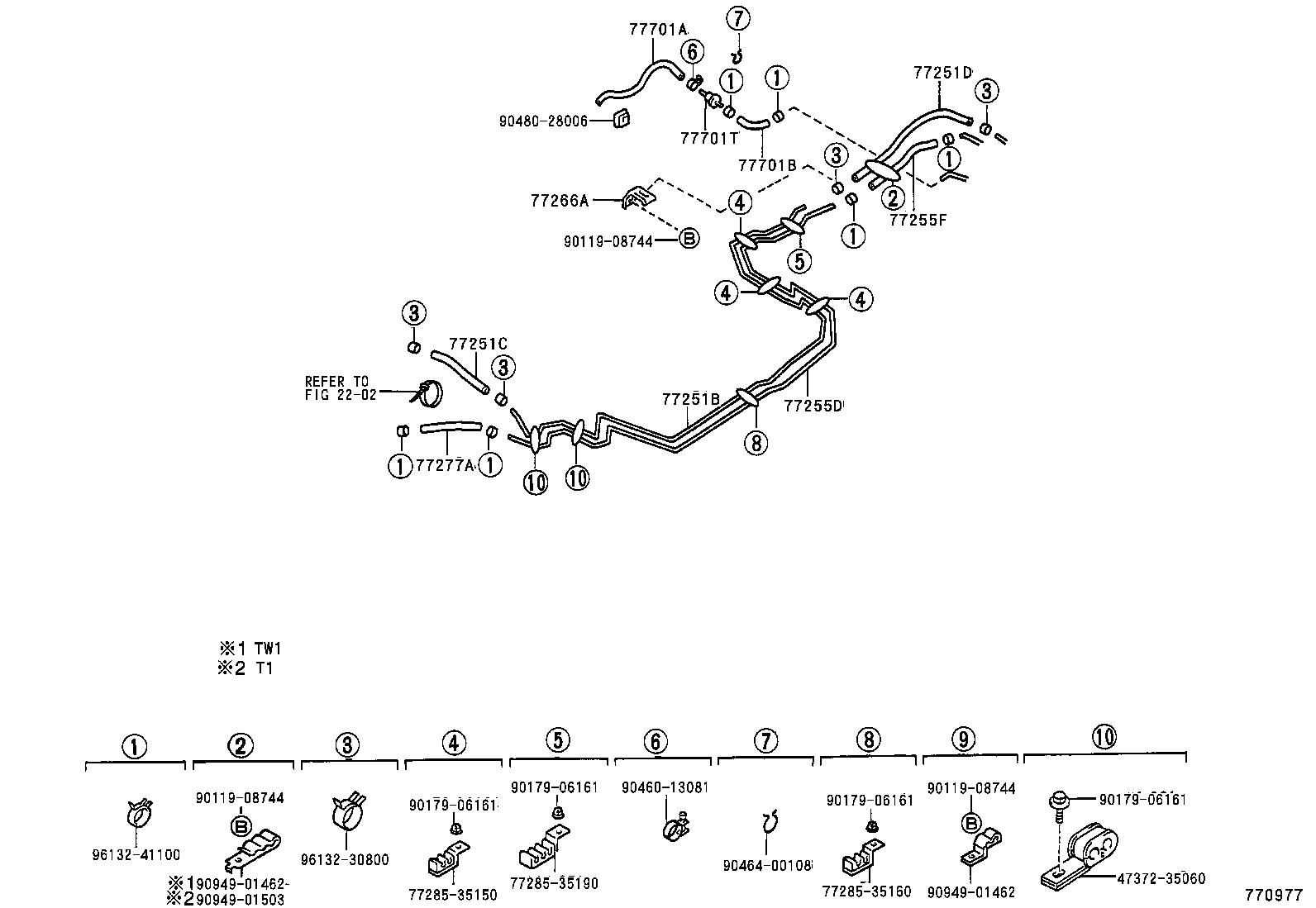

ILLUST NO. 2 OF 2(8808- )LN106,111
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-35720 |
LN106..T1 |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95333-08020 |
LN106,111..RHD *H,L=200,ID=7.6 |
1 | ||
| 77259-35190 |
LN106,111,13#..RHD L=200 |
1 | ||
| 77259-35190 |
LN10#,111..RHD L=200 |
1 | ||
| 77259-35190 |
LN106..RHD..GEN L=200 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 90445-14115 |
LN106,111..T1 L=720 |
1 | ||
| 95333-06020 |
LN106,111,YN106..T1 *H,L=120 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-35600 |
LN106..T1 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06080 |
LN106,111..T1 L=620 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12110 |
LN10#,111..RHD L=330 |
1 | ||
| 90447-12110 |
LN135..RHD;LN106,111,130 L=330 |
1 | ||
| 90447-12110 |
LN106,111 L=330 |
1 | ||
| 77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE) | ||||
| 90446-12006 |
RN105..GEN..IV3;LN106,111,YN106..T1 L=256 |
1 | ||
| 90446-12006 |
LN106,111,YN106 L=256 |
1 | ||
| 90446-12006 |
LN106,111,YN106..T1 L=256 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10054 |
RN10#..GEN;RN105..TW1..V;LN10#,111,YN106 |
1 | ||
| Common parts | ||||
| 47372-35060 | ||||
| 77285-35150 | ||||
| 77285-35160 | ||||
| 77285-35190 | ||||
| 90119-08744 | ||||
| 90179-06161 | ||||
| 90460-13081 | ||||
| 90464-00108 | ||||
| 90480-28006 | ||||
| 90949-01462 | ||||
| 90949-01503 | ||||
| 96132-30800 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 2202 | ||||
