LN106R-TRMRS (1988)
Toyota Hilux/4runner (4wd)

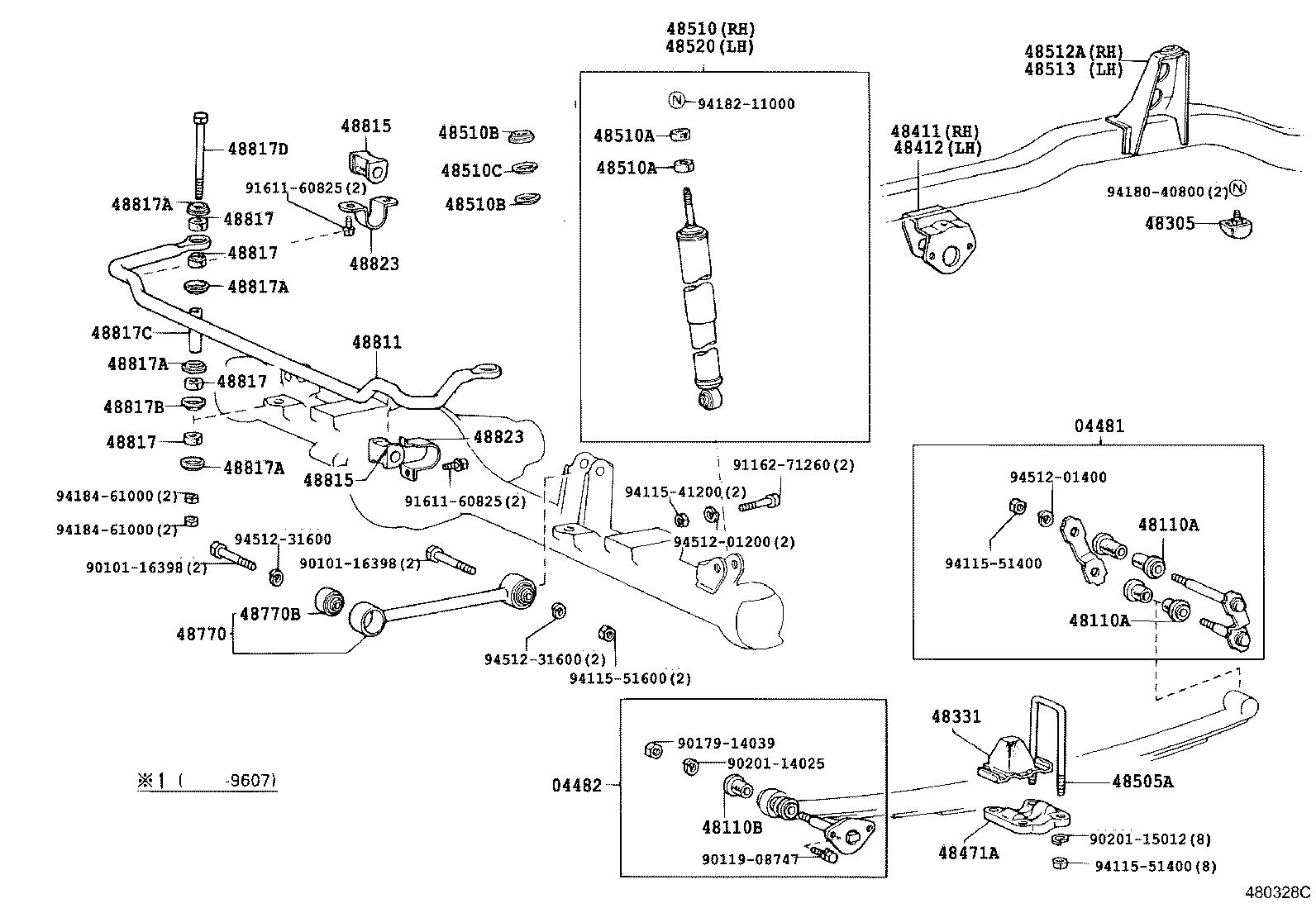

ILLUST NO. 1 OF 2(8808-9909)LN106,RN105,YN106
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04481 - SHACKLE KIT, FRONT SPRING | ||||
| 04481-35040 |
LN106,RN105,YN106 |
1 | ||
| 04481-35050 |
LN106,RN105,YN106 |
2 | ||
| 04482 - PIN KIT, FRONT SPRING | ||||
| 04484-35060 |
LN106,RN105,YN106 |
2 | ||
| 04482-35030 |
LN106,RN105,YN106 |
2 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18046 |
LN106,RN105,YN106 L=36 |
4 | ||
| 90385-18007 |
LN106,RN105,YN106 L=56 |
4 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18046 |
LN106,RN105,YN106 L=36 |
4 | ||
| 90385-18007 |
LN106,RN105,YN106 L=56 |
4 | ||
| 48110B - BUSH(FOR FRONT SPRING PIN) | ||||
| 90385-18046 |
LN106,RN105,YN106 |
4 | ||
| 48305 - BUMPER SUB-ASSY, FRONT SPRING, NO.2 | ||||
| 48305-27010 |
LN106,RN105,YN106 |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48304-35110 |
LN106,RN105,YN106 LH |
1 | ||
| 48304-35100 |
LN106,RN105,YN106 RH |
1 | ||
| 48411 - BRACKET, FRONT SPRING(FOR FRONT RH) | ||||
| 48411-35040 |
LN106,RN105,YN106 |
1 | ||
| 48412 - BRACKET, FRONT SPRING(FOR FRONT LH) | ||||
| 48411-35040 |
LN106,RN105,YN106 |
1 | ||
| 48471A - SEAT, FRONT SPRING SUPPORT | ||||
| 48471-35010 |
LN106,RN105,YN106 RH |
1 | ||
| 48472-35020 |
LN106,RN105,YN106 LH |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-14011 |
LN106,RN105,YN106 L=190 |
2 | ||
| 90117-14008 |
LN106,RN105,YN106 L=155 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-39665 |
RN105..ARL;LN106,YN106 |
1 | ||
| 48511-39666 |
RN105..ARL;LN106,YN106 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
LN106,111,RN105,110,YN106 |
4 | ||
| 90948-01003 |
LN106,RN105,YN106 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
LN106,111,RN105,110,YN106 |
4 | ||
| 90948-01003 |
LN106,RN105,YN106 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
LN106,111,RN105,110,YN106 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
LN106,111,RN105,110,YN106 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02087 |
LN106,RN105,YN106 |
2 | ||
| 90948-02087 |
LN106,111,RN105,110,YN106 |
2 | ||
| 48512A - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-35040 |
LN106,RN105,YN106 |
1 | ||
| 48501-35020 |
LN106,RN105,YN106 |
1 | ||
| 48513 - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-35040 |
LN106,RN105,YN106 |
1 | ||
| 48502-35020 |
LN106,RN105,YN106 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-39665 |
RN105..ARL;LN106,YN106 |
1 | ||
| 48511-39666 |
RN105..ARL;LN106,YN106 |
1 | ||
| 48770 - ROD SUB-ASSY, TORQUE | ||||
| 48760-35020 |
LN106,RN105,YN106 |
1 | ||
| 48770B - BUSH, TORQUE ROD | ||||
| 48725-35010 |
LN106,RN105,YN106 |
2 | ||
| Common parts | ||||
| 90101-16398 | ||||
| 90119-08747 | ||||
| 90179-14039 | ||||
| 90201-14025 | ||||
| 90201-15012 | ||||
| 91162-71260 | ||||
| 91611-60825 | ||||
| 94115-41200 | ||||
| 94115-51400 | ||||
| 94115-51600 | ||||
| 94180-40800 | ||||
| 94182-11000 | ||||
| 94184-61000 | ||||
| 94512-01200 | ||||
| 94512-01400 | ||||
| 94512-31600 | ||||

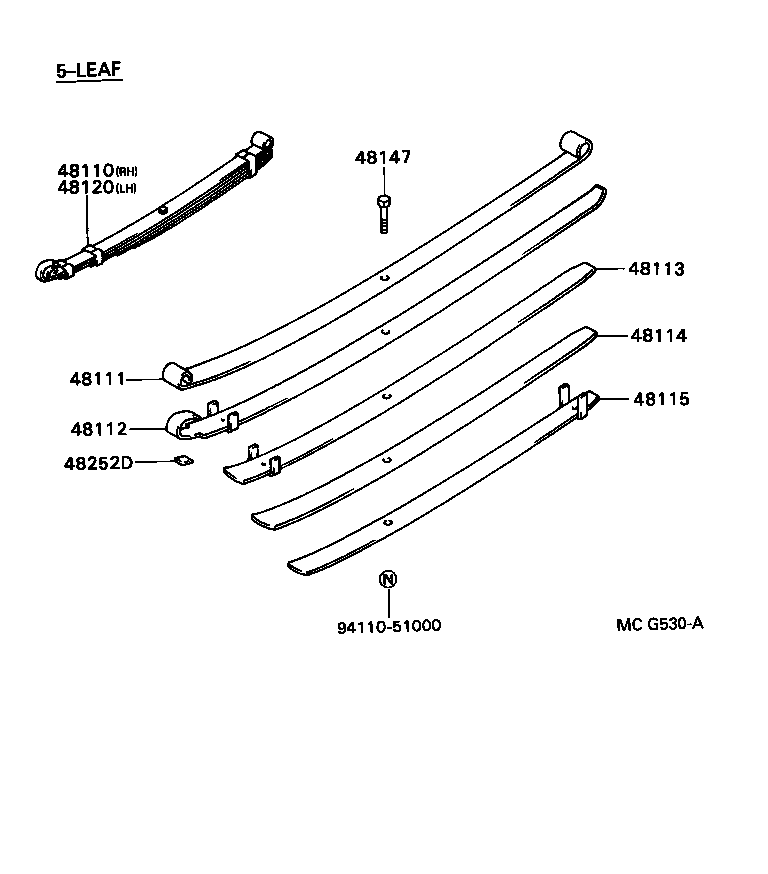

ILLUST NO. 2 OF 2(8808-9909)LN106,RN105,YN106
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-35230 |
LN106..RHD 5-LEAF |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48111-35210 |
LN106..RHD LH |
1 | ||
| 48111-35230 |
LN106..RHD RH |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-35210 |
LN106..RHD LH |
1 | ||
| 48102-35230 |
LN106..RHD RH |
1 | ||
| 48102-35210 |
LN106..RHD;YN106..RHD..TW1;YN106..RHD..IV3 LH |
1 | ||
| 48102-35210 |
LN106..RHD LH |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48103-35230 |
LN106..RHD RH |
1 | ||
| 48105-35210 |
LN106 LH |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-35230 |
LN106..RHD RH |
1 | ||
| 48114-35210 |
LN106..RHD LH |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48104-35210 |
LN106..RHD;YN106..RHD..TW1;YN106..RHD..IV3 RH |
1 | ||
| 48104-35230 |
LN106..RHD LH |
1 | ||
| 48104-35210 |
LN106..RHD LH |
1 | ||
| 48104-35230 |
LN106..RHD RH |
1 | ||
| 48104-35210 |
LN106..RHD RH |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48120-35120 |
LN106 5-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48247-35440 |
LN106,RN105,YN106 |
2 | ||
| 48252D - SILENCER | ||||
| 48252-26070 |
LN106,RN105,YN106 |
4 | ||
| Common parts | ||||
| 94110-51000 | ||||
