LN106R-PRMRS (1988)
Toyota Hilux/4runner (4wd)
ILLUST NO. 1 OF 3(8808- )RHD
COMBINATION METER, W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LN106,111,13#,RN105,110,13#,VZN130,YN130 12V 3.4W |
5 | ||
| 83109-24020 |
LN106,111,135,RN105,YN106,135..GEN,V 12V3.4W W(GREEN CAP) |
4 | ||
| 99132-12034 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106 12V 3.4W |
5 | ||
| 90981-11018 |
LN106,111,135..GEN 12V 1.2W W/O SOCKET |
11 | ||
| 99132-12034 |
RN105,135..GEN,V;RN106,110,VZN130..ARL;LN106,111,13#,RN130..DLX,STD 12V 3.4W |
6 | ||
| 90981-11018 |
LN13#..GEN;LN106..RHD..GEN;LN107,111,RN105,130,VZN130..5F..ARL 12V 1.2W W/O SOCKET |
11 | ||
| 99132-12034 |
RN105..GEN;RN135,VZN130;LN106,111,13#,RN130..DLX,STD 12V 3.4W |
6 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LN106,111,135,RN135,YN135 TYPE C:REFER TO ILLUSTRATION |
5 | ||
| 83101-14040 |
LN106,111,135..GEN TYPE A:REFER TO ILLUSTRATION |
7 | ||
| 83101-14030 |
LN106,111,135..GEN TYPE B:REFER TO ILLUSTRATION |
9 | ||
| 83101-20040 |
RN105..V;LN106,111,13#,RN135,YN13# TYPE C:REFER TO ILLUSTRATION |
5 | ||
| 83101-14030 |
LN106,111..GEN TYPE B:REFER TO ILLUSTRATION |
9 | ||
| 83101-20040 |
YN106..RHD..TW1;YN106..RHD..IV3;LN106,111,13#,RN105,110,13#,VZN130,YN135 TYPE C:REFER TO ILLUSTRATION |
5 | ||
| 83101-20040 |
RN135;RN105..GEN;RN106,110,VZN130..ARL;LN106,111,13#,RN130..DLX,STD TYPE C:REFER TO ILLUSTRATION |
6 | ||
| 83101-20040 |
RN105..GEN;RN135,VZN130;LN106,111,13#,RN130..DLX,STD TYPE C:REFER TO ILLUSTRATION |
6 | ||
| 83101-14030 |
RN105..V;LN106,111..GEN TYPE B:REFER TO ILLUSTRATION |
8 | ||
| 83101-20060 |
LN106,111,13#..GEN |
6 | ||
| 83101-14040 |
LN106,13#..GEN;RN105,130..ARL;LN107,111,VZN130..5F TYPE A:REFER TO ILLUSTRATION |
11 | ||
| 83101-20040 |
RN135,VZN130;LN106,111,13#,RN105,130..(DLX,STD)..(ARL,GEN) TYPE B:REFER TO ILLUSTRATION |
6 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-89305 |
LN106,111,135..GEN |
1 | ||
| 83110-89307 |
LN106,111,135..GEN MPH & KM/H |
1 | ||
| 83110-89306 |
LN106,111,135..GEN W(TRIP METER) |
1 | ||
| 83110-89321 |
LN106,111,135..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83110-89322 |
LN106,111,135..GEN W(TACHOMETER & TRIP METER),MPH & KM/H |
1 | ||
| 83110-89308 |
LN106,111,135..GEN W(TRIP METER),MPH & KM/H |
1 | ||
| 83110-89307 |
LN106,111..GEN MPH & KM/H |
1 | ||
| 83110-89305 |
LN106,111..GEN |
1 | ||
| 83110-89321 |
LN106,111..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83110-35260 |
LN106,111..GEN |
1 | ||
| 83110-89322 |
LN106,111..GEN W(TACHOMETER & TRIP METER),MPH & KM/H |
1 | ||
| 83110-35420 |
LN106,111..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83110-35430 |
LN106,111..GEN W(TACHOMETER & TRIP METER),MPH & KM/H |
1 | ||
| 83110-3D050 |
LN106,111..GEN |
1 | ||
| 83110-35450 |
LN106,111..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83110-35270 |
LN106,111..GEN MPH & KM/H |
1 | ||
| 83110-3D290 |
LN106,111..GEN |
1 | ||
| 83110-3D280 |
LN106,111..GEN MPH & KM/H |
1 | ||
| 83110-3D370 |
LN106,111..GEN W(TACHOMETER) |
1 | ||
| 83110-3D350 |
LN106,111..GEN W(TACHOMETER),MPH & KM/H |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-89309 |
LN106,111,135..GEN |
1 | ||
| 83132-89502 |
YN106..RHD..TW1;YN106..RHD..IV3;LN106,111,135,YN135..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83132-89309 |
LN106,111..GEN |
1 | ||
| 83132-89502 |
LN106,111..GEN;YN106..RHD..TW1;YN106..RHD..IV3 W(TACHOMETER & TRIP METER) |
1 | ||
| 83132-89315 |
LN106,111..GEN |
1 | ||
| 83132-35040 |
RN105..GEN;LN106..RHD;LN106..LHD..IV3;LN106..LHD..T1..CBU;LN107,111,13#,RN106,110,13#,VZN130..DLX,SR5 W(TACHOMETER & TRIP METER) |
1 | ||
| 83132-89321 |
RN105..V;LN106,111,RN106,YN106..(DLX,STD)..GEN |
1 | ||
| 83132-89317 |
LN106,111..GEN |
1 | ||
| 83132-35040 |
RN105..GEN;LN10#,111,13#,RN106,110,13#,VZN130 W(TACHOMETER & TRIP METER) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-89301 |
LN106,111,135..GEN W(TRIP METER) |
1 | ||
| 83138-89514 |
LN106,111,135..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83138-89512 |
LN106,111,135..GEN W(TACHOMETER) |
1 | ||
| 83138-89305 |
LN106,111,135..GEN |
1 | ||
| 83138-89512 |
LN111..GEN;LN106..RHD..GEN;LN106..LHD..IV3;LN106..LHD..T1..CBU W(TACHOMETER & TRIP METER) |
1 | ||
| 83138-89514 |
LN106,111..GEN W(TACHOMETER),MPH & KM/H |
1 | ||
| 83138-89512 |
LN106,111..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89546 |
RN105..V;YN106..RHD..IV3;LN106,111,13#,RN110,135,YN13#;RN105,130,YN106..RHD..(DCB,WG)..(SR5,STD) |
1 | ||
| 83145-89546 |
RN105..V;YN106..RHD..IV3;RN105,YN106..RHD..TW1..(SR5,STD);LN106,111,13#,RN110,13#,VZN130,YN135 |
1 | ||
| 83145-89546 |
RN105..GEN,V;LN10#,111,13#,RN106,110,13#,VZN130 |
1 | ||
| 83145-89546 |
RN105..GEN;LN10#,111,13#,RN106,110,13#,VZN130 |
1 | ||
| 83145-89546 |
RN105..GEN,V;LN10#,111,13#,RN106,110,13#,VZN130 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-89560 |
LN106,111,13#..DLX,STD |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-89530 |
LN106,111,13#,RN10#,13#..GEN,V |
1 | ||
| 83145-89530 |
YN106..RHD..TW1;YN106..RHD..IV3;LN106,111,135,RN105,135,YN135..GEN,V |
1 | ||
| 83145-89530 |
RN135;LN106,111,13#,RN10#,130..GEN |
1 | ||
| 83145-89530 |
LN106..RHD..GEN;LN106..LHD..IV3;RN106..SR5..GEN;LN106..LHD..T1..CBU;LN111,13#,RN105,13#..GEN,V |
1 | ||
| 83145-89530 |
LN106,111,13#,RN10#,13#..GEN,V |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-89524 |
LN106,130..SR5;LN106,RN105..GEN,V;LN111,135,RN135,YN135 |
1 | ||
| 83145-89524 |
RN135;RN106,110..ARL;LN106,111,13#,RN105,130..GEN |
1 | ||
| 83145-89524 |
RN135;RN106,110..ARL;LN106..RHD..GEN;LN106..LHD..IV3;LN106..LHD..T1..CBU;LN111,13#,RN105,130..GEN |
1 | ||
| 83145-89524 |
LN106,111,13#,RN105,13#..GEN,V |
1 | ||
| 83145-89524 |
RN135;LN106,111,13#,RN105,130..GEN |
1 | ||
| 83145-89524 |
LN106..SR5;YN106..RHD..TW1;YN106..RHD..IV3;LN106,RN105..GEN,V;LN111,135,RN135,YN135 |
1 | ||
| 83145-89524 |
RN135;LN106,111,13#,RN105,130..GEN |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-89311 |
LN106,111,135,RN105,YN106,135..GEN,V |
1 | ||
| 83243-89311 |
LN106,111,RN105,YN106..GEN,V |
1 | ||
| 83243-89502 |
LN106,111..GEN;YN106..RHD..TW1;YN106..RHD..IV3 W(TACHOMETER & TRIP METER) |
1 | ||
| 83243-35080 |
LN106,111..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83243-35100 |
LN106,111..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83243-35100 |
LN111..GEN;LN106..RHD..GEN;LN106..LHD..IV3;LN106..LHD..T1..CBU W(TACHOMETER & TRIP METER) |
1 | ||
| 83243-89502 |
YN106..RHD..TW1;YN106..RHD..IV3;LN106,111,135,YN135..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83243-34020 |
RN105..ARL;LN106,111..GEN W(TACHOMETER) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-89317 |
LN106,111,135,YN106,135..GEN |
1 | ||
| 83244-89504 |
LN106,111..GEN;YN106..RHD..TW1;YN106..RHD..IV3 W(TACHOMETER & TRIP METER) |
1 | ||
| 83244-89504 |
YN106..RHD..TW1;YN106..RHD..IV3;LN106,111,135,YN135..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83244-89317 |
LN106,111,YN106..GEN |
1 | ||
| 83244-35140 |
RN105..ARL;LN106,111..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-89327 |
LN106,111,135..GEN |
1 | ||
| 83247-89524 |
LN106,135..RHD..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83247-89524 |
LN106..RHD..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83247-89327 |
LN106,111..GEN |
1 | ||
| 83247-35700 |
LN106..RHD..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83247-89337 |
LN106,111..GEN |
1 | ||
| 83149-35040 |
LN106..RHD..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83247-89353 |
LN106,111..GEN |
1 | ||
| 83247-89524 |
LN106,111..GEN W(TACHOMETER) |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20100 | ||||
| 83161-20380 | ||||
| 90167-50028 | ||||
ILLUST NO. 1 OF 3(8808- )
COMBINATION METER, W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LN106,111,13#,RN105,110,13#,VZN130,YN130 12V 3.4W |
5 | ||
| 83109-24020 |
LN106,111,135,RN105,YN106,135..GEN,V 12V3.4W W(GREEN CAP) |
4 | ||
| 99132-12034 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106 12V 3.4W |
5 | ||
| 90981-11018 |
LN106,111,135..GEN 12V 1.2W W/O SOCKET |
11 | ||
| 99132-12034 |
RN105,135..GEN,V;RN106,110,VZN130..ARL;LN106,111,13#,RN130..DLX,STD 12V 3.4W |
6 | ||
| 90981-11018 |
LN13#..GEN;LN106..RHD..GEN;LN107,111,RN105,130,VZN130..5F..ARL 12V 1.2W W/O SOCKET |
11 | ||
| 99132-12034 |
RN105..GEN;RN135,VZN130;LN106,111,13#,RN130..DLX,STD 12V 3.4W |
6 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LN106,111,13#,RN105,110,13#,VZN130,YN130 12V 3.4W |
5 | ||
| 83109-24020 |
LN106,111,135,RN105,YN106,135..GEN,V 12V3.4W W(GREEN CAP) |
4 | ||
| 99132-12034 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106 12V 3.4W |
5 | ||
| 90981-11018 |
LN106,111,135..GEN 12V 1.2W W/O SOCKET |
11 | ||
| 99132-12034 |
RN105,135..GEN,V;RN106,110,VZN130..ARL;LN106,111,13#,RN130..DLX,STD 12V 3.4W |
6 | ||
| 90981-11018 |
LN13#..GEN;LN106..RHD..GEN;LN107,111,RN105,130,VZN130..5F..ARL 12V 1.2W W/O SOCKET |
11 | ||
| 99132-12034 |
RN105..GEN;RN135,VZN130;LN106,111,13#,RN130..DLX,STD 12V 3.4W |
6 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LN106,111,135,RN135,YN135 TYPE C:REFER TO ILLUSTRATION |
5 | ||
| 83101-14040 |
LN106,111,135..GEN TYPE A:REFER TO ILLUSTRATION |
7 | ||
| 83101-14030 |
LN106,111,135..GEN TYPE B:REFER TO ILLUSTRATION |
9 | ||
| 83101-20040 |
RN105..V;LN106,111,13#,RN135,YN13# TYPE C:REFER TO ILLUSTRATION |
5 | ||
| 83101-14030 |
LN106,111..GEN TYPE B:REFER TO ILLUSTRATION |
9 | ||
| 83101-20040 |
YN106..RHD..TW1;YN106..RHD..IV3;LN106,111,13#,RN105,110,13#,VZN130,YN135 TYPE C:REFER TO ILLUSTRATION |
5 | ||
| 83101-20040 |
RN135;RN105..GEN;RN106,110,VZN130..ARL;LN106,111,13#,RN130..DLX,STD TYPE C:REFER TO ILLUSTRATION |
6 | ||
| 83101-20040 |
RN105..GEN;RN135,VZN130;LN106,111,13#,RN130..DLX,STD TYPE C:REFER TO ILLUSTRATION |
6 | ||
| 83101-14030 |
RN105..V;LN106,111..GEN TYPE B:REFER TO ILLUSTRATION |
8 | ||
| 83101-20060 |
LN106,111,13#..GEN |
6 | ||
| 83101-14040 |
LN106,13#..GEN;RN105,130..ARL;LN107,111,VZN130..5F TYPE A:REFER TO ILLUSTRATION |
11 | ||
| 83101-20040 |
RN135,VZN130;LN106,111,13#,RN105,130..(DLX,STD)..(ARL,GEN) TYPE B:REFER TO ILLUSTRATION |
6 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LN106,111,135,RN135,YN135 TYPE C:REFER TO ILLUSTRATION |
5 | ||
| 83101-14040 |
LN106,111,135..GEN TYPE A:REFER TO ILLUSTRATION |
7 | ||
| 83101-14030 |
LN106,111,135..GEN TYPE B:REFER TO ILLUSTRATION |
9 | ||
| 83101-20040 |
RN105..V;LN106,111,13#,RN135,YN13# TYPE C:REFER TO ILLUSTRATION |
5 | ||
| 83101-14030 |
LN106,111..GEN TYPE B:REFER TO ILLUSTRATION |
9 | ||
| 83101-20040 |
YN106..RHD..TW1;YN106..RHD..IV3;LN106,111,13#,RN105,110,13#,VZN130,YN135 TYPE C:REFER TO ILLUSTRATION |
5 | ||
| 83101-20040 |
RN135;RN105..GEN;RN106,110,VZN130..ARL;LN106,111,13#,RN130..DLX,STD TYPE C:REFER TO ILLUSTRATION |
6 | ||
| 83101-20040 |
RN105..GEN;RN135,VZN130;LN106,111,13#,RN130..DLX,STD TYPE C:REFER TO ILLUSTRATION |
6 | ||
| 83101-14030 |
RN105..V;LN106,111..GEN TYPE B:REFER TO ILLUSTRATION |
8 | ||
| 83101-20060 |
LN106,111,13#..GEN |
6 | ||
| 83101-14040 |
LN106,13#..GEN;RN105,130..ARL;LN107,111,VZN130..5F TYPE A:REFER TO ILLUSTRATION |
11 | ||
| 83101-20040 |
RN135,VZN130;LN106,111,13#,RN105,130..(DLX,STD)..(ARL,GEN) TYPE B:REFER TO ILLUSTRATION |
6 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-89305 |
LN106,111,135..GEN |
1 | ||
| 83110-89307 |
LN106,111,135..GEN MPH & KM/H |
1 | ||
| 83110-89306 |
LN106,111,135..GEN W(TRIP METER) |
1 | ||
| 83110-89321 |
LN106,111,135..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83110-89322 |
LN106,111,135..GEN W(TACHOMETER & TRIP METER),MPH & KM/H |
1 | ||
| 83110-89308 |
LN106,111,135..GEN W(TRIP METER),MPH & KM/H |
1 | ||
| 83110-89307 |
LN106,111..GEN MPH & KM/H |
1 | ||
| 83110-89305 |
LN106,111..GEN |
1 | ||
| 83110-89321 |
LN106,111..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83110-35260 |
LN106,111..GEN |
1 | ||
| 83110-89322 |
LN106,111..GEN W(TACHOMETER & TRIP METER),MPH & KM/H |
1 | ||
| 83110-35420 |
LN106,111..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83110-35430 |
LN106,111..GEN W(TACHOMETER & TRIP METER),MPH & KM/H |
1 | ||
| 83110-3D050 |
LN106,111..GEN |
1 | ||
| 83110-35450 |
LN106,111..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83110-35270 |
LN106,111..GEN MPH & KM/H |
1 | ||
| 83110-3D290 |
LN106,111..GEN |
1 | ||
| 83110-3D280 |
LN106,111..GEN MPH & KM/H |
1 | ||
| 83110-3D370 |
LN106,111..GEN W(TACHOMETER) |
1 | ||
| 83110-3D350 |
LN106,111..GEN W(TACHOMETER),MPH & KM/H |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-89309 |
LN106,111,135..GEN |
1 | ||
| 83132-89502 |
YN106..RHD..TW1;YN106..RHD..IV3;LN106,111,135,YN135..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83132-89309 |
LN106,111..GEN |
1 | ||
| 83132-89502 |
LN106,111..GEN;YN106..RHD..TW1;YN106..RHD..IV3 W(TACHOMETER & TRIP METER) |
1 | ||
| 83132-89315 |
LN106,111..GEN |
1 | ||
| 83132-35040 |
RN105..GEN;LN106..RHD;LN106..LHD..IV3;LN106..LHD..T1..CBU;LN107,111,13#,RN106,110,13#,VZN130..DLX,SR5 W(TACHOMETER & TRIP METER) |
1 | ||
| 83132-89321 |
RN105..V;LN106,111,RN106,YN106..(DLX,STD)..GEN |
1 | ||
| 83132-89317 |
LN106,111..GEN |
1 | ||
| 83132-35040 |
RN105..GEN;LN10#,111,13#,RN106,110,13#,VZN130 W(TACHOMETER & TRIP METER) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-89301 |
LN106,111,135..GEN W(TRIP METER) |
1 | ||
| 83138-89514 |
LN106,111,135..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83138-89512 |
LN106,111,135..GEN W(TACHOMETER) |
1 | ||
| 83138-89305 |
LN106,111,135..GEN |
1 | ||
| 83138-89512 |
LN111..GEN;LN106..RHD..GEN;LN106..LHD..IV3;LN106..LHD..T1..CBU W(TACHOMETER & TRIP METER) |
1 | ||
| 83138-89514 |
LN106,111..GEN W(TACHOMETER),MPH & KM/H |
1 | ||
| 83138-89512 |
LN106,111..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89546 |
RN105..V;YN106..RHD..IV3;LN106,111,13#,RN110,135,YN13#;RN105,130,YN106..RHD..(DCB,WG)..(SR5,STD) |
1 | ||
| 83145-89546 |
RN105..V;YN106..RHD..IV3;RN105,YN106..RHD..TW1..(SR5,STD);LN106,111,13#,RN110,13#,VZN130,YN135 |
1 | ||
| 83145-89546 |
RN105..GEN,V;LN10#,111,13#,RN106,110,13#,VZN130 |
1 | ||
| 83145-89546 |
RN105..GEN;LN10#,111,13#,RN106,110,13#,VZN130 |
1 | ||
| 83145-89546 |
RN105..GEN,V;LN10#,111,13#,RN106,110,13#,VZN130 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-89560 |
LN106,111,13#..DLX,STD |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-89530 |
LN106,111,13#,RN10#,13#..GEN,V |
1 | ||
| 83145-89530 |
YN106..RHD..TW1;YN106..RHD..IV3;LN106,111,135,RN105,135,YN135..GEN,V |
1 | ||
| 83145-89530 |
RN135;LN106,111,13#,RN10#,130..GEN |
1 | ||
| 83145-89530 |
LN106..RHD..GEN;LN106..LHD..IV3;RN106..SR5..GEN;LN106..LHD..T1..CBU;LN111,13#,RN105,13#..GEN,V |
1 | ||
| 83145-89530 |
LN106,111,13#,RN10#,13#..GEN,V |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-89524 |
LN106,130..SR5;LN106,RN105..GEN,V;LN111,135,RN135,YN135 |
1 | ||
| 83145-89524 |
RN135;RN106,110..ARL;LN106,111,13#,RN105,130..GEN |
1 | ||
| 83145-89524 |
RN135;RN106,110..ARL;LN106..RHD..GEN;LN106..LHD..IV3;LN106..LHD..T1..CBU;LN111,13#,RN105,130..GEN |
1 | ||
| 83145-89524 |
LN106,111,13#,RN105,13#..GEN,V |
1 | ||
| 83145-89524 |
RN135;LN106,111,13#,RN105,130..GEN |
1 | ||
| 83145-89524 |
LN106..SR5;YN106..RHD..TW1;YN106..RHD..IV3;LN106,RN105..GEN,V;LN111,135,RN135,YN135 |
1 | ||
| 83145-89524 |
RN135;LN106,111,13#,RN105,130..GEN |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-89564 |
LN106,111,135..GEN |
1 | ||
| 83146 - GROMMET, METER GLASS | ||||
| 83145-89318 |
LN10#,111,13# |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-89514 |
LN106,111,13# |
1 | ||
| 83242-35120 |
LN10#,111,13# |
1 | ||
| 83242-35120 |
LN106..RHD;LN107,111,13#;LN106..LHD..IV3;LN106..LHD..T1..CBU |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-89311 |
LN106,111,135,RN105,YN106,135..GEN,V |
1 | ||
| 83243-89311 |
LN106,111,RN105,YN106..GEN,V |
1 | ||
| 83243-89502 |
LN106,111..GEN;YN106..RHD..TW1;YN106..RHD..IV3 W(TACHOMETER & TRIP METER) |
1 | ||
| 83243-35080 |
LN106,111..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83243-35100 |
LN106,111..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83243-35100 |
LN111..GEN;LN106..RHD..GEN;LN106..LHD..IV3;LN106..LHD..T1..CBU W(TACHOMETER & TRIP METER) |
1 | ||
| 83243-89502 |
YN106..RHD..TW1;YN106..RHD..IV3;LN106,111,135,YN135..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83243-34020 |
RN105..ARL;LN106,111..GEN W(TACHOMETER) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-89317 |
LN106,111,135,YN106,135..GEN |
1 | ||
| 83244-89504 |
LN106,111..GEN;YN106..RHD..TW1;YN106..RHD..IV3 W(TACHOMETER & TRIP METER) |
1 | ||
| 83244-89504 |
YN106..RHD..TW1;YN106..RHD..IV3;LN106,111,135,YN135..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83244-89317 |
LN106,111,YN106..GEN |
1 | ||
| 83244-35140 |
RN105..ARL;LN106,111..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-89327 |
LN106,111,135..GEN |
1 | ||
| 83247-89524 |
LN106,135..RHD..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83247-89524 |
LN106..RHD..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83247-89327 |
LN106,111..GEN |
1 | ||
| 83247-35700 |
LN106..RHD..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83247-89337 |
LN106,111..GEN |
1 | ||
| 83149-35040 |
LN106..RHD..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83247-89353 |
LN106,111..GEN |
1 | ||
| 83247-89524 |
LN106,111..GEN W(TACHOMETER) |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-89105 |
LN106,111,135..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83248-20010 |
LN106,111,RN105..GEN,V |
1 | ||
| 83248-20010 |
LN10#,111,13# |
1 | ||
| 86650-89105 |
LN106,111..GEN W(TACHOMETER & TRIP METER) |
1 | ||
| 83248-20010 |
LN106,111,135,RN105..GEN,V |
1 | ||
| 83248-20010 |
LN106,111,135..GEN |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20100 | ||||
| 83161-20380 | ||||
| 83161-20820 | ||||
| 90076-00005 | ||||
| 90076-00029 | ||||
| 90167-50028 | ||||
ILLUST NO. 3 OF 3(8808- )
CLOCK,DETECTOR,SENSOR & CLINOMETER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83180-30011 |
LN10#,111,13# |
1 | ||
| 83180-60080 |
LN10#,111,13# |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-35050 |
LN111..IV3;VZN130..4FC;LN106,RN105,YN106;LN111,RN106..GEN..CBU TYPE A:REFER ILLUST. |
1 | ||
| 83181-35051 |
LN111..IV3;VZN130..4FC;LN106,RN105,YN106;LN111,RN106..GEN..CBU TYPE A:REFER ILLUST. |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 90301-18018 |
LN111..IV3;VZN130..4FC;LN106,RN105,YN106;LN111,RN106..GEN..CBU |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-89108 |
LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#..RHD |
1 | ||
| Common parts | ||||
| 83891-16010 | ||||
| 90167-50028 | ||||
| 90179-06144 | ||||
| 93560-15014 | ||||
ILLUST NO. 2 OF 3(8808-9108) ; (9408- )LN10#,111,13#,RN10#,110,13#,VZN130,YN106

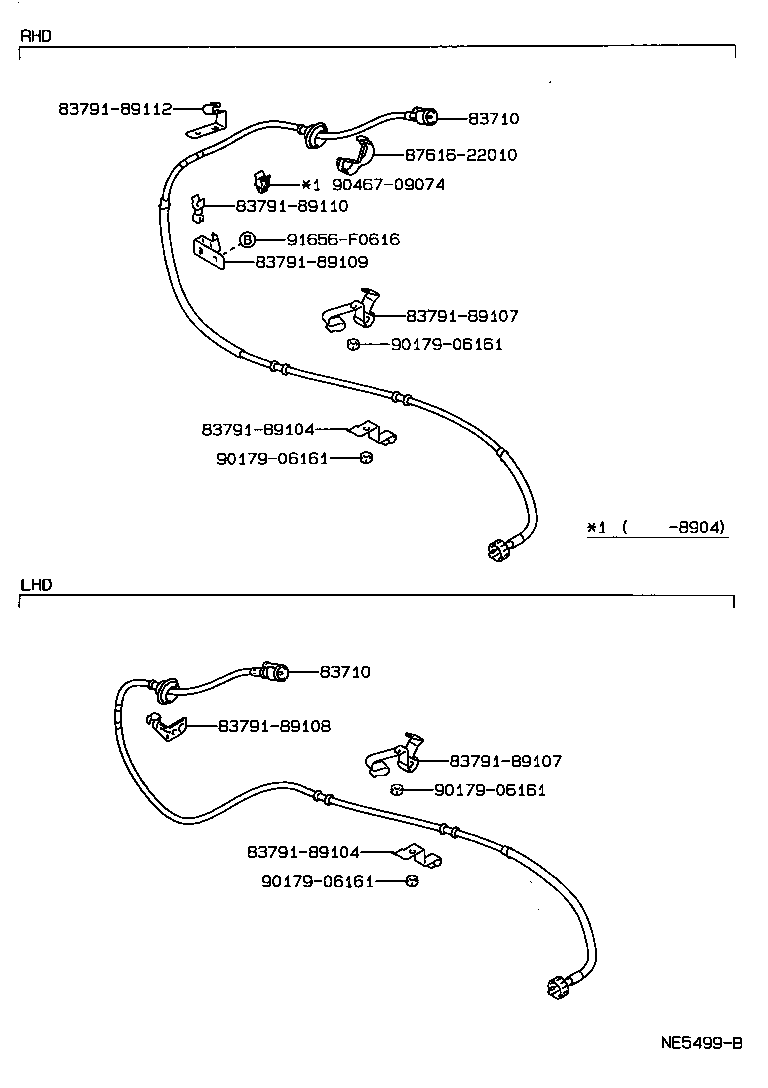

SPEEDOMETER DRIVE CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-89174 |
LN106..RHD..GEN |
1 | ||
| 83710-89199 |
LN106..RHD..GEN W(TACHOMETER) |
1 | ||
| 83710-35280 |
LN106..RHD..GEN |
1 | ||
| 83710-35290 |
LN106..RHD..GEN W(TACHOMETER) |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-89174 |
LN106..RHD..GEN |
1 | ||
| 83710-89199 |
LN106..RHD..GEN W(TACHOMETER) |
1 | ||
| 83710-35280 |
LN106..RHD..GEN |
1 | ||
| 83710-35290 |
LN106..RHD..GEN W(TACHOMETER) |
1 | ||
| Common parts | ||||
| 83791-89104 | ||||
| 83791-89107 | ||||
| 83791-89108 | ||||
| 83791-89109 | ||||
| 83791-89110 | ||||
| 83791-89112 | ||||
| 87616-22010 | ||||
| 90179-06161 | ||||
| 90467-09074 | ||||
| 91656-F0616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
