LN106L-PRMRS3 (1988)

Toyota Hilux/4runner (4wd)

Production Aug 1988 - Aug 1994
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

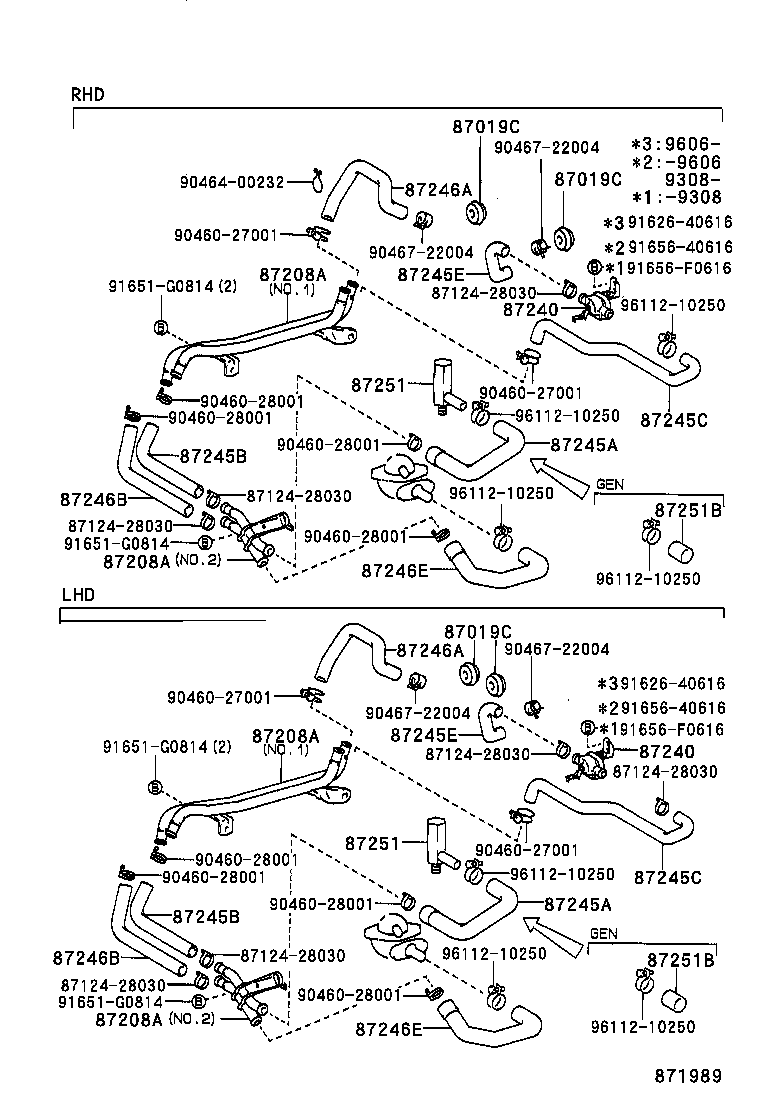

(8810- )LN10#,111,13#

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 8712428030 8712428030 8712428030 8712428030 8712428030 8712428030 8712428030 87208A 87208A 87208A 87208A 87240 87240 87245A 87245A 87245B 87245B 87245C 87245C 87245E 87245E 87246A 87246A 87246B 87246B 87246E 87246E 87251 87251 87251B 87251B 9046027001 9046027001 9046027001 9046027001 9046028001 9046028001 9046028001 9046028001 9046028001 9046028001 9046028001 9046028001 9046400232 9046722004 9046722004 9046722004 9046722004 9162640616 9162640616 91651G0814 91651G0814 91651G0814 91651G0814 9165640616 9165640616 91656F0616 91656F0616 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-36005

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
87019C - GROMMET, HEATER HOSE
90480-36005

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
87019C - GROMMET, HEATER HOSE
90480-36005

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-89136

LN106,111

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-89136

LN106,111

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-89136

LN106,111

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-89136

LN106,111

 1
87240 - VALVE ASSY, HEATER WATER
87240-89125

LN10#,111,13#..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-89125

LN10#,111,13#..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89238

LN106,111

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89238

LN106,111

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-89243

LN10#,111,13#..LHD

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-89243

LN10#,111,13#..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89232

LN10#,111,13#..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89232

LN10#,111,13#..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89242

LN10#,111,13#..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89242

LN10#,111,13#..LHD

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-89239

LN106,111

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-89239

LN106,111

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-89113

LN10#,111,13#

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-89113

LN10#,111,13#

 1
87251B - PLUG, HEATER WATER
90339-16001

LN106,111..GEN

 2
90339-16007

LN106,111..GEN

 2
90339-16001

LN106,111,135,YN106,135..GEN

 2
87251B - PLUG, HEATER WATER
90339-16001

LN106,111..GEN

 2
90339-16007

LN106,111..GEN

 2
90339-16001

LN106,111,135,YN106,135..GEN

 2
Common parts
87124-28030
90460-27001
90460-28001
90464-00232
90467-22004
91626-40616
91651-G0814
91656-40616
91656-F0616
96112-10250

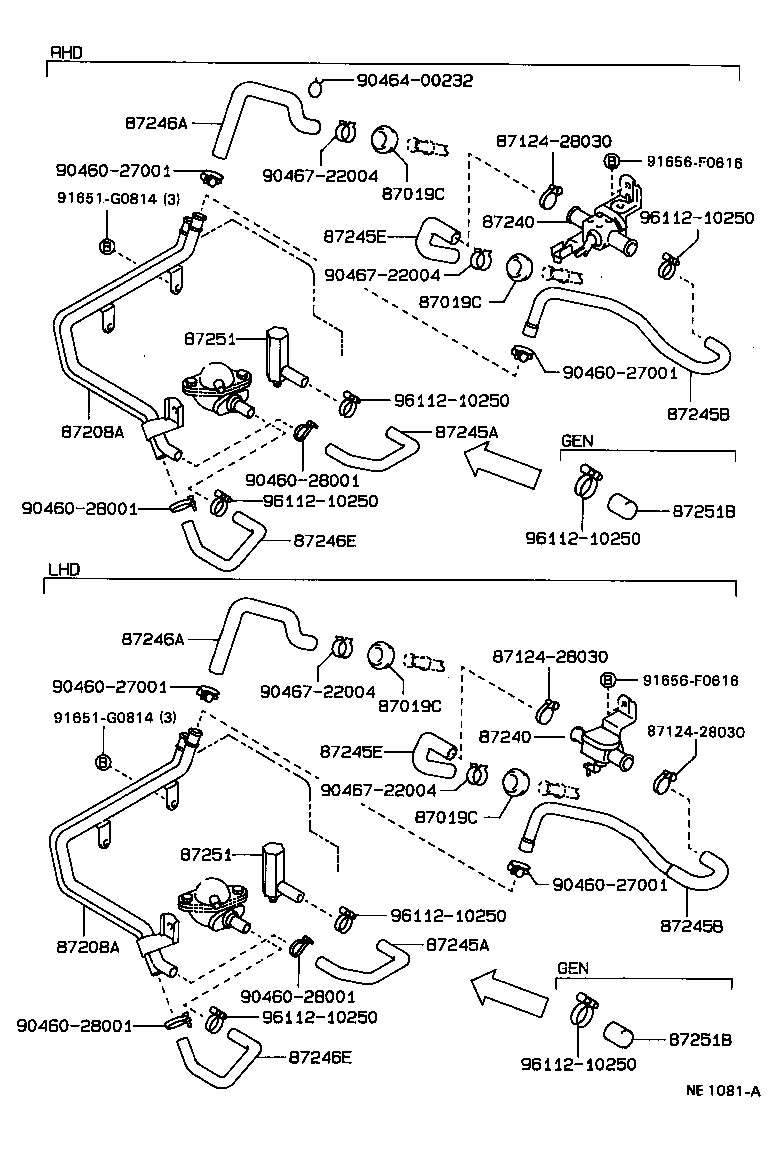

(8808-8810)LN106,111

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87019C 8712428030 8712428030 8712428030 87208A 87208A 87240 87240 87245A 87245A 87245B 87245B 87245E 87245E 87246A 87246A 87246E 87246E 87251 87251 87251B 87251B 9046027001 9046027001 9046027001 9046027001 9046028001 9046028001 9046028001 9046028001 9046400232 9046722004 9046722004 9046722004 9046722004 91651G0814 91651G0814 91656F0616 91656F0616 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-36005

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
87019C - GROMMET, HEATER HOSE
90480-36005

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
87019C - GROMMET, HEATER HOSE
90480-36005

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
87019C - GROMMET, HEATER HOSE
90480-36005

LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#

 2
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-89136

LN106,111

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-89136

LN106,111

 1
87240 - VALVE ASSY, HEATER WATER
87240-89125

LN10#,111,13#..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-89125

LN10#,111,13#..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89238

LN106,111

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89238

LN106,111

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89232

LN10#,111,13#..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89232

LN10#,111,13#..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89242

LN10#,111,13#..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89242

LN10#,111,13#..LHD

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-89239

LN106,111

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-89239

LN106,111

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-89113

LN10#,111,13#

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-89113

LN10#,111,13#

 1
87251B - PLUG, HEATER WATER
90339-16001

LN106,111..GEN

 2
90339-16007

LN106,111..GEN

 2
90339-16001

LN106,111,135,YN106,135..GEN

 2
87251B - PLUG, HEATER WATER
90339-16001

LN106,111..GEN

 2
90339-16007

LN106,111..GEN

 2
90339-16001

LN106,111,135,YN106,135..GEN

 2
Common parts
87124-28030
90460-27001
90460-28001
90464-00232
90467-22004
91651-G0814
91656-F0616
96112-10250
