KZN205L-PRMST (2001)

Toyota Hilux/4runner (4wd)

Production Aug 2001 - Dec 2004
Engine 1KZTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )KZN205

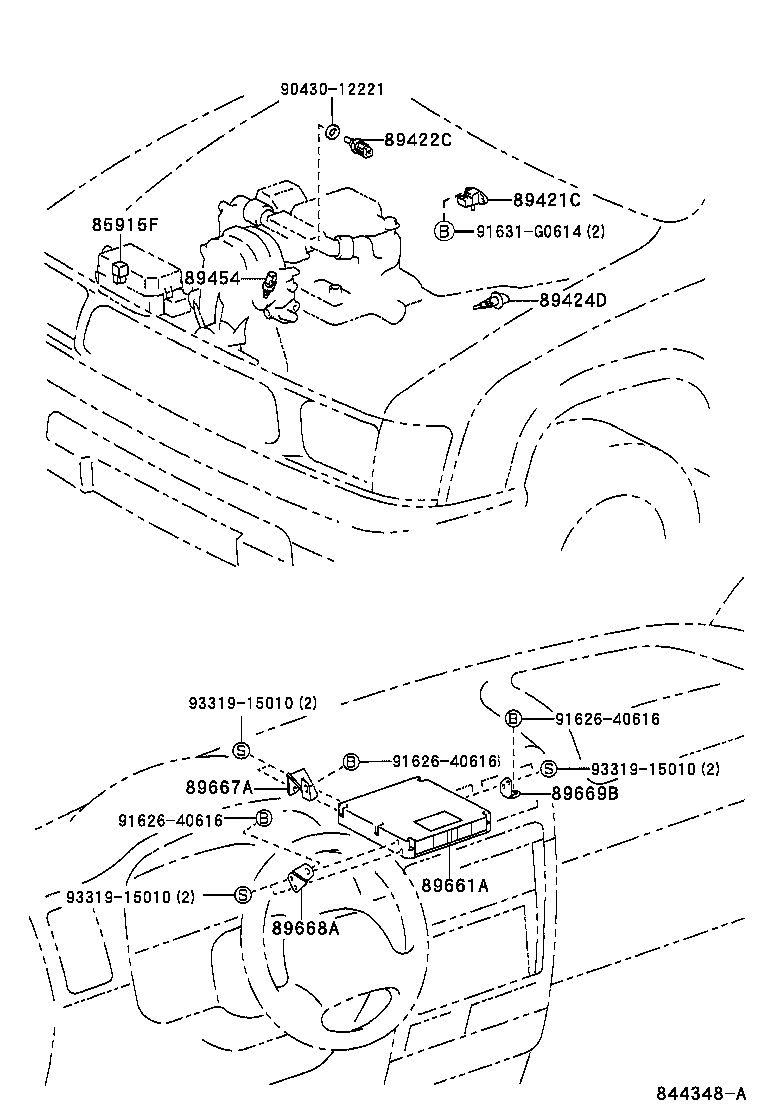

Click highlighted areas on diagram

diagram 85915F 89421C 89422C 89424D 89454 89661A 89667A 89668A 89669B 9043012221 9162640616 9162640616 9162640616 91631G0614 9331915010 9331915010 9331915010
Part # Description Qty Price
85915F - RELAY, SPILL VALVE
85915-26010

KZN205

 1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-60030

KZN205

 1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-35010

KZN205

 1
89424D - SENSOR, INLET AIR TEMPERATURE
89424-12010

KZN205

 1
89454 - SENSOR, FUEL TEMPERATURE
89454-60010

KZN205

 1
89661A - COMPUTER, ENGINE CONTROL
89666-35600

KZN205

 1
89666-35601

KZN205

 1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-35030

KZN205

 1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-35040

KZN205

 1
89669B - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-35030

KZN205

 1
Common parts
90430-12221
91626-40616
91631-G0614
93319-15010
