KZN205L-PRMST (2001)

Toyota Hilux/4runner (4wd)

Production Aug 2001 - Dec 2004
Engine 1KZTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )1KZTE

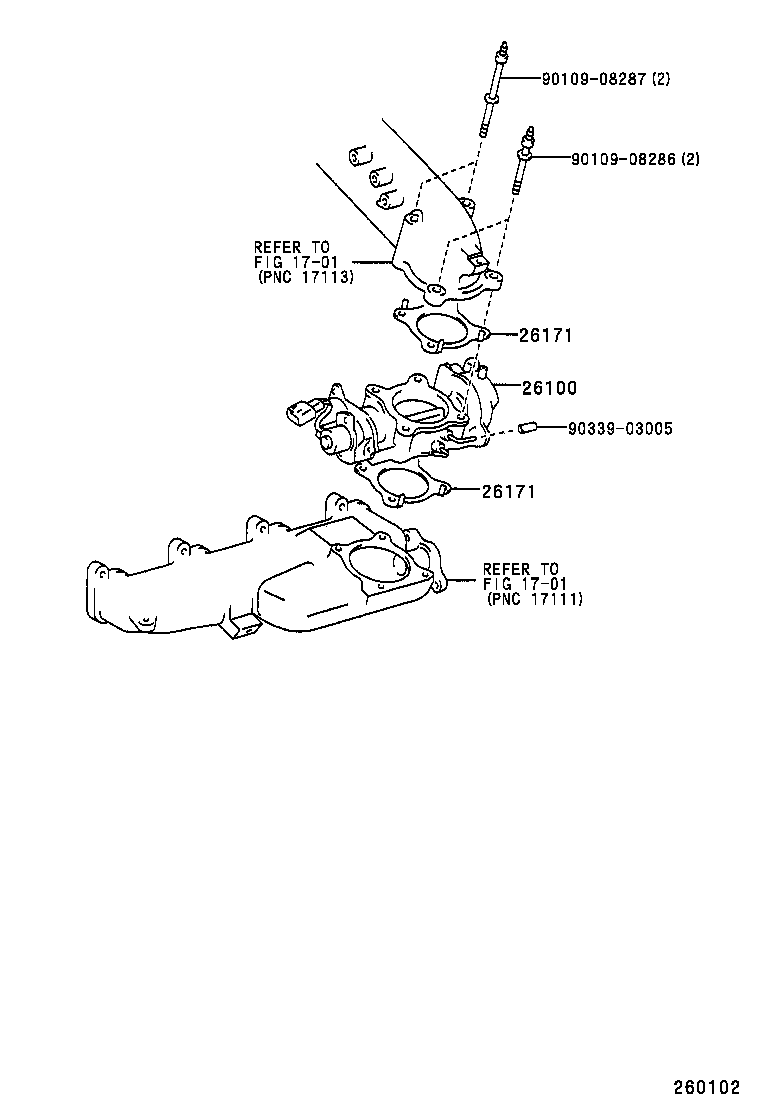

Click highlighted areas on diagram

diagram 1701 1701 26100 26171 26171 9010908286 9010908287 9033903005
Part # Description Qty Price
26100 - VENTURI ASSY
26100-67110

1KZTE..KZN205

 1
26171 - GASKET, VENTURI
26171-67030

1KZTE..KZN205

 2
26171 - GASKET, VENTURI
26171-67030

1KZTE..KZN205

 2
Common parts
90109-08286
90109-08287
90339-03005
Linked diagrams
1701
