KZN205L-PRMST (2001)

Toyota Hilux/4runner (4wd)

Production Aug 2001 - Dec 2004

Engine 1KZTE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0108- )1KZTE

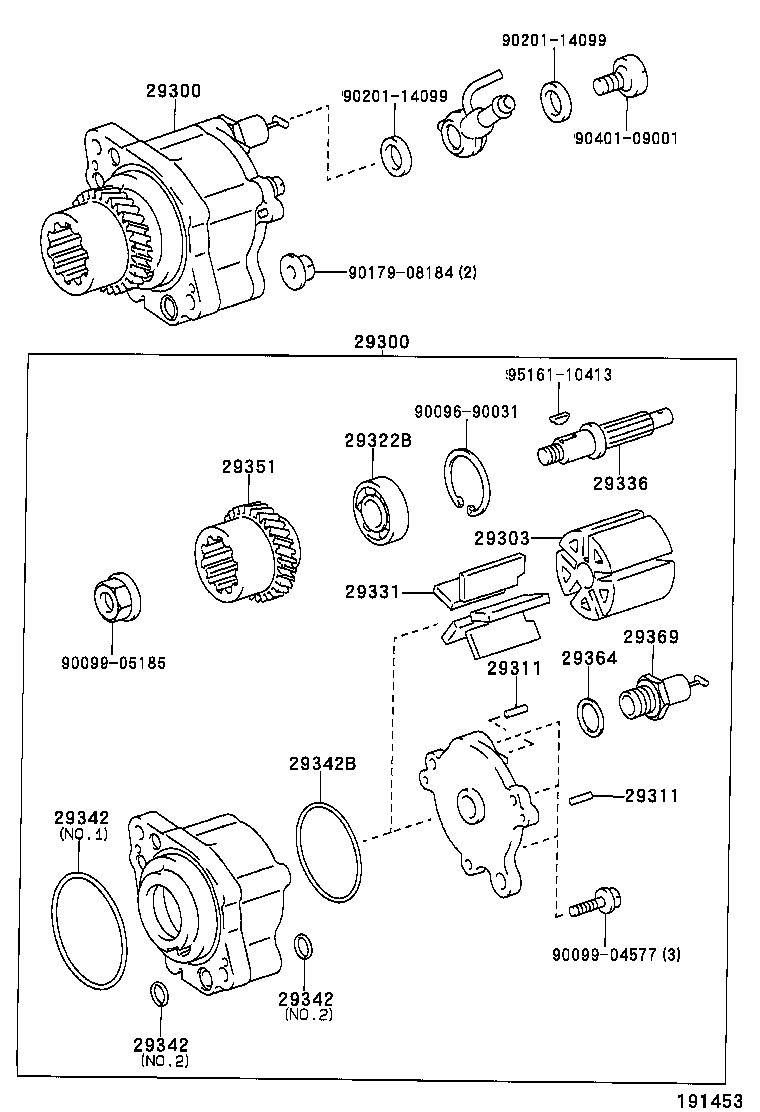

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
29300 - PUMP ASSY, VACUUM
29300-67020	1KZTE..KZN205	08/2001 - 12/2999	1
29300 - PUMP ASSY, VACUUM
29300-67020	1KZTE..KZN205	08/2001 - 12/2999	1
29303 - ROTOR SUB-ASSY, VACUUM PUMP
29303-67020	1KZTE..KZN205	08/2001 - 12/2999	1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010	1KZTE..KZN205	08/2001 - 12/2999	2
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010	1KZTE..KZN205	08/2001 - 12/2999	2
29322B - BEARING, VACUUM PUMP
90099-10185	1KZTE..KZN205	08/2001 - 12/2999	1
29331 - BLADE, VACUUM PUMP, A
29331-67020	1KZTE..KZN205	08/2001 - 12/2999	5
29336 - SHAFT, VACUUM PUMP
29336-58050	1KZTE..KZN205	08/2001 - 12/2999	1
29342 - PACKING, VACUUM PUMP
29342-68010	1KZTE..KZN205 NO.2	08/2001 - 12/2999	2
29342-67020	1KZTE..KZN205 NO.1	08/2001 - 12/2999	1
29342 - PACKING, VACUUM PUMP
29342-68010	1KZTE..KZN205 NO.2	08/2001 - 12/2999	2
29342-67020	1KZTE..KZN205 NO.1	08/2001 - 12/2999	1
29342 - PACKING, VACUUM PUMP
29342-68010	1KZTE..KZN205 NO.2	08/2001 - 12/2999	2
29342-67020	1KZTE..KZN205 NO.1	08/2001 - 12/2999	1
29342B - RING, O
29342-58010	1KZTE..KZN205	08/2001 - 12/2999	1
29351 - GEAR, VACUUM PUMP
29351-67020	1KZTE..KZN205	08/2001 - 12/2999	1
Common parts
90096-90031
90099-04577
90099-05185
90179-08184
90201-14099
90401-09001
95161-10413
