GSU55L-BRTNKC (2015)

Toyota Highlander (China)

Production Mar 2015 - Oct 2017
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1503- )

Click highlighted areas on diagram

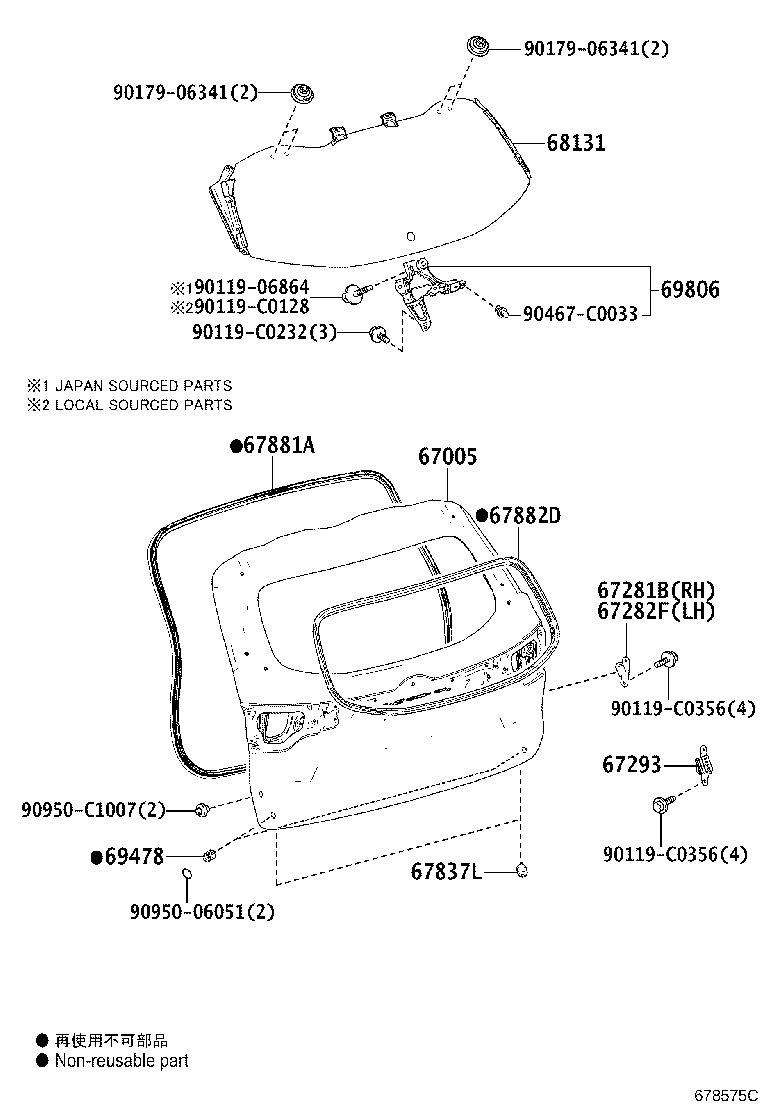

DOOR PANEL(FIXED GLASS TYPE)

diagram 67005 67281B 67282F 67293 67837L 67881A 67882D 68131 69478 69806 9011906864 90119C0128 90119C0232 90119C0356 90119C0356 9017906341 9017906341 90467C0033 9095006051 90950C1007
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-0E360

GSU55..D

 1
67281B - STOPPER, BACK DOOR, LOWER
67281-0E030

GSU55

 1
67282F - STOPPER, BACK DOOR, LWR LH
67282-0E020

GSU55

 1
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-0E040

GSU55

RH

 1
67294-0E020

GSU55

LH

 1
67837L - SEAL, DOOR DUST PROOF
67837-0E020

GSU55

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-0E060

GSU55

 1
67882D - WEATHERSTRIP, BACK DOOR, NO.2
67882-0E040

GSU55

 1
68131 - GLASS, BACK DOOR
68105-0E090

GSU55..D,SPO

 1
69478 - CUSHION, BACK DOOR LOWER STOPPER
69478-0E030

GSU55

 2
69806 - BRACKET SUB-ASSY, BACK DOOR GLASS GUIDE
69806-0E040

GSU55..D,SPO

 1
Common parts
90119-06864
90119-C0128
90119-C0232
90119-C0356
90179-06341
90467-C0033
90950-06051
90950-C1007

ILLUST NO. 1 OF 2(1503- )

Click highlighted areas on diagram

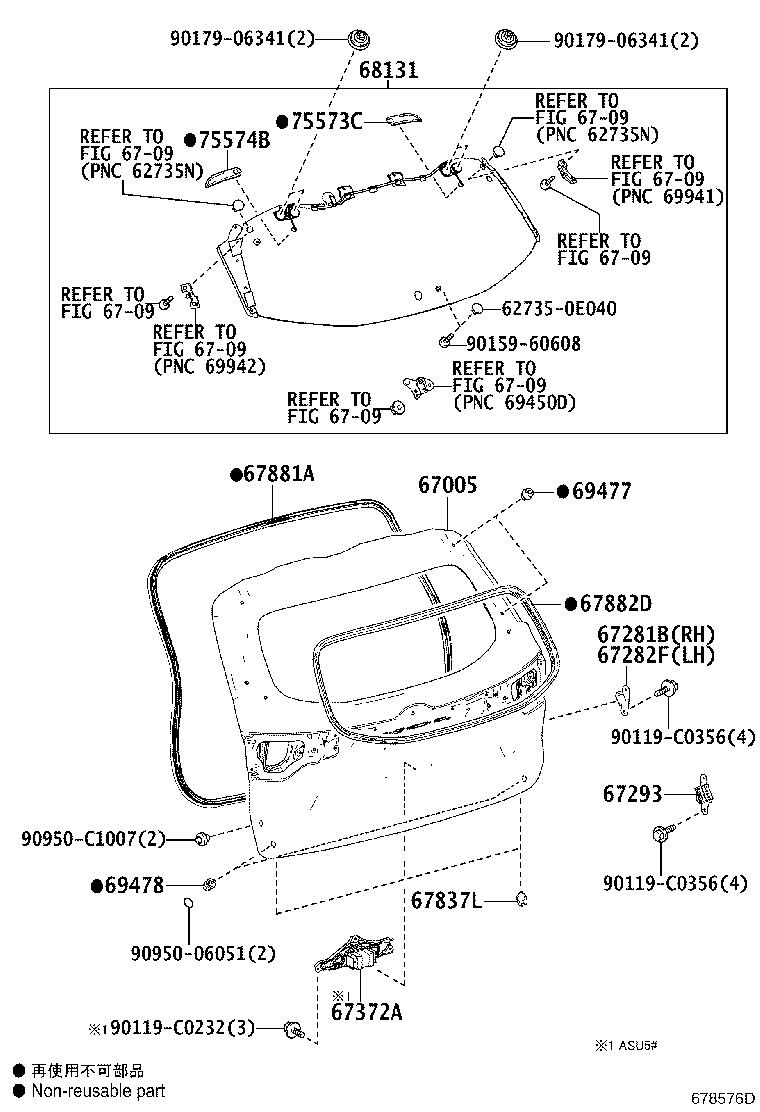

DOOR PANEL(HATCH GLASS TYPE)

diagram 627350E040 67005 6709 6709 6709 6709 6709 6709 6709 6709 67281B 67282F 67293 67372A 67837L 67881A 67882D 68131 69477 69478 75573C 75574B 90119C0232 90119C0356 90119C0356 9015960608 9017906341 9017906341 9095006051 90950C1007
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-0E360

GSU55..D

 1
67281B - STOPPER, BACK DOOR, LOWER
67281-0E030

GSU55

 1
67282F - STOPPER, BACK DOOR, LWR LH
67282-0E020

GSU55

 1
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-0E040

GSU55

RH

 1
67294-0E020

GSU55

LH

 1
67837L - SEAL, DOOR DUST PROOF
67837-0E020

GSU55

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-0E060

GSU55

 1
67882D - WEATHERSTRIP, BACK DOOR, NO.2
67882-0E040

GSU55

 1
68131 - GLASS, BACK DOOR
68105-0E090

GSU55..D,SPO

 1
69478 - CUSHION, BACK DOOR LOWER STOPPER
69478-0E030

GSU55

 2
Common parts
62735-0E040
90119-C0232
90119-C0356
90159-60608
90179-06341
90950-06051
90950-C1007
Linked diagrams
6709

ILLUST NO. 2 OF 2(1503- )

Click highlighted areas on diagram

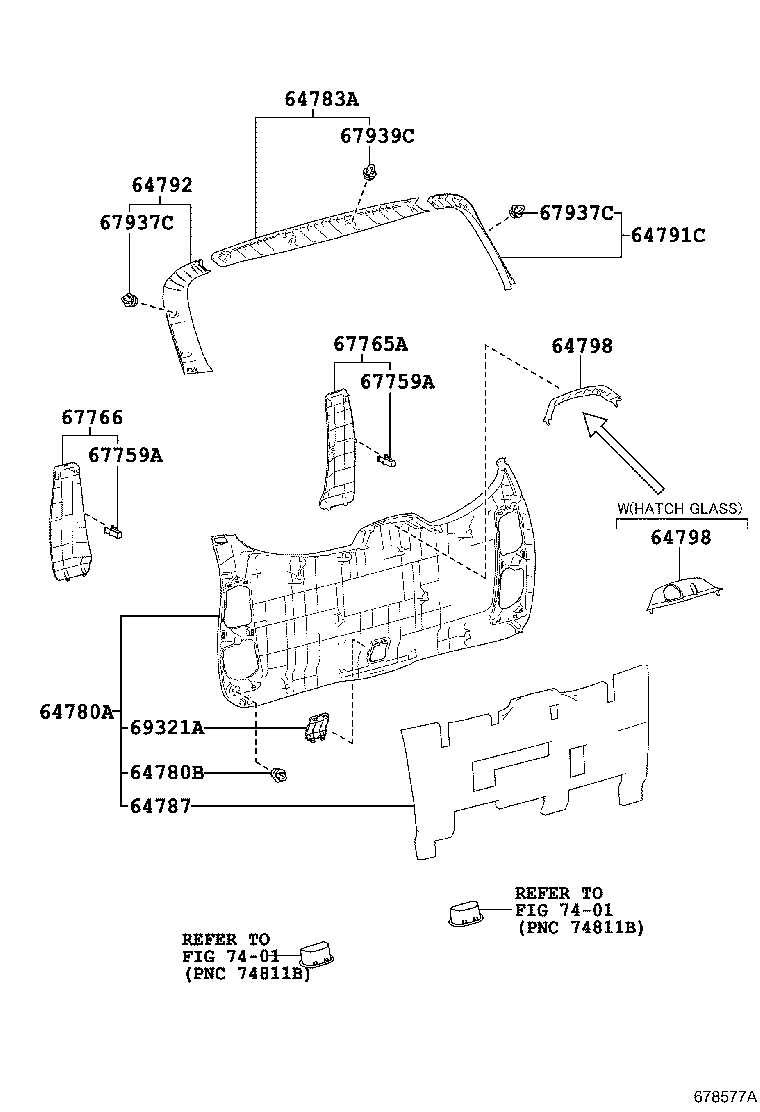

DOOR TRIM

diagram 64780A 64780B 64783A 64787 64791C 64792 64798 64798 67759A 67759A 67765A 67766 67937C 67937C 67939C 69321A 7401 7401
Part # Description Qty Price
64780A - PANEL ASSY, BACK DOOR TRIM
64780-0E080A0

ASU5#,GSU55

FLAXEN,TRIM0#

 1
64780B - CLIP(FOR BACK DOOR TRIM PANEL)
90467-10161

GSU55

 16
64783A - TRIM, BACK WINDOW PANEL, UPPER
64783-0E100A0

ASU5#,GSU55

FLAXEN,TRIM0#

 1
64787 - PAD, BACK DOOR TRIM
64789-0E030

GSU55

 1
64791C - COVER, BACK DOOR TRIM, RH
64791-0E080A0

ASU5#,GSU55

FLAXEN,TRIM0#

 1
64792 - COVER, BACK DOOR TRIM, LH
64792-0E080A0

ASU5#,GSU55

FLAXEN,TRIM0#

 1
64798 - COVER, BACK DOOR LOCK
64798-0E070C0

ASU5#,GSU55..D

BLACK

 1
64798 - COVER, BACK DOOR LOCK
64798-0E070C0

ASU5#,GSU55..D

BLACK

 1
67759A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-10203

GSU55

 8
67759A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-10203

GSU55

 8
67765A - COVER, BACK DOOR SERVICE HOLE, NO.1
67765-0E060A0

ASU5#,GSU55

FLAXEN,TRIM0#

 1
67766 - COVER, BACK DOOR SERVICE HOLE, NO.2
67766-0E060A0

ASU5#,GSU55

FLAXEN,TRIM0#

 1
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
90467-10161

GSU55

 4
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
90467-10161

GSU55

 4
67939C - CLIP(FOR BACK DOOR CENTER GARNISH)
90467-10161

GSU55

 4
69321A - COVER, BACK DOOR LOCK
69321-0E060A0

ASU5#,GSU55

FLAXEN,TRIM0#

 1
Linked diagrams
7401
