GSU55L-BRTNKC (2015)
Toyota Highlander (China)
Production
Mar 2015
-
Oct 2017
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1503- )
Click highlighted areas on diagram

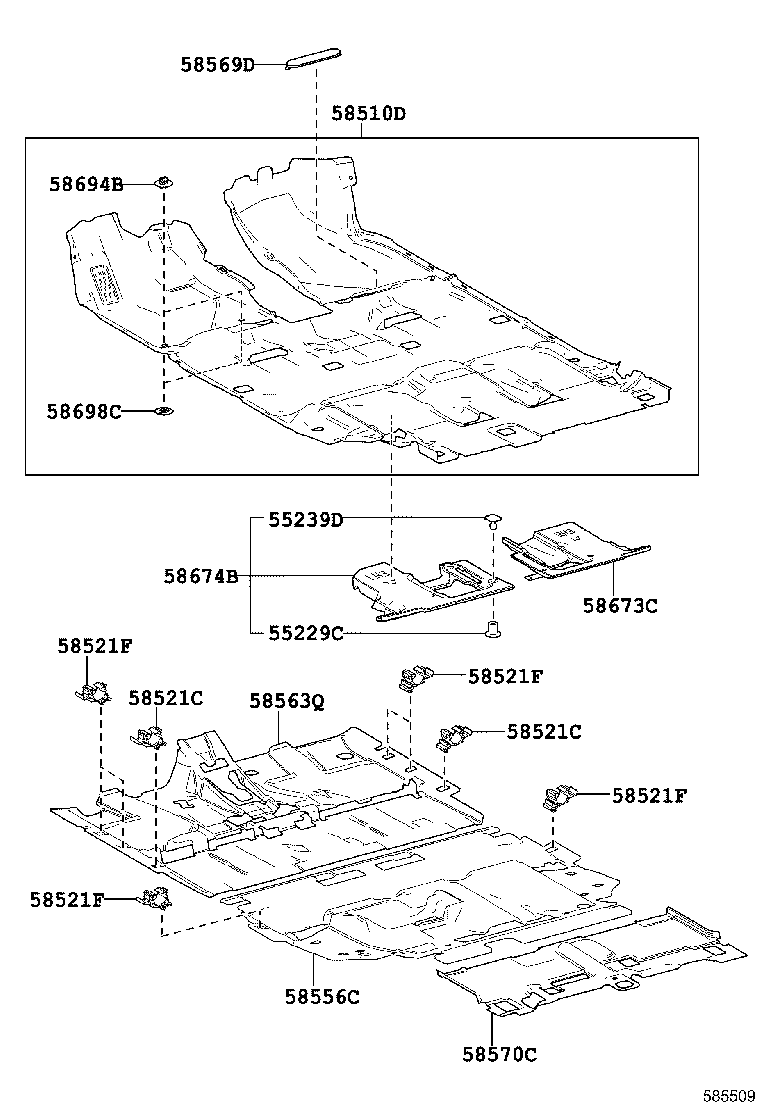

FLOOR CARPET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55229C - PLATE, DASH PANEL INSULATOR, NO.4 | ||||
| 55229-48010 |
GSU55 |
1 | ||
| 55239D - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-48020 |
GSU55 |
1 | ||
| 58510D - CARPET ASSY, FLOOR, FRONT | ||||
| 58510-0E270C0 |
ASU5#,GSU55..D BLACK,TRIM0# |
1 | ||
| 58521C - HOOK, FLOOR CARPET NO.2 | ||||
| 58521-0E070 |
GSU55 |
2 | ||
| 58521C - HOOK, FLOOR CARPET NO.2 | ||||
| 58521-0E070 |
GSU55 |
2 | ||
| 58521F - HOOK, FLOOR CARPET | ||||
| 58521-0E060 |
GSU55 |
6 | ||
| 58521F - HOOK, FLOOR CARPET | ||||
| 58521-0E060 |
GSU55 |
6 | ||
| 58521F - HOOK, FLOOR CARPET | ||||
| 58521-0E060 |
GSU55 |
6 | ||
| 58521F - HOOK, FLOOR CARPET | ||||
| 58521-0E060 |
GSU55 |
6 | ||
| 58556C - SILENCER, REAR FLOOR | ||||
| 58556-0E030 |
GSU55 |
1 | ||
| 58563Q - SILENCER, FRONT FLOOR, NO.3 | ||||
| 58563-0E020 |
GSU55 |
1 | ||
| 58569D - COVER, FRONT FLOOR CAUTION PLATE | ||||
| 58569-0E021C0 |
ASU5#,GSU55..D BLACK,TRIM0# |
1 | ||
| 58570C - CARPET ASSY, REAR FLOOR | ||||
| 58570-0E020 |
GSU55 |
1 | ||
| 58673C - PAD, REAR FLOOR SILENCER, NO.1 | ||||
| 58673-0E080 |
GSU55 |
1 | ||
| 58674B - PAD, REAR FLOOR SILENCER, NO.2 | ||||
| 58674-0E080 |
GSU55 |
1 | ||
| 58694B - PLATE, MAT SET, UPPER | ||||
| 58694-76010 |
GSU55 |
2 | ||
| 58698C - PLATE, MAT SET, LOWER | ||||
| 58698-76010 |
GSU55 |
2 | ||
(1503- )
Click highlighted areas on diagram

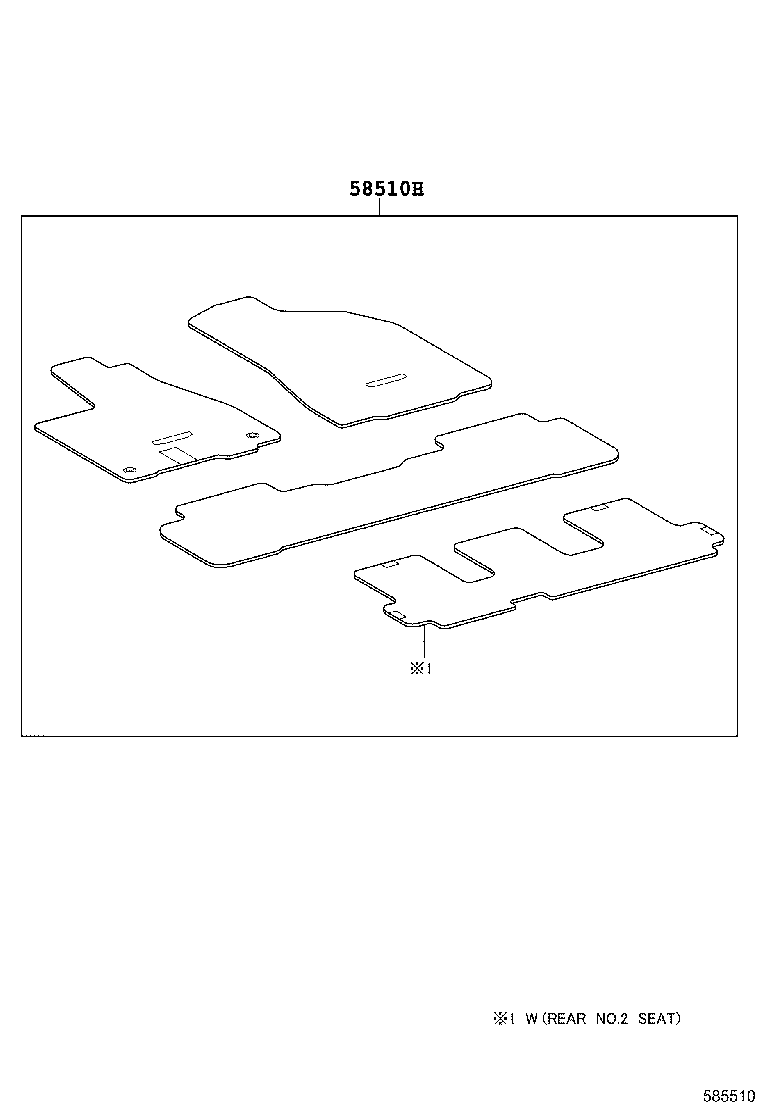

FLOOR MAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510H - MAT ASSY, FLOOR | ||||
| 58510-YY610 |
ASU5#,GSU55 FLOOR MAT-WITH |
1 | ||
