GSU55L-BRTGKC (2015)
Toyota Highlander (China)
Production
Mar 2015
-
Oct 2017
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1503-1803)
Click highlighted areas on diagram

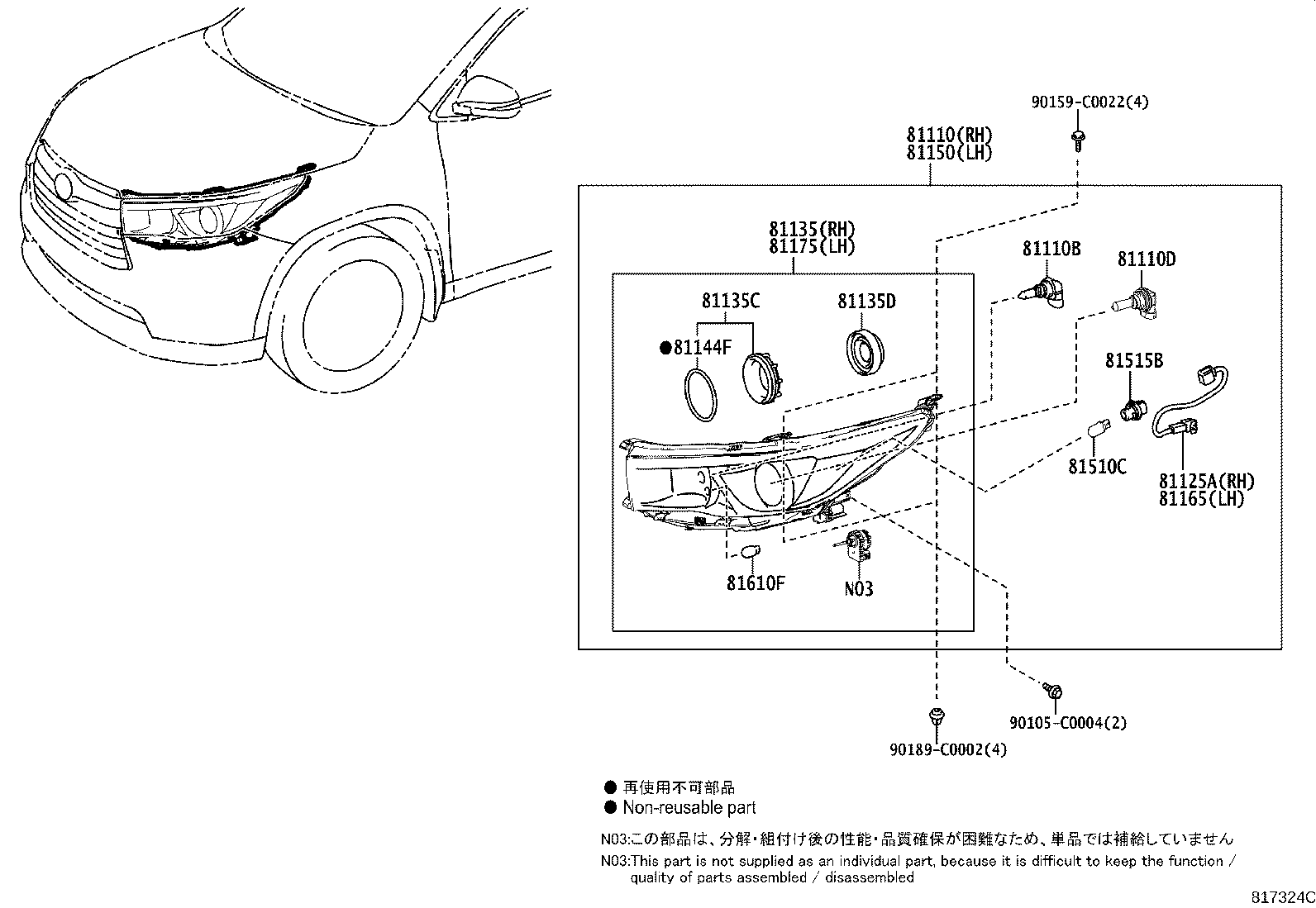

HALOGEN HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0E240 |
GSU55..LIMD |
1 | ||
| 81110-0E230 |
GSU55..D,SPO |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
GSU55 12V65W(SAE),60W(ECE) |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13075 |
GSU55..D,SPO 12V 55W,HALOGEN |
2 | ||
| 81125A - CORD, HEADLAMP, RH | ||||
| 81125-0E230 |
GSU55 |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0E230 |
GSU55..D,SPO |
1 | ||
| 81145-0E240 |
GSU55..LIMD |
1 | ||
| 81135C - COVER, HEADLAMP BACK, NO.1 | ||||
| 81135-60F60 |
GSU55 |
2 | ||
| 81135D - COVER, HEADLAMP BACK, NO.2 | ||||
| 90075-65006 |
GSU55..D,SPO |
2 | ||
| 81144F - O-RING, HEADLAMP COVER | ||||
| 90075-23002 |
GSU55 |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0E230 |
GSU55..D,SPO |
1 | ||
| 81150-0E240 |
GSU55..LIMD |
1 | ||
| 81165 - CORD, HEADLAMP, LH | ||||
| 81125-0E230 |
GSU55 |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0E230 |
GSU55..D,SPO |
1 | ||
| 81185-0E240 |
GSU55..LIMD |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
GSU55 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
GSU55 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
GSU55 12V 5W |
2 | ||
| Common parts | ||||
| 90105-C0004 | ||||
| 90159-C0022 | ||||
| 90189-C0002 | ||||
(1503-1803)
Click highlighted areas on diagram

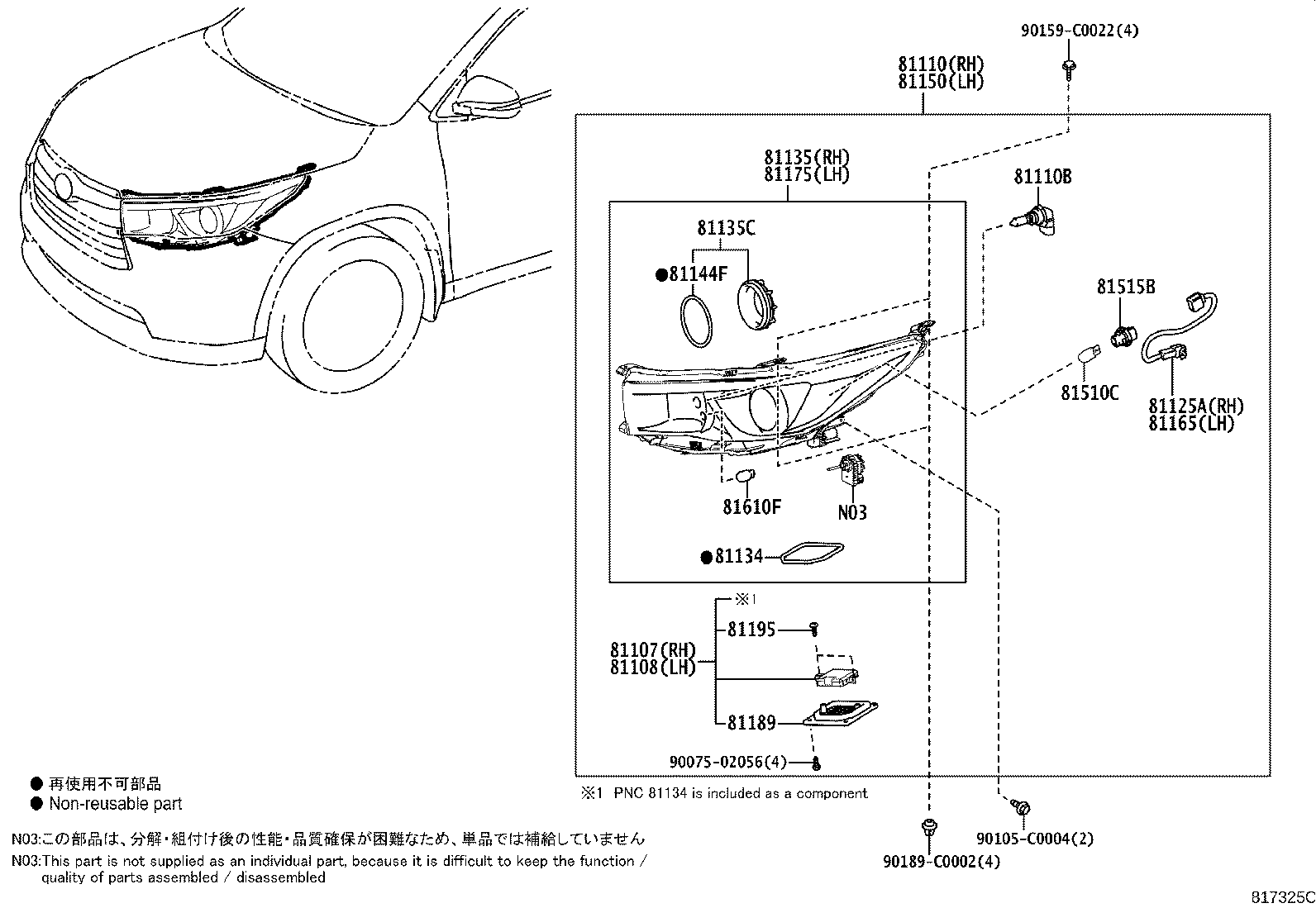

LED HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-0E240 |
GSU55..LIMD |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-0E240 |
GSU55..LIMD |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0E240 |
GSU55..LIMD |
1 | ||
| 81110-0E230 |
GSU55..D,SPO |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
GSU55 12V65W(SAE),60W(ECE) |
2 | ||
| 81125A - CORD, HEADLAMP, RH | ||||
| 81125-0E230 |
GSU55 |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68007 |
GSU55..LIMD |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0E230 |
GSU55..D,SPO |
1 | ||
| 81145-0E240 |
GSU55..LIMD |
1 | ||
| 81135C - COVER, HEADLAMP BACK, NO.1 | ||||
| 81135-60F60 |
GSU55 |
2 | ||
| 81144F - O-RING, HEADLAMP COVER | ||||
| 90075-23002 |
GSU55 |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0E230 |
GSU55..D,SPO |
1 | ||
| 81150-0E240 |
GSU55..LIMD |
1 | ||
| 81165 - CORD, HEADLAMP, LH | ||||
| 81125-0E230 |
GSU55 |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0E230 |
GSU55..D,SPO |
1 | ||
| 81185-0E240 |
GSU55..LIMD |
1 | ||
| 81189 - COVER, HEADLAMP | ||||
| 81135-0E220 |
GSU55..LIMD |
2 | ||
| 81195 - SCREW, HEADLAMP | ||||
| 90075-02051 |
GSU55..LIMD |
4 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
GSU55 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
GSU55 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
GSU55 12V 5W |
2 | ||
| Common parts | ||||
| 90075-02056 | ||||
| 90105-C0004 | ||||
| 90159-C0022 | ||||
| 90189-C0002 | ||||
