GSU55L-BRTGKC (2015)
Toyota Highlander (China)
(1503- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111A - TRIM SUB-ASSY, COWL SIDE, RH | ||||
| 62101-0E060C0 |
ASU5#,GSU55..LIMD,SPO BLACK,TRIM0#,2# |
1 | ||
| 62101-0E060C0 |
ASU5#,GSU55..D BLACK,TRIM0# |
1 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62102-0E060C0 |
ASU5#,GSU55..LIMD,SPO BLACK,TRIM0#,2# |
1 | ||
| 62102-0E060C0 |
ASU5#,GSU55..D BLACK,TRIM0# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
GSU55 |
2 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
GSU55 |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-0E070 |
GSU55 |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
GSU55 |
10 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-0E070 |
GSU55 |
1 | ||
| 62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP | ||||
| 62189-42010 |
GSU55 |
4 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-0E070A0 |
ASU5#,GSU55 FLAXEN,TRIM0# |
1 | ||
| 62210-0E070B0 |
ASU5#,GSU55..LIMD,SPO GRAY,TRIM2# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90467-10161 |
GSU55 |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-0E070B0 |
ASU5#,GSU55..LIMD,SPO GRAY,TRIM2# |
1 | ||
| 62220-0E070A0 |
ASU5#,GSU55 FLAXEN,TRIM0# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-52120 |
GSU55 |
2 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-0E060C0 |
ASU5#,GSU55..LIMD,SPO BLACK,TRIM0#,2# |
1 | ||
| 62311-0E060C0 |
ASU5#,GSU55..D BLACK,TRIM0# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-0E060C0 |
ASU5#,GSU55..D BLACK,TRIM0# |
1 | ||
| 62312-0E060C0 |
ASU5#,GSU55..LIMD,SPO BLACK,TRIM0#,2# |
1 | ||
| 62331C - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-0E060C0 |
ASU5#,GSU55..LIMD,SPO BLACK,TRIM0#,2# |
1 | ||
| 62331-0E060C0 |
ASU5#,GSU55..D BLACK,TRIM0# |
1 | ||
| 62332C - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-0E060C0 |
ASU5#,GSU55..D BLACK,TRIM0# |
1 | ||
| 62332-0E060C0 |
ASU5#,GSU55..LIMD,SPO BLACK,TRIM0#,2# |
1 | ||
| 62410B - CLIP | ||||
| 90467-09232 |
GSU55 |
4 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-0E070B1 |
ASU5#,GSU55..LIMD,SPO GRAY,TRIM2# |
1 | ||
| 62410-0E070A1 |
ASU5#,GSU55 FLAXEN,TRIM0# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-0E070A1 |
ASU5#,GSU55 FLAXEN,TRIM0# |
1 | ||
| 62420-0E070B1 |
ASU5#,GSU55..LIMD,SPO GRAY,TRIM2# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-0E060C0 |
ASU5#,GSU55..LIMD,SPO BLACK,TRIM0#,2# |
1 | ||
| 62413-0E060C0 |
ASU5#,GSU55..D BLACK,TRIM0# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-09232 |
GSU55 |
4 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-0E060C0 |
ASU5#,GSU55..LIMD,SPO BLACK,TRIM0#,2# |
1 | ||
| 62414-0E060C0 |
ASU5#,GSU55..D BLACK,TRIM0# |
1 | ||
| 62430A - CLIP, ROOF SIDE RAIL GARNISH | ||||
| 90467-10167 |
GSU55 BLUE |
6 | ||
| 90467-A0033 |
GSU55 NATURAL |
2 | ||
| 62451C - GARNISH, ROOF SIDE RAIL, REAR RH | ||||
| 62450-0E020B0 |
ASU5#,GSU55..LIMD,SPO GRAY,TRIM2# |
1 | ||
| 62450-0E020A0 |
ASU5#,GSU55 FLAXEN,TRIM0# |
1 | ||
| 62452C - GARNISH, ROOF SIDE RAIL, REAR LH | ||||
| 62460-0E020B0 |
ASU5#,GSU55..LIMD,SPO GRAY,TRIM2# |
1 | ||
| 62460-0E020A0 |
ASU5#,GSU55 FLAXEN,TRIM0# |
1 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62470-0E140B0 |
ASU5#,GSU55..LIMD,SPO GRAY,TRIM2# |
1 | ||
| 62470-0E140A0 |
ASU5#,GSU55 FLAXEN,TRIM0# |
1 | ||
| 62471M - CLIP | ||||
| 90467-18017 |
GSU55 |
18 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62480-0E140B0 |
ASU5#,GSU55..LIMD,SPO GRAY,TRIM2# |
1 | ||
| 62480-0E140A0 |
ASU5#,GSU55 FLAXEN,TRIM0# |
1 | ||
| 62489C - CLIP, ROOF SIDE INNER GARNISH | ||||
| 62489-60020 |
GSU55 |
6 | ||
| 62550 - GARNISH ASSY, REAR BODY PILLAR, RH | ||||
| 62550-0E020B0 |
ASU5#,GSU55..LIMD,SPO GRAY,TRIM2# |
1 | ||
| 62550-0E020A0 |
ASU5#,GSU55 FLAXEN,TRIM0# |
1 | ||
| 62550B - CLIP(FOR REAR WINDOW SIDE GARNISH) | ||||
| 90467-10161 |
GSU55 |
4 | ||
| 62560 - GARNISH ASSY, REAR BODY PILLAR, LH | ||||
| 62560-0E020B0 |
ASU5#,GSU55..LIMD,SPO GRAY,TRIM2# |
1 | ||
| 62560-0E020A0 |
ASU5#,GSU55 FLAXEN,TRIM0# |
1 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-0E100C0 |
ASU5#,GSU55..D BLACK,TRIM0# |
1 | ||
| 67911-0E110C0 |
ASU5#,GSU55..LIMD,SPO BLACK,TRIM0#,2# |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67912-0E110C0 |
ASU5#,GSU55..LIMD,SPO BLACK,TRIM0#,2# |
1 | ||
| 67912-0E100C0 |
ASU5#,GSU55..D BLACK,TRIM0# |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-0E070C0 |
ASU5#,GSU55..LIMD,SPO BLACK,TRIM0#,2# |
1 | ||
| 67913-0E070C0 |
ASU5#,GSU55..D BLACK,TRIM0# |
1 | ||
| 67913A - CLIP(FOR SCUFF PLATE) | ||||
| 90467-10167 |
GSU55 |
8 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-0E070C0 |
ASU5#,GSU55..LIMD,SPO BLACK,TRIM0#,2# |
1 | ||
| 67914-0E070C0 |
ASU5#,GSU55..D BLACK,TRIM0# |
1 | ||
| 67914A - CLIP(FOR SCUFF PLATE) | ||||
| 90467-09206 |
GSU55 |
4 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-0E060C0 |
ASU5#,GSU55..D BLACK,TRIM0# |
1 | ||
| 67917-0E060C0 |
ASU5#,GSU55..LIMD,SPO BLACK,TRIM0#,2# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-0E070C0 |
ASU5#,GSU55..LIMD,SPO BLACK,TRIM0#,2# |
1 | ||
| 67918-0E070C0 |
ASU5#,GSU55..D BLACK,TRIM0# |
1 | ||
| 67918C - CLIP(FOR REAR SCUFF PLATE) | ||||
| 90467-10161 |
GSU55 |
4 | ||
| Common parts | ||||
| 67921-0E060 | ||||
| 90167-C0010 | ||||
| 90189-05183 | ||||

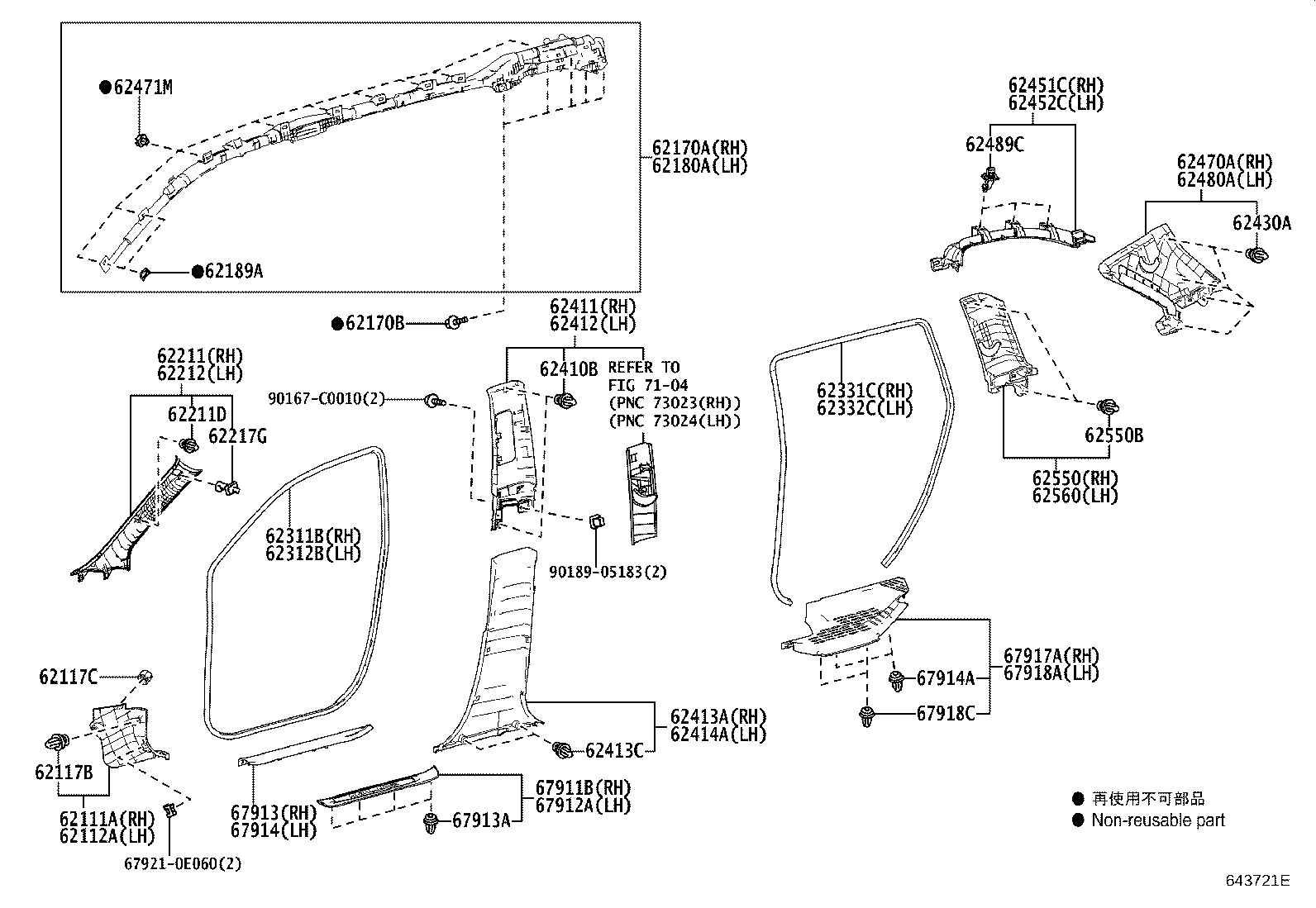

| Linked diagrams | ||||
| 7104 | ||||
