GSU45L-BRASKC (2012)
Toyota Highlander (China)
Production
May 2012
-
Mar 2015
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

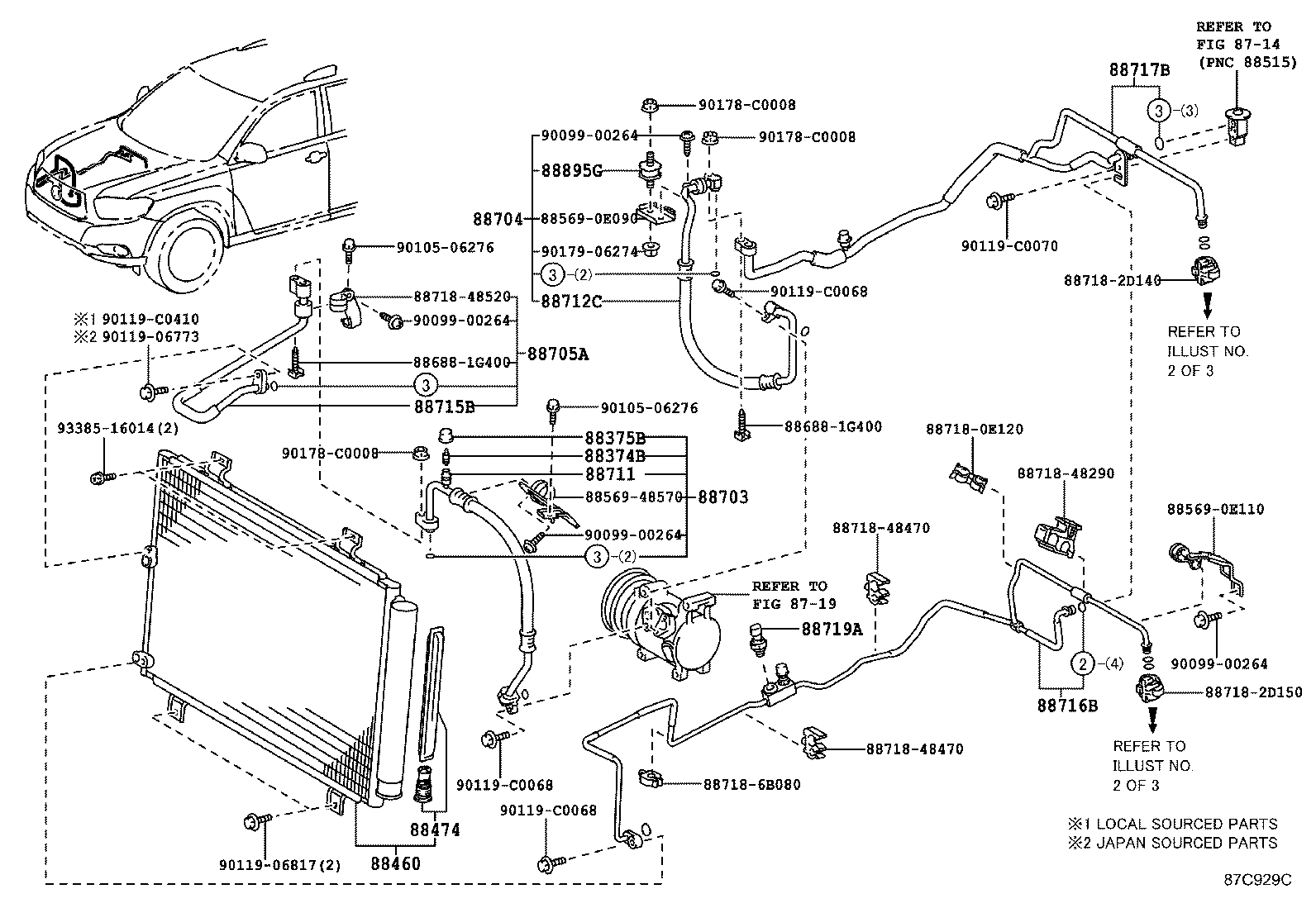

ILLUST NO. 1 OF 3(1205- )GSU45
Click highlighted areas on diagram
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ASU40,GSU45 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
ASU40,GSU45 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0E040 |
ASU40,GSU45 |
1 | ||
| 88460-0E060 |
ASU40,GSU45 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
ASU40,GSU45 |
1 | ||
| 88474-17010 |
ASU40,GSU45 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-0E090 |
GSU45 |
1 | ||
| 88703-0E040 |
GSU45 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0E040 |
GSU45 |
1 | ||
| 88704-0E090 |
GSU45 |
1 | ||
| 88705A - TUBE SUB-ASSY, DISCHARGE | ||||
| 88705-0E070 |
ASU40,GSU45 |
1 | ||
| 88705-0E040 |
ASU40,GSU45 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0E090 |
GSU45 |
1 | ||
| 88712C - HOSE, SUCTION | ||||
| 88712-0E100 |
GSU45 |
1 | ||
| 88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B | ||||
| 88715-0E060 |
ASU40,GSU45 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-0E110 |
ASU40,GSU45 |
1 | ||
| 88716-0E200 |
ASU40,GSU45 |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-0E050 |
ASU40,GSU45 |
1 | ||
| 88717-0E150 |
ASU40,GSU45 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
ASU40,GSU45 |
1 | ||
| 88719-33020 |
ASU40,GSU45 |
1 | ||
| 88895G - BUSH | ||||
| 88467-48010 |
GSU45 |
1 | ||
| Common parts | ||||
| 88569-0E090 | ||||
| 88569-0E110 | ||||
| 88569-48570 | ||||
| 88688-1G400 | ||||
| 88718-0E120 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-48290 | ||||
| 88718-48470 | ||||
| 88718-48520 | ||||
| 88718-6B080 | ||||
| 90099-00264 | ||||
| 90105-06276 | ||||
| 90119-06773 | ||||
| 90119-06817 | ||||
| 90119-C0068 | ||||
| 90119-C0070 | ||||
| 90119-C0410 | ||||
| 90178-C0008 | ||||
| 90179-06274 | ||||
| 93385-16014 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
