GSU45L-BRANKC (2009)

Toyota Highlander (China)

Production May 2009 - May 2012
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0905- )

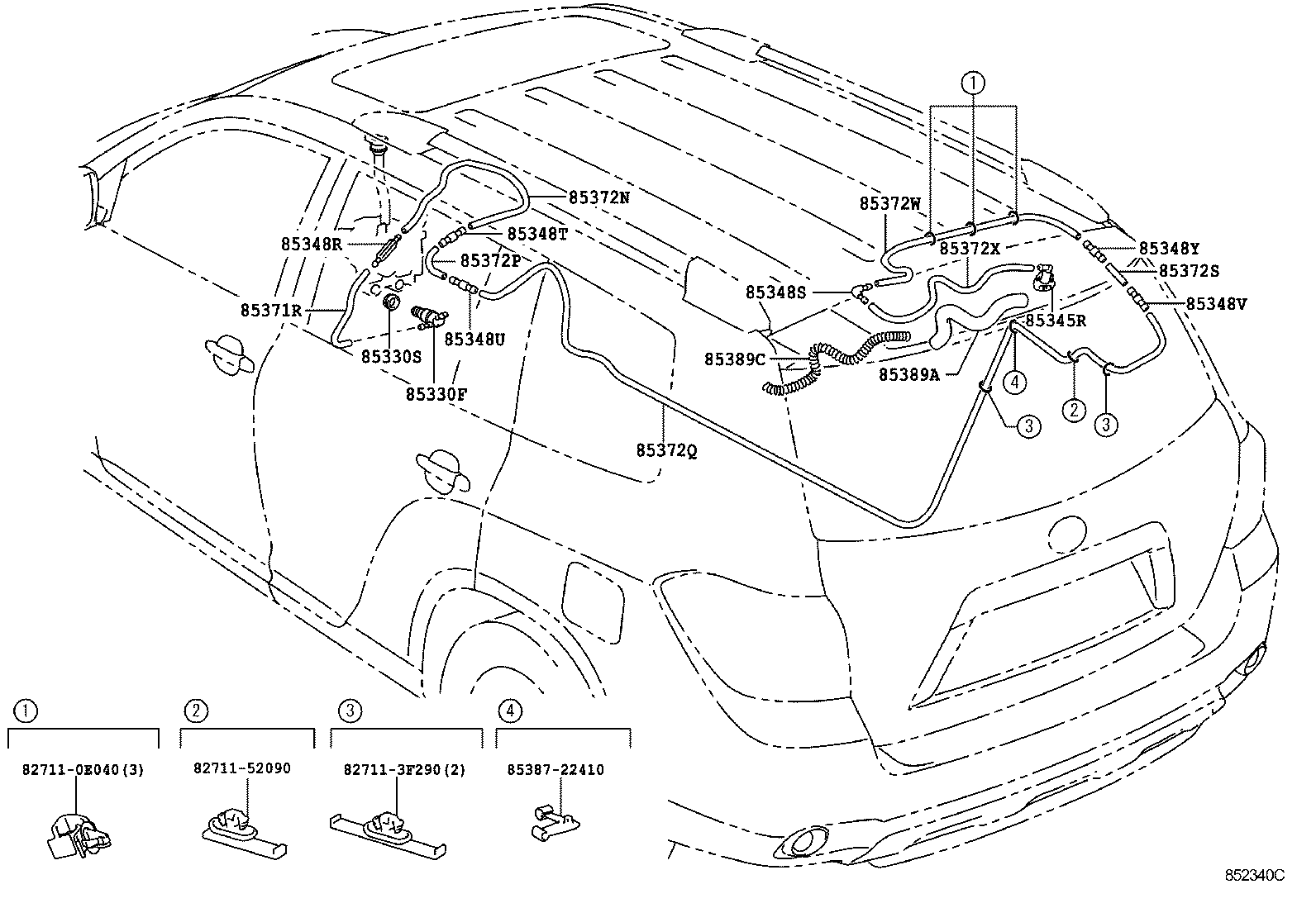

Click highlighted areas on diagram

diagram 827110E040 827113F290 8271152090 85330F 85330S 85345R 85348R 85348S 85348T 85348U 85348V 85348Y 85371R 85372N 85372P 85372Q 85372S 85372W 85372X 8538722410 85389A 85389C
Part # Description Qty Price
85330F - MOTOR & PUMP ASSY, RR WASHER
85330-60180

ASU40,GSU45

 1
85330S - BUSH, REAR WASHER JAR
85336-60300

ASU40,GSU45

 1
85345R - NOZZLE, REAR WASHER
85391-48030

ASU40,GSU45..D,LIMD

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85375-0E150

ASU40,GSU45

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85377-0E160

ASU40,GSU45

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85375-0E140

ASU40,GSU45

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85375-0E140

ASU40,GSU45

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85375-0E140

ASU40,GSU45

 1
85348Y - JOINT, REAR WASHER HOSE, NO.5
85375-0E140

ASU40,GSU45

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90068-33118

ASU40,GSU45

*H,L=330

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90068-59084

ASU40,GSU45

L=940

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90068-33122

ASU40,GSU45

L=50

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90068-59086

ASU40,GSU45

L=4795

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90068-33122

ASU40,GSU45

L=50

 1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90068-59085

ASU40,GSU45

L=610

 1
85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
90068-33145

ASU40,GSU45

L=650

 1
85389A - PACKING, WINDSHIELD WASHER HOSE, NO.2
85389-48290

ASU40,GSU45

 1
85389C - PROTECTOR, WASHER
85389-12670

ASU40,GSU45

 1
Common parts
82711-0E040
82711-3F290
82711-52090
85387-22410
